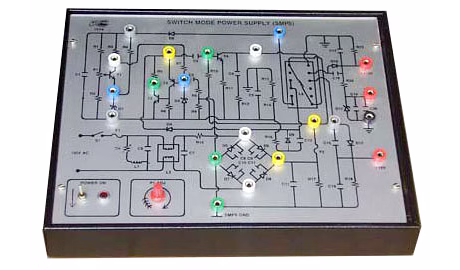

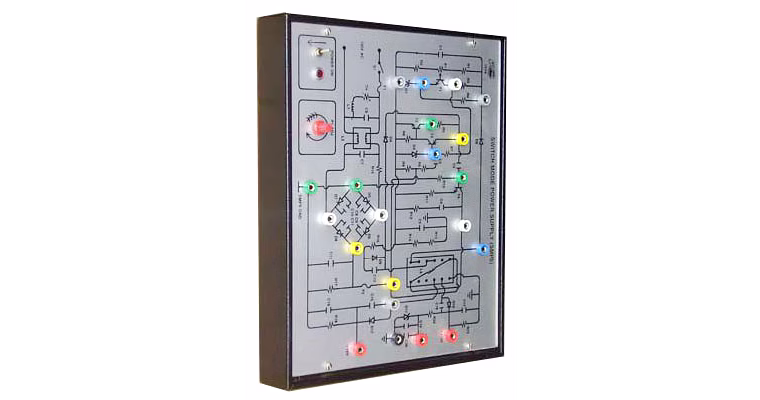

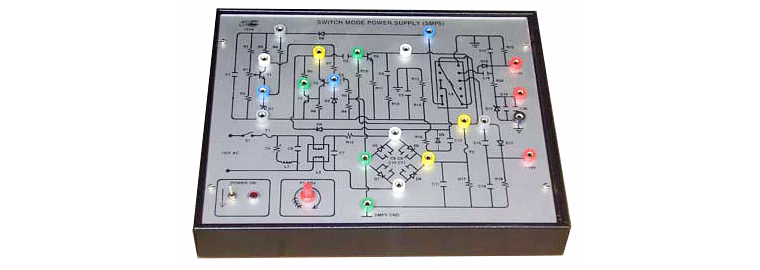

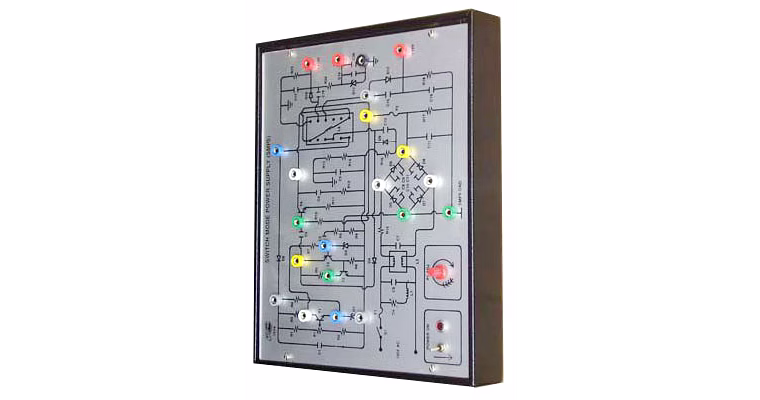

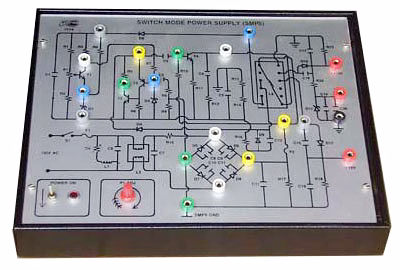

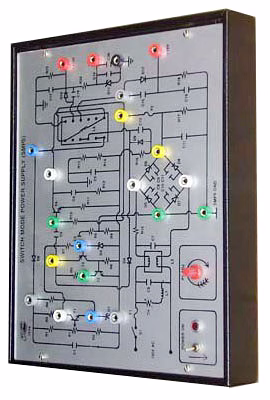

The SMPS Trainer can able to impart both elementary as well as advanced training of switch mode power supply circuit using IC based circuit. The SMPS Trainer is a modularly designed and a self - contained system. Study of SMPS & Hybrid circuit using combination of SMPS & Linear IC’s is possible for learning the advancement in technology. Multiple output both fixed & variable using combinational hybrid circuits is provided. All the terminations are provided on sturdy 4mm brass terminals of BTI 15 type & fitted on front panel in the given block diagram enclosed in a powder coated metal enclosure with powder coated metal cover for longer life.

TECHNICAL SPECIFICATIONS

Type : Switch Mode & Hybrid Circuits using both SMPS & Linear IC’s

Output Voltages : +5V / 1A

    -5V / 500mA

    +12V / 500 mA

    0 to + 12 V / 500 mA

    0 to – 12 V / 500 mA

Protection : Short Circuit Protection with Current foldback & auto reset

Test points : Provided at appropriate points in the circuit

Experiments : 1. Study of basic SMPS

       2. Study of Hybrid SMPS

       3. Measurement of output voltages

                              4. Observation of switching frequency and other waveforms

    5. Determination of Line / load regulation and ripple factor

    6. Comparison of SMPS circuits

Operating Voltage : 90V to 270V AC 1phase

Accessories : Manual
