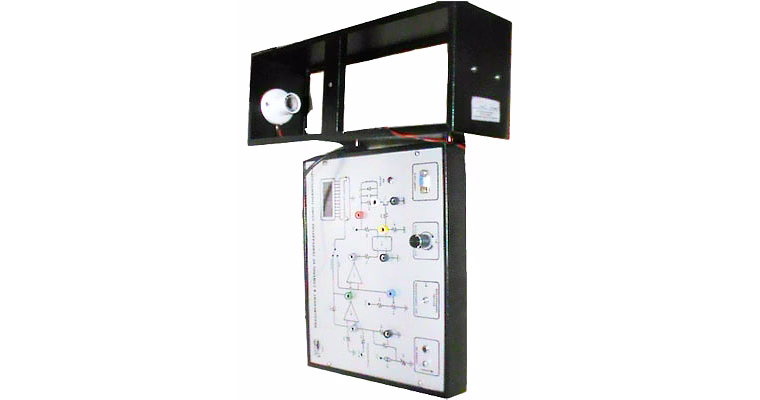

The Measurement and Control of Temperature Using Thermistor Trainer (Digital) with Heating Process is an advanced educational and demonstration unit designed for precise temperature measurement and control applications. This trainer employs a rod-type thermistor sensor configured in a Wheatstone bridge circuit, allowing accurate temperature sensing in the range of 0 to 100°C, with the entire system operable up to 700°C. Featuring a 200W heating element, the unit realistically simulates thermal processes, making it ideal for hands-on learning in industrial automation and instrumentation training environments. The trainer boasts a digital 3.5-digit display that offers dual-mode readout capabilities for both the set temperature and the actual measured temperature. Its ON/OFF control system is enhanced by a user-adjustable set point, allowing flexible and precise temperature regulation. Encased in a robust, powder-coated metal cabinet with an acrylic front panel for easy monitoring and adjustment, the design ensures durability and user-friendly operation. The inclusion of multiple test points permits detailed waveform and voltage analysis throughout the circuit, supporting in-depth technical education and troubleshooting exercises. Power is supplied via a regulated DC source complemented by standard 230V AC mains input, ensuring consistent operation. This Thermistor Trainer is essential for academic institutions, training centers, and industries aiming to enhance understanding and practical skills in electronic temperature control systems.
Key Features
| Features | Description |
|---|---|
| Temperature Measurement System | Thermistor-based transducer with electronic instrumentation using Wheatstone bridge principle |
| Sensor Type | Rod type Thermistor, Class B accuracy |
| Measurement Range | 0 to 100°C for sensor; System range ambient to 700°C |
| Control System | ON/OFF type temperature control |
| Heating Element | 200W capacity heating unit enabling real heating process simulation |
| Display | 3.5-digit digital display with dual mode for set and actual temperature readings in °C |
| Set Point Adjustment | Variable over full temperature range for precise control |
| Power Supply | 230V ±10% AC, 50Hz single phase with DC regulated excitation source for sensor |
| Additional Features | Multi-colored test points for waveform and voltage observation; Mains ON/OFF indicator |
| Enclosure | Powder-coated metal cabinet with imported acrylic panel for durability and design aesthetics |
| Attributes | Description |
|---|---|
| Parameter Measured | Temperature |
| Measurement System | Thermistor transducer with electronic instrumentation |
| Control System Type | ON/OFF control |
| Sensor Configuration | Wheatstone bridge with one arm as thermistor |
| Sensor Accuracy Class | Class B |
| Sensor Range | 0 to 100°C |
| System Operating Range | Ambient to 700°C |
| Heating Unit Power | 200W |
| Excitation Source | DC regulated supply |
| Display Type | 3.5 digit digital dual mode (set and actual temperature) |
| Controls Provided | Set point control, display mode control, mains ON/OFF control |
| Test Points | Multi-colored test points for circuit monitoring |
| Indicators | Mains ON/OFF indicator |
| Power Requirements | 230V ±10% AC, 50Hz, 1 phase |
| Enclosure Finish | Powder coated metal cabinet with acrylic panel |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
This Thermistor Trainer employs an ON/OFF type temperature control system allowing simple and effective temperature regulation.
Temperature is measured using a rod-type thermistor configured as one arm of a Wheatstone bridge circuit, providing precise sensing with Class B sensor accuracy.
The sensor accurately measures temperatures from 0 to 100°C, while the overall system is capable of operating within a variable range from ambient room temperature up to 700°C.
The trainer includes a 200W heating element that generates actual heat, enabling practical demonstrations of temperature control under real heating conditions.
It features a 3.5-digit digital display with dual mode functionality, allowing users to switch between viewing the set temperature and the actual measured temperature in degrees Celsius.
Yes, multiple color-coded test points are provided at various circuit stages enabling observation of waveforms and voltages for in-depth troubleshooting and study.
The unit operates on a 230V, ±10% AC, 50Hz single-phase mains supply with a DC regulated excitation source for the thermistor sensor.
Brand: adtron
Country Of Origin: India
SALIENT FEATURES :
Temperature controller and indicator using Thermistor is a versatile self contained stand alone unit, useful in the study and demonstration of the principle and working of a temperature indicator and controller using Thermistor. An electronic closed loop temperature measuring and controlling system with variable set point, special heating unit and digital readout are in a specially designed users friendly elegant powder coated metal cabinet with intelligently designed layout on imported acrylic panel, are some of its other features.
TECHNICAL SPECIFICATIONS
Parameter Measured : Temperature.
Measurement System : Transducer with electronic instrumentation.
Control System : ON/OFF type.
Transducer : Thermistor.
Type : Rod type.
Sensor Accuracy : Class B type.
Configuration : Bridge with one arm as Thermistor (Wheatstones bridge
principle).
Sensor Range : 0 to 1000C.
System Range : Variable from ambient (room) temperature to700C.
Actual Heating Process : Heating unit of 200w capacity.
Excitation Source : DC Regulated source.
Set Point : Adjustable over full range.
Readout : 3.5 digit digital display; dual mode to: read
a. Set temperature in 0C.
b. Actual temperature in 0C.
Controls : a. Set point control.
b. Display mode control.
c. Mains ON / OFF control.
Test Points : Multi - coloured test points are provided at various stages in The
circuit to observe waveforms and voltages.
Indicators : Mains ON / OFF.
Power Requirements : 230V, 10% AC, 50Hz 1.
