SALIENT FEATURES :

¢ Completely self contained stand - alone unit.

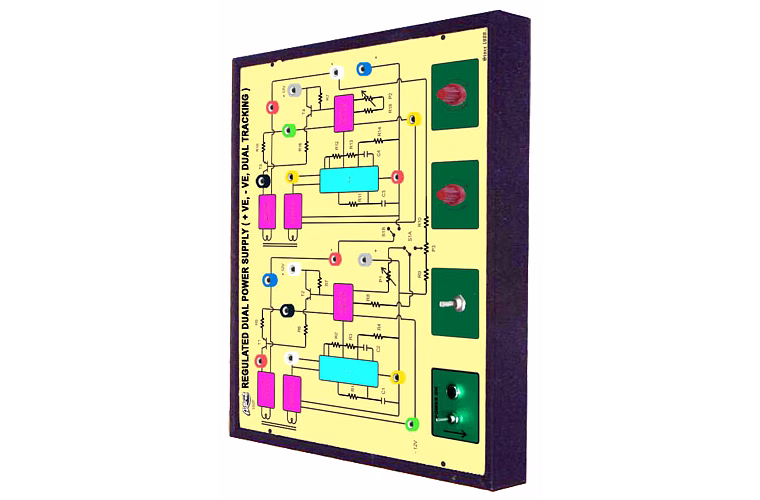

¢ Demonstrates the principle of construction and working of a DC regulated dual power supply.(+ve, -ve).

¢ Supply required 230V, 50Hz AC.

¢ Conversion of the circuit into single mode, dual mode and tracking mode.

¢ Conversion of the circuit as a floating supply or a -ve grounded or +ve grounded supply

¢ Facility of increasing the current capacity of the regulator using power transistor.

¢ Short circuit protected.

¢ Measurement of basic parameters of a DC regulated dual power supply.

¢ Determination of line regulation, load regulation and ripple factor.

¢ Test points at various stages in the circuit, enable to observe the waveforms and voltages.

¢ Set of patch cords.

¢ Housed in an elegant metal cabinet with a well spread intelligently designed circuit layout on the front panel.

¢ Strongly supported by a comprehensive instruction manual complete with theory and operation details.
