SALIENT FEATURES :

¢ Completely self contained stand - alone unit.

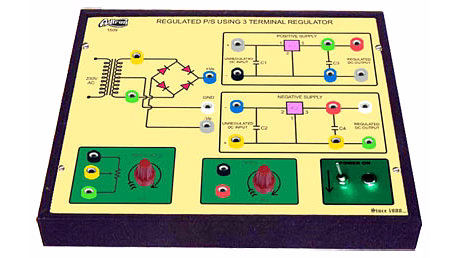

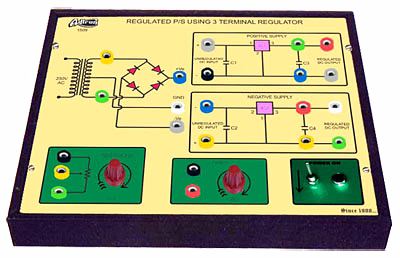

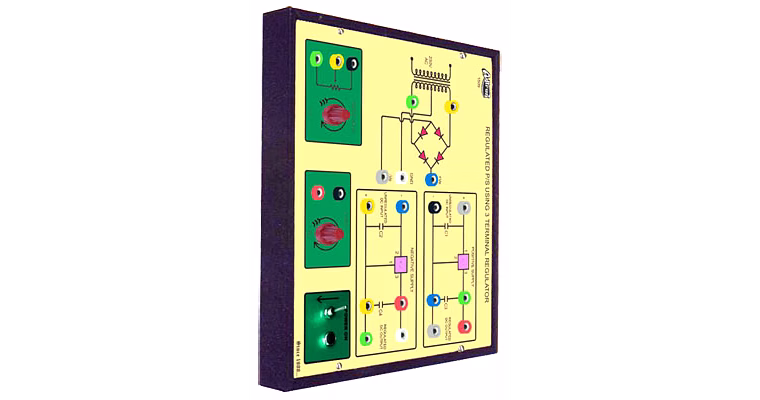

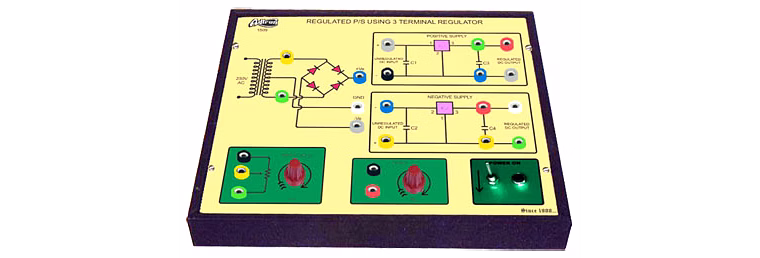

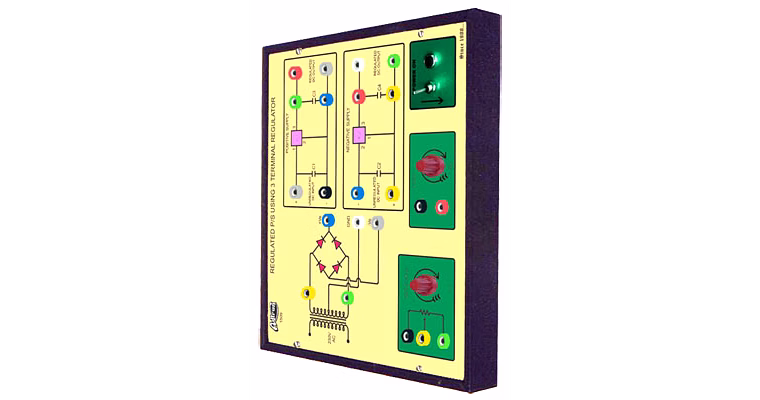

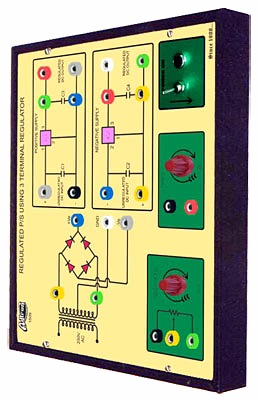

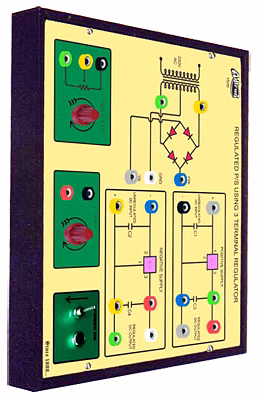

¢ Demonstrates the principle of construction and working of a 3 terminal DC regulated power supply ( 78xx , 79xx ).

¢ Supply required 230V, 50Hz AC.

¢ Short circuit protected.

¢ Study of the effect of capacitor at input and output of the regulator

¢ Study of the effect of ground reference level on output voltage.

¢ Study of the effect of minimum input voltage differential on proper working of the regulator.

¢ Conversion of the circuit from fixed voltage to a higher fixed voltage or a continuously variable regulator.

¢ Measurement of basic parameters of a DC regulated power supply.

¢ Determination of line regulation load regulation and ripple factor.

¢ Test points at various stages in the circuit, enable to observe the waveforms and voltages.

¢ Set of patch cords.

¢ Housed in an elegant metal cabinet with a well spread intelligently designed circuit layout on the front panel.

¢ Strongly supported by a comprehensive instruction manual complete with theory and operation details.
