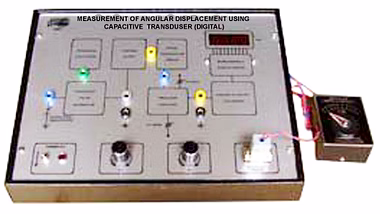

The Measurement of Angular Displacement Using Capacitive Transducer Trainer (Digital) is a precision instrument designed specifically for accurately measuring angular displacement via an advanced capacitive transducer, known as the gang type transducer. This trainer is engineered to demonstrate the fundamental principle and working mechanism of capacitive (gang) transducers within angular displacement applications, providing educational and practical exposure for industrial and research environments. It incorporates a variable displacement mechanism alongside a calibrated dial mounted on the transducer shaft, enabling precise adjustment and measurement from 0° to 90°. The system features a high-precision dielectric gang capacitive transducer integrated with specialized electronic instrumentation, ensuring accurate signal conditioning and digital readout of angular displacement in degrees. The device is housed in a durable, ergonomically designed powder-coated metal cabinet with an imported acrylic front panel for ease of use and superior durability. Key operational controls include ON/OFF switch, zero and span adjustment potentiometers, providing fine calibration capabilities. The 3.5 digit digital display delivers clear numeric indication of angular displacement, while multicolored test points allow users to monitor waveforms and voltage levels at various circuit stages for in-depth analysis. Operating at 230V ±10% AC single phase, this trainer is ideal for professional usage in laboratories, testing, calibration centers, and industrial training setups focusing on capacitive transducer technologies and angular displacement measurement applications.
Key Features
| Features | Description |
|---|---|
| Measurement Type | Angular Physical Displacement |
| Transducer Type | Capacitive Dielectric Gang Transducer |
| Displacement Range | 0° to 90° |
| Display | 3.5 Digit Digital Display |
| Controls | ON/OFF switch, Zero adjust potentiometer, Span adjust potentiometer |
| Cabinet Material | Powder Coated Metal with Acrylic Front Panel |
| Operating Voltage | 230V ±10% AC, Single Phase |
| Test Points | Multicolored test points at various circuit stages |
| Calibration | Calibrated dial on transducer shaft for precise displacement adjustment |
| Application | Educational and Industrial Trainer for Angular Displacement Measurement using Capacitive Transducer |
| Attributes | Description |
|---|---|
| Parameter Measured | Angular Physical Displacement |
| Measurement System Components | Gang type transducer with calibrated dial and electronic instrumentation |
| Transducer Principle | Capacitive Dielectric Gang |
| Control Features | ON/OFF switch, zero adjust, and span adjust potentiometers |
| Display Type | Digital Numeric Display (3.5 digits) |
| Displacement Range | 0 to 90 degrees |
| Power Supply | 230V AC ±10%, Single Phase |
| Test Points Included | Yes, multicolored test points for waveform and voltage observation |
| Enclosure | Powder coated metal cabinet with imported acrylic front panel |
| Usage | Technical training, calibration, research, and angular displacement analysis |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
The trainer offers precise angular displacement measurement within the range of 0° to 90°, utilizing a calibrated dial on the transducer shaft and digitized readout for high accuracy, suited for technical training and industrial calibration purposes.
Yes, it features a 3.5 digit digital display that provides clear, numerical indication of the angular displacement in degrees.
The system includes zero adjust and span adjust potentiometers that allow the user to finely calibrate the measurement output and offset for precise displacement readings.
Yes, the trainer incorporates multicolored test points at various circuit stages, enabling users to observe waveforms and voltage levels for diagnostic and educational purposes.
The trainer operates on a standard 230V AC ±10% single-phase supply, suitable for typical laboratory and industrial environments.
The trainer is designed to measure angular displacement within a fixed range of 0° to 90°, adjustable precisely via the calibrated dial on the transducer shaft.
The device is enclosed in a sturdy powder-coated metal cabinet and features an imported acrylic front panel, providing robustness and user-friendly interaction in industrial and educational settings.
Brand: adtron
Country Of Origin: India
SALIENT FEATURES :
Displacement measurement system demonstrates the principle and working of the specialized dedicated transducer known as "Capacitive" (gang) type, and also shown is one of its unique applications to measure physical angular displacement. A special arrangement to vary the displacement accurately. A variable excitation source, electronic instrumentation and digital readout all enclosed in a specially designed users friendly elegant powder coated metal cabinet with intelligently designed layout on imported acrylic front panel, are some of its other important features.
TECHNICAL SPECIFICATIONS
Parameter Measured : Angular Physical Displacement.
Measurement System : a] Gang with a calibrated dial mounted on its shaft.
b] Transducer with electronic instrumentation.
Transducer : Capacitive.
Type : Dielectric Gang
Controls : 1. ON\OFF Switch
2. Zero adjust potentimeter.
3. Span adjust potentimeter.
Indicator : Mains ON/OFF.
Displacement Range : 00 to 900.
Readout : 3.5 Digit Digital Display to indicate the angular displacement in
degrees.
Operating Voltage : 230V, 10% AC, 1.
Test Points : Multicoloured test points are provided at various stages in the circuit
to observe the waveforms and voltages.
