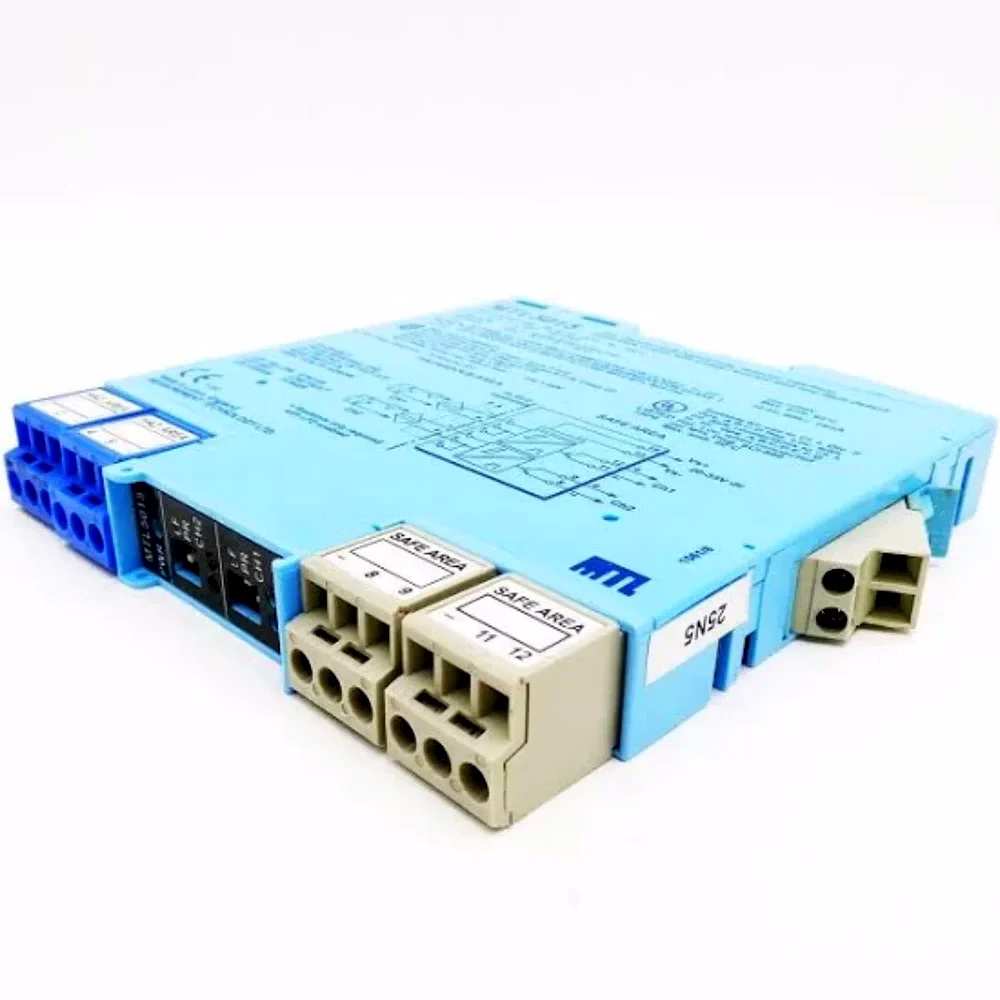

MTL4514X – Switch/Proximity Detector Interface Module

MTL4514X is a compact digital interface module designed to condition field signals from switches or proximity detectors for safe connection to centralized control systems. Utilizing galvanic isolation and input filtering, the module deliver repeatable discrete inputs while preventing ground-loop disturbances and signal noise. The unit architecture features integrated TVS diode clamping for surge suppression, protecting downstream logic from induced electrical spikes. Designed for DIN-rail or modular cabinet mounting, the module supports both loop-powered and externally powered sensors. Units ship in protective anti-static trays with lot traceability and functional test reports. Supply-readiness is managed through factory functional acceptance, addressing the procurement requirements of system integrators seeking isolated instrumentation interfaces with documented QC records and moisture-controlled packaging for cross-border logistics.

Key Features

• Galvanic isolation architecture → eliminates ground-loop induced errors and prevents field-side electrical faults from propagating to sensitive control logic.
• Input surge suppression → utilize TVS diode technology to clamp transient voltage magnitudes, ensuring module survivability in electrically noisy industrial environments.
• Compact DIN-rail mounting → features a space-efficient form factor with captive screw-clamp connectors to simplify high-density panel wiring and maintenance.

Technical Attributes

• Input Type: Dry contact or Proximity → selection parameter based on the field sensing technology and output characteristics.
• Mounting Standard: 35 mm DIN-rail → ensures mechanical compatibility with standard modular control cabinets and instrument racks.
• Protection: RC Filtering + TVS → selection parameter for reducing false trips and protecting against high-voltage surges.
• Test Protocol: Functional acceptance per lot → provided to support incoming QC at system integrators and site acceptance testing.

Electrical Architecture and Component Logic of the MTL4514X Module

The technical framework of the MTL4514X Switch/Proximity Detector Interface utilize isolated optocouplers and input RC filtering to present clean digital transitions to PLC and safety logic boards. The structural reasoning for this isolation is to provide a "safety boundary" between the field wiring and the control room; if a high-voltage transient occurs in the plant—due to a motor fault or lightning strike—the TVS diodes clamp the surge while the optocoupler ensures no electrical path exists to the control system. Without this specific protection logic, a single field fault could decommissioning the entire logic rail, leading to catastrophic production downtime. PCB layout utilize dedicated ground planes and isolation gaps to minimize EMI coupling. A failure in the optocoupler—due to component aging—results in "signal latching," where the input remains in the high or low state regardless of the field sensor condition. Quality consistency is managed through serialized functional tests that verify the switching thresholds and isolation voltage (typically 2.5 kV) for every unit, ensuring the module meets the safety-critical requirements of industrial monitoring systems.

Functional Performance and Operational Efficiency in Noisy Environments

Operational efficiency is achieved through the unit’s integrated input filtering, which rejects the "contact chatter" common in mechanical switches. failure to implement this debounce logic results in false alarm triggers and excessive event logging in the SCADA system—an operational failure that masks genuine process alarms. functional performance centers on the module’s ability to provide deterministic signals in environments with high electromagnetic interference. The MTL4514X utilize captive screw-clamp terminals that maintain contact integrity under the continuous vibration typical of industrial machinery cabinets. If the terminal torque is improperly applied during installation, localized high-resistance contacts occur, manifesting as intermittent signal loss upon site commissioning. The module’s small footprint allows for dense packing of channels; a failure to manage the "thermal packing density" results in logic drift, though this is mitigated by the module's low-power, high-efficiency design. By providing a conditioned and isolated signal, the interface effectively improves the overall reliability of the safety interlock system, reducing the mean time to repair (MTTR) through its modular, plug-and-play mounting.

Institutional Deployment and Logistical Readiness for Safety Modules

Designed for industrial control panels, discrete I/O expansion, and safety monitoring, the MTL4514X is configured for the logistical requirements of global multi-site procurement. Units ship in anti-static trays with desiccant pouches to prevent moisture-induced tracking on the PCBA. Failure to implement ESD-safe packaging results in "latent failure," where internal circuits are weakened and fail unexpectedly weeks after commissioning. For international procurement, supply-readiness is supported through lot-based traceability and functional test reports provided with each shipment (ISO/CE). Export-ready documentation include material declarations and terminal pinout diagrams to facilitate customs review and institutional asset registration. Packaging utilize segmented foam to prevent mechanical shock during transit; failure to secure the modules results in "component racking," where the connectors become loose from the board. OEM channel branding and private-label marking are supported, allowing integrators to deliver branded safety suites with serialized records. This high-authority approach ensures procurement teams receive verified, site-ready instruments that meet the safety and performance standards of global industrial markets.
