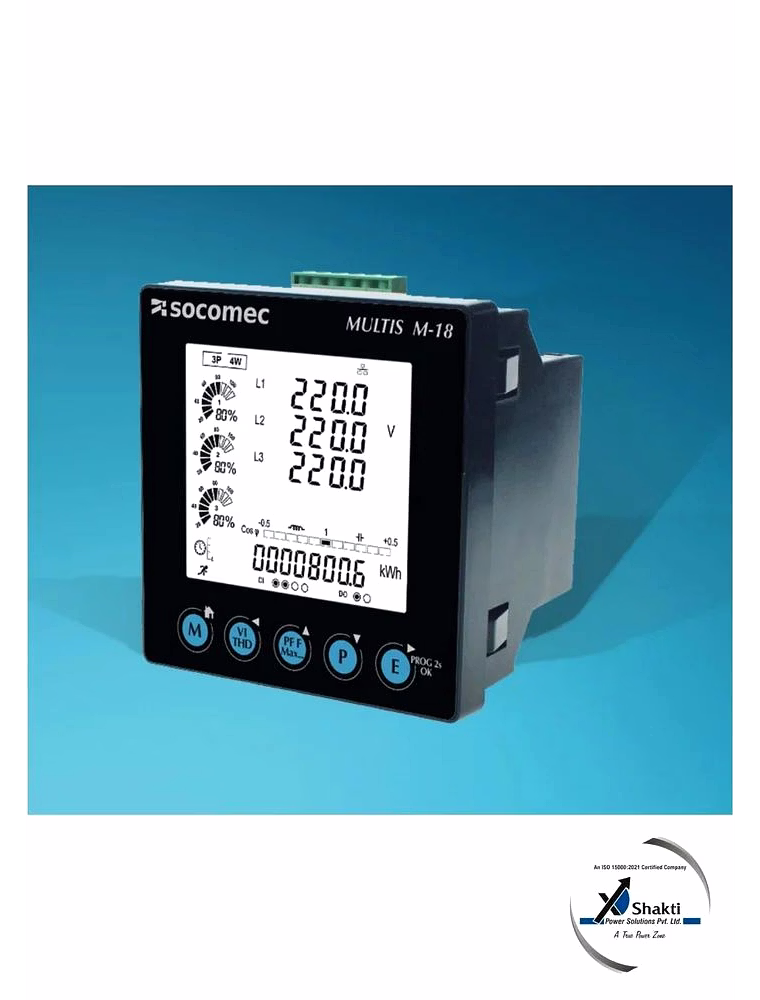

MULTIS Three Phase Digital Power Meter – Panel-Mount measurement Instrument

MULTIS Three Phase Digital Multifunctional Power Meter is an electronic metering device designed for the simultaneous measurement of voltage, current, active/reactive power, energy, and power factor across industrial three-phase systems. The instrument utilize high-sampling-rate ADC channels and DSP algorithms to provide multi-parameter metrics for energy monitoring and SCADA integration. Designed for panel mounting, the unit supports standard cutout dimensions and provides digital outputs via Modbus RTU protocol. Units are boxed with anti-static protection and supplied with factory calibration sheets linked to unique serial numbers. Supply readiness addresses industrial procurement workflows with options for OEM labeling and private-label front bezels. This metering component is essential for facilities requiring consolidated electrical data and documented accuracy for energy management systems (ISO 50001).

Key Features

• Multifunction measurement architecture → consolidates multiple discrete instruments into a single unit to reduce panel space and wiring.
• Digital communications (Modbus RTU) → enables direct integration with PLC and building management systems for remote data logging.
• Factory calibration report → provides serialized verification against reference standards to ensure measurement accuracy for billing.

Technical Attributes

• Input Range & CT Compatibility: Selection parameter for scaling → determines measurement window and wiring safety.
• Sampling Rate: High-frequency transient capture → affects the fidelity of harmonic and power quality analysis.
• Display Resolution: Multi-line LCD readout → selection impacts readability and operator monitoring efficiency.
• Mounting Standard: DIN-cutout compatibility → selection parameter for retrofit and new panel installations.

Internal Architecture and Calibration Logic of MULTIS Three Phase Meters

The technical framework of the MULTIS Three Phase Digital Multifunctional Power Meter utilize isolated analog-to-digital converter (ADC) channels coupled to a dedicated Digital Signal Processor (DSP). This architecture allows the device to compute multi-parameter electrical metrics in real-time by sampling the current and voltage waveforms at high frequencies. Winding current inputs accept external Current Transformers (CTs) to scale primary currents, while voltage inputs are protected with surge-limiting components and high-impedance resistive dividers. Without this electrical isolation between the inputs and the processing core, the meter would be susceptible to ground loops and impulsive transients—a failure mode that commonly causes processor lock-ups and corrupted energy totals. Firmware stores unique calibration coefficients per serial number, which are applied to the raw data to ensure instrument-grade accuracy. Factory calibration includes phase-angle, gain, and offset checks across the entire measurement range. This structural reasoning ensures that the meter delivers repeatable energy readings, which is a primary requirement for institutional energy accounting and cost-center allocation.

Functional Performance and Diagnostic Dynamics in Power Quality Monitoring

Operational efficiency is achieved through the meter’s ability to perform accurate harmonic and transient analysis, supporting power quality diagnostics within the facility. The high sampling rate enables the detection of voltage "notches" and current spikes that indicate failing motors or overloaded transformers. If the power quality exceeds pre-set thresholds, the unit can trigger alarm relays to alert operators to potential equipment stress. Digital outputs and the Modbus/RTU protocol reduce integration complexity, allowing direct readouts into existing energy management platforms without the need for additional signal conditioners. The panel-mount form factor is engineered for low power draw and minimal heat dissipation, preventing thermal buildup within crowded distribution cabinets. In high-cycle industrial environments, a failure to monitor the "Total Harmonic Distortion" (THDi) can lead to neutral conductor overheating and premature failure of nearby electronic controls. The MULTIS meter provides the data necessary to implement demand-side management and to optimize the loading of three-phase systems, effectively improving the overall operational efficiency and reducing utility demand penalties for the B2B operator.

Institutional Deployment and Export Logistics for Digital Meters

Deployed in industrial switchboards, HVAC control panels, and utility metering points, the MULTIS meter is configured for the logistical requirements of large-scale procurement. Units are packed in anti-static trays and foam-lined cartons to protect the front LCD bezel and connectors during multimodal transit. For international projects, supply-readiness is documented through serialized calibration certificates and compliance declarations (CE/IEC). Export-ready shipments include moisture-barrier inner bags and desiccant to prevent oxidation of the terminal contacts during maritime transport. Failure to implement moisture control results in terminal corrosion, which manifests as high-resistance connections and erroneous current readings upon site installation. Private-label bezel options and labeling are supported for OEM panel builders requiring branded instrumentation. This systematic approach ensures that the MULTIS meter meets the technical specifications of institutional buyers and multi-site rollouts, providing the technical transparency required for asset tracking and regulatory review. Every shipment includes a detailed configuration snapshot, ensuring that replacement units can be field-commissioned with identical parameters to the original installation, maintaining data continuity for energy management audits.
