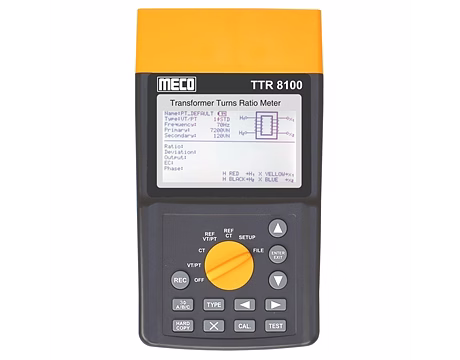

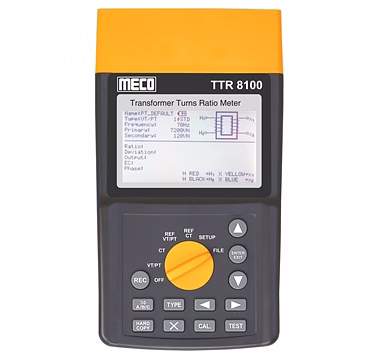

The TRANSFORMER TURNS RATIO METER (MODEL: TTR 8100) from Meco Instruments Private Limited is a highly advanced and precise electrical testing instrument designed specifically for measuring the turns ratio of single-phase and three-phase transformers, voltage transformers (VT/PT), and current transformers (CT). Featuring a wide measurement range from 0.8 to 2000 for both VT/PT and CT ratios, this meter provides accurate, reliable, and comprehensive data essential for transformer maintenance, diagnostics, and quality control. Equipped with a large backlit dot matrix LCD display (240 x 128), the meter offers graphical and literal illustrations of measurements including turns ratio, deviation, secondary output, excitation voltage and current, phase angle, and nameplate information. It includes pre-installed 3-phase winding connection types and multiple test frequencies (50-400 Hz), enabling compatibility with various transformer configurations. Enhanced with wireless Bluetooth connectivity, the device facilitates seamless data transfer and real-time communication with PC applications, allowing easy data management and interpretation on-site. Robust storage capabilities for up to 4096 transformer nameplate files and measurement records, combined with a powerful built-in rechargeable lithium battery, empower technicians to work efficiently in field environments. Additional key features such as live test point detection, short circuit, open circuit, and reverse polarity checks ensure safety and measurement accuracy, while programmable Reference Correction Factor (RCF) lets users fine-tune accuracy within 1% error margin. The TTR 8100 is an indispensable tool for transformer testing professionals demanding precision, versatility, and convenience in a portable instrument.
Key Features
| Features | Description |
|---|---|
| Measurement Range | 0.8 to 2000 for VT/PT and CT Turns Ratio |
| Display | Large backlit 240 x 128 dot matrix LCD with graphical and literal illustration |
| Transformer Compatibility | Single-phase and three-phase transformers, Voltage Transformers (VT/PT), Current Transformers (CT) |
| Test Frequencies | Ten selectable frequencies from 50 Hz to 400 Hz |
| Winding Connections | 9 pre-installed types of three-phase winding connections |
| Data Storage | Stores up to 4096 transformer nameplate files and measurement records |
| Connectivity | Wireless Bluetooth communication with PC for data transfer |
| Safety Checks | Live test points, short circuit, open circuit, and reverse polarity detection |
| Battery | High capacity 3400mAH Lithium battery with built-in charging circuit |
| User Programmable Accuracy | Reference Correction Factor (RCF) adjustable between 0.99 and 1.01 |
| Software | Includes PC application for file management and data retrieval |
| Attributes | Description |
|---|---|
| Model | TTR 8100 |
| Measurement Type | Transformer Turns Ratio (Single-phase & Three-phase), VT/PT Ratio, CT Ratio |
| Measurement Range | 0.8 to 2000 |
| Display Type | 240 x 128 dot matrix LCD with backlight |
| Test Frequencies | 50 Hz to 400 Hz (10 selectable frequencies) |
| Winding Connection Types | 9 three-phase connection types pre-installed |
| Data Storage Capacity | Up to 4096 transformer nameplate and test data files |
| Communication Interface | Wireless Bluetooth |
| Battery | 3400mAH Lithium battery with built-in charger |
| Safety Features | Live test point check, short/open circuit detection, reverse polarity indication |
| Software | PC application software for data management included |
| RCF (Reference Correction Factor) | User programmable between 0.99 and 1.01 |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
Yes, the TTR 8100 supports measurement of turns ratios for both single-phase and three-phase transformers, as well as VT/PT and CT ratios.
The device can measure transformer turns ratios ranging from 0.8 to 2000.
Yes, it features wireless Bluetooth communication for seamless data transfer to PC applications.
The meter can store up to 4096 files of transformer nameplate values and measurement data.
Yes, it includes 9 pre-installed types of three-phase winding connections to support various transformer configurations.
Brand: meco
Country Of Origin: India
MECO Model TTR 8100 is listed as a Transformer Turns Ratio Meter for buyers sourcing electrical testing instrument and related digital test meter solutions. The content has been rewritten from the supplied catalogue details while retaining the stated product category, model reference and specifications. Key listed specification: Measurement of 1 Φ and 3 Φ Transformer / VT / CT Turns Ratio. It is suitable for professional procurement teams comparing electrical, industrial or marketplace-ready product information. The description supports B2B evaluation with clear facts, structured attributes and search-relevant terminology.
Features:
Attributes:
Product Overview
MECO TTR 8100 is presented as a Transformer Turns Ratio Meter within the Testing and Measuring Instruments category. This rewritten listing uses the provided product title, summary and available specification details to support accurate B2B sourcing for international buyers.
Technical Details
The listed information includes Model: TTR 8100; Measurement of 1 Φ and 3 Φ Transformer / VT / CT Turns Ratio; VT / PT Ratio 0.8 ~ 2000, Ct Raio 0.8 ~ 2000; Graphical and Literal Illustration of Measurements and connections with Large Back - Lighted Dot Matrix 240 x 128 LCD; Displays Turns Ratio, Deviation, Secondary Output, Excitation Voltage and Current, Phase Angle and Nameplate. Transformer VT / CT Values in one page for easy quality interpretation. These details help buyers assess the product against application needs such as electrical testing, measurement, calibration, monitoring, panel installation or field maintenance where applicable.
Application Suitability
This electrical testing instrument listing is suitable for procurement teams, distributors and importers who need structured product data for online marketplaces and catalogue comparison. Related keywords include digital test meter, industrial measuring instrument and field service tester, used naturally to improve search relevance.
B2B Buyer Value
The rewritten content emphasizes clear specifications, model identification and category alignment rather than unsupported claims. This helps technical buyers compare the product with similar instruments, request quotations and evaluate suitability for industrial, commercial or resale requirements.
Listing Accuracy
All wording is based on the supplied source data for Product ID 8608885. No unverified certification, packaging, warranty or performance claim has been added, ensuring the page remains factual, searchable and appropriate for international B2B product discovery.
Question: What is the product name?
Answer: The product is MECO TTR 8100 Transformer Turns Ratio Meter, listed under Testing and Measuring Instruments.
Question: Which buyers is this product suitable for?
Answer: It is suitable for B2B buyers, importers, distributors and technical procurement teams sourcing electrical testing instrument products for professional use.
Question: What key details are provided?
Question: Does this FAQ include unverified claims?
Answer: No. The FAQ uses only the supplied product title, description, brand, model, category and listed specifications.
Question: How does this content support AI discoverability?
Answer: It uses structured questions, factual answers, product identifiers and relevant industry keywords such as electrical testing instrument, digital test meter and industrial measuring instrument.
