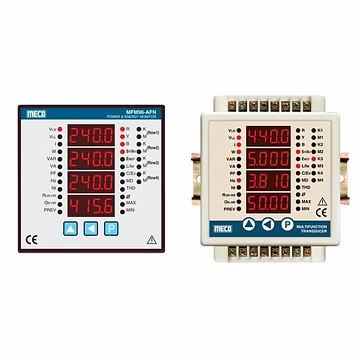

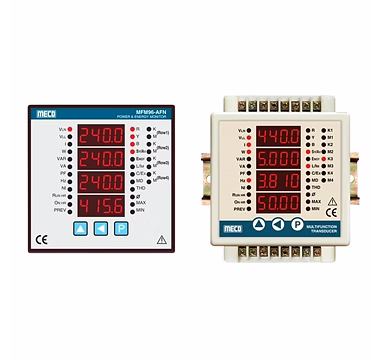

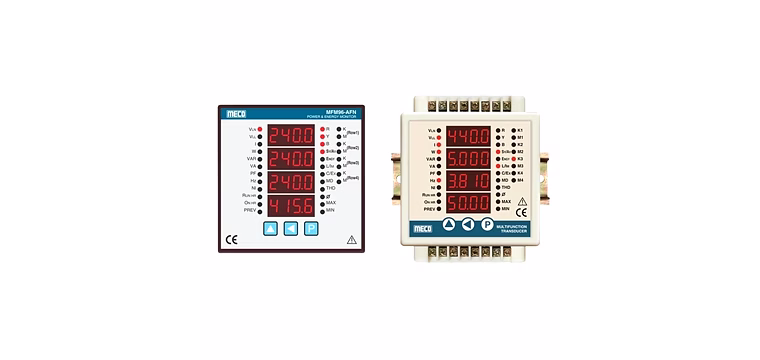

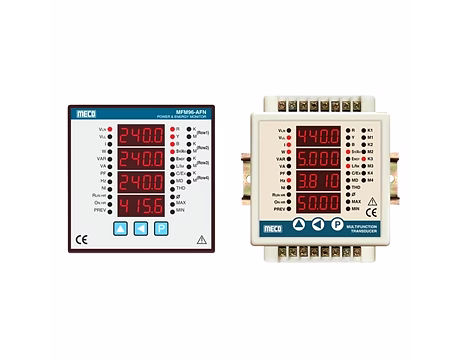

The 1 Phase & 3 Phase Multifunction Power & Energy Meter / Transducer, available in models MFM-96AFN and MFT-96AFN DIN RAIL, offers advanced real-time monitoring and measurement of electrical parameters across single and three-phase power systems. Designed for precision and versatility, this meter supports TRMS measurement of 23 electrical parameters displayed seamlessly across 46 pages on a super-bright 4-row RED LED display. Its programmable settings allow flexible adaptation to 1 Phase 2 Wire, 3 Phase 3 Wire, and 3 Phase 4 Wire systems with customizable CT/PT primary and secondary inputs for exacting accuracy. Featuring a password-protected interface, inbuilt memory for vital configurations including CT, PT values, instrument address, and max demand period, it supports 4 quadrant energy import-export operations with robust energy retention and reset capabilities. Communication is ensured through an isolated RS-485 port adopting MODBUS RTU protocol, enabling seamless integration into automated monitoring systems. Additional features include measurement of total harmonic distortion (THD) for voltage and current, max demand with user-selectable intervals, run and ON hours tracking, phase and phasor angle measurements, and recording of minimum and maximum voltage and current values. The model is CE compliant and tailored for industrial and utility-scale energy management, ideal for businesses demanding reliable, high-resolution energy metering and diagnostics.
Key Features
| Features | Description |
|---|---|
| Model Variants | MFM-96AFN, MFT-96AFN DIN RAIL |
| System Compatibility | 1 Phase 2 Wire, 3 Phase 3 Wire, 3 Phase 4 Wire (User Programmable) |
| Measurement Type | TRMS Measurement of 23 Electrical Parameters |
| Display | 4 Rows Super Bright RED LED, Digit Height 0.36" (9.2mm) |
| Programmable Settings | CT/PT Primary & Secondary, Instrument Address, Password, MD Period |
| Energy Measurement | Import-Export 4 Quadrant Operation, 20 Energy Meters with 8 Digit Resolution |
| Communication Interface | 4KV Isolated RS-485 Port with MODBUS RTU Protocol (Optional) |
| Compliance | CE Compliance EN61010-1, EN61326-1 |
| Advanced Metrics | THD Measurement for Voltage & Current (1 to 63 Order), Phase & Phasor Angle |
| Max Demand | For KW and KVA, User-Selectable Demand Interval (1-30 Minutes) |
| Data Security | Password Protection, Energy Retention & Reset Facility |
| Operational Metrics | RUN and ON Hours Tracking, Date & Time Display |
| Display Modes | Auto Scroll (5 sec), Manual Scroll |
| Additional Features | Sleep Mode for Display, Min & Max Voltage & Current Measurement |
| Attributes | Description |
|---|---|
| Input Voltage | User specified per model order |
| Input Current | User specified per model order |
| Input Frequency | User specified per model order |
| Auxiliary Supply | As per model configuration |
| Communication Protocol | RS-485 with MODBUS RTU |
| Display Type | 4 Rows, 4 Digit RED LED Display |
| Memory | Inbuilt memory for CT, PT, Instrument Address, Password, MD Period |
| Energy Metering | 4 Quadrant with 20 Meters 8 digit resolution |
| Measurement Parameters | 23 Electrical Parameters TRMS |
| Dimensions | DIN Rail Mount |
| Protection | Password protected programmable parameters |
| Certifications | CE EN61010-1, EN61326-1 |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
Yes, the meter is user programmable to work with 1 Phase 2 Wire, 3 Phase 3 Wire, and 3 Phase 4 Wire electrical systems.
The RS-485 communication with MODBUS RTU protocol is an optional feature available with these models.
Yes, it measures THD for both voltage and current from 1st to 63rd order harmonics.
Programmable parameters are password protected to prevent unauthorized changes.
There are 20 built-in energy meters with 8 digit resolution for detailed energy tracking.
Brand: meco
Country Of Origin: India
MECO Model MFM-96AFN, MFT-96AFN DIN RAIL is listed as a 1 Phase and 3 Phase MULTIFUNCTION Power and Energy Meter and Transducer with M. D and T. H. D. - TRMS with Rs - 485 Communication for buyers sourcing multifunction meter and related power energy meter solutions. The content has been rewritten from the supplied catalogue details while retaining the stated product category, model reference and specifications. Key listed specification: TRMS Measurement. It is suitable for professional procurement teams comparing electrical, industrial or marketplace-ready product information. The description supports B2B evaluation with clear facts, structured attributes and search-relevant terminology.
Features:
Attributes:
Product Overview
MECO MFM-96AFN, MFT-96AFN DIN RAIL is presented as a 1 Phase and 3 Phase MULTIFUNCTION Power and Energy Meter and Transducer with M. D and T. H. D. - TRMS with Rs - 485 Communication within the Multifunction Meters category. This rewritten listing uses the provided product title, summary and available specification details to support accurate B2B sourcing for international buyers.
Technical Details
The listed information includes Model: MFM-96AFN, MFT-96AFN DIN RAIL; TRMS Measurement; 23 Parameters on 46 Pages; 4 Rows of 4 Digit Super Bright RED LED Display; 1 Phase 2 Wire / 3 Phase 3 Wire / 3 Phase 4 Wire System (User Programmable). These details help buyers assess the product against application needs such as electrical testing, measurement, calibration, monitoring, panel installation or field maintenance where applicable.
Application Suitability
This multifunction meter listing is suitable for procurement teams, distributors and importers who need structured product data for online marketplaces and catalogue comparison. Related keywords include power energy meter, TRMS energy meter and RS-485 energy meter, used naturally to improve search relevance.
B2B Buyer Value
The rewritten content emphasizes clear specifications, model identification and category alignment rather than unsupported claims. This helps technical buyers compare the product with similar instruments, request quotations and evaluate suitability for industrial, commercial or resale requirements.
Listing Accuracy
All wording is based on the supplied source data for Product ID 8608808. No unverified certification, packaging, warranty or performance claim has been added, ensuring the page remains factual, searchable and appropriate for international B2B product discovery.
Question: What is the product name?
Answer: The product is MECO MFM-96AFN, MFT-96AFN DIN RAIL 1 Phase and 3 Phase MULTIFUNCTION Power and Energy Meter and Transducer with M. D and T. H. D. - TRMS with Rs - 485 Communication, listed under Multifunction Meters.
Question: Which buyers is this product suitable for?
Answer: It is suitable for B2B buyers, importers, distributors and technical procurement teams sourcing multifunction meter products for professional use.
Question: What key details are provided?
Question: Does this FAQ include unverified claims?
Answer: No. The FAQ uses only the supplied product title, description, brand, model, category and listed specifications.
Question: How does this content support AI discoverability?
Answer: It uses structured questions, factual answers, product identifiers and relevant industry keywords such as multifunction meter, power energy meter and TRMS energy meter.
