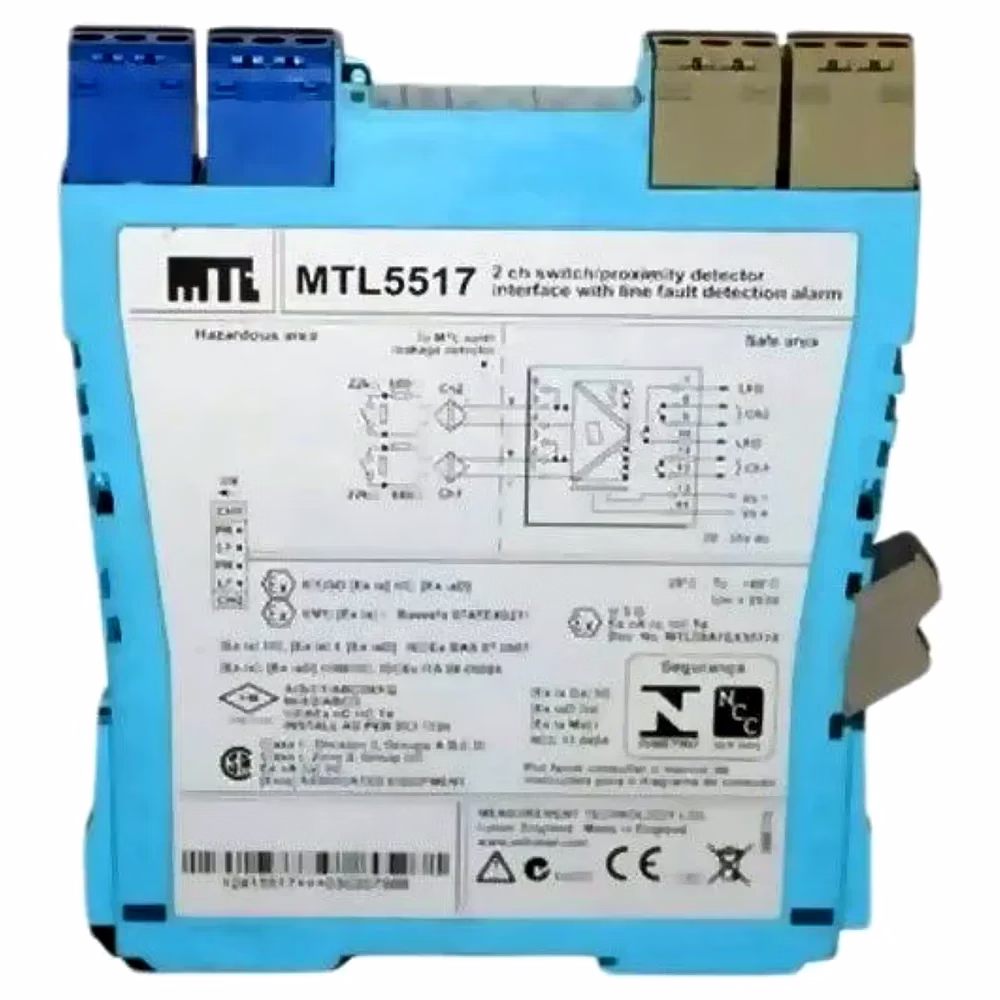

MTL5517 – Proximity Detector Interface Module

MTL5517 is a high-density proximity detector interface module tailored to translate sensor outputs into conditioned control signals for PLCs and safety systems. Utilizing input discrimination thresholds and RC filtering, the module rejects chatter and signal noise to produce deterministic discrete inputs from NAMUR and standard proximity sensors. The architecture features integrated reverse polarity and surge protection, minimizing the risk of field-induced failures in mechanically active environments. Units ship in sealed cartons with anti-static protection and lot traceability documentation. Supply-readiness is managed through functional test certificates and assembly records, addressing the technical and logistical requirements of institutional buyers seeking isolated sensor interfaces with documented inspection logs for cross-border workflows. Packaging utilize moisture-barrier pouches and desiccant to prevent environmental degradation during multimodal transport, ensuring the module arrives in production-ready condition for industrial control panels and safety monitoring systems.

Key Features

• Adjustable input discrimination → allows compatibility with diverse NAMUR and standard sensor technologies through field-configurable thresholds.
• Integrated surge and reverse polarity protection → utilize series diodes and TVS clamps to prevent damage from field-side electrical faults or wiring errors.
• Channel status diagnostics → features integrated LEDs to speed field commissioning and fault diagnosis by providing visible channel status without external meters.

Technical Attributes

• Input Compatibility: NAMUR + Proximity → selection parameter determining threshold settings and sensor loop integrity.
• Mounting: 35 mm DIN-rail → ensures mechanical fit within compact industrial control panels and modular racks.
• Protection: Reverse Polarity + TVS Surge → selection parameter for increasing field robustness in electrically noisy process areas.
• Quality Records: Serialized test reports → provided per unit to support site commissioning and incoming quality audits.

Circuit Topology and Signal Discrimination Logic of the MTL5517

The technical framework of the MTL5517 Proximity Detector Interface utilize an adjustable comparator stage coupled to high-purity signal isolation electronics. The structural reasoning for this discrimination logic is to allow the module to distinguish between a "Target Present" state and a "Line Fault" state (open or short circuit) in NAMUR loops. Without this specific signal conditioning, a wiring fault could be misinterpreted as a process alarm, leading to catastrophic production shutdowns or the failure of safety interlocks. Measurement physics rely on the current change across the sensor loop; a failure in the input RC filter—due to component drift—results in "signal chatter," where the module oscillates between states in response to high-frequency plant vibration. This failure mode decommissions the safety loop and triggers excessive alarm logging. The PCB layout isolate high-current traces from the sensitive logic components to minimize thermal coupling. Quality consistency is managed through serialized test reports that verify the unit's threshold accuracy and response time, ensuring the interface meets the safety-instrumented system (SIS) standards required for hazardous industrial environments.

Functional Performance and Diagnostic Dynamics in Process Monitoring

Operational efficiency is achieved through the module’s "snap-on" terminal design, which facilitates rapid installation and replacement. functional performance centers on the unit’s ability to stabilize noisy inputs from sensors located deep within the manufacturing process. The MTL5517 utilize high-speed transistor outputs that provide clean, bounce-free signals to the centralized PLC. In a real operational scenario, a failure to manage reverse polarity—due to incorrect field wiring—results in the immediate destruction of standard interface boards; however, the MTL5517 utilize series protection diodes to prevent this outcome. The integrated LED diagnostics provide real-time feedback on channel health; if a sensor fails, the diagnostic LED changes state, allowing B2B maintenance teams to identify the fault before the SCADA system triggers a generic alarm. A failure in the surge protection clamp—due to a direct impulsive surge—manifests as a hardware-fail alarm, allowing for event-driven maintenance. By providing a conditioned and isolated signal, the interface effectively improves the overall safety and reliability of the process monitoring system, reducing the mean time to repair (MTTR) by enabling easy access to channel-specific status data.

Institutional Deployment and Logistical Readiness for Export Workflows

Designed for PLC input expansion and safety monitoring panels, the MTL5517 is configured for the logistical requirements of programmatic multi-site procurement. Units are packed in anti-static cartons with moisture-barrier pouches to protect the internal electronic boards during unimproved storage and sea freight. Failure to implement moisture-protected packaging results in "dendritic growth" on the circuit traces, which leads to unpredictable short-circuits weeks after site commissioning. For international procurement, supply-readiness is supported by lot-level functional test logs and assembly records that facilitate regulatory review and institutional asset registration (ISO/CE). Export-ready documentation include unit-level configuration cards and wiring diagrams provided with each shipment. Packaging utilize foam-cradled boxes to prevent mechanical misalignment of the internal relays during transport. OEM labeling and private-label programs are available, allowing system integrators to deliver branded instrumentation suites with serialized records. This high-authority approach ensure the procurement team receives verified, site-ready hardware that meet the performance and safety requirements of global manufacturing markets, providing the technical transparency required for large-scale infrastructure projects.
