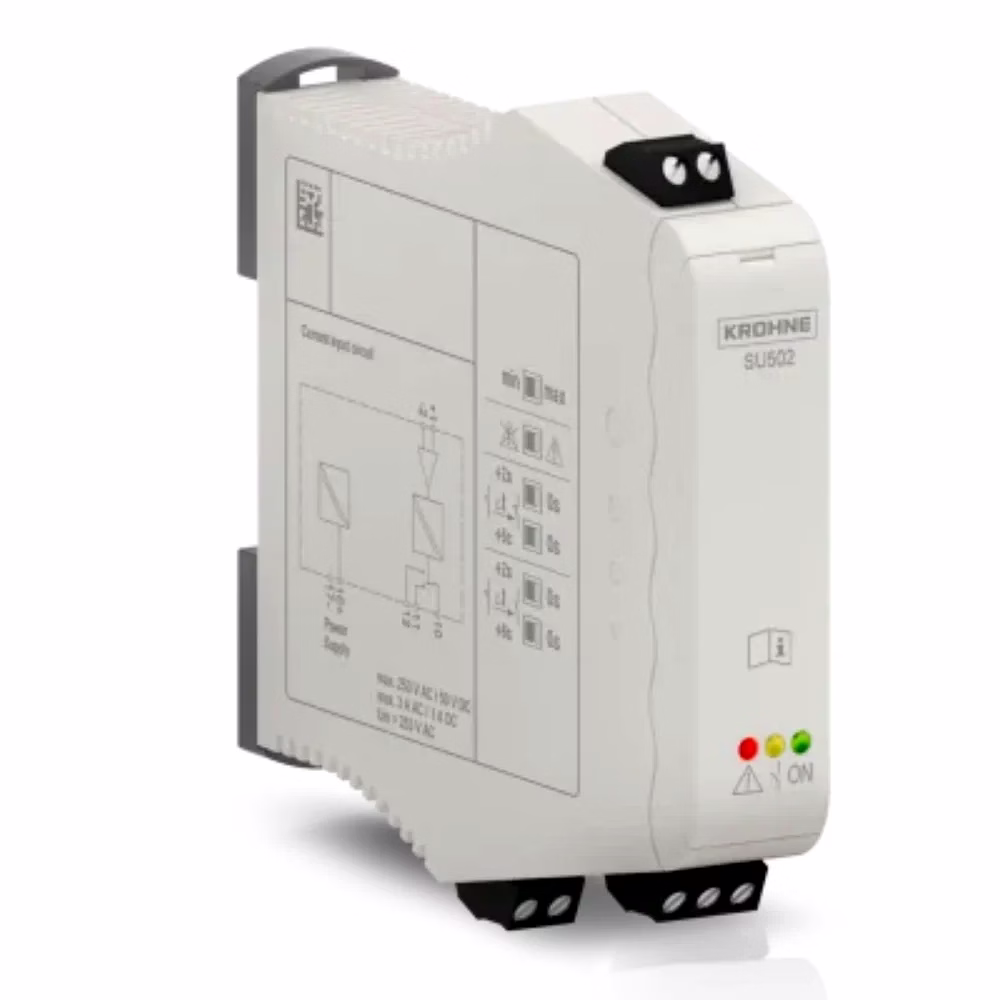

SU 502 Single Channel Controller – 8/16 mA switch interface

The SU 502 Single channel controller conditions and monitors signals from vibration level switches and provides selectable 8/16 mA output scaling for integration with control systems. The unit offers adjustable thresholds and time-delay functions for debounce and alarm management in material-handling applications. Controllers ship with functional verification reports and wiring diagrams; packaging secures front-panel controls and connectors for consolidated deliveries. Designed for panel mounting, the unit includes documentation for OEM panel-build integration and calibration procedures suitable for factory commissioning. This module is essential for facilities requiring isolated signal conversion from field level sensors to centralized logic controllers.

Key Features

• Selectable 8/16 mA output → ensures compatible signal levels for a wide range of legacy and modern control inputs.
• Adjustable debounce and alarm delay → utilizes programmable logic to reduce nuisance alarms caused by transient material impacts or turbulence.
• Compact panel-mount form factor → facilitates high-density OEM integration and simplified retrofit into existing control cabinets.

Technical Attributes

• Input type: relay or solid-state switch → compatible with diverse vibration level switch technologies.
• Output scaling: 8 or 16 mA selectable → selection parameter for matching PLC/DCS input requirements.
• Power supply: nominal DC range → determines compatibility with standard control-cabinet power architectures.
• Test logic: functional output verification → documented per unit to support site commissioning protocols.

Signal Conditioning, Output Scaling and Panel Integration Logic of the SU 502

The technical framework of the SU 502 Single channel controller utilizes a precision analog conditioning stage coupled to a discrete switching logic processor. The structural reasoning for the selectable 8/16 mA output is to provide a "current-loop status" that is easily interpretable by legacy DCS and modern PLC systems; 8 mA typically indicates a "Clear" state, while 16 mA indicates a "Material Present" state. Measurement physics rely on a high-fidelity resistive-bridge and transistor-switching network; a failure in the voltage regulation circuit—due to component aging or high-current transients—leads to "output drift," where the current levels deviate from the 8/16 mA setpoints. This failure mode results in "indeterminate alarms," where the control system cannot reliably distinguish between a full silo and a wiring fault, potentially leading to tank overfills. Quality consistency is managed through serialized functional verification, where the unit's switching thresholds and current accuracy are verified against a reference load. The internal PCB layout utilizes opto-isolation between the input terminals and the output loop, providing a primary safety standard that prevents high-voltage field faults from destroying the facility's logic processors.

Functional Performance and Operational Stability in Control Environments

Operational efficiency is achieved through the controller’s adjustable debounce timer (typically 1 to 30 seconds), which allows B2B facility managers to filter out the "splash" or "material bouncing" that occurs during silo filling. Failure to implement this delay results in "chattering relays" and excessive wear on the facility’s motor starters. Functional performance centers on the unit’s ability to stabilize noisy switch inputs; input RC filtering and Schmitt-trigger logic reject the electrical noise generated by nearby large AC motors. If the controller detects an internal power failure or logic fault, the output current can be configured to drop to 0 mA or rise to 22 mA (fail-high/low), allowing for immediate identification of the fault condition via the SCADA system. The compact form factor is designed for dense cabinet population; a failure to manage thermal dissipation in these enclosures leads to "logic lockup"—this is mitigated by the SU 502's low-power design, which generates less than 2W of heat. By providing a clean and deterministic signal, the controller effectively improves the reliability of material-handling automation, ensuring that overfill alarms are only triggered by genuine material presence. Calibration controls are front-accessible, effectively lowering the mean time to repair (MTTR) during routine maintenance.

Institutional Deployment and Logistical Readiness for Interface Units
