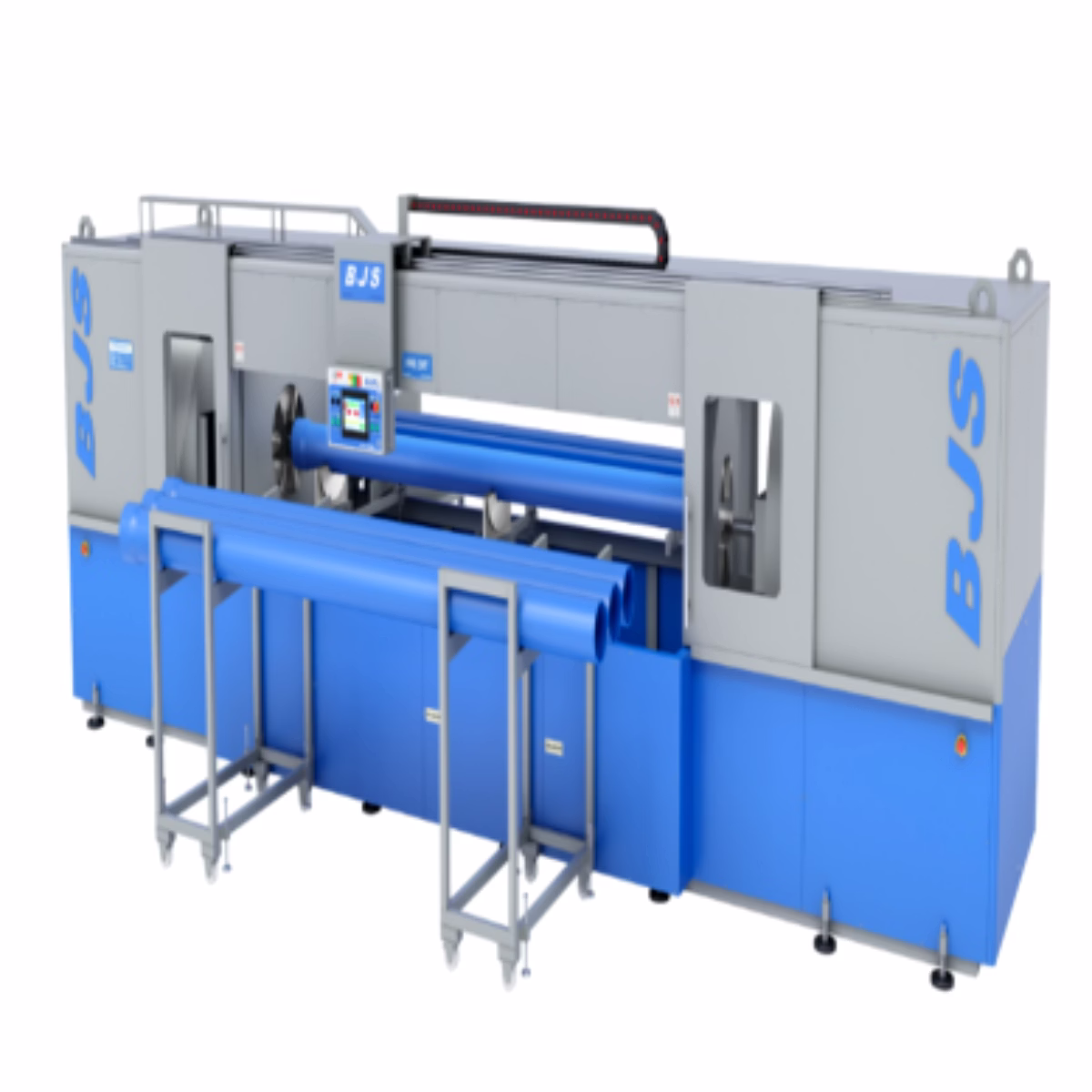

The Double Head, Automatic Pipe Threading Machine is an industrial pipe-processing solution built for simultaneous male and female threading on both ends of plastic pipes. Designed for wholesale buyers, bulk order production lines, and OEM pipe manufacturers, this factory direct machine improves output by threading two ends in a single cycle, reducing handling time and increasing throughput in high-volume operations. This CNC pipe threading machine is engineered with a dual-head configuration and a multi-point tool threading system to deliver consistent thread quality across pipe diameters from 100 mm to 630 mm. It is especially suited for HDPE pipe processing, industrial piping, and infrastructure applications where accurate thread geometry, repeatability, and production efficiency are critical. The machine uses a parameter-based control system, so operators can set cutter depth and threading parameters through the touch screen without G code or M code programming. For precision motion control, the machine is equipped with six servo motors and servo drives, including a 13.2 kW servo motor system and dual 5.6 kW cutter motors. Pneumatic cylinders hold the pipe securely during threading, helping maintain alignment and stability throughout the process. An auto lubrication system supports slide bearings and ball screw nuts for smoother operation and reduced wear in continuous industrial use. Safety and ease of installation are also key advantages. The fully enclosed structure with slide doors and viewing windows provides a controlled operating environment while allowing process visibility. The machine is delivered as a single-piece unit, requiring no heavy foundation or civil work, which simplifies commissioning for export-ready projects and production facilities seeking fast setup. With an approximate power consumption of 26.0 kW, it is a practical choice for manufacturers looking for industrial grade threading capability with dependable performance and scalable automation options. Optional accessories such as automatic loading/unloading, feeding and discharge tables, air boosters, servo stabilizers, and IoT monitoring systems make this machine suitable for modern production environments focused on automation, traceability, and reduced manual handling.
Key Features
| Features | Description |
|---|---|
| Threading Type | Simultaneous male and female threading |
| Head Configuration | Double head |
| Control System | Touch screen, parameter-based operation |
| Servo System | 6 servo motors and servo drives |
| Pipe Holding | Pneumatic cylinders |
| Safety Structure | Fully enclosed with viewing windows |
| Lubrication | Auto lubrication system |
| Pipe Size Range | 100 mm to 630 mm |
| Power Consumption | Approximately 26.0 kW |
| Attributes | Description |
|---|---|
| Product Title | Double Head, Automatic Pipe Threading Machine |
| Brand | BJS |
| Store Name | BJS ENGINEERS PVT.LTD. |
| Product Category | Threading Machines |
| Model Series | BJS-CNC-MPTT-250 to BJS-CNC-MPTT-630 |
| Pipe Size Range | 100 mm to 630 mm |
| Threading Operation | One-side male threading and one-side female threading |
| Threading Configuration | Double head |
| Tool System | Multi-point tool threading system |
| Servo Motors | 6 servo motors |
| Servo Drive System | Servo drives included |
| Axis Servo Motor Power | 13.2 kW |
| Main Cutter Motor Power | 5.6 kW x 2 |
| Approximate Power Consumption | 26.0 kW |
| Control Interface | Touch screen |
| Programming Requirement | No G code or M code required |
| Pipe Holding System | Pneumatic cylinders |
| Lubrication System | Auto lubrication system for slide bearings and ball screw nut |
| Machine Structure | Fully enclosed structure with slide doors |
| Viewing Windows | Included |
| Installation Requirement | No heavy foundation or civil work required |
| Installation Format | Single-piece unit |
| Primary Material Application | HDPE and other plastic pipes |
| Optional Features | Automatic pipe loading and unloading, feeding/discharge tables, air boosters, servo supply stabilizers, IoT monitoring systems |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
It supports pipe sizes from 100 mm to 630 mm, depending on the selected model in the BJS-CNC-MPTT series.
Yes. The double head configuration is designed for simultaneous threading of both pipe ends, with one side producing male threading and the other side female threading.
No. It operates through a parameter-based touch screen control system, so G code and M code are not required.
It is intended for HDPE and other industrial plastic pipes used in piping and infrastructure applications.
Accuracy is maintained by six servo motors and servo drives, along with servo-controlled cutter depth and multi-point tool threading.
No. The machine is supplied as a single-piece unit and does not require heavy foundation or civil work.
The machine has a fully enclosed structure with slide doors and viewing windows for safer operation and process monitoring.
Yes. Optional features include automatic loading and unloading, feeding and discharge tables, air boosters, servo stabilizers, and IoT monitoring systems.
Brand: bjs
Country Of Origin: India
Double-head automatic pipe threading machine configured for concurrent threading on long runs or parallel line setups. The twin-head arrangement reduces cycle time per pipe by performing two operations sequentially or in parallel depending on fixture layout. Production managers and line integrators use this module to increase throughput while retaining CNC control over thread geometry.
Designed to fit downstream of haul-off and cutting stations for synchronized double-head threading. The dual-head design enables parallel processing or staged threading to balance cycle times. Integration reduces bottlenecks on high-speed extrusion lines and lowers operator handling time by centralizing threading operations.
Provide pipe OD and wall thickness bands, required throughput per hour, desired thread profile, control protocol (Modbus/ProfiNet), and whether dual-head parallel or sequential operation is required. Include commissioning model and target timeline for an accurate proposal.
