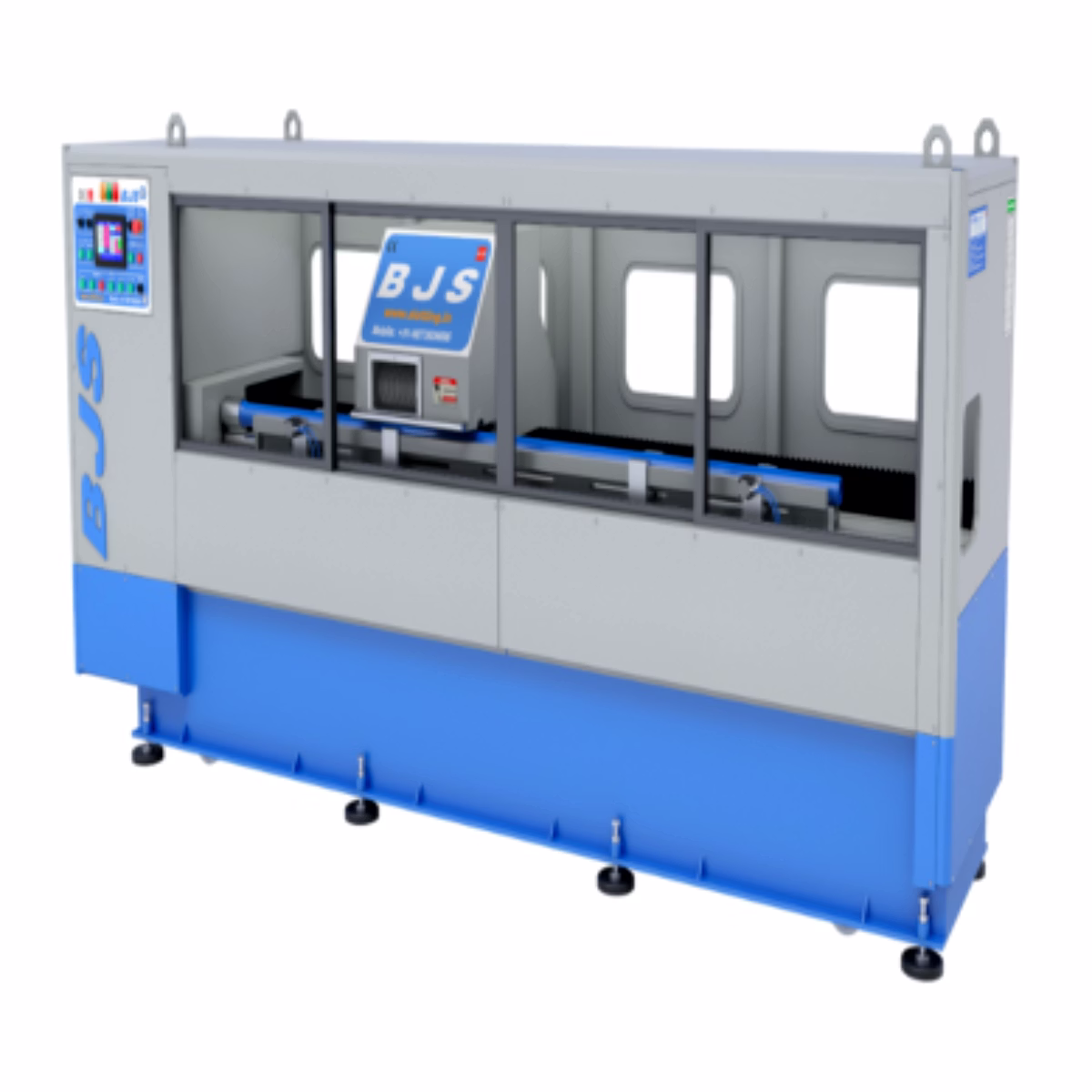

6th Gen. Automatic Pipe Slotting Machine is a servo-driven industrial machine designed for precision slot cutting in small-diameter plastic pipes, especially HDPE and similar materials. It is built for manufacturers that require accurate, repeatable slotting in high-volume production environments and offers a practical solution for wholesale, bulk order, and OEM pipe-processing setups. This automatic pipe slotting machine uses three servo motors to independently control trolley traverse, pipe indexing, and cutter movement. That coordinated motion control improves slot placement accuracy, consistency, and repeatability across multiple pipe sizes and production batches. The machine is part of the BJS-SM-CNC series and is available in model configurations for 40 mm to 100 mm pipe sizes, with a standard pipe length capacity of 3 meters. The enclosed machine structure includes aluminum slide doors with polycarbonate viewing panels, allowing operators to monitor the process while maintaining a safer, controlled working zone. This design is suited to industrial production lines where visibility, operator safety, and stable process control are important. The main cutter motor is rated at 5.5 kW, and approximate total power consumption is 12.0 kW. With a slotting time of around 2 to 2.5 minutes per cycle, the machine supports efficient output for pipe manufacturers serving drainage, infrastructure, and industrial piping applications. Optional upgrades such as IoT monitoring, servo supply stabilizer, and male side thin pipe OD turning add flexibility for factory-direct production workflows and export-ready equipment packages. For buyers seeking a heavy-duty, industrial grade pipe slotting solution, this model combines servo control, compact machine design, and controlled operation for reliable production performance. Minimum order quantity is 1, making it suitable for project-based procurement, plant expansion, and customized integration requirements.
Key Features
| Features | Description |
|---|---|
| Machine Type | Automatic pipe slotting machine |
| Drive System | Servo-driven with 3 servo motors |
| Pipe Size Range | 40 mm to 100 mm |
| Pipe Length Capacity | 3 meters |
| Main Cutter Motor | 5.5 kW |
| Cycle Time | 2 to 2.5 minutes per cycle |
| Approximate Power Consumption | 12.0 kW |
| Safety Enclosure | Aluminum slide doors with polycarbonate viewing panels |
| Optional Features | IoT monitoring, servo supply stabilizer, male side thin pipe OD turning |
| Attributes | Description |
|---|---|
| Product Name | 6th Gen. Automatic Pipe Slotting Machine |
| Brand | BJS |
| Store Name | BJS ENGINEERS PRIVATE LIMITED |
| Product Category | Slotting Machines |
| Model Series | BJS-SM-CNC-40 to BJS-SM-CNC-100 |
| Pipe Size Range | 40 mm to 100 mm |
| Pipe Length Capacity | 3 meters |
| Main Cutter Motor | 5.5 kW |
| Slotting Time per Cycle | 2 to 2.5 minutes |
| Approximate Power Consumption | 12.0 kW |
| Motion Control | 3 servo motors |
| Controlled Functions | Trolley traverse, pipe indexing, cutter movement |
| Machine Structure | Enclosed design |
| Viewing Panels | Polycarbonate sheets |
| Doors | Aluminum slide doors |
| Compatible Material | HDPE and similar plastic pipes |
| Optional Features | IoT monitoring system, servo supply stabilizer, male side thin pipe OD turning |
| Minimum Order Quantity | 1 |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
It is designed for HDPE and similar plastic pipes used in industrial applications.
The BJS-SM-CNC series supports pipe sizes from 40 mm to 100 mm.
Accuracy is maintained through three servo motors controlling trolley traverse, pipe indexing, and cutter movement.
The machine supports a standard pipe length capacity of 3 meters.
Slotting time is approximately 2 to 2.5 minutes per cycle, depending on pipe diameter, material, cutter condition, and slotting parameters.
The main cutter motor is 5.5 kW, and the approximate total power consumption is 12.0 kW.
It features an enclosed structure with aluminum slide doors and polycarbonate viewing panels for safer operation and process visibility.
Yes, optional features include IoT monitoring, a servo supply stabilizer, and male side thin pipe OD turning capability.
Brand: bjs
Country Of Origin: India
The BJS 6th Generation Automatic Pipe Slotting Machine is designed for precision slot cutting in small-diameter plastic pipes used in industrial applications. This servo-driven slotting machine integrates three servo motors for trolley traverse, pipe indexing, and cutter movement, ensuring consistent and accurate slotting performance. Built with an enclosed structure featuring aluminum slide doors and polycarbonate viewing panels, it supports controlled and safe operations. Ideal for manufacturers processing HDPE and similar pipes, the machine delivers reliable output with optimized cycle times and stable operational control.
Features:
Attributes:
Product Overview
The BJS 6th Generation Automatic Pipe Slotting Machine is a compact and efficient industrial solution designed for precision slot cutting in small-diameter plastic pipes. Built for consistent performance, this automatic pipe slotting machine is ideal for manufacturers handling HDPE and similar materials in controlled production environments. Its advanced servo-based control system ensures reliable output and repeatable slotting accuracy.
Advanced Servo-Controlled Operation
This machine is equipped with three servo motors and servo drives that independently control trolley traverse, pipe indexing, and cutter up/down movement. This configuration enables accurate positioning and controlled slotting depth, making it suitable for applications requiring precision slot cutting. The integrated control system helps maintain consistency across different pipe sizes and production batches.
Machine Design and Operator Safety
The slotting machine features aluminum slide doors with viewable polycarbonate sheets, allowing operators to monitor the process while maintaining a controlled working environment. The enclosed design supports safer operation and improved visibility, which is essential in modern pipe processing facilities.
Technical Specifications and Capacity
The BJS-SM-CNC series includes models capable of processing pipe sizes from 40 mm up to 100 mm with a standard pipe length of 3 meters. The machine is powered by a 5.5 kW cutter motor and operates with an approximate power consumption of 12.0 kW. Slotting time ranges from 2 to 2.5 minutes per cycle, depending on pipe diameter, material composition, cutter condition, and slotting parameters.
Optional Features for Enhanced Flexibility
Optional features include male side thin pipe outer diameter turning, a servo supply stabilizer for improved electrical performance, and an IoT monitoring system for real-time production tracking. These options make the machine suitable for manufacturers seeking a flexible and upgrade-ready pipe slotting solution for precision applications.
Frequently Asked Questions
1. What is the 6th Generation Automatic Pipe Slotting Machine used for?
This machine is used for precision slot cutting in small-diameter plastic pipes, including HDPE pipes used in industrial and infrastructure applications.
2. What pipe sizes can this machine process?
The machine supports pipe sizes from 40 mm up to 100 mm, depending on the model configuration.
3. What makes this machine different from earlier slotting machines?
This 6th generation machine features three servo motors for independent control of trolley movement, pipe indexing, and cutter positioning, improving precision and consistency.
4. What is the slotting cycle time?
The machine operates with a slotting cycle time of approximately 2 to 2.5 minutes, depending on pipe and cutter conditions.
5. How is slotting accuracy maintained?
Accuracy is ensured through servo-driven motion control, allowing precise positioning of the pipe and cutter during each slotting cycle.
6. Is this machine suitable for HDPE pipes?
Yes, the machine is suitable for HDPE and other plastic pipes used in industrial, drainage, and infrastructure applications.
7. What are the power requirements?
The machine uses a 5.5 kW cutter motor and has an approximate total power consumption of 12.0 kW.
8. What safety features are included?
The machine includes aluminum slide doors with polycarbonate viewing panels for safer operation and process visibility.
9. Can the machine be upgraded with additional features?
Yes, optional features include IoT monitoring, servo supply stabilizer, and male side thin pipe OD turning for added flexibility.
10. Which industries use this slotting machine?
This machine is commonly used in plastic pipe manufacturing, especially for applications in drainage systems, industrial piping, and infrastructure projects.
