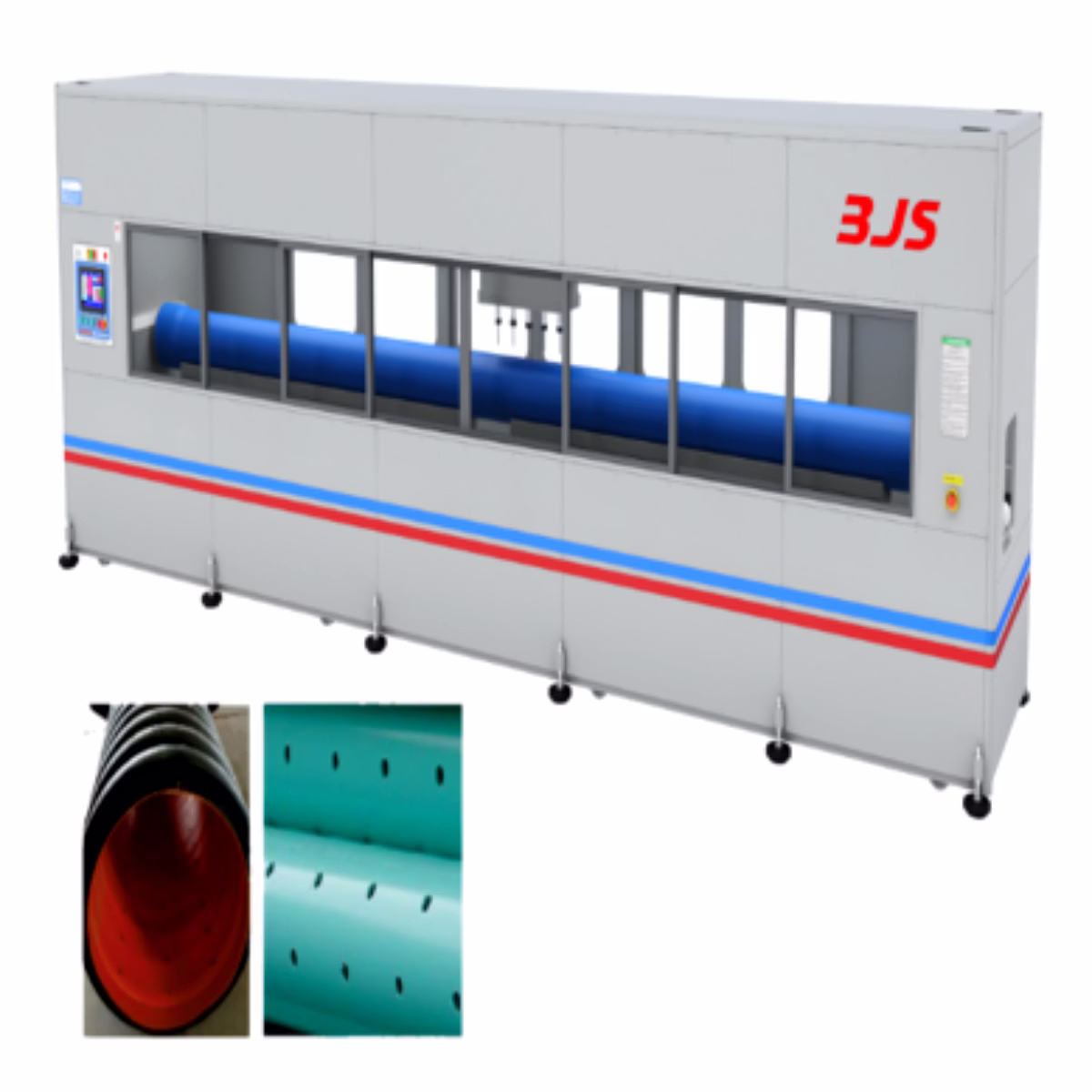

The BJS Multi Head Automatic Pipe Perforation Machine is an industrial pipe perforation solution for plastic pipe manufacturers that need fast, repeatable hole formation across a wide diameter range. Built for perforating HDPE and other plastic pipes, this machine supports wholesale production environments where consistency, throughput, and process control are critical. Designed for bulk order manufacturing lines, the machine uses a 4-head drilling configuration to perform simultaneous drilling operations, reducing cycle time and improving output uniformity. The powered pipe holder with collets provides stable pipe indexing, while pneumatic cutter movement helps maintain controlled perforation depth and repeatability. This makes it well suited for drainage pipes, irrigation pipelines, filtration pipes, and other perforated pipe applications. The BJS-PM-4H series covers pipe sizes from 40 mm to 630 mm and supports pipe lengths of 3.0 m or 6.0 m, giving manufacturers flexibility across multiple product lines. Drill motor options range from 1.1 kW × 4 to 1.5 kW × 4, with approximate power consumption from 6.0 kW to 10.0 kW depending on configuration. For buyers sourcing factory direct equipment, this machine offers scalable capacity for OEM production and export-ready industrial applications. The enclosed machine structure includes aluminum slide doors and polycarbonate viewing panels, helping operators monitor operations while maintaining a safer working environment. Optional servo-driven trolley traverse, automatic pipe loading and unloading, and IoT monitoring can further enhance automation, production tracking, and throughput for high-volume plants. For procurement teams evaluating industrial grade pipe processing equipment, this perforation machine delivers a practical combination of precision, speed, and adaptability. With a minimum order quantity of 1, it is suitable for individual plant installations as well as large-scale expansion projects.
Key Features
| Features | Description |
|---|---|
| Perforation System | 4-head simultaneous drilling |
| Pipe Size Range | 40 mm to 630 mm |
| Pipe Length Capacity | 3.0 m or 6.0 m |
| Drill Motor Configuration | 1.1 kW × 4 to 1.5 kW × 4 |
| Pipe Indexing System | Powered pipe holder with collets |
| Cutter Movement | Pneumatic cylinder controlled |
| Machine Enclosure | Aluminum slide doors with polycarbonate viewing panels |
| Optional Automation | Servo traverse, auto loading/unloading, IoT monitoring |
| Brand | BJS |
| Attributes | Description |
|---|---|
| Product Name | Multi Head, Automatic Pipe Perforation Machine |
| Brand | BJS |
| Product Category | Perforation Machines |
| Model Series | BJS-PM-4H-160 to BJS-PM-4H-630 |
| Pipe Size Range | 40 mm to 630 mm |
| Pipe Length Capacity | 3.0 m or 6.0 m |
| Drill Motor Power | 1.1 kW × 4 to 1.5 kW × 4 |
| Approximate Power Consumption | 6.0 kW to 10.0 kW |
| Drilling Heads | 4 |
| Pipe Holding System | Powered pipe holder with collets |
| Cutter Movement | Pneumatic cylinder |
| Enclosure | Aluminum slide doors with polycarbonate viewing sheets |
| Optional Features | Servo-driven trolley traverse, automatic pipe loading and unloading system, IoT monitoring system, open top model for heavy pipes |
| Suitable Pipe Material | HDPE and other plastic pipes |
| Primary Applications | Drainage, irrigation, filtration, and industrial perforated pipe production |
| Minimum Order Quantity | 1 |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
It is designed for HDPE and other plastic pipes used in industrial pipe manufacturing.
The machine supports pipe sizes from 40 mm to 630 mm depending on the model.
It uses a 4-head drilling configuration for simultaneous perforation.
The machine supports pipe lengths of 3.0 m or 6.0 m.
A powered pipe holder with collets is used to keep the pipe stable and ensure accurate indexing.
Pneumatic cylinders control the cutter up and down movement for consistent perforation.
Yes, optional features include servo-driven trolley traverse, automatic pipe loading and unloading, and IoT monitoring.
Yes, the multi-head design, wide pipe-size range, and automation options make it suitable for high-volume industrial production.
Brand: bjs
Country Of Origin: India
The BJS Multi Head Automatic Pipe Perforation Machine is designed for high-efficiency perforation of plastic pipes across a wide diameter range. Equipped with multiple drill heads, this industrial pipe perforation machine enables simultaneous drilling operations, improving production speed and consistency. The powered pipe holder with collets ensures accurate pipe indexing, while pneumatic cutter movement supports controlled perforation. With an enclosed structure featuring aluminum slide doors and polycarbonate viewing panels, the machine is suitable for HDPE and industrial pipe manufacturers requiring reliable and scalable perforation solutions.
Features:
Attributes:
Product Overview
The BJS Multi Head Automatic Pipe Perforation Machine is an advanced industrial solution designed for efficient perforation of plastic pipes used in drainage, irrigation, and infrastructure applications. This automatic pipe perforation machine is engineered to deliver consistent hole patterns and reliable performance across a wide range of pipe sizes, making it suitable for HDPE and other plastic pipe processing industries.
Multi Head Perforation Efficiency
Equipped with a four-head drilling system, the machine allows simultaneous perforation, significantly improving productivity compared to single-head systems. This multi head pipe perforation machine ensures uniform hole spacing and consistent drilling quality, which is critical for applications such as drainage pipes and filtration systems.
Precision Pipe Handling and Operation
The machine uses a powered pipe holder with collets to maintain stable pipe positioning and accurate indexing during operation. The cutter movement is controlled by pneumatic cylinders, ensuring consistent drilling depth and reliable perforation performance. Optional servo motor and servo drive systems can be integrated for trolley traverse and pipe indexing to enhance automation and precision.
Machine Construction and Safety
The perforation machine is built with aluminum slide doors and viewable polycarbonate sheets, allowing operators to monitor the process while maintaining a controlled and safer working environment. Its enclosed design supports efficient operation in industrial settings and helps protect internal components from external contaminants.
Technical Specifications and Applications
The BJS-PM-4H series supports pipe sizes from 40 mm to 630 mm with pipe lengths of 3.0 or 6.0 meters. Each model is equipped with four drill motors ranging from 1.1 kW to 1.5 kW per head, with total power consumption between 6.0 kW and 10.0 kW. This machine is widely used in plastic pipe manufacturing for drainage systems, irrigation pipelines, and industrial perforated pipe applications.
Optional Features for Industrial Automation
Optional features include servo-driven trolley traverse, servo-based pipe indexing, open top models for heavy pipes, automatic pipe loading and unloading systems, and IoT monitoring for real-time production tracking. These options provide flexibility for manufacturers aiming to improve productivity, automation, and process control.
Frequently Asked Questions
1. What is the Multi Head Automatic Pipe Perforation Machine used for?
This machine is used for perforating plastic pipes, including HDPE pipes, for applications such as drainage, irrigation, and filtration systems.
2. What pipe sizes can this perforation machine handle?
The machine supports pipe sizes ranging from 40 mm to 630 mm depending on the model.
3. What is the advantage of a multi head perforation system?
A multi head system allows simultaneous drilling, increasing production speed and ensuring uniform hole patterns across the pipe.
4. How is pipe stability maintained during perforation?
The machine uses a powered pipe holder with collets to ensure proper pipe positioning and accurate indexing.
5. What type of control is used for cutter movement?
The cutter movement is controlled by pneumatic cylinders, ensuring consistent drilling depth and operation.
6. Can the machine be upgraded with servo systems?
Yes, optional features include servo motor and servo drive systems for trolley traverse and pipe indexing.
7. What are the power requirements?
The machine uses four drill motors ranging from 1.1 kW to 1.5 kW each, with total power consumption between 6.0 kW and 10.0 kW.
8. Is the machine suitable for heavy pipes?
Yes, an open top model is available as an optional feature for handling heavy and large diameter pipes.
9. Does the machine support automation?
Yes, optional features include automatic pipe loading and unloading systems and IoT monitoring for production tracking.
10. Which industries commonly use this machine?
This machine is widely used in plastic pipe manufacturing, especially for drainage, irrigation, and industrial perforated pipe applications.
