6th Gen. Automatic Pipe Slotting Machine is a servo-driven industrial solution for precision slot cutting in small-diameter plastic pipes used in manufacturing and infrastructure workflows. Designed for wholesale buyers and OEM production lines, this machine supports bulk order requirements for pipe processors looking for factory direct, export-ready equipment with repeatable slot positioning and stable cycle performance. Built for HDPE and similar plastic pipes, the machine uses three servo motors to control trolley traverse, pipe indexing, and cutter movement independently. This servo architecture improves slotting accuracy, repeatability, and process control across production batches. The enclosed structure with aluminum slide doors and polycarbonate viewing panels helps operators monitor the process while maintaining a safer, controlled working environment. The BJS-SM-CNC series covers pipe sizes from 40 mm to 100 mm and supports a standard pipe length capacity of 3 meters. With a 5.5 kW main cutter motor and approximate total power consumption of 12.0 kW, it is suited to industrial-grade pipe processing where productivity and consistency matter. Slotting cycle time is approximately 2 to 2.5 minutes, depending on pipe diameter, material composition, cutter condition, and slotting parameters. This machine is a strong fit for manufacturers producing slotted plastic pipe for drainage systems, industrial piping, and infrastructure projects. Optional upgrades such as IoT monitoring for production tracking, a servo supply stabilizer for electrical stability, and male side thin pipe OD turning capability allow buyers to configure the system to their process needs. For procurement teams seeking a compact, high-output, CNC-style pipe slotting machine with MOQ 1 availability, this model offers a practical production-focused solution for consistent, large-scale operation.
Key Features
| Features | Description |
|---|---|
| Machine Type | Automatic Pipe Slotting Machine |
| Control System | Three Servo Motors |
| Pipe Size Range | 40 mm to 100 mm |
| Pipe Length Capacity | 3 meters |
| Main Cutter Motor | 5.5 kW |
| Cycle Time | 2 to 2.5 minutes per cycle |
| Enclosure | Aluminum slide doors with polycarbonate viewing panels |
| Optional Upgrades | IoT monitoring, servo supply stabilizer, male side thin pipe OD turning |
| Attributes | Description |
|---|---|

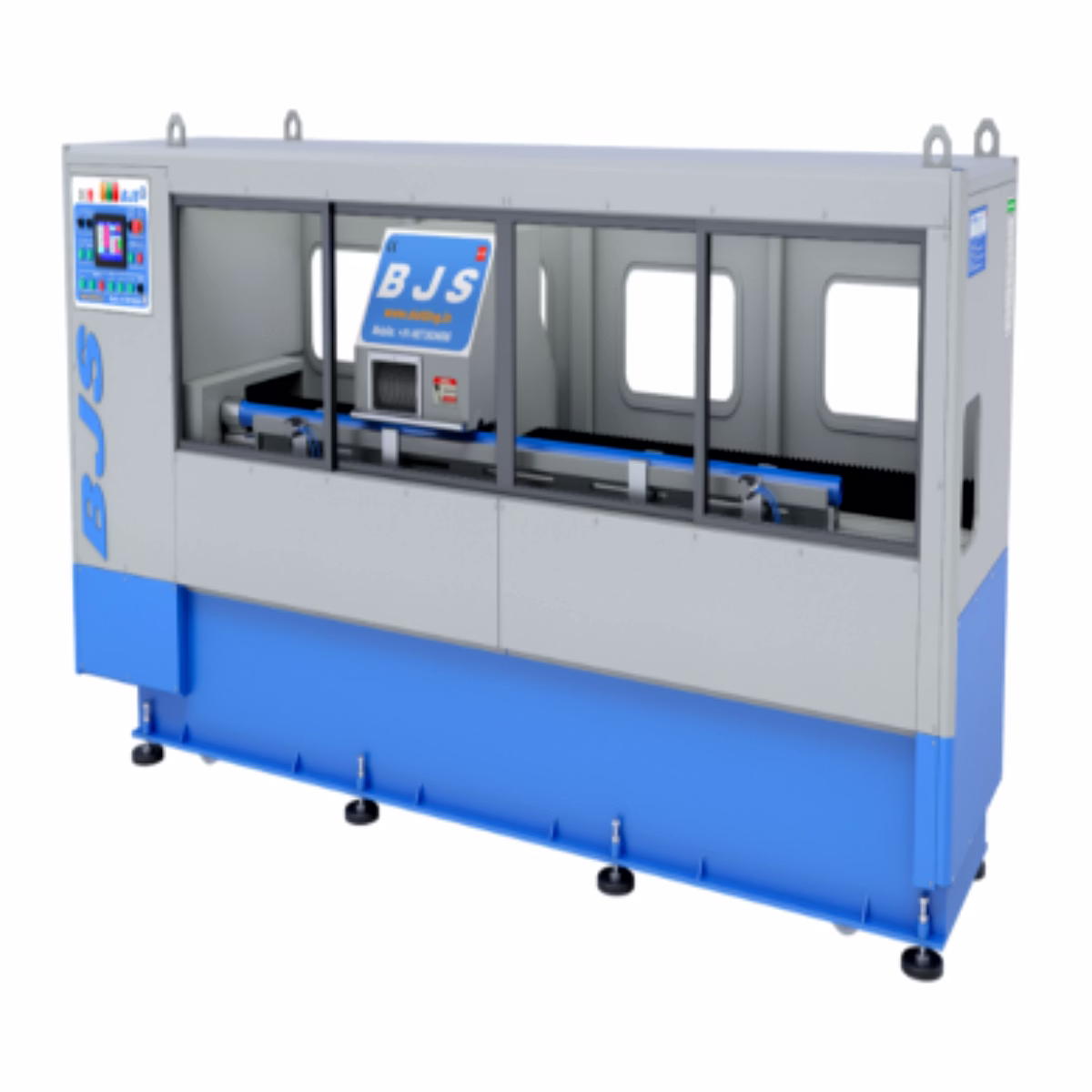

| Product Name | 6th Gen. Automatic Pipe Slotting Machine |
| Brand | BJS |
| Store Name | BJS ENGINEERS PVT.LTD. |
| Product Category | Slotting Machines |
| Model Series | BJS-SM-CNC-40 to BJS-SM-CNC-100 |
| Pipe Size Range | 40 mm to 100 mm |
| Pipe Length Capacity | 3 meters |
| Main Cutter Motor | 5.5 kW |
| Approximate Power Consumption | 12.0 kW |
| Slotting Time per Cycle | 2 to 2.5 minutes |
| Drive Type | Servo-driven |
| Servo Motors | 3 |
| Controlled Functions | Trolley traverse, pipe indexing, cutter movement |
| Machine Structure | Enclosed structure |
| Doors | Aluminum slide doors |
| Viewing Panels | Polycarbonate |
| Suitable Pipe Material | HDPE and similar plastic pipes |
| Optional Features | IoT monitoring system, servo supply stabilizer, male side thin pipe OD turning capability |
| MOQ | 1 |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
The BJS-SM-CNC series supports pipe sizes from 40 mm to 100 mm.
Yes, it is designed for HDPE and similar plastic pipes used in industrial and infrastructure applications.
It uses three servo motors to control trolley traverse, pipe indexing, and cutter movement independently for consistent positioning and repeatability.
The slotting time is approximately 2 to 2.5 minutes per cycle, depending on pipe diameter, material, cutter condition, and slotting parameters.
The main cutter motor is 5.5 kW, and the approximate total power consumption is 12.0 kW.
The machine has an enclosed structure with aluminum slide doors and polycarbonate viewing panels for safer operation and process visibility.
Yes, optional features include IoT monitoring, a servo supply stabilizer, and male side thin pipe OD turning capability.
The machine supports a pipe length capacity of 3 meters.
Brand: bjs
Country Of Origin: India
6th-generation automatic pipe slotting machine built for high-precision slot profiles and tight tolerances on polymer pipes. Advanced servo motion and closed-loop feedback enable repeatable slot depth and pitch, minimizing downstream assembly variation. The machine is specified by production engineers where slot accuracy and minimal secondary finishing are critical.
Optimized for precision slotting in continuous extrusion workflows, the 6th-gen slotting machine uses servo motion with closed-loop control to maintain slot depth within ±0.2 mm. The module reduces secondary finishing needs and supports high-speed lines where tolerance consistency impacts assembly performance and sealing operations.
Provide pipe diameter and wall thickness, required slot profile and tolerance, target production rate, control protocol, and desired deployment timeline. Indicate whether retrofit or turnkey installation is required to receive a detailed RFQ response.
