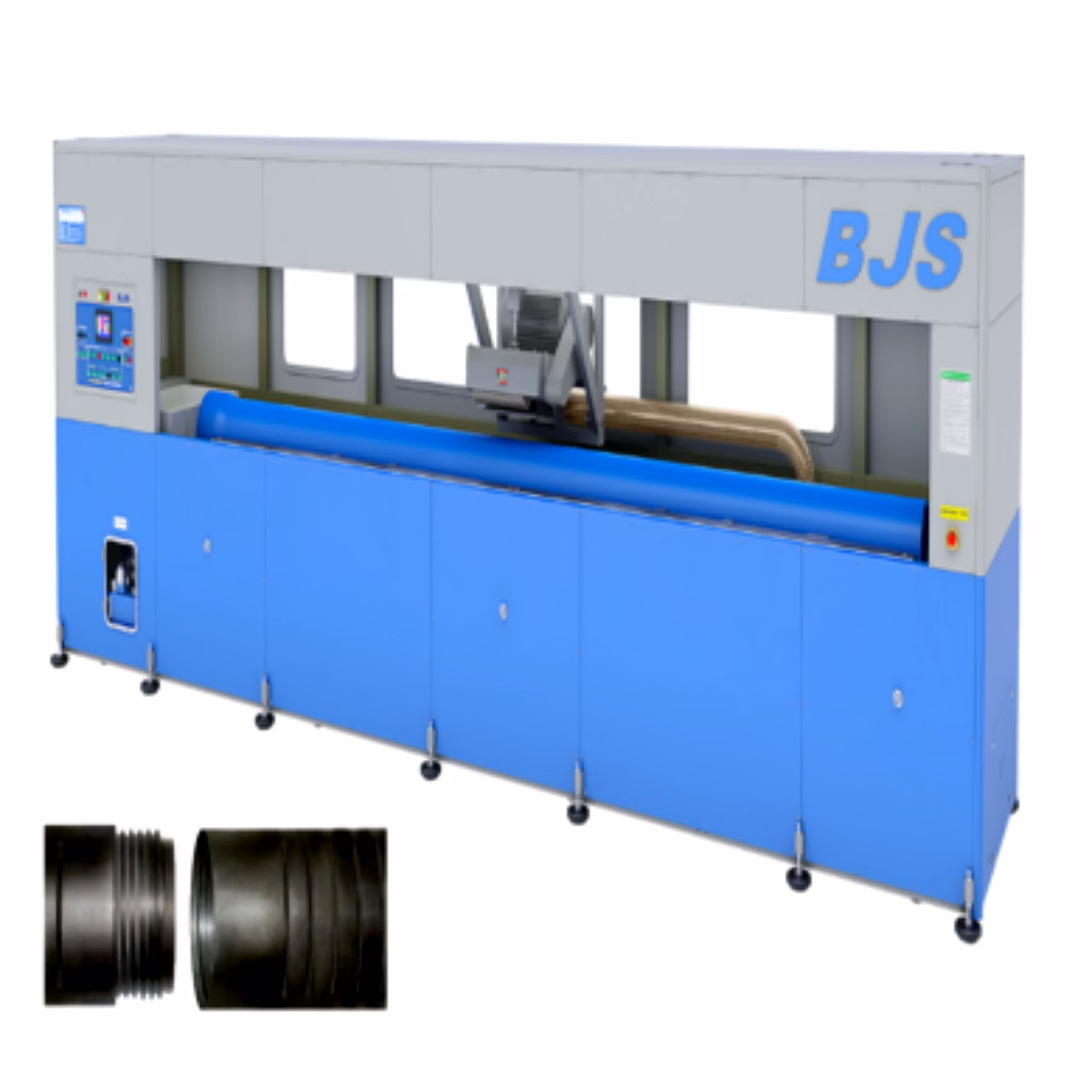

Special Servo, Automatic Slotting Machine is an industrial pipe slotting solution designed for fast, accurate slot cutting in HDPE and other plastic pipe processing lines. Built for B2B manufacturing environments, this automatic pipe slotting machine supports wholesale production, OEM configuration, and factory direct supply for processors that need repeatable slot quality and stable pipe handling. The machine uses a powered pipe holder with collets to maintain controlled pipe indexing, while servo motor and servo drive systems manage trolley traverse. Cutter up-and-down movement is handled by a servo electric cylinder, giving manufacturers the control needed for consistent slot depth and clean cutting performance across multiple pipe sizes. This servo-controlled design is well suited to bulk order production where accuracy, cycle stability, and throughput are critical. The enclosed structure improves operator safety and process visibility through aluminum slide doors with viewable polycarbonate sheets. A separate dust collecting system supports cleaner operation in the workshop, helping reduce debris around the slotting area. For plants processing HDPE pipes, a closed circuit chilled air arrangement is available as an optional configuration to support the slotting process. The BJS-SSM series covers models from BJS-SSM-250 to BJS-SSM-630, handling pipe diameters from 80 mm to 630 mm and pipe lengths from 3.0 m to 6.0 m. Main cutter motor capacity ranges from 15.0 kW to 22.5 kW, with approximate power consumption of 21.0 kW to 29.0 kW depending on model and configuration. Optional features such as automatic pipe loading and unloading, open top design for large pipes, floating pipe indexing, pipe jacking, and forklift-based removal make the machine highly adaptable for export-ready factory setups. For pipe manufacturers serving drainage, infrastructure, industrial piping, and specialized plastic pipe applications, this industrial grade slotting machine offers scalable performance and flexible integration. OEM buyers and export customers can select configurations based on pipe diameter, loading method, and automation requirements, with a minimum order quantity of just 1 machine.
Key Features
| Features | Description |
|---|---|
| Product Type | Automatic pipe slotting machine |
| Application | HDPE and other plastic pipe slotting |
| Pipe Size Range | 80 mm to 630 mm |
| Pipe Length Capacity | 3.0 m to 6.0 m |
| Cutter Control | Servo electric cylinder |
| Traverse Control | Servo motor and servo drive |
| Pipe Holding System | Powered pipe holder with collets |
| Safety Enclosure | Aluminum slide doors with viewable polycarbonate sheets |
| Dust Management | Separate dust collecting system |
| Optional Automation | Automatic pipe loading and unloading |
| Attributes | Description |
|---|---|
| Brand | BJS |
| Product Category | Slotting Machines |
| Model Series | BJS-SSM-250 to BJS-SSM-630 |
| Pipe Size Range | 80 mm to 630 mm |
| Pipe Length Capacity | 3.0 m to 6.0 m |
| Main Cutter Motor | 15.0 kW to 22.5 kW |
| Approximate Power Consumption | 21.0 kW to 29.0 kW |
| Trolley Traverse Control | Servo motor and servo drive |
| Cutter Up/Down Movement | Servo electric cylinder |
| Pipe Indexing System | Powered pipe holder with collets |
| Safety Doors | Aluminum slide doors with viewable polycarbonate sheets |
| Dust Collection | Separate dust collecting system |
| Optional Features | Automatic pipe loading and unloading, open top model, floating pipe indexing, pipe jacking, servo-based pipe indexing, pipe removal by forklift, chilled air arrangement for HDPE pipes, IoT monitoring system |
| Primary Application | Fast and accurate slotting of HDPE and other plastic pipes |
| MOQ | 1 |
| Store Name | BJS ENGINEERS PVT.LTD. |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
It is engineered for HDPE and other plastic pipe processing applications, making it suitable for industrial pipe manufacturers.
The BJS-SSM series works with pipe sizes from 80 mm to 630 mm, depending on the selected model.
It is designed for pipe lengths from 3.0 m to 6.0 m.
Accuracy comes from servo motor and servo drive control for trolley traverse, a servo electric cylinder for cutter movement, and a powered pipe holder with collets for stable indexing.
Yes. It includes aluminum slide doors with viewable polycarbonate sheets to support safer operation while allowing process visibility.
Yes. A separate dust collecting system is included to help keep the operating area cleaner during slotting.
Yes. It can be used for HDPE pipe slotting, and a closed circuit chilled air arrangement is available as an optional feature.
Yes. Automatic pipe loading and unloading is available as an optional configuration, along with other handling options such as pipe jacking and forklift-based removal.
Brand: bjs
Country Of Origin: India
Special servo-driven automatic slotting machine designed for precise slot depth and repeatability across polymer pipes. The servo architecture provides programmable motion profiles for burr suppression and fine adjustment of slot parameters. Maintenance and production teams select the servo variant when tight process control and profile variability are required for advanced fittings.
Servo-driven slotting provides programmable motion that reduces burr formation and ensures consistent slot depth across variable pipe diameters. The special servo variant integrates with line control systems to accept recipe changes for different slot geometries, offering reduced downtime for changeovers and improved part conformity.
Provide pipe diameter and wall thickness, preferred slot profile and tolerance, desired throughput, servo control protocol, and installation model. Include whether a retrofit servo upgrade or full machine supply is required to receive a detailed RFQ response.
