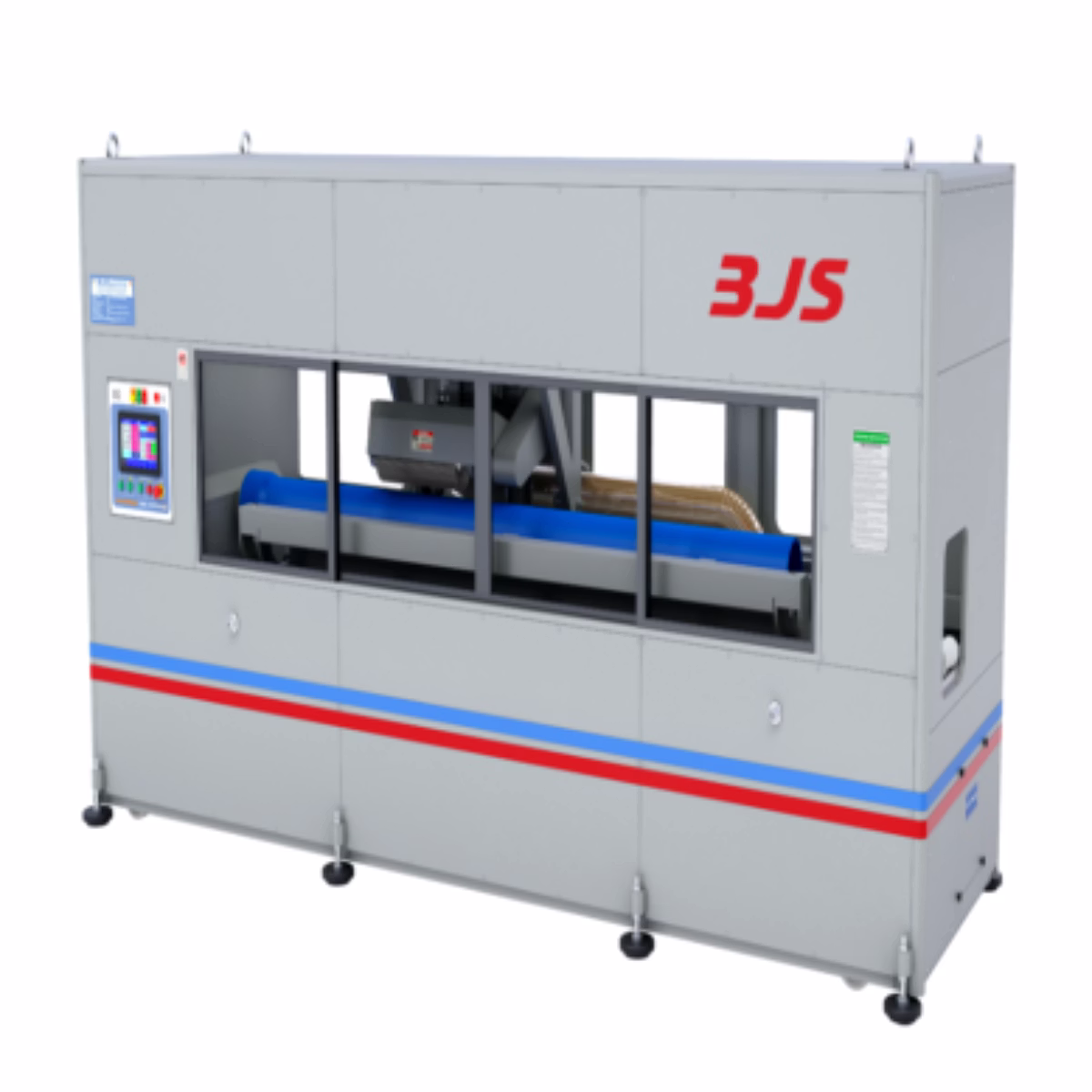

The 5th & 3rd Gen. Automatic Pipe Slotting Machine is an industrial pipe processing solution designed for precision slot cutting in plastic pipes, including HDPE pipe applications. Built for wholesale buyers and bulk order procurement, this machine is suitable for manufacturers seeking factory direct production equipment with consistent slotting quality, stable indexing, and export-ready performance. The BJS-SM-5G/3G series is engineered for pipe sizes from 40 mm to 400 mm and pipe lengths from 3.0 m to 6.0 m, making it a flexible choice for a wide range of production lines. In the 5th generation model, servo motor and servo drive trolley movement improve traverse control, while a servo cylinder manages the cutter up-and-down stroke for better repeatability and slot depth consistency. The powered pipe holder with collets helps secure the pipe during indexing, supporting accurate slot placement across different pipe diameters. This automatic pipe slotting machine is well suited for drainage pipe manufacturing, infrastructure projects, and industrial plastic pipe processing. With a slotting time of approximately 1.0 minute per line in the 5th generation version and 1.0 to 2.0 minutes in the 3rd generation version, it is designed to support high-volume production environments where cycle time and process reliability matter. The main cutter motor is rated at 15 kW, with total power consumption ranging from approximately 18.75 kW to 20.50 kW depending on the configuration. For operator visibility and workplace cleanliness, the machine features aluminum slide doors with polycarbonate viewing panels and an integrated dust collecting system. Optional upgrades include a chilled air arrangement for HDPE pipe slotting and an IoT monitoring system for process visibility and production tracking. For buyers looking for OEM supply, industrial grade build quality, and minimum order quantity of 1 for project-based procurement, this machine offers a practical, scalable solution for pipe slotting operations.
Key Features
| Features | Description |
|---|---|
| Machine Type | Automatic pipe slotting machine |
| Model Series | BJS-SM-5G/3G-160 to BJS-SM-5G/3G-400 |
| Pipe Size Range | 40 mm to 400 mm |
| Pipe Length Capacity | 3.0 m to 6.0 m |
| Main Cutter Motor | 15 kW |
| Slotting Time | 1.0 minute per line (5th Gen) / 1.0–2.0 minutes (3rd Gen) |
| Trolley Traverse Control | Servo motor and servo drive (5th generation) |
| Cutter Stroke Control | Servo cylinder |
| Pipe Holding System | Powered pipe holder with collets |
| Dust Control | Integrated dust collecting system |
| Attributes | Description |
|---|---|
| Brand | BJS |
| Product Category | Slotting Machines |
| Model Series | BJS-SM-5G/3G-160 to BJS-SM-5G/3G-400 |
| Generation Options | 5th Generation / 3rd Generation |
| Application | Plastic pipe slot cutting |
| Suitable Pipe Materials | HDPE and similar pipe materials |
| Pipe Size Range | 40 mm to 400 mm |
| Pipe Length Capacity | 3.0 m to 6.0 m |
| Slotting Time per Line | 1.0 minute (5th Gen); 1.0–2.0 minutes (3rd Gen) |
| Main Cutter Motor | 15 kW |
| Power Consumption | Approx. 18.75 kW to 20.50 kW |
| Trolley Traverse Control | Servo motor and servo drive |
| Cutter Up/Down Stroke Control | Servo cylinder |
| Pipe Holding System | Powered pipe holder with collets |
| Enclosure | Aluminum slide doors with polycarbonate viewing panels |
| Dust Collection | Integrated dust collecting system |
| Optional Feature | Chilled air arrangement for HDPE pipe slotting |
| Optional Feature | IoT monitoring system |
| MOQ | 1 |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
It is suitable for HDPE and similar plastic pipe materials used in industrial pipe processing.
The BJS-SM-5G/3G series supports pipe sizes from 40 mm to 400 mm.
The machine is designed for pipe lengths from 3.0 m to 6.0 m.
The 5th generation model achieves approximately 1.0 minute per line.
The 5th generation model includes servo motor and servo drive trolley traverse control, and uses a servo cylinder for cutter stroke control, offering improved precision and repeatability.
It uses a powered pipe holder with collets to maintain stable pipe indexing during slotting.
Yes, it includes an integrated dust collecting system and aluminum slide doors with polycarbonate viewing panels.
Yes, optional upgrades include a chilled air arrangement for HDPE pipe slotting and an IoT monitoring system for process visibility.
Brand: bjs
Country Of Origin: India
5th-generation automatic pipe slotting machine engineered for precision slot creation on uPVC and PE pipes. The system supports high-speed indexing and servo-driven tooling to deliver consistent slot dimensions and burr control. Production engineers specify this machine to introduce slots for insert fittings and suppression of extrusion irregularities during downstream assembly.
Designed for inline slotting on extrusion lines, the 5th-gen slotting machine integrates with haul-off and cutting stations to apply slots or perforations with controlled pitch and burr suppression. Servo-controlled indexing maintains slot placement accuracy and reduces rework. The machine is commonly used in irrigation, drain, and utility pipe production where slot geometry affects later assembly or filtration performance.
Share pipe diameter and wall thickness range, desired slot width and pitch, target output rate, automation level, and installation model. Include required documentation needs and delivery timeline for a detailed proposal and RFQ response.
