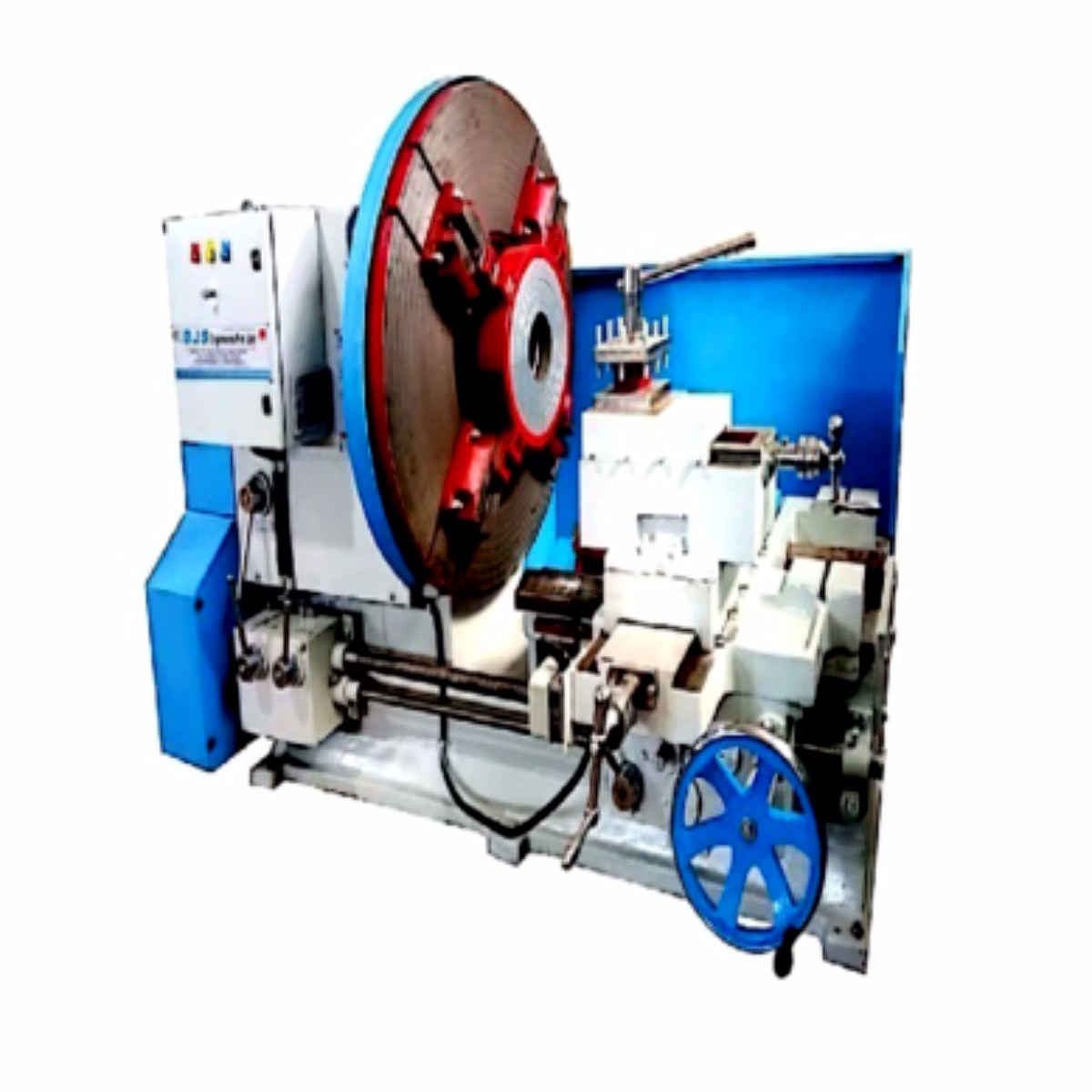

BJS Big Bore Lathe PE Pipe Flange Machine is a heavy-duty industrial lathe for turning, facing, and flange machining of large diameter PE pipes and plastic pipe components. Designed for B2B buyers in pipe manufacturing and industrial fabrication, this machine supports wholesale production, bulk order requirements, OEM setups, and factory direct supply for export-ready projects. Built with a single casted heavy-duty bed, the machine delivers high rigidity and vibration control for stable machining under load. The semi Norton type gearbox is suited to demanding cutting conditions, helping maintain consistent performance when processing long pipes and large flange components. For secure clamping, the machine is fitted with a specially engineered collet or big dog chuck, making it suitable for heavy pipe holding during precision machining. The BJS-LM series is available for pipe size ranges from 160 mm to 630 mm, with main spindle bore options from 360 mm to 690 mm. It is powered by cutter motors in the 5.5 kW to 7.5 kW range, giving buyers a robust industrial grade solution for PE pipe turning and flange fabrication. Maximum flange diameter capacity extends up to 800 mm to 1600 mm depending on the model, making it ideal for large-diameter applications where standard pipe lathes are not sufficient. Maintenance and operation are simplified through an external drum pulley arrangement, which allows easier belt changing without spindle removal. A rear stand support is provided for long pipe machining, improving alignment and stability during processing. These practical design features reduce downtime and support efficient shop floor productivity. This machine is widely used in plastic pipe manufacturing, infrastructure supply chains, and industrial piping systems where accurate machining of PE pipes and flange faces is critical. For procurement teams seeking a dependable big bore lathe machine with flexible model configurations, the BJS solution offers strong performance, secure workholding, and reliable production capability for high-volume pipe processing.
Key Features
| Features | Description |
|---|---|
| Brand | BJS |
| Construction | Single casted heavy-duty bed |
| Gearbox | Semi Norton type gearbox |
| Pipe Holding | Specially designed collet or big dog chuck |
| Pipe Size Range | 160 mm to 630 mm |
| Main Spindle Bore | 360 mm to 690 mm |
| Main Cutter Motor | 5.5 kW to 7.5 kW |
| Maximum Flange Diameter | 800 mm to 1600 mm |
| Application | PE pipe turning and flange machining |
| Attributes | Description |
|---|---|
| Product Title | Big Bore LATHE - PE Pipe Flange Machine |
| Brand | BJS |
| Product Category | Other Allied Machines |
| Model Series | BJS-LM-315 to BJS-LM-630 |
| Pipe Size Range | 160 mm to 630 mm |
| Main Spindle Bore | 360 mm to 690 mm |
| Main Cutter Motor | 5.5 kW to 7.5 kW |
| Maximum Flange Diameter | 800 mm to 1600 mm |
| Construction | Single casted heavy-duty bed |
| Gearbox Type | Semi Norton type gearbox |
| Pipe Holding System | Specially engineered collet or big dog chuck |
| Maintenance Feature | External drum pulley for easier belt changing |
| Support Feature | Rear stand support for machining long pipes |
| Application | PE pipe turning and flange machining |
| Material Compatibility | Large diameter plastic pipes / PE pipes |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
The BJS-LM series supports pipe sizes from 160 mm to 630 mm, depending on the selected model.
The machine supports flange diameters from 800 mm up to 1600 mm, depending on the model configuration.
It uses a specially engineered collet or big dog chuck for secure holding of large diameter pipes during machining.
Yes, it is specifically designed for PE pipe turning, flange facing, and flange machining applications.
Main spindle bore capacity ranges from 360 mm to 690 mm across the model series.
The main cutter motor options range from 5.5 kW to 7.5 kW.
Yes, it includes a rear stand support to improve alignment and stability when machining long pipes.
An external drum pulley is provided for easier belt changing, reducing maintenance time and simplifying service access.
Brand: bjs
Country Of Origin: India
PE Pipe Flange Facing Lathe for large-diameter flange preparation. The machine enables precision facing for flanges used in HDPE systems. It reduces rework and ensures concentricity for bolted joints and flange assemblies.
Designed for flange preparation and facing operations in PE/HDPE fabrication shops. The lathe mounts fixtures that secure the pipe and rotate precise facing cutters across the flange face. This reduces manual machining and provides repeatable flatness for bolted joints.
Provide flange OD range, bore diameter, face width, target cycle time, automation level, and fixture requirements. Indicate whether turnkey installation or supply-only is required to receive a tailored proposal.
