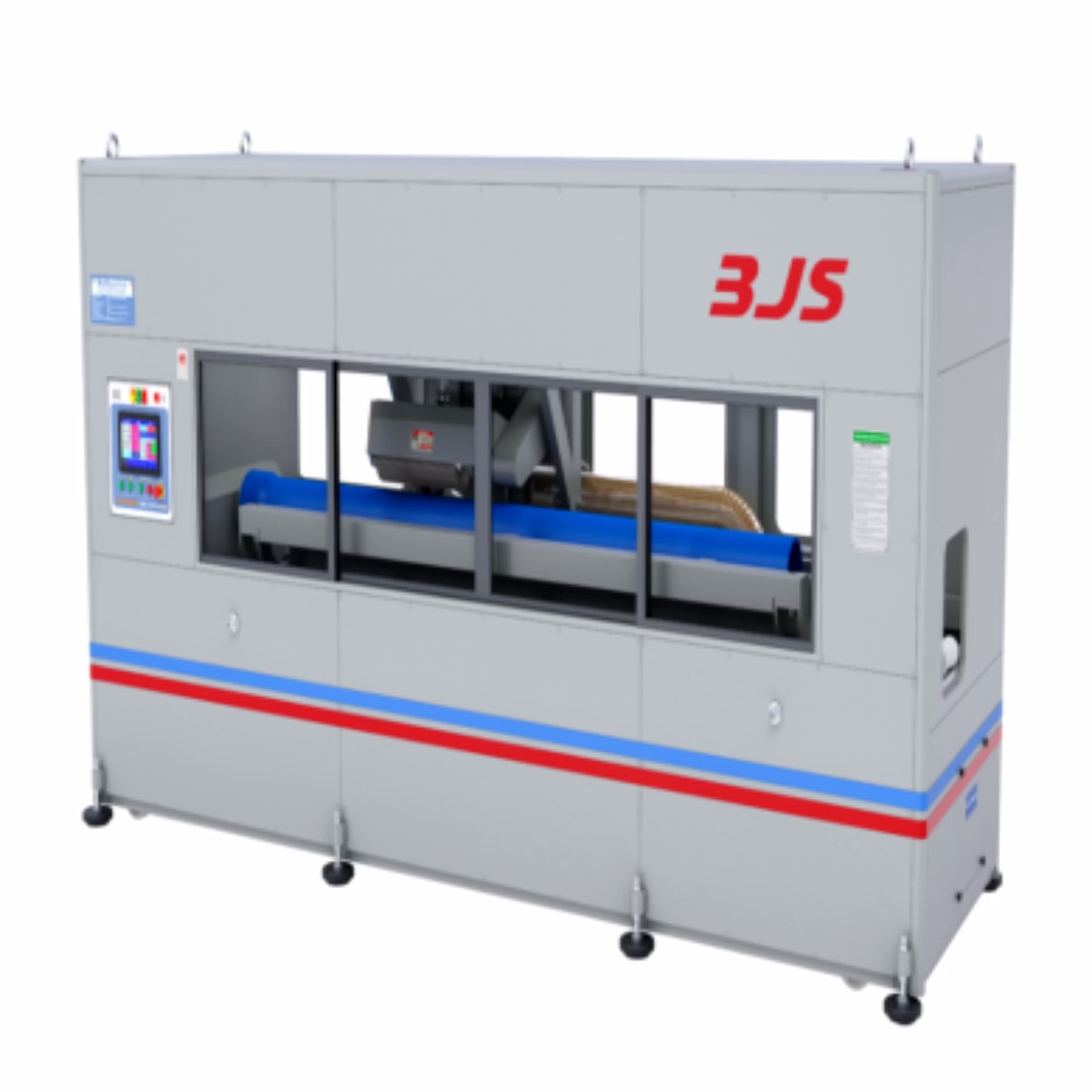

The 5th & 3rd Gen. Automatic Pipe Slotting Machine is an industrial pipe-processing solution for fast, precise slot cutting in plastic pipes, including HDPE applications. Designed for wholesale buyers, OEM production lines, and factory direct supply, this machine supports high-volume slotting with consistent accuracy across a wide pipe diameter range. The BJS-SM-5G/3G series is built for pipe sizes from 40 mm to 400 mm and pipe lengths from 3.0 m to 6.0 m, making it suitable for manufacturers handling drainage pipe, infrastructure pipe, and other industrial plastic pipe products. The powered pipe holder with collets provides stable indexing during operation, helping maintain uniform slot placement and dependable repeatability. In the 5th generation configuration, the trolley traverse is controlled by a servo motor and servo drive, while cutter up-and-down stroke is managed by a servo cylinder. This servo-controlled motion system improves precision, repeatability, and cycle control, with slotting time of about 1.0 minute per line for the 5th Gen model. The 3rd Gen version is also optimized for production, with slotting time of 1.0 to 2.0 minutes depending on pipe size and material. The enclosed machine design includes aluminum slide doors with polycarbonate viewing panels for better visibility during operation. An integrated dust collecting system supports cleaner working conditions and reduced debris accumulation in the production area. For HDPE pipe slotting, an optional chilled air arrangement is available to improve process stability. Buyers can also choose an optional IoT monitoring system for real-time production visibility and process tracking. Powered by a 15 kW main cutter motor, the machine is engineered for industrial-grade performance with total power consumption of approximately 18.75 kW to 20.50 kW. This makes it a practical export-ready choice for businesses seeking a reliable automatic pipe slotting machine with OEM support, bulk order capability, and minimum order quantity of 1 unit.
Key Features
| Features | Description |
|---|---|
| Model Series | BJS-SM-5G/3G-160 to BJS-SM-5G/3G-400 |
| Pipe Size Range | 40 mm to 400 mm |
| Pipe Length Capacity | 3.0 m to 6.0 m |
| Generation Options | 5th Generation and 3rd Generation |
| Trolley Traverse Control | Servo motor and servo drive (5th Gen) |
| Cutter Stroke Control | Servo cylinder |
| Pipe Holding System | Powered pipe holder with collets |
| Slotting Time | 1.0 minute per line (5th Gen); 1.0–2.0 minutes (3rd Gen) |
| Main Cutter Motor | 15 kW |
| Safety Enclosure | Aluminum slide doors with polycarbonate viewing panels |
| Attributes | Description |
|---|---|
| Brand | BJS |
| Product Category | Slotting Machines |
| Model Series | BJS-SM-5G/3G-160 to BJS-SM-5G/3G-400 |
| Pipe Size Range | 40 mm to 400 mm |
| Pipe Length Capacity | 3.0 m to 6.0 m |
| Slotting Time per Line (5th Gen) | Approx. 1.0 minute |
| Slotting Time per Line (3rd Gen) | Approx. 1.0 to 2.0 minutes |
| Main Cutter Motor | 15 kW |
| Power Consumption | Approx. 18.75 kW to 20.50 kW |
| Pipe Material Compatibility | Plastic pipes, including HDPE |
| Pipe Indexing System | Powered pipe holder with collets |
| Trolley Traverse Control (5th Gen) | Servo motor and servo drive |
| Cutter Stroke Control | Servo cylinder |
| Machine Enclosure | Aluminum slide doors |
| Viewing Panels | Polycarbonate sheets |
| Dust Control | Integrated dust collecting system |
| Optional Feature | Chilled air arrangement for HDPE pipe slotting |
| Optional Feature | IoT monitoring system |
| MOQ | 1 |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
It supports plastic pipes from 40 mm to 400 mm in diameter, depending on the model configuration.
Yes, it is suitable for HDPE pipe slotting, and an optional chilled air arrangement is available for improved processing.
The 5th generation model includes servo motor and servo drive control for trolley movement, while the 3rd generation model uses a less advanced configuration with slower slotting speed.
The 5th generation model slots at about 1.0 minute per line, while the 3rd generation model operates at approximately 1.0 to 2.0 minutes per line.
The machine uses a powered pipe holder with collets to ensure stable pipe indexing and accurate slotting.
It uses a 15 kW main cutter motor, with total power consumption of approximately 18.75 kW to 20.50 kW.
Yes, it includes an integrated dust collecting system and an enclosed design with aluminum slide doors and polycarbonate viewing panels.
Yes, an optional IoT monitoring system is available for real-time production visibility and process tracking.
Brand: bjs
Country Of Origin: India
The BJS 5th & 3rd Generation Automatic Pipe Slotting Machine is designed for efficient and precise slot cutting in plastic pipes across a wide diameter range. Built for industrial pipe processing, this automatic slotting machine integrates servo-controlled trolley movement in the 5th generation model and a servo cylinder for cutter stroke control. The powered pipe holder with collets ensures stable indexing, while the enclosed design with polycarbonate viewing panels enhances operational visibility. Suitable for HDPE and similar pipe materials, the machine supports consistent slotting performance with optimized cycle times for high-volume production.
Features:
Attributes:
Product Overview
The BJS 5th & 3rd Generation Automatic Pipe Slotting Machine is a versatile industrial solution designed for precision slot cutting in plastic pipes, including HDPE pipe applications. Engineered for consistent performance, this automatic pipe slotting machine supports both 5th generation servo-driven operation and 3rd generation configurations, allowing manufacturers to select a suitable system based on production requirements and budget considerations.
Efficient Slotting Performance
This industrial slotting machine delivers fast and accurate slot cutting with a slotting time of approximately 1.0 minute per line for the 5th generation model and 1.0 to 2.0 minutes for the 3rd generation model. The powered pipe holder with collets ensures stable pipe positioning and indexing, helping maintain uniform slotting across different pipe sizes and materials.
Servo-Controlled Motion System
The 5th generation configuration includes servo motor and servo drive for trolley traverse, improving control and repeatability during operation. The cutter up and down movement is managed by a servo cylinder, enabling controlled penetration and consistent slot depth. This setup is suitable for manufacturers requiring reliable slotting precision in continuous production environments.
Machine Construction and Safety Features
The machine is equipped with aluminum slide doors and viewable polycarbonate sheets, allowing operators to monitor the slotting process while maintaining a safer and more controlled work environment. An integrated dust collecting system helps reduce debris during operation, contributing to cleaner and more efficient production facilities.
Technical Specifications and Applications
The BJS-SM-5G/3G series supports pipe sizes ranging from 40 mm to 400 mm and pipe lengths from 3.0 to 6.0 meters. It is powered by a 15 kW cutter motor with power consumption between 18.75 kW and 20.50 kW. Slotting performance may vary depending on pipe diameter, wall thickness, material composition, and cutter condition. This machine is widely used in drainage pipe manufacturing, infrastructure development, and industrial plastic pipe processing.
Optional Features for Enhanced Productivity
Optional features include a separate dust collecting system, a closed circuit chilled air arrangement for HDPE pipe slotting, and an IoT monitoring system for real-time production tracking. These enhancements allow manufacturers to improve operational efficiency, maintain process control, and adapt the machine to specific production requirements.
Frequently Asked Questions
1. What is the 5th & 3rd Generation Automatic Pipe Slotting Machine used for?
This machine is used for slot cutting in plastic pipes, including HDPE pipes, for applications such as drainage, infrastructure, and industrial piping.
2. What pipe sizes can this machine process?
The machine supports pipe sizes ranging from 40 mm to 400 mm depending on the model.
3. What is the difference between 5th and 3rd generation models?
The 5th generation model includes servo motor and servo drive for trolley movement, offering improved control and precision compared to the 3rd generation configuration.
4. What is the slotting speed of the machine?
The 5th generation model achieves approximately 1.0 minute per line, while the 3rd generation operates between 1.0 to 2.0 minutes depending on conditions.
5. How is pipe stability maintained during slotting?
The machine uses a powered pipe holder with collets to ensure proper indexing and stable positioning during slotting operations.
6. Is this machine suitable for HDPE pipes?
Yes, the machine is suitable for HDPE pipe slotting, and an optional chilled air arrangement is available for improved processing.
7. What safety features are included?
The machine includes aluminum slide doors with polycarbonate viewing panels for safer operation and better visibility.
8. Does the machine include dust control?
Yes, it includes a built-in dust collecting system, with an option for a separate dust collection unit.
9. What are the power requirements?
The machine uses a 15 kW cutter motor with total power consumption between 18.75 kW and 20.50 kW.
10. Can the machine be upgraded with monitoring systems?
Yes, an optional IoT monitoring system is available for real-time tracking and production management.
