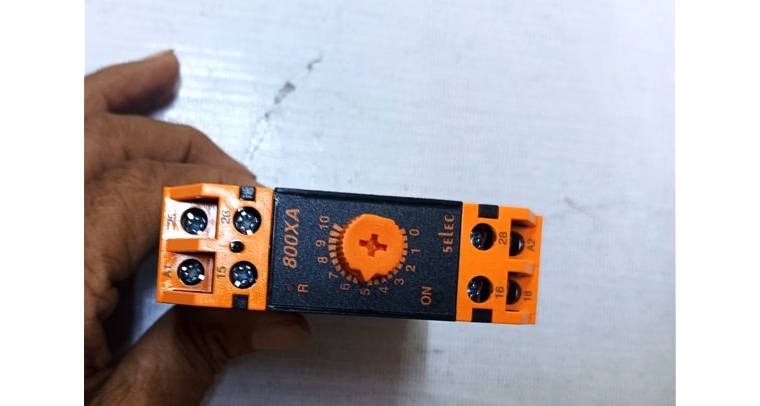

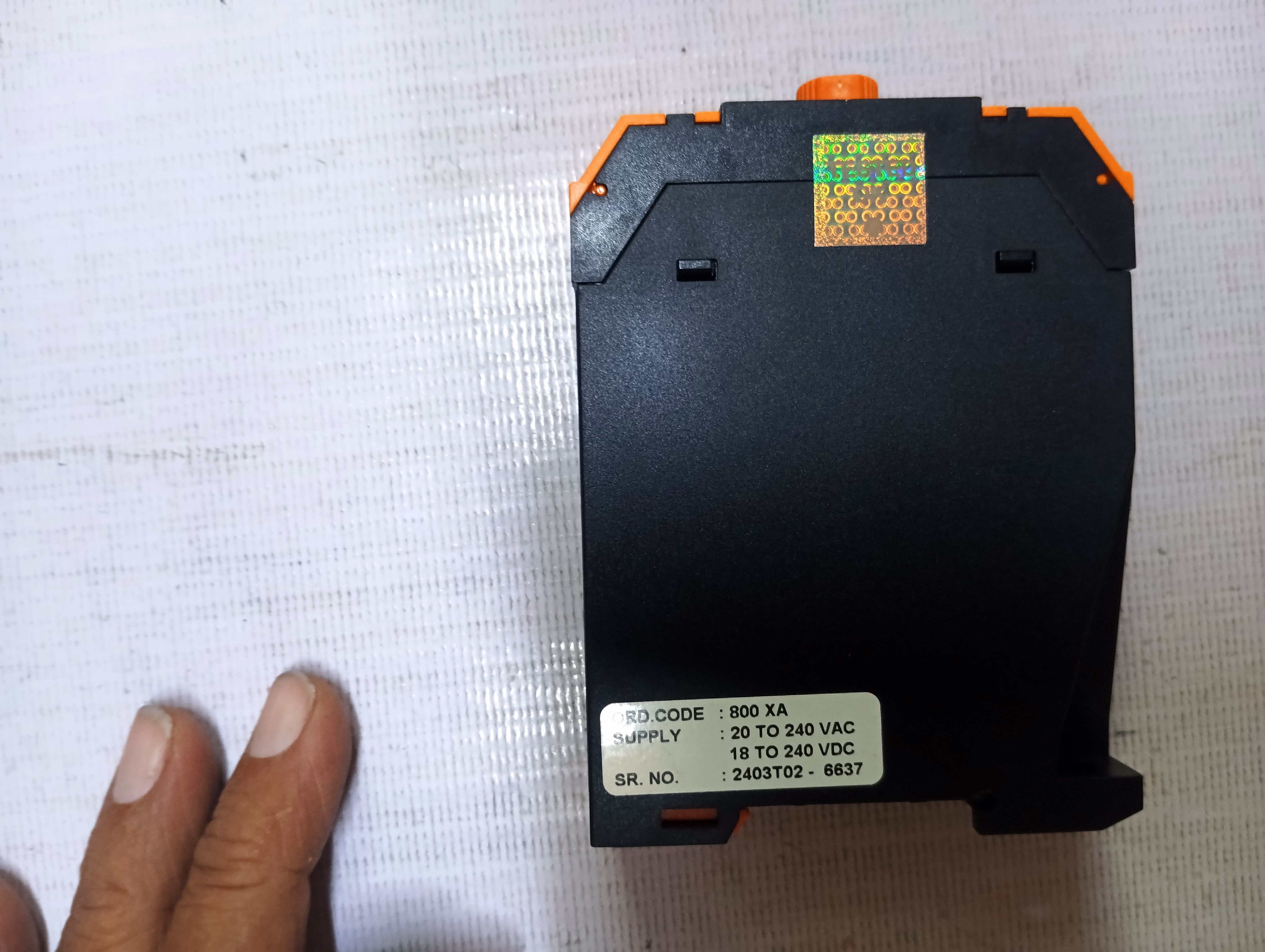

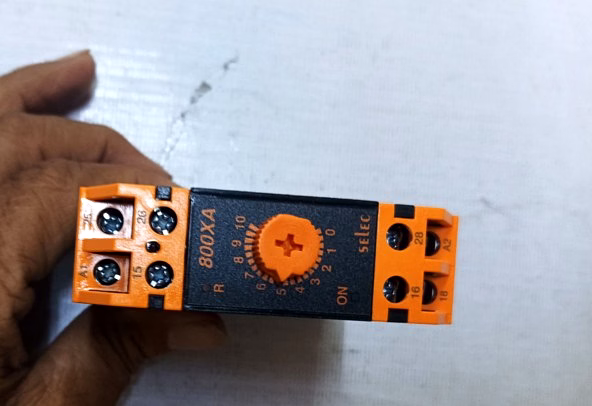

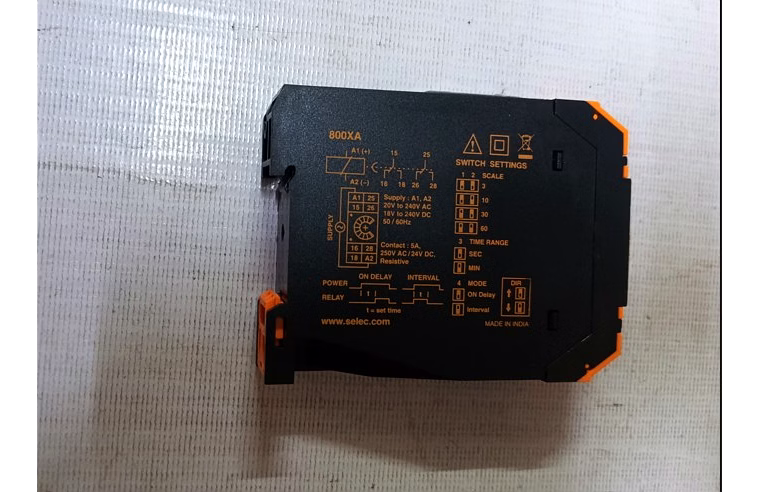

The SELEC 800XA is a versatile on delay and interval timer designed for precise industrial automation and control applications. Featuring 8 selectable time ranges from seconds to minutes, it offers flexibility to meet various timing requirements. This timer supports universal supply voltage ranging from 20 to 240V AC or 12 to 240V DC, making it compatible across diverse electrical systems. It operates in ON delay or interval modes, with an exceptionally high accuracy of ±5% full scale and repeatability of ±0.5% or 50ms, ensuring reliable performance. Equipped with a 2 C/O (SPDT) relay contact rated at 5A at 250V AC or 24V DC, the 800XA guarantees robust switching capabilities. The LED indicators for Power ON and Relay ON provide visual status confirmation. Compactly housed in a 22.5mm casing, it supports both DIN rail and back panel mounting options for flexible installation. CE certification assures compliance with European safety and performance standards. This timer is ideal for commercial and industrial integration where precise, dependable timing control is pivotal, such as manufacturing processes, conveyor systems, and automated control panels.
Key Features
| Features | Description |
|---|---|
| Operating Modes | On delay and Interval |
| Time Ranges | 8 selectable ranges: 3s, 10s, 30s, 60s, 3min, 10min, 30min, 60min |
| Universal Supply Voltage | 20 to 240V AC, 12 to 240V DC |
| Relay Contact | 2 C/O SPDT, 5A @ 250V AC or 24V DC |
| Resolution | 0.3 seconds |
| Accuracy | ±5% of full scale, Repeatability ±0.5% or 50ms |
| Mounting Type | DIN rail and back panel mount |
| Size (Width) | 22.5 mm |
| LED Indications | Power ON and Relay ON |
| Certification | CE certified |
| Attributes | Description |
|---|---|
| Product Model | 800XA |
| Timer Function | On Delay / Interval |
| Time Ranges | 3/10/30/60 seconds and 3/10/30/60 minutes |
| Power Supply Range | 20 to 240V AC or 12 to 240V DC |
| Relay Output Type | SPDT (Single Pole Double Throw) |
| Contact Rating | 5A at 250V AC or 24V DC |
| Operating Voltage Frequency | AC: 50/60 Hz |
| Mounting Method | DIN rail or back panel |
| Operating Temperature Range | Standard industrial range (not specified) |
| Dimensions | 22.5 mm width standard housing |
| Compliance | CE certified |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
Yes, the 800XA supports a universal power supply range from 20 to 240V AC and 12 to 240V DC, making it flexible for various industrial power configurations.
The timer offers 8 selectable time ranges including 3, 10, 30, and 60 seconds, as well as 3, 10, 30, and 60 minutes.
The timer can be easily mounted on DIN rail systems or directly onto a back panel to suit different panel layouts.
It is equipped with a 2 C/O SPDT relay contact rated at 5A for 250V AC or 24V DC, providing reliable switching for moderate current industrial loads.
Yes, it features LED indicators for Power ON and Relay ON status to facilitate easy system monitoring.
The timer operates with an accuracy of ±5% of the full scale and repeatability of ±0.5% or 50 milliseconds, whichever is greater, ensuring reliable timing performance.
Yes, the timer carries CE certification, complying with European safety and performance standards.
Brand: a s enterprises
Country Of Origin: India
On delay / Interval, 8 Time Ranges, Universal supply
Product: 800XA
ON delay / Interval
8 Time Ranges
Universal supply voltage
LED Indications : Power ON, Relay ON
DIN rail / Back panel mount
CE certified
Brief Specifications
Operating Modes ON Delay / Interval
Range 3 / 10 / 30 / 60sec / min
Resolution 0.3 sec
Accuracy Setting: ± 5% Of Full Scale, Repeat: ± 0.5% Of 50ms (Whichever Is Greater)
Relay Contact 2 C/O SPDT
Contact Rating 5A @ 250V AC or 24V DC
Supply Voltage 20 to 240V AC, 12 to 240V DC
Size 22.5mm
Mounting Type DIN Rail Mount
Certification CE
800XA 20 to 240V AC , 12 to 240V DC
