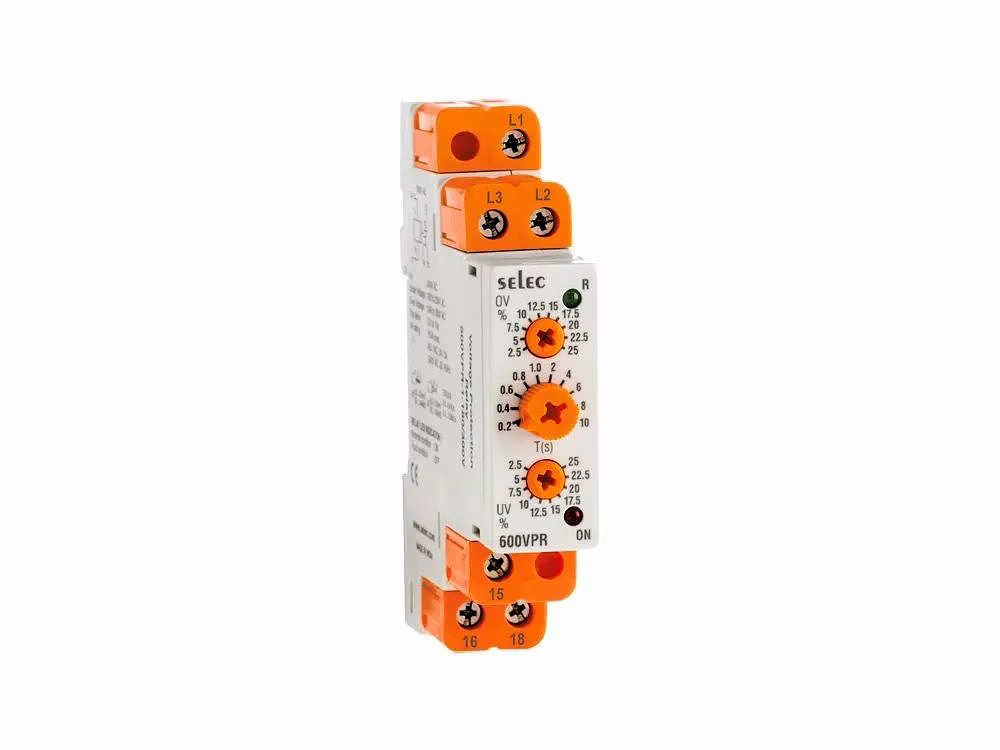

The Selec Voltage Protection Relay 600VPR-310/520 is a high-performance 3-phase, 3-wire voltage monitoring relay designed to ensure electrical system safety and reliability. It monitors critical voltage parameters including under voltage, over voltage, phase sequence, and phase failure, protecting equipment from potential damage caused by electrical anomalies. The relay features an adjustable trip delay timer ranging from 0.2 to 10 seconds, allowing precise control over response time to transient faults. Its intuitive LED indicators display relay status and power availability, enabling easy visual monitoring. The analog display type with three knobs allows straightforward operation and setting adjustments. Engineered for robust operation, it sustains environmental conditions from 0 to 50°C operating temperature and up to 95% non-condensing humidity. Certified with CE and UL compliance, this voltage protection relay is ideal for industrial applications requiring reliable voltage supervision within a supply voltage range of 170 to 290V AC (L-L). The device also features an IP20 degree of protection and pollution degrees of 2 and 3 for PCB and overall product respectively, meeting stringent industrial safety standards.
Key Features
| Features | Description |
|---|---|
| Input Type | 3 Phase - 3 Wire |
| Voltage Monitoring | Under Voltage, Over Voltage |
| Phase Monitoring | Phase Sequence & Phase Failure |
| Trip Delay Timer | Adjustable 0.2 to 10 Seconds |
| LED Indicators | Relay ON, Power ON |
| Display Type | Analog |
| Number of LEDs | 2 |
| Number of Knobs | 3 |
| Operating Temperature Range | 0 to 50°C (32 to 122°F) |
| Storage Temperature Range | -20 to 75°C (-4 to 167°F) |
| Humidity Tolerance | Up to 95% RH (non-condensing) |
| Pollution Degree | PCB: 2, Product: 3 |
| Degree of Protection | IP20 |
| Supply Voltage | 170 to 290V AC (L-L) |
| Certifications | CE, UL |
| Attributes | Description |
|---|---|
| Product Code | 600VPR-310/520 |
| Voltage Range Monitored | 310V to 520V |
| Analog Display | Yes, with 3 adjustment knobs |
| LED Status Indicators | 2 LEDs indicating Relay ON and Power ON |
| Trip Delay Adjustment | 0.2 to 10 seconds adjustable timer |
| Protection Functions | Under Voltage, Over Voltage, Phase Sequence, Phase Failure |
| Operating Environment | Temperature 0-50°C, Humidity up to 95% RH non-condensing |
| Storage Environment | -20 to 75°C |
| Pollution Degree | 2 for PCB, 3 for overall product |
| Degree of Protection | IP20 |
| Standard Certifications | CE, UL |
| Intended Application | Industrial voltage protection and monitoring |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.

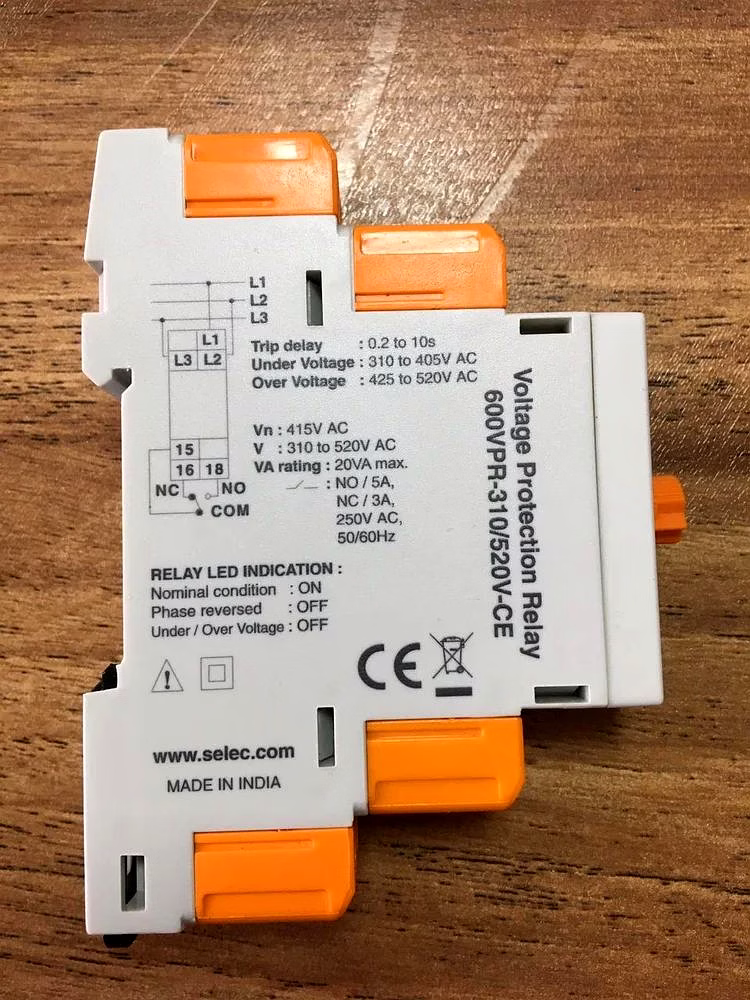

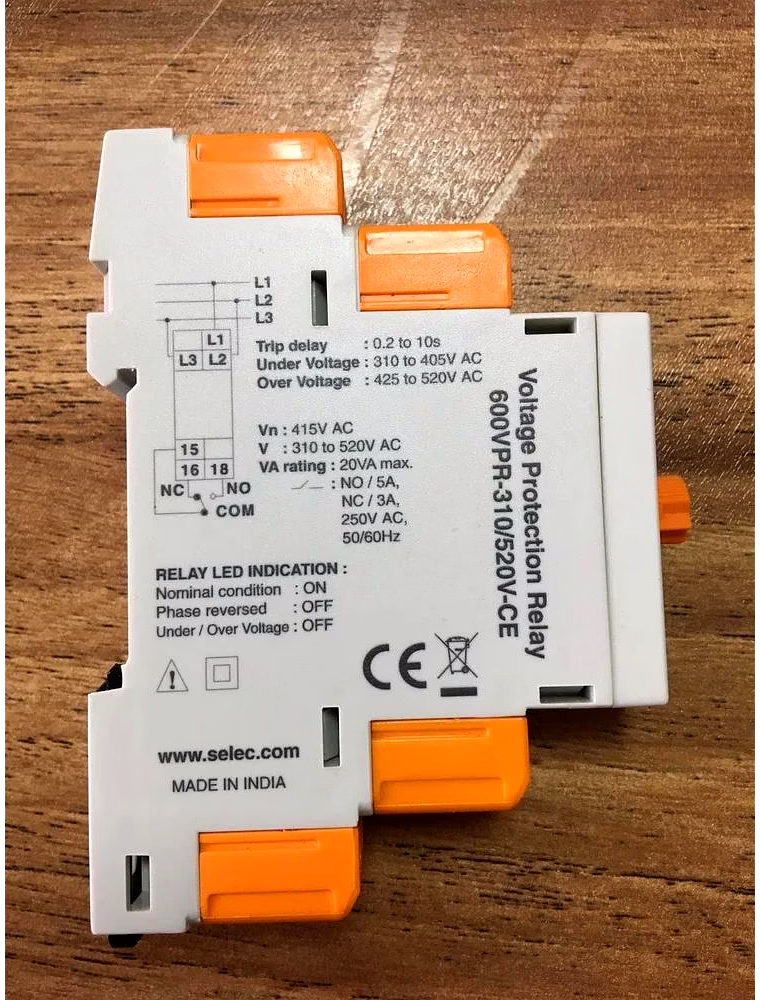

The relay is designed to monitor voltages within the range of 310V to 520V for three-phase, three-wire systems.
Yes, the trip delay timer is adjustable from 0.2 seconds up to 10 seconds to allow precise timing control during voltage anomalies.
The Selec 600VPR-310/520 monitors phase sequence issues and phase failure conditions, helping maintain system integrity.
Yes, it operates effectively in temperatures ranging from 0 to 50°C and can withstand non-condensing humidity levels up to 95%, with storage capability from -20 to 75°C.
This relay holds CE and UL certifications, which confirm compliance with international quality and safety standards.
The IP20 rating means the device is protected against solid objects larger than 12mm but is not waterproof, so it needs to be installed in a dry, protected indoor environment.
Brand: a s enterprises
Country Of Origin: India

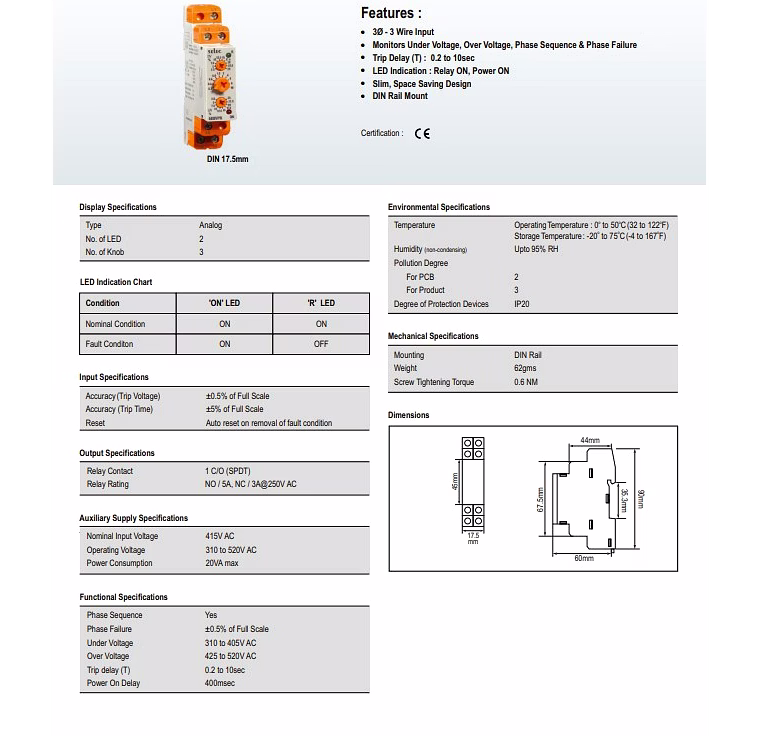

Voltage Protection Relay
600VPR-310/520
Features :
3Ø - 3 Wire Input
Monitors Under Voltage, Over Voltage, Phase Sequence & Phase Failure
Trip Delay (T) : 0.2 to 10sec
LED Indication : Relay ON, Power ON

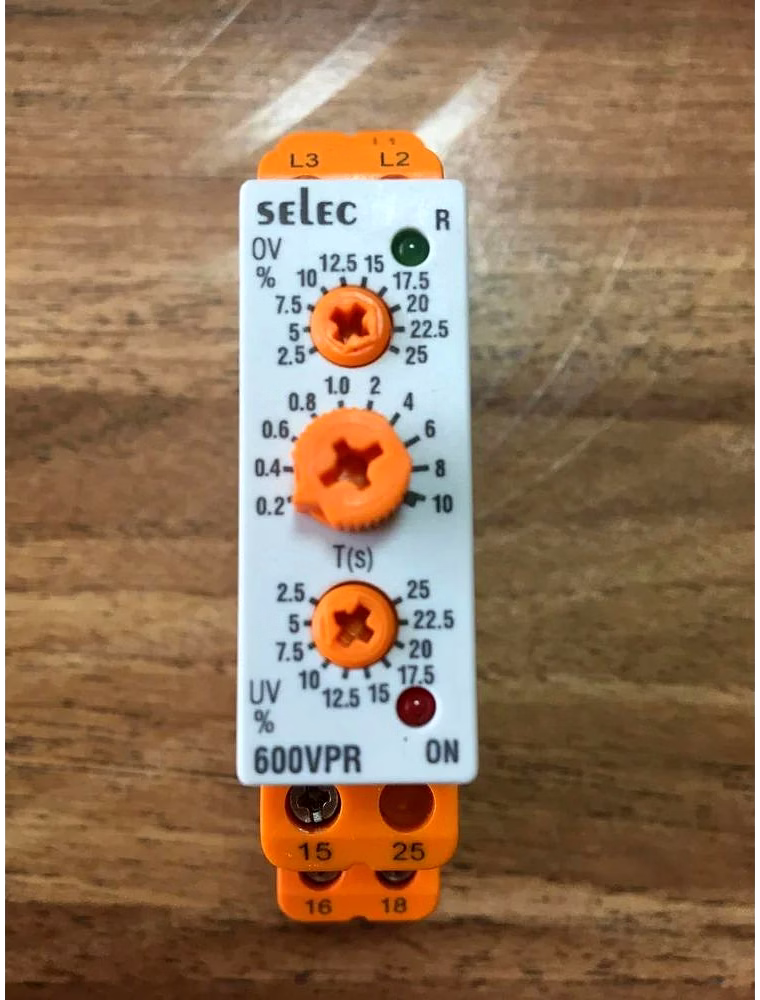

Display Specifications
Type Analog
No. of LED 2
No. of Knob 3
Environmental Specifications
o o o
Temperature OperatingTemperature : 0 to 50 C(32 to 122 F)
o o o
StorageTemperature : -20 to 75 C(-4 to 167 F)
Humidity (non-condensing) Upto 95% RH
Pollution Degree
For PCB 2
For Product 3
Degree of Protection Devices IP20
Product Code Supply Voltage Certification
600VPR-1-170/290-CU 170 to 290V AC (L-L) CE, UL
