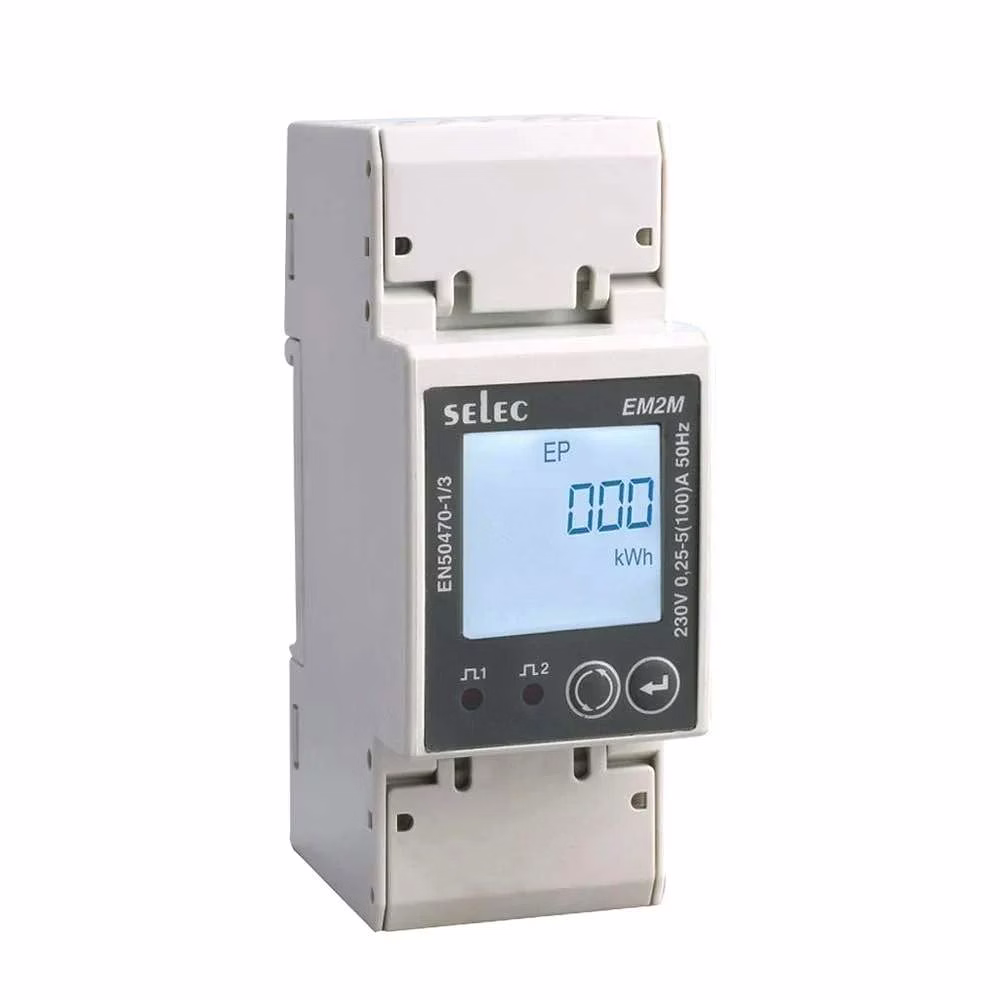

The SELEC EM2M 1P-C-100A is a precision-engineered single-phase DIN rail energy meter designed specifically for industrial applications requiring robust, accurate energy monitoring in a 1 phase 2 wire electrical system. Supporting direct current measurement up to 100A, it features a reliable self-powered operation within a voltage range of 184 to 276V AC, ensuring consistent performance with minimal external wiring requirements. This digital energy meter boasts exceptional measurement accuracy across multiple parameters—±0.5% for voltage and current, 0.1% for frequency, 0.01% for power factor (PF), 1% for power, Class 1 accuracy for active energy, and Class 2 for reactive energy—making it an ideal choice for industries where energy efficiency and precise consumption tracking are critical. Its two configurable pulse outputs support seamless import and export energy measurements, facilitating detailed energy flow analysis. Integrated RS485 Modbus communication enables easy integration into existing industrial automation and energy management systems, with an M-Bus variant also available for additional connectivity options. Certified by CE and MID standards, the EM2M 1P-C-100A guarantees both compliance and reliability, thereby enhancing the operational oversight of electrical installations within industrial environments.
Key Features
| Features | Description |
|---|---|
| Model Number | EM2M-1P-C-100A |
| Brand | SELEC |
| Type | Single Phase DIN Rail Energy Meter |
| Voltage Measurement Range | 184 to 276V AC |
| Current Measurement | Direct up to 100A |
| Accuracy Voltage & Current | ±0.5% |
| Frequency Accuracy | 0.1% |
| Power Factor Accuracy | 0.01% |
| Power Accuracy | 1% |
| Active Energy Accuracy | Class 1 |
| Reactive Energy Accuracy | Class 2 |
| Communication Interface | RS485 Modbus (Mbus variant available) |
| Pulse Outputs | Two configurable for Import/Export Energy |
| Certifications | CE, MID Certified |
| Application | Industrial Energy Monitoring |
| Attributes | Description |
|---|---|
| System Compatibility | 1 Phase 2 Wire |
| Power Supply | Self-Supplied from 176 to 276V AC |
| Mounting Type | DIN Rail |
| Communication Protocol | Modbus RTU via RS485 |
| Energy Measurement Type | Active and Reactive Energy |
| Pulse Output Configuration | Import and Export Energy Measurement |
| Certifications | CE and MID |
| Operating Environment | Industrial |
| Measurement Parameters | Voltage, Current, Frequency, Power Factor, Power |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
Yes, the EM2M 1P-C-100A supports reactive energy measurement with Class 2 accuracy, allowing detailed tracking of non-active power components.
Yes, the meter features two pulse outputs that are configurable to measure both import and export energy, which is important for applications involving energy feedback into the grid.
This model supports RS485 communication with Modbus RTU protocol and also has an M-Bus variant available, making it suitable for integration into various industrial communication networks.
The self-supplied feature allows the meter to operate over a voltage range of 176 to 276V AC without needing an external power supply, simplifying installation and enhancing reliability.
Yes, this energy meter is CE and MID certified, ensuring it meets European standards for safety, performance, and reliability in energy measurement.
Brand: a s enterprises
Country Of Origin: India
Selec Em2m-1p-C-100a
Version Of Communication : RS485 communication
Model Name/Number : EM2M-1P-C-100A
Brand : SELEC
Usage/Application : Industrial
Type : Digital
Voltage : 184 to 276V AC
Single phase DIN RAIL Energy MeterProduct : EM2M
Single phase DIN RAIL Energy MeterProduct: EM2M
Compatible with 1 phase 2 wire system, Self-Supplied
176 to 276V AC measurement.
Direct current measurement up to 100A
Accuracy of ± 0.5% for voltage & current, 0.1% for Frequency, 0.01% for PF, 1% for Power, Class 1 for Active energy, Class 2 for reactive energy
Two pulse outputs configurable for Import/Export Energy measurement
RS485 Modbus communication, Mbus variant available
CE, MID Certified
