The Selec MA2301-230V-CE Digital Ammeter is a high-precision industrial-grade current measuring instrument designed for various multi-phase electrical systems, including 3-phase 4-wire, 3-phase 3-wire, and single-phase 2-wire networks. Featuring True RMS measurement, it ensures highly accurate current readings regardless of waveform distortions, making it ideal for complex industrial environments. Its compact 72 x 72 mm panel-mount design allows easy integration into existing control panels. The device combines digital precision with analog-style bargraph indication on a clear LCD display, providing both numerical and visual current status instantly. Its current transformer (CT) primary is programmable up to 5000A, offering flexibility across a wide range of industrial power monitoring applications. User-friendly page selection via selector switch further enhances operational convenience. The device supports rated input currents from a minimum of 50 mA to a maximum of 6.2 A AC, with resolution options configurable from 0.001 A to 1 A depending on CT settings. Operating within a supply voltage range of 240 VAC ±20% at 50/60 Hz, it maintains a measurement accuracy of ±0.5% of full scale, ensuring reliable monitoring and control in demanding industrial settings. The Selec MA2301-230V-CE is an essential digital ammeter for businesses requiring precise current measurement and robust functionality in versatile industrial power systems.
Key Features
| Features | Description |
|---|---|
| Measurement Type | True RMS Current Measurement |
| Supported Electrical Systems | 3 Phase 4 Wire, 3 Phase 3 Wire, and 1 Phase 2 Wire |
| Display | 4 Digit LCD with Analog Style Bargraph Indication |
| CT Primary Programmability | Up to 5000A |
| Input Current Range | 5A AC (Min 50mA, Max 6.2A) |
| Measurement Resolution | 0.001 A, 0.01 A, 0.1 A, 1 A (Configurable) |
| Accuracy | ±0.5% of Full Scale |
| Dimensions | 72 mm x 72 mm |
| Supply Voltage | 240 VAC ±20% (50/60 Hz) |
| User Interface | Page Selection via Selector Switch |
| Attributes | Description |
|---|---|
| Model Name/Number | MA2301-230V-CE |
| Brand | Selec |
| Usage/Application | Industrial Current Measurement |
| Phase Compatibility | 3 Phase 4 Wire, 3 Phase 3 Wire, 1 Phase 2 Wire |
| Electrical Connection | 3ø-4 Wire |
| Rated Input Current | 5A AC (min 50 mA, max 6.2A) |
| Resolution | 0.001, 0.01, 0.1, 1 A depending on CT primary settings |
| Measurement Accuracy | ±0.5% of Full Scale |
| Supply Voltage | 240 VAC ±20%, 50/60 Hz |
| Dimension (WxH) | 72mm x 72mm |
| Display Type | Digital LCD with Analog Bargraph |
| CT Primary Rating | Programmable up to 5000 A |
| Operating Frequency | 50/60 Hz |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
Yes, the MA2301-230V-CE is compatible with 3-phase 3-wire and 3-phase 4-wire electrical systems, as well as single-phase 2-wire systems, offering versatile application in various industrial network configurations.
The Selec MA2301-230V-CE supports CT primary programming of up to 5000 amperes, allowing it to measure high current loads accurately in industrial environments.
The analog-style bargraph provides a visual representation of current fluctuations alongside the digital numeric reading, enabling operators to quickly assess current trends at a glance for faster decision making.
The ammeter operates on a supply voltage of 240 VAC with an acceptable tolerance range of ±20% at frequencies of 50 or 60 Hz, making it suitable for standard industrial power supplies.
Yes, resolution varies between 0.001 A to 1 A and is automatically configured depending on the CT primary settings programmed, allowing precision measurement customized to specific current ranges.
Brand: a s enterprises
Country Of Origin: India

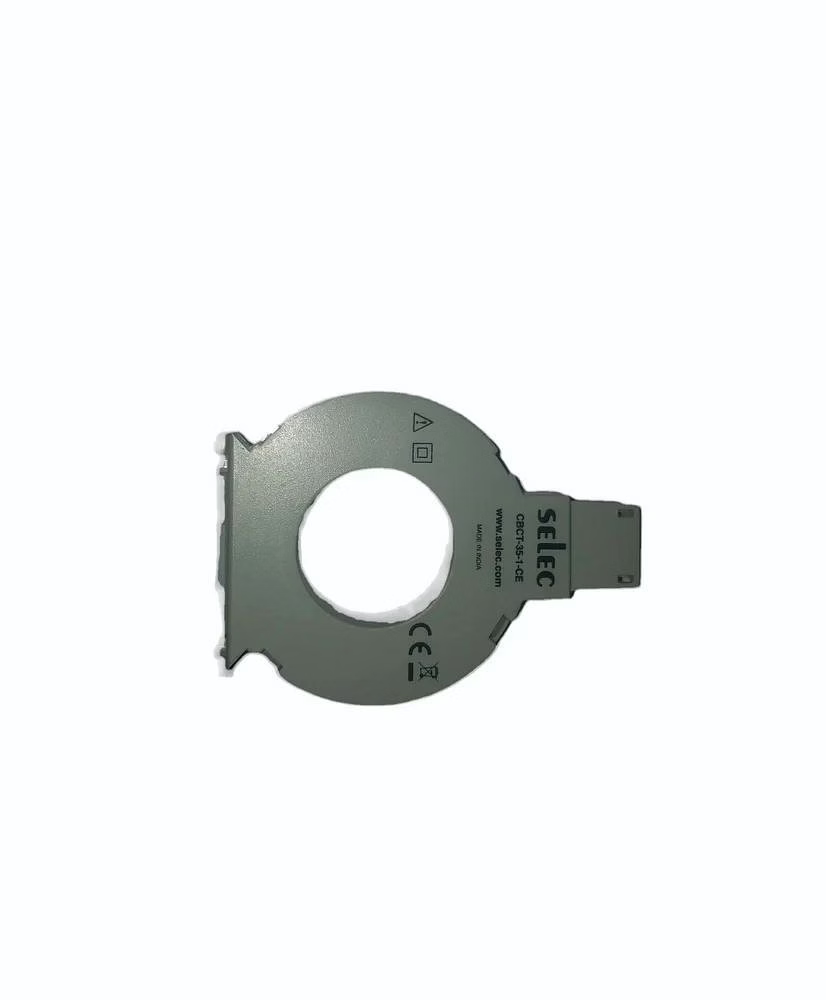

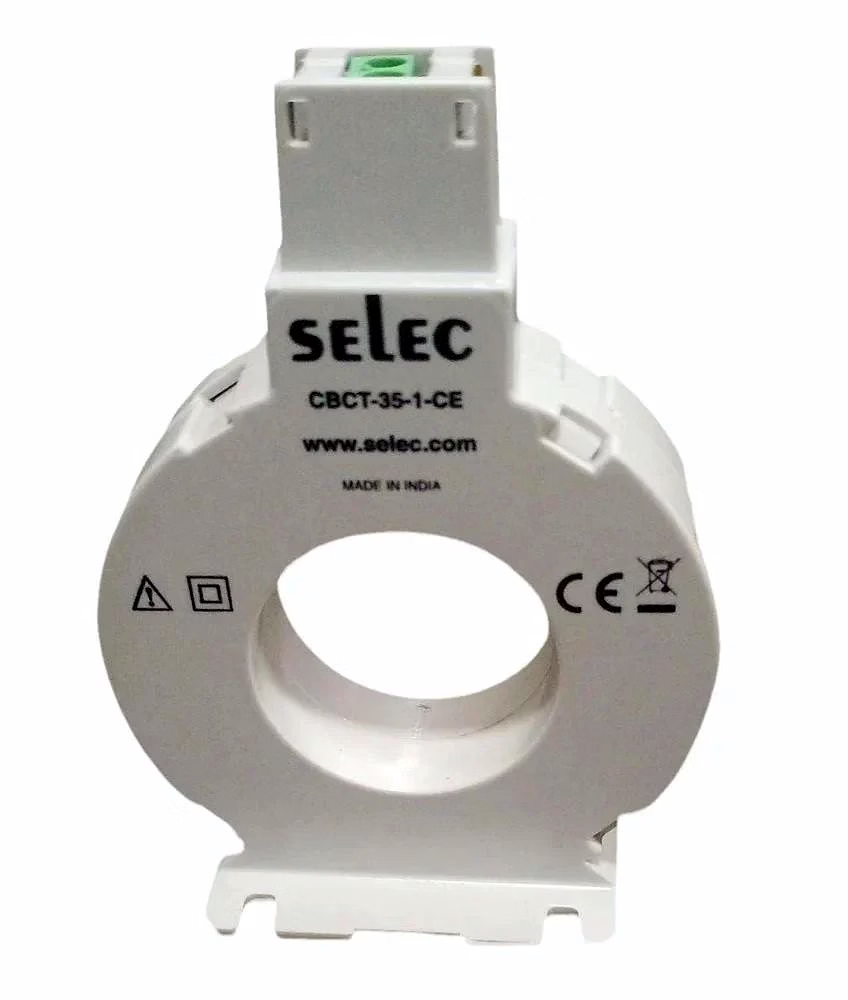

SELEC CBCT-35-1-CE Core balance current transformer
Power 11kV
Accuracy Class 0.5
Dimension 35mm ID
Brand Selec
Model No CBCT-35-1-CE
Discription 2

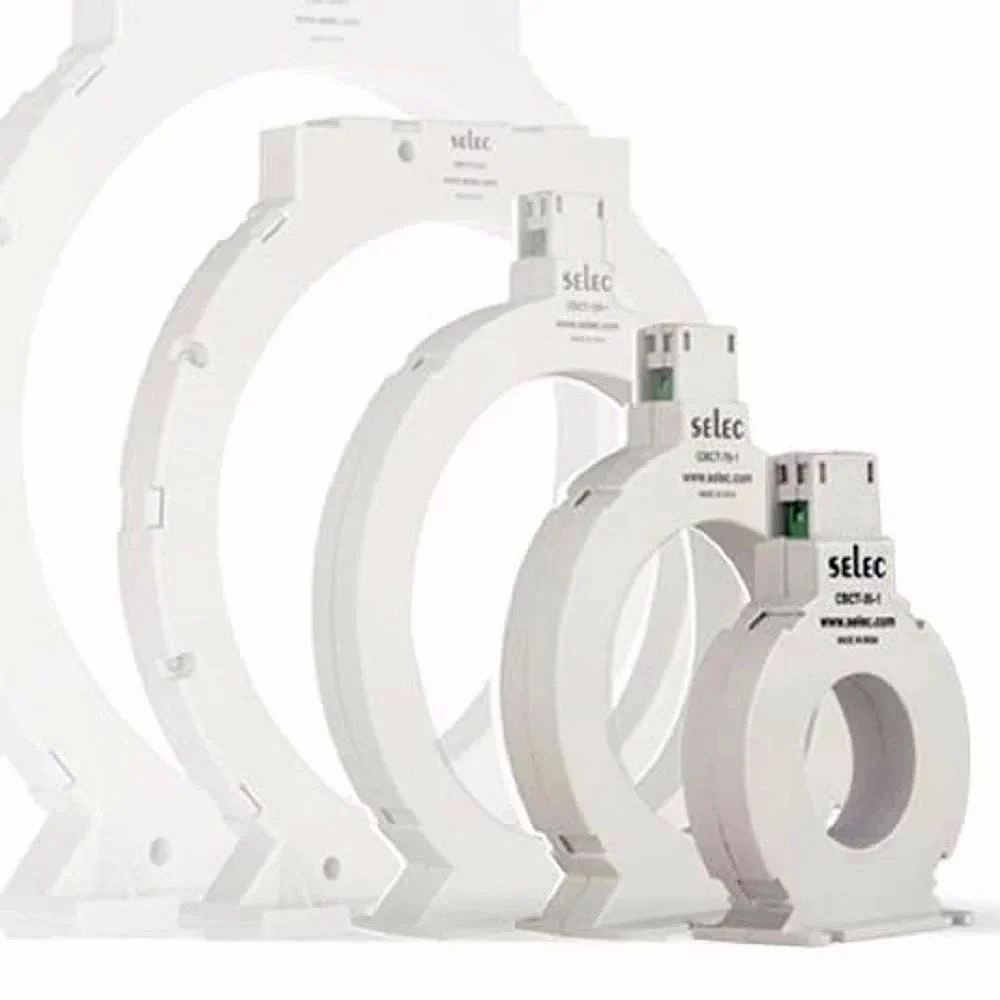

The Selec CBCT-35-1-CE Core Balance Current Transformer (CBCT) is used primarily for detecting earth faults and providing protection in electrical systems.
Highly sensitive - Detects leakage current from 5mA
Operating Current : Range 30mA - 30A
Inner Diameter : 35, 70, 120, 210, 310mm
Panel Mount.
SELEC CBCT-35-1-CE Core balance current transformer
Power 11kV
Accuracy Class 0.5
Dimension 35mm ID
Brand Selec
Model No CBCT-35-1-CE
Discription 2
The Selec CBCT-35-1-CE Core Balance Current Transformer (CBCT) is used primarily for detecting earth faults and providing protection in electrical systems.
Here's a detailed overview of what you can expect from this type of core balance current transformer:
