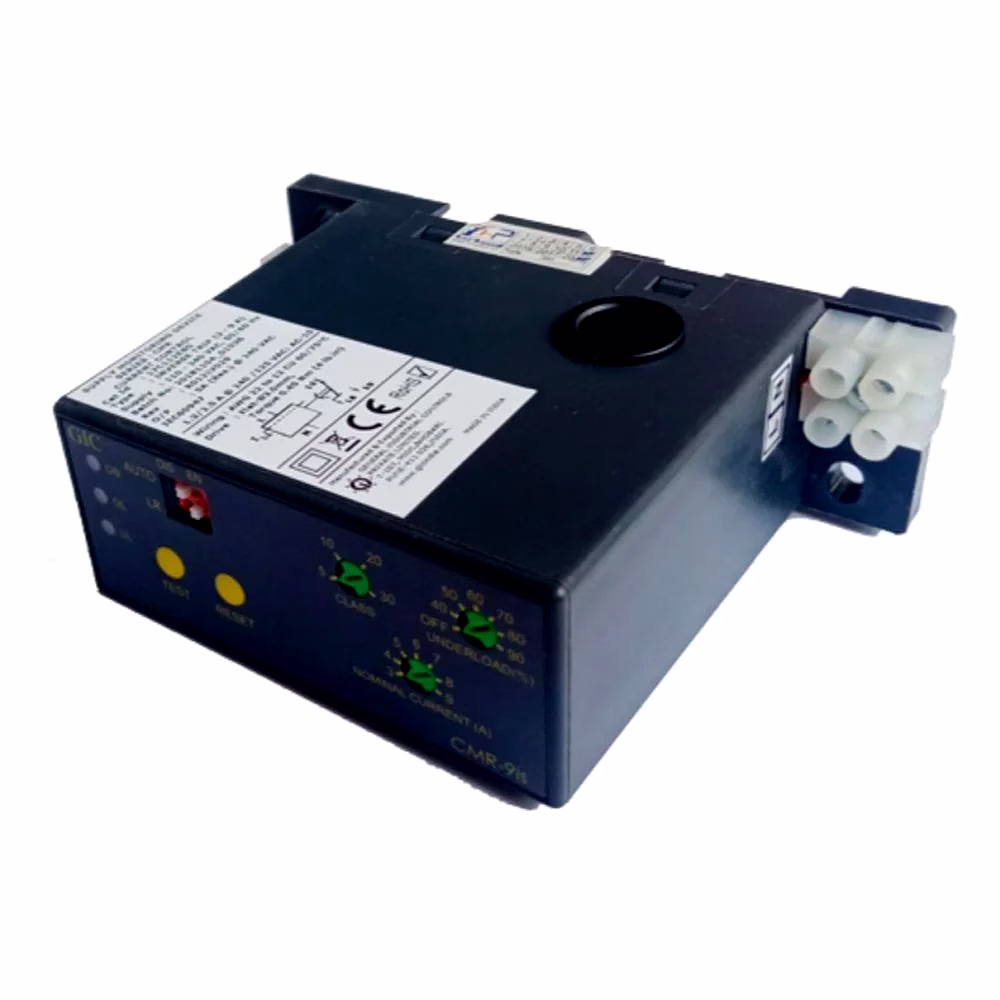

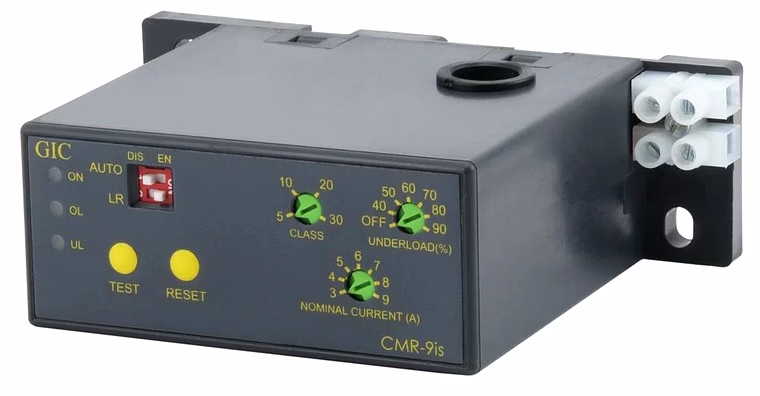

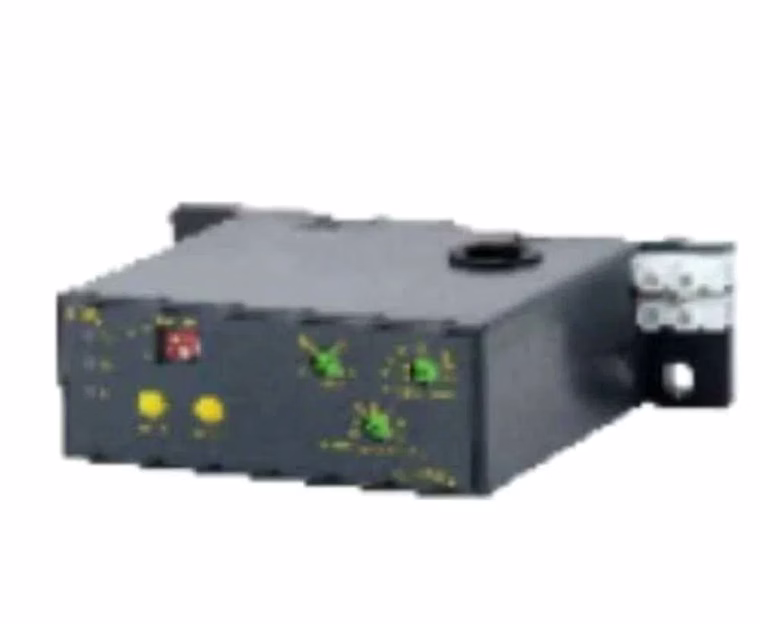

The Gic 17C112EB0 CMR-9ds Current Monitoring Relay is a high-performance two-pole device specifically designed for medium-voltage industrial applications. Engineered by GIC, this relay efficiently monitors electrical currents within a supply voltage range of 110-240 VAC and frequencies of 50/60 Hz, enabling reliable protection and optimized operational safety. Featuring inverse time tripping with selectable tripping classes (10, 20, and 30), it supports current ranges from 3 to 9 A, providing precise thermal memory and underload detection from 40% to 90%. Its dual-source changeover and built-in single CT ensure enhanced monitoring capabilities. The device includes programmable functions such as auto/manual reset, test functions, and adjustable delay timers, ensuring versatile usage in complex industrial power systems. With a quick trip time of under 4 seconds post-start and auto reset times ranging from 3 to 15 minutes depending on trip class, it is ideal for time-sensitive protective applications in heavy-duty electrical installations.
Key Features
| Features | Description |
|---|---|
| Poles Number | 2 Pole |
| Supply Voltage Range | 110 - 240 VAC |
| Frequency | 50 / 60 Hz |
| Trip Type | Inverse Time Tripping |
| Tripping Classes | 10, 20, 30 |
| Current Ranges | 3 - 9 A |
| Thermal Memory | Yes |
| Underload Detection Range | 40% to 90% |
| Trip Time | < 4 seconds after starting |
| Number of In-Built CTs | 1 |
| Reset Mode | Auto and Manual |
| Test Function | Yes |
| Auto Reset Time | 3-15 minutes (based on trip class) |
| Attributes | Description |
|---|---|
| Brand | GIC |
| Model Number | 17C112EB0 |
| Product Type | Current Monitoring Relay |
| Voltage Level | Medium-Voltage |
| Changeover Source Type | Dual Source |
| Power Consumption (Max.) | 5 VA |
| Supply Variation | -20% to +10% |
| Delay Time | Adjustable according to trip class |
| Usage/Application | Industrial |
| Trip Time Specification | Less than 4 seconds |
| Frequency Tolerance | 50 / 60 Hz |
| Reset Modes | Auto reset and manual reset options |
| Thermal Memory | Available |
| Underload Detection | 40% to 90% of set current |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
The GIC 17C112EB0 supports both auto and manual reset modes, allowing flexible operation depending on system requirements.
Yes, the relay supports adjustable current ranges from 3 to 9 Amps, making it versatile for various industrial applications.
The integrated single current transformer (CT) allows accurate current sensing directly within the relay, enhancing measurement precision and protection reliability.
Inverse time tripping enables the relay to trip more rapidly at higher currents, providing enhanced protection sensitivity tailored to overload conditions.
Thermal memory allows the relay to record thermal stresses over time, improving the accuracy of trip decisions and preventing nuisance trips in fluctuating load conditions.
Yes, the delay time is adjustable and corresponds to the selected trip class, enabling customized response timing to protect equipment effectively.
Brand: a s enterprises
Country Of Origin: India
2 Pole GIC 17C112EB0 Current Monitoring Relay
Brand GIC
Voltage Level Medium-Voltage
Changeover Source Type Dual Source
Poles Number 2 Pole
Model Name/Number 17C112EB0
Usage/Application Industrial
Supply Voltage Range 110 - 240 VAC
Frequency 50 Hz
17C112EB0 GIC Current Monitoring Technical Specifications
Specification Value
Supply Voltage 110 - 240 VAC
Supply Variation -20% to +10%
Frequency 50 / 60 Hz
Power Consumption (Max.) 5 VA
Trip Type Inverse Time
Tripping Class 10, 10, 20, 30
Current Ranges 3 - 9 A
Thermal Memory Yes
Underload 40% to 90%
Trip Time < 4sec after starting
Number of In-Built CT’s 1
Reset Mode Auto, Manual
Test Function Yes
Delay Time As per trip class
Auto Reset Time 3-15 min (As per trip class)
