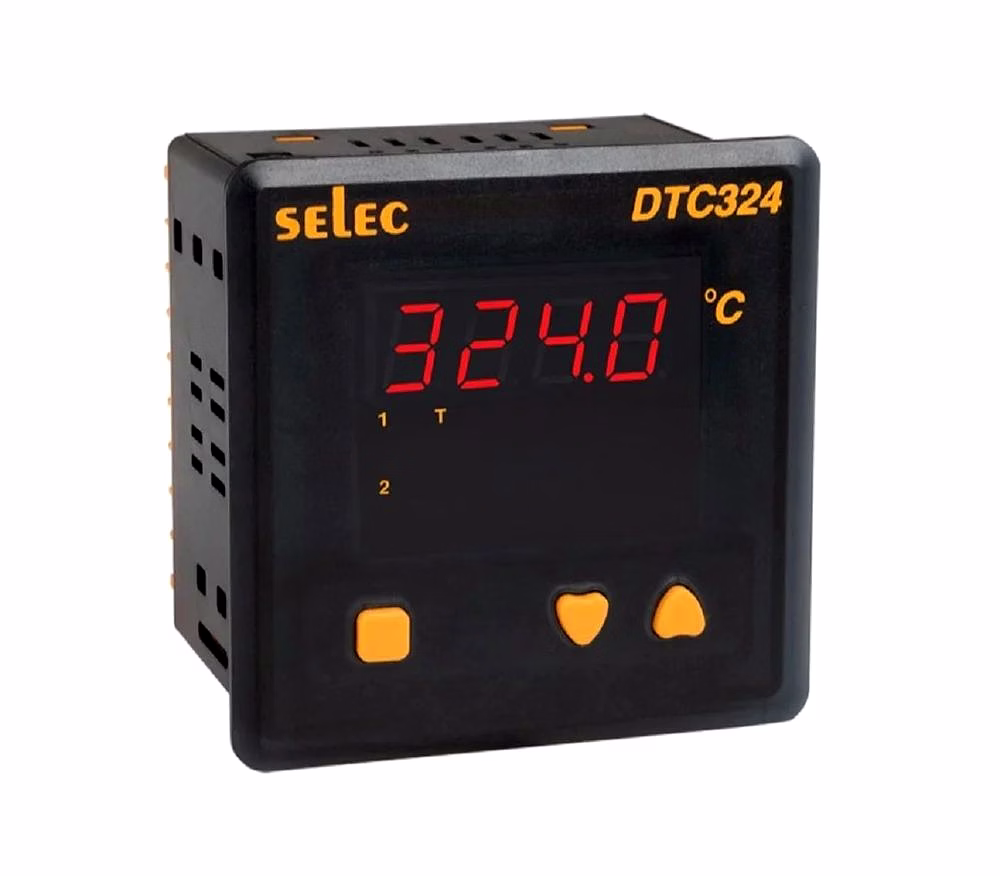

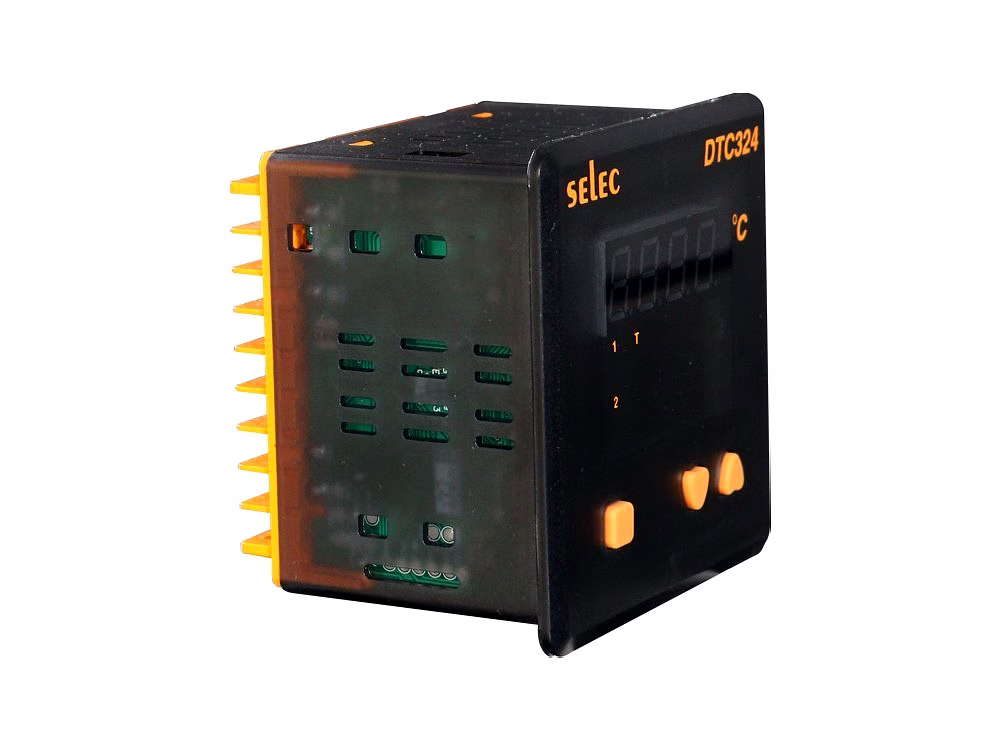

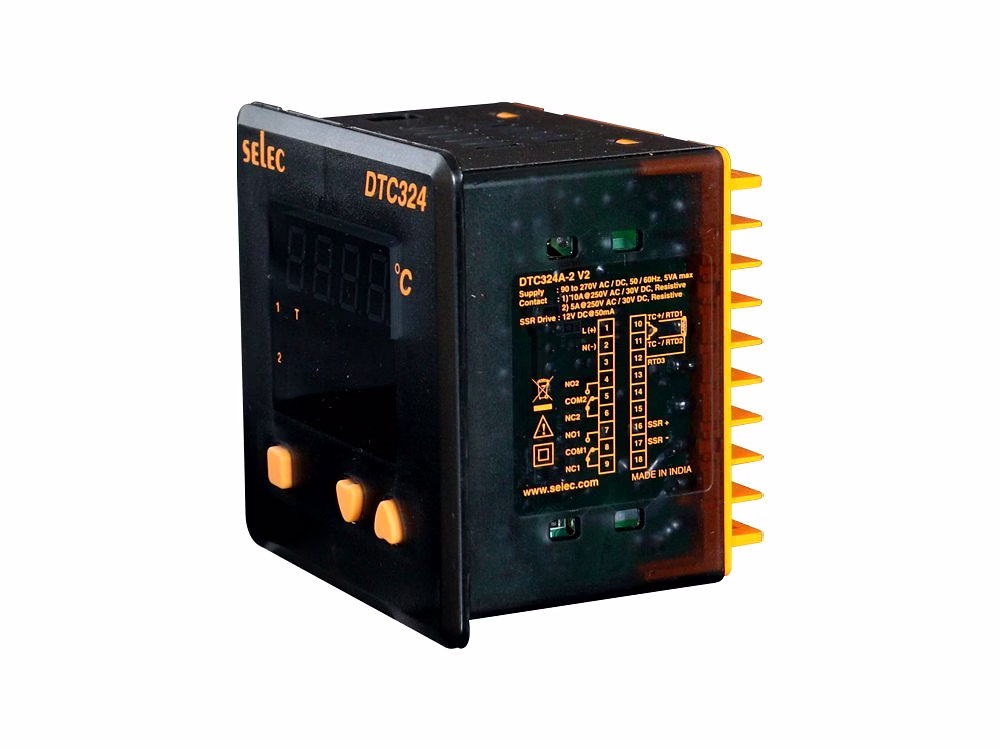

The Selec DTC324A-2 Digital Temperature Controller is a high-precision temperature management device designed for industrial and commercial applications requiring reliable and accurate temperature control. Featuring a 4-digit single 7-segment display, it supports a wide range of sensor inputs including various thermocouple types (J, K, T, R, S) and RTD (PT100) sensors. This model offers flexible control modes including ON-OFF and Auto-tune PID to maintain process stability and optimize temperature regulation. The controller supports dual set point configurations, allowing for versatile temperature control scenarios. Its output options include a robust 10A relay or 12V SSR control output for primary control, complemented by an auxiliary 5A relay output. The device accepts a broad supply voltage range from 90 to 270V AC/DC, making it adaptable to different power environments. Encased in a compact 96 mm x 96 mm housing, it is designed for easy integration into control panels. With robust relay outputs and flexible configuration options, the Selec DTC324A-2 is ideal for precise temperature regulation in manufacturing, processing plants, packaging machinery, and HVAC systems. Its dependable performance and customizable settings ensure efficient and safe temperature control tailored to varying industrial needs.
Key Features
| Features | Description |
|---|---|
| Display Type | 4 Digit Single 7-Segment |
| Input Sensor Compatibility | Thermocouple Types J, K, T, R, S and RTD PT100 |
| Control Modes | ON-OFF and Auto Tune PID Control |
| Dual Set Point | Yes |
| Primary Output | 10A Relay or 12V SSR Control Output |
| Auxiliary Output | 5A Relay |
| Supply Voltage Range | 90 to 270V AC/DC |
| Panel Cutout Size | 96 mm x 96 mm |
| Model Number | DTC324A-2 |
| Brand | Selec |
| Attributes | Description |
|---|---|
| Model Number | DTC324A-2 |
| Input Types | Thermocouple (J, K, T, R, S), RTD PT100 |
| Display | 4 Digit Single 7-Segment |
| Primary Output Options | 10A Relay or 12V SSR Control |
| Auxiliary Output | 5A Relay |
| Control Modes | ON-OFF / Auto Tune PID |
| Maximum Relay Switching Current | 10A for primary relay, 5A for auxiliary relay |
| Power Supply | 90 to 270V AC/DC |
| Dimensions | 96 mm x 96 mm |
| Operating Environment | Industrial temperature control applications |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
The Selec DTC324A-2 accepts either thermocouple or RTD input sensors but not simultaneously. You can configure the controller to operate with any one input type at a time, depending on your application requirements.
It offers ON-OFF control and Auto-tune PID control modes, allowing users to select a simple or more sophisticated temperature control strategy based on their process demands.
Yes, the built-in 5A auxiliary relay output is designed to handle supplementary control tasks such as activating alarms or controlling secondary devices within the temperature control system.
The controller supports a wide supply voltage range between 90 and 270V AC/DC, ensuring compatibility with different industrial power sources.
The controller includes an Auto-tune PID feature, which automatically adjusts PID parameters for optimum temperature control, minimizing manual configuration.
Brand: a s enterprises
Country Of Origin: India
Selec DTC324A-2 Digital Temperature Controller
Type - Digital
Brand- Selec
Display Type - 4 Digit/7 Segment
Input Type - Thermocouple, RTD
Model No. - DTC324A-2
Input Sensor - Thermocouple, RTD
Selec DTC324A-2
4 Digit Single Display, 10A relay
4 digit single display temperature controller
(TC: J, K, T, R, S/ RTD: PT100) sensor input
ON-OFF/Auto tune PID control
Dual set point
10A relay/ 12V SSR control output
Auxiliary 5A relay output
96 mm x 96 mm size
90 to 270V AC/DC supply voltage
PRODUCT VARIANTS
Product Code Output 1 Output 2 Supply Voltage
DTC324A-2 Relay / SSR Relay (5A) 90 to 270V AC/DC
