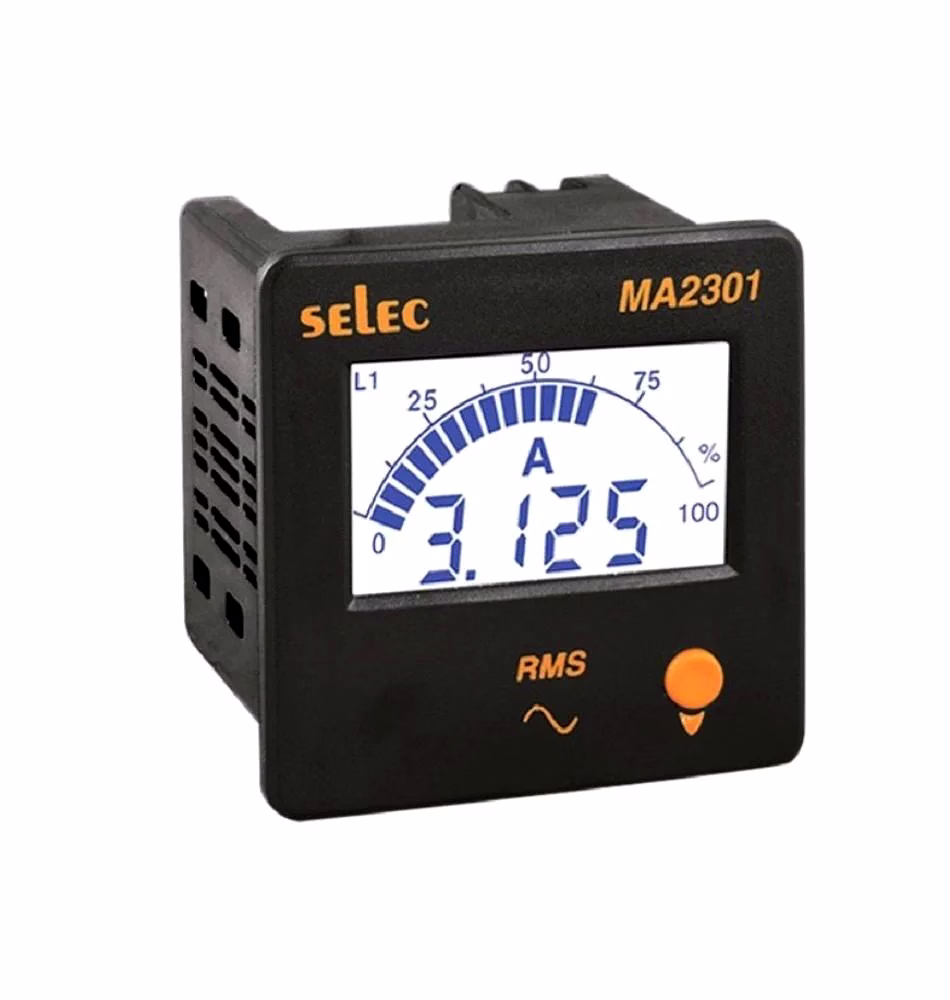

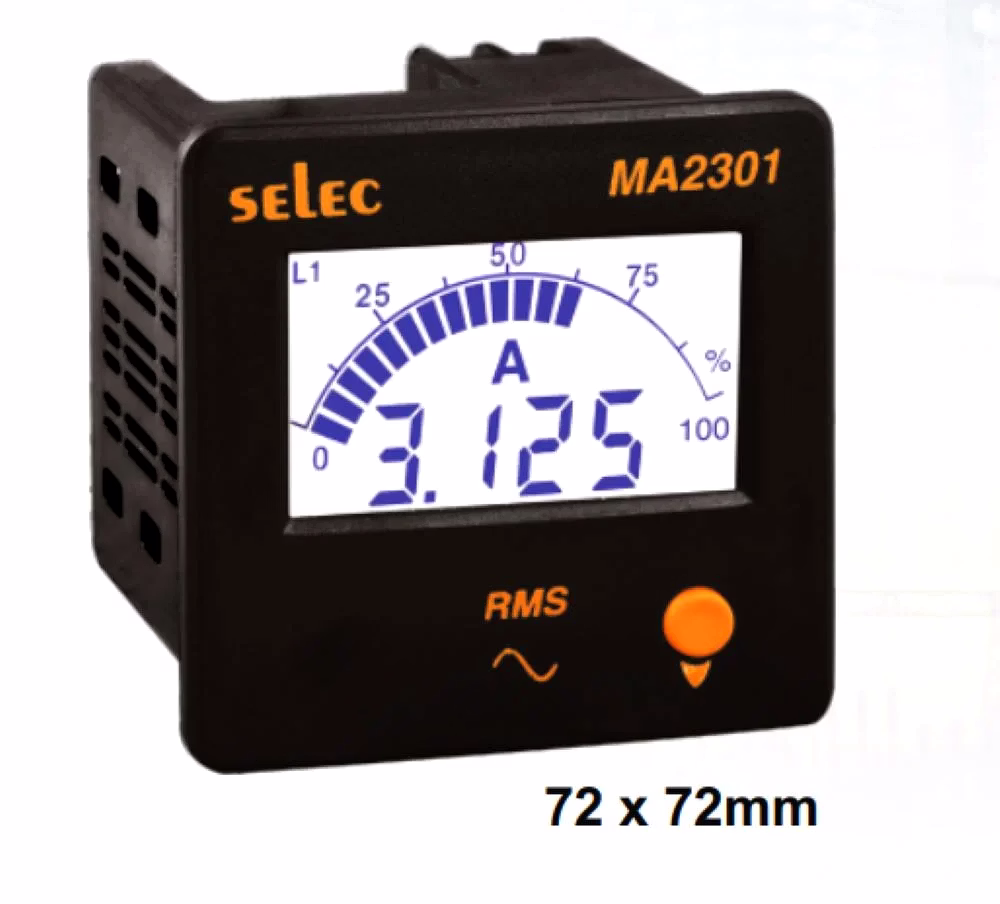

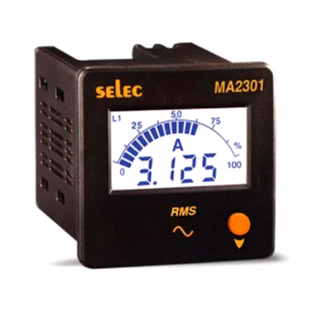

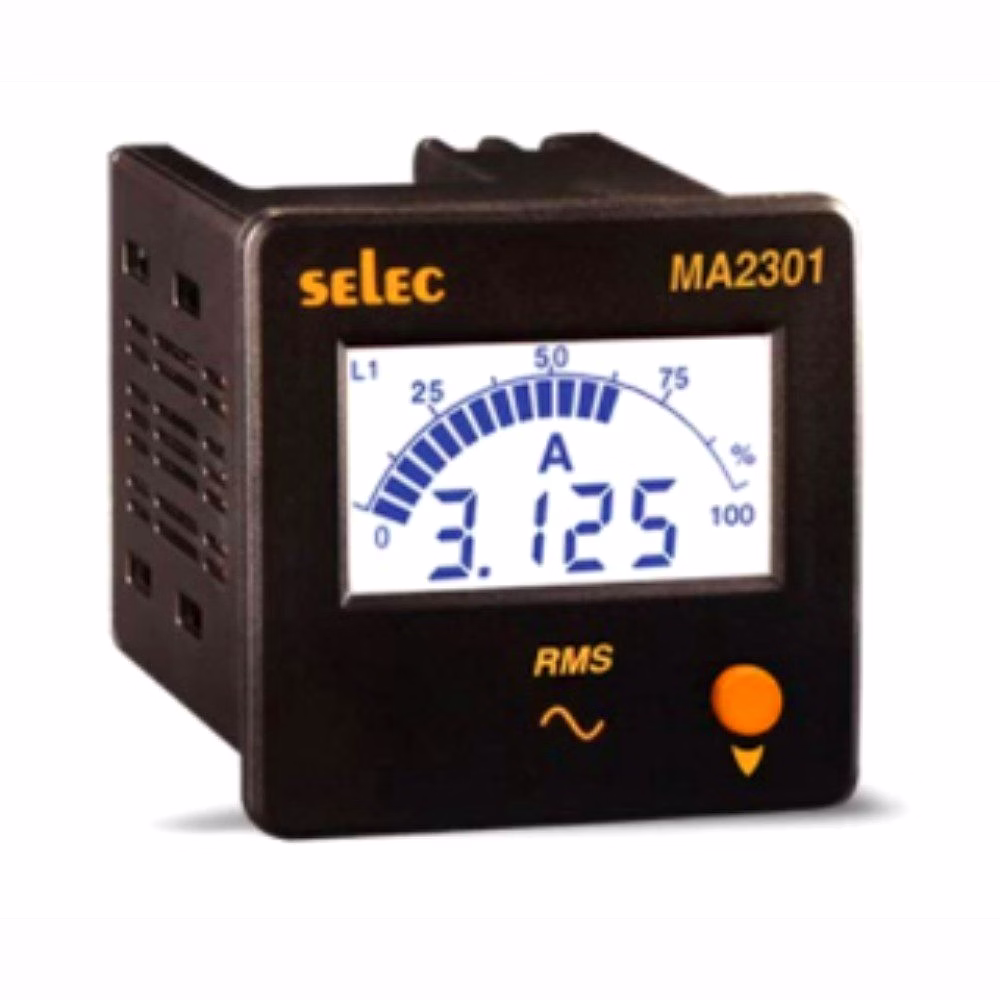

The Selec MA2301-230V-CE Digital Ammeter is a precision instrument designed specifically for industrial electrical measurement applications. This ammeter supports multiple electrical network configurations including 3 Phase 4 Wire, 3 Phase 3 Wire, and 1 Phase 2 Wire systems, providing versatile usage across various industrial electrical installations. Featuring true RMS measurement technology, the MA2301 ensures highly accurate current readings regardless of waveform distortions, a critical necessity in modern industrial environments where electrical loads are often nonlinear. The device boasts a compact panel size of 72 x 72 mm, making it suitable for standardized electrical panel integration without occupying excessive space. The ammeter's display consists of a clear LCD with an analog-style bargraph, which offers instantaneous visual feedback of current trends and magnitudes for quick diagnostic and monitoring purposes. It supports CT (current transformer) primary programmable settings up to 5000A, enhancing its adaptability to a wide range of current measurement scales. Users can conveniently switch display pages via a selector switch, enabling hassle-free navigation through measurement parameters. Electrical connections are designed for three-phase four-wire networks, and it accepts a rated input current of 5A AC with an operational range from 50mA to 6.2A to accommodate varying load conditions. The device operates reliably on a supply voltage of 240VAC ±20% at 50/60 Hz and ensures measurement accuracy within ±0.5% of full scale, providing dependable performance critical for industrial safety and process control. This digital ammeter is ideal for industrial facilities aiming for precise current monitoring, load management, and electrical safety assurance. Its robust accuracy and multi-network compatibility make it an essential tool for electrical engineers, maintenance professionals, and industrial automation systems.
Key Features
| Features | Description |
|---|---|
| Measurement Type | True RMS current measurement |
| Supported Electrical Networks | 3 Phase 4 Wire, 3 Phase 3 Wire, 1 Phase 2 Wire |
| Display Type | LCD with analog-style bargraph indication |
| CT Primary Programmability | Up to 5000A |
| Input Current Range | Min 50mA to Max 6.2A (rated input 5A AC) |
| Accuracy | ±0.5% of full scale |
| Supply Voltage | 240 VAC ± 20%, 50/60 Hz |
| Panel Mount Size | 72 x 72 mm |
| Page Selection | Selector switch for display navigation |
| Brand | Selec |
| Attributes | Description |
|---|---|
| Model Name/Number | MA2301-230V-CE |
| Dimension | 72 x 72 mm |
| Phase Compatibility | 3 Phase 4 Wire, 3 Phase 3 Wire, 1 Phase 2 Wire |
| Display Digits | 4 digits |
| Resolution | 0.001, 0.01, 0.1, 1 A (dependent on CT primary settings) |
| Rated Input Voltage | 230-240 VAC ± 20% |
| Rated Input Current | 5 A AC (Min: 50 mA, Max: 6.2 A) |
| Frequency | 50/60 Hz |
| Electrical Connection Type | 3 Phase 4 Wire |
| Accuracy | ±0.5% of full scale |
| Operating Environment | Industrial electrical installations |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
Yes, the Selec MA2301-230V-CE is compatible with 3 phase 4 wire, 3 phase 3 wire, and also 1 phase 2 wire electrical networks, making it versatile for various industrial power systems.
The ammeter supports CT primary programmable settings up to 5000 Amperes, allowing it to measure high current values accurately when paired with appropriate current transformers.
The analog-style bargraph provides a quick visual representation of current trends and magnitudes, helping technicians and engineers monitor electrical loads dynamically without always relying on numeric values.
It operates on a supply voltage of 240 VAC with a tolerance of ±20% at 50/60 Hz frequency, ensuring stable operation under variable industrial power supply conditions.
The device offers an accuracy of ±0.5% of full scale, providing dependable precision required in industrial monitoring and control applications.
Brand: a s enterprises
Country Of Origin: India
Selec MA2301-230V-CE Digital Ammeter, For Industrial, Dimension: 72 X 72mm
Model Name/Number - MA2301-230V-CE
Brand - Selec
Usage/Application - Industrial
Phase - 3 Phase 4 Wire, 3 Phase 3 Wire & 1 Phase 2 Wire systems
! True rms measurement ! 3ø - 4w electrical network ! Analog style bargraph indication ! Ct primary programmable upto 5000a ! Page selection using selector switch
display lcd(with analog style bargraph indication) digits 4 digits
electrical connection 3ø - 4w, rated input voltage -- rated input current 5a ac (min : 50ma, max : 6. 2a)
resolution 0. 001, 0. 01, 0. 1, 1a (depending on ct primary settings) accuracy ± 0. 5% of f. S.
supply voltage 240 vac ±20% (50/60 hz),
