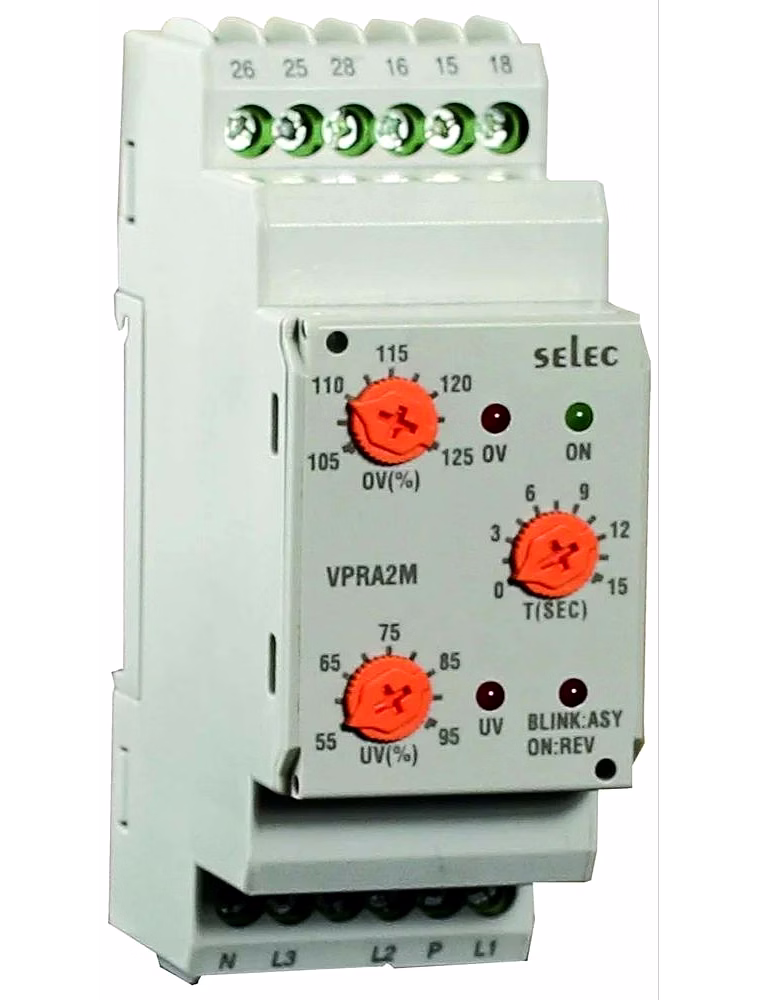

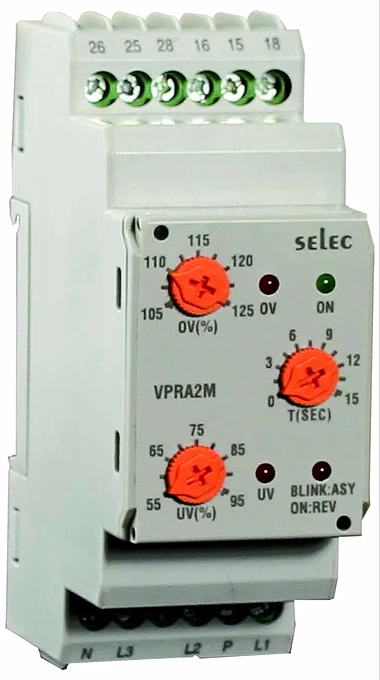

The SELEC VPRA2M-CE Protection Relay is a highly reliable and precise three-phase analog voltage protection device designed for industrial and commercial electrical systems operating at 230VAC. It offers comprehensive monitoring and protection against electrical anomalies such as overvoltage, undervoltage, phase asymmetry, phase sequence errors, phase failure, and neutral loss. This relay operates efficiently within a supply voltage range of 127 to 288V AC (L-N), making it ideal for 220V single-phase (L-N) and three-phase configurations (3Ø-4W). Featuring a rugged 35mm DIN rail mount design and a user-friendly LED indication system, the VPRA2M-CE enables quick fault detection and troubleshooting, minimizing downtime. The device incorporates configurable trip time delays (0-15 seconds), power-on delays (0-15 seconds), and a fixed recovery delay (5 seconds ± 200 ms) to tailor protection responses to specific system requirements. The accuracy of trip settings is maintained within ±5%, while the time settings have an accuracy of ±10%, ensuring reliable and precise protection. The relay’s output includes two changeover (DPDT) contacts rated at 5A for both NO and NC at 250V AC / 28V DC, allowing seamless integration with control circuits and alarm systems. Crafted for use in demanding industrial environments, this protection relay safeguards electrical installations against voltage irregularities, ensuring operational continuity and equipment longevity.
Key Features
| Features | Description |
|---|---|
| Voltage Type | Three-Phase Analog Voltage |
| Protection Functions | Over Voltage, Under Voltage, Phase Asymmetry, Phase Failure, Phase Sequence, Neutral Loss |
| Operating Voltage Range | 127 to 288V AC (L-N) |
| Electrical Connection | Single Phase 2-Wire (1Ø-2W), Three Phase 4-Wire (3Ø-4W) |
| Relay Output | 2 Changeover (DPDT) Contacts |
| Contact Rating | 5A @ 250V AC / 28 V DC |
| Trip Time Delay | Adjustable 0-15 seconds |
| Power-On Delay | Adjustable 0-15 seconds |
| Recovery Time Delay | Fixed 5 seconds ± 200 ms |
| Mounting | 35mm DIN Rail Mount |
| Trip Accuracy | ±5% of Set Value |
| Time Setting Accuracy | ±10% of Full Scale |
| Attributes | Description |
|---|---|
| Model | VPRA2M-CE |
| Supply Voltage | 127 to 288V AC (L-N) |
| Measuring Parameters | Over/Under Voltage, Phase Asymmetry, Phase Failure, Phase Sequence |
| Relay Outputs | 2 C/O (DPDT) contacts |
| Output Contact Ratings | 5A @ 250V AC / 28 V DC |
| Time Delay Settings | Trip time delay 0-15 sec, Power ON delay 0-15 sec, Recovery time delay 5 sec ± 200ms |
| Display Type | LED indication |
| Electrical Connection | 1Ø-2W for single phase, 3Ø-4W for three phase |
| Mounting Type | 35mm DIN Rail |
| Accuracy | Trip setting ±5%, Time setting ±10% full scale |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
The SELEC VPRA2M-CE supports an operating voltage range from 127 to 288V AC (L-N), which covers typical 220V supply systems for both single-phase and three-phase configurations.
It provides two changeover (DPDT) relay contacts with contact ratings of 5A at 250V AC or 28V DC, suitable for controlling alarm circuits or trip commands.
Yes, both the trip time delay and power-on delay are adjustable from 0 to 15 seconds to customize the protection response time according to system requirements.
The SELEC VPRA2M-CE uses LED indicators to display the status and faults, enabling quick visual identification of voltage irregularities and system issues.
Yes, the device is designed for quick and secure installation on a standard 35mm DIN rail, facilitating easy integration into electrical panels.
The relay monitors over voltage, under voltage, phase asymmetry, phase failure, phase sequence, and neutral loss to provide comprehensive voltage protection.
Brand: a s enterprises
Country Of Origin: India
Voltage protection relay for 220V (L-N)
Product: VPRA2M-CE
Single phase and Three phase voltage Protection relay
Monitors: Over / Under Voltage, Phase asymmetry, Phase failure and Phase sequence.
Supply Voltage: 127 to 288V AC

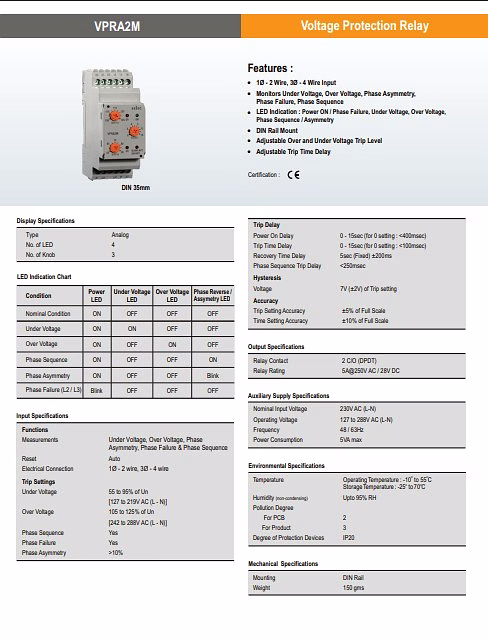

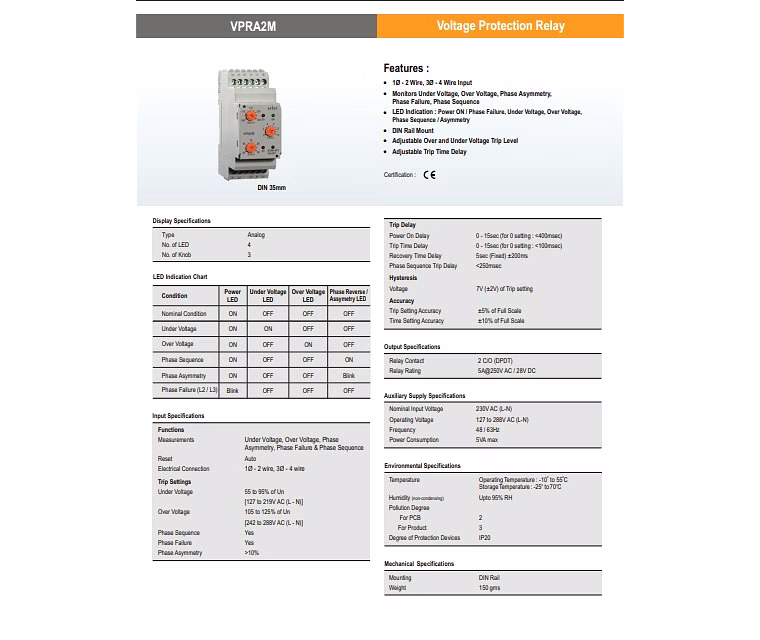

Brief Specifications
Measuring Parameter Under Voltage, Over Voltage, Phase Asymmetry, Phase Failure, Phase Sequence
Electrical Connection 1Ø-2W, 3Ø-4W
Display LED Indication
Time Ranges Trip Time Delay: 0-15sec,
Power ON Delay: 0-15sec,
Recovery Time Delay: 5sec ± 200ms
Accuracy Trip setting: ±5% of Set Value,
Time Setting: ±10% of F.S
Output Contact 2 C/O (DPDT )
Output Rating NO,NC: 5A @ 250V AC /28 V DC
Operating Voltage 127 to 288V AC (L-N)
