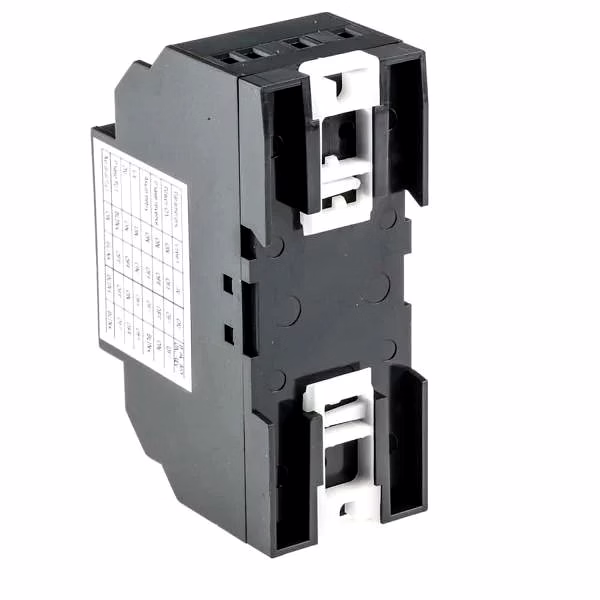

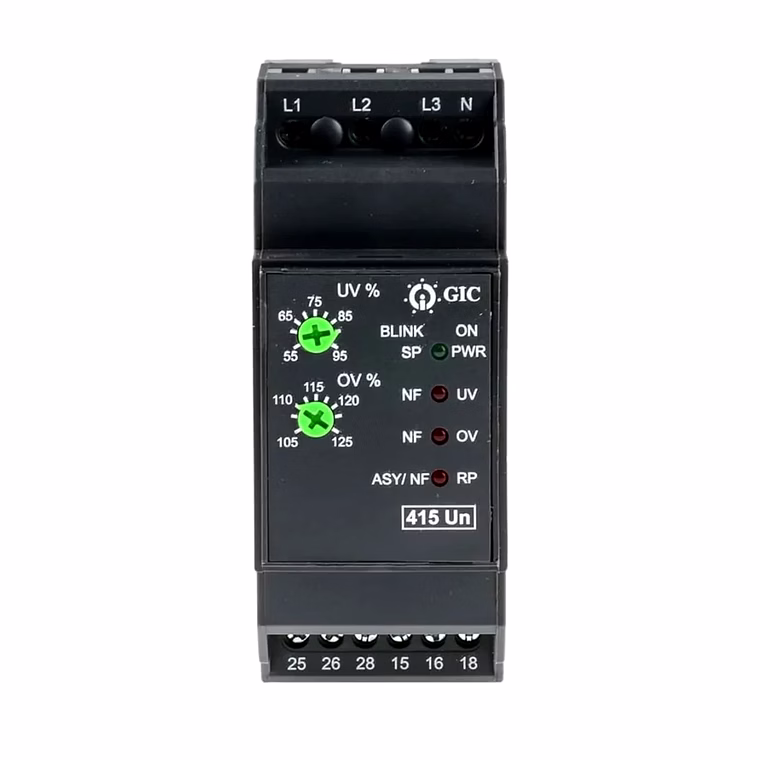

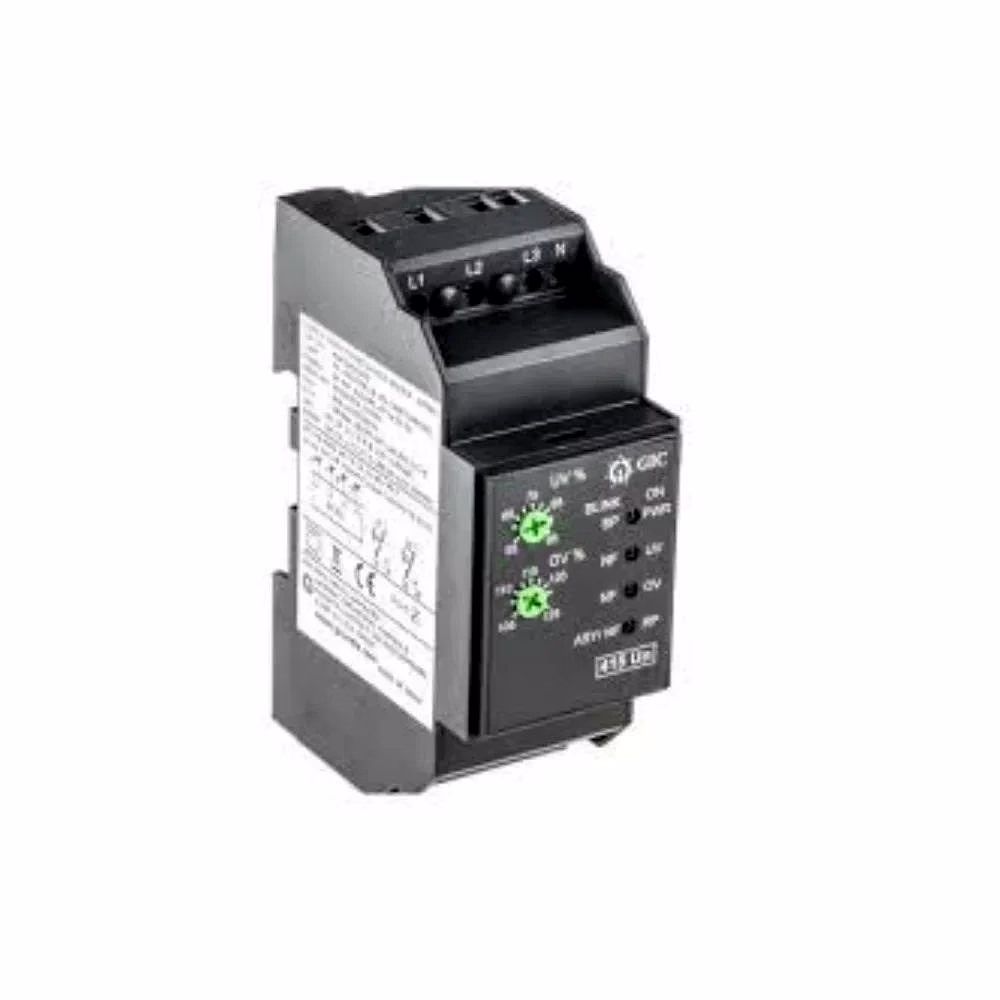

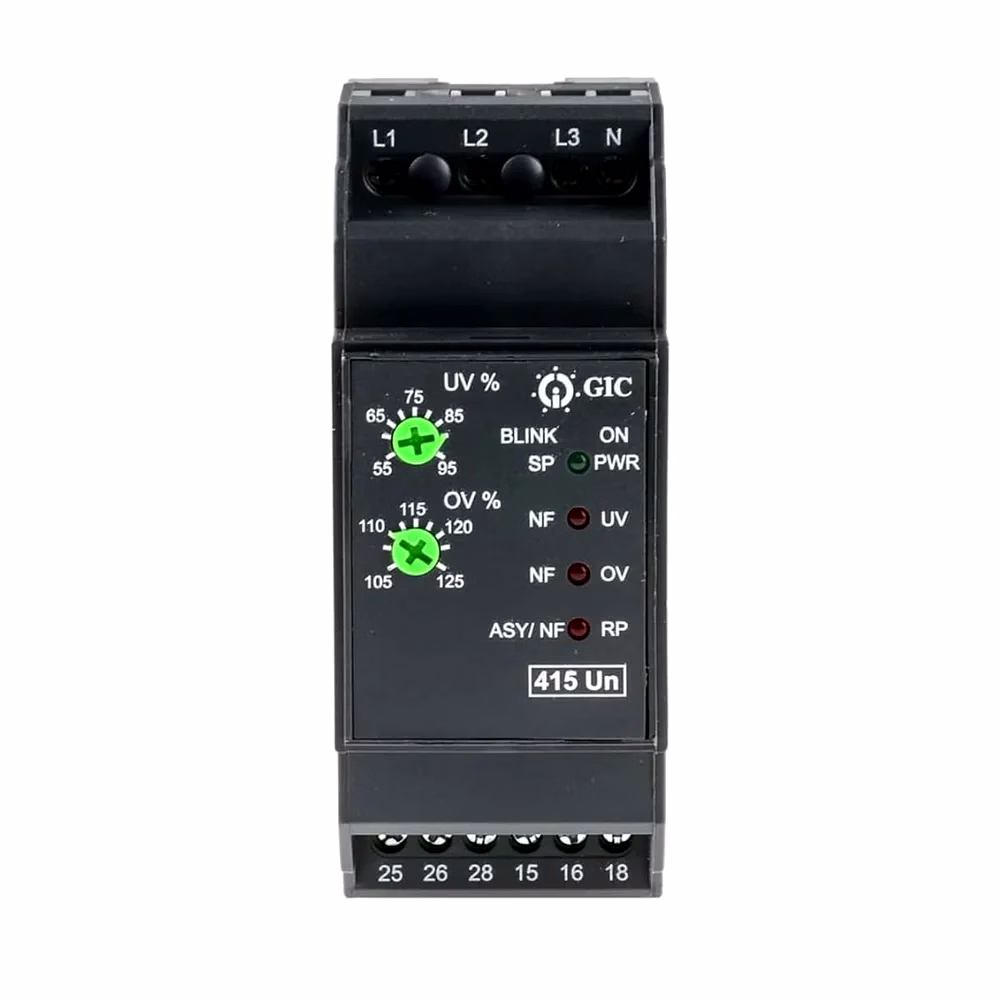

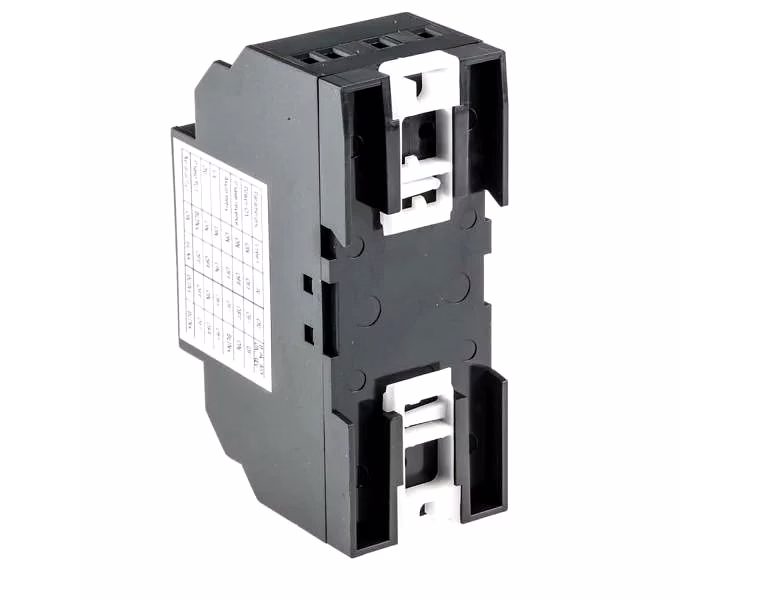

The GIC MAC04D0100 Voltage Monitoring Relay is a high-precision 3-phase relay designed specifically for comprehensive voltage monitoring and protection in industrial electrical systems. It safeguards equipment by detecting overvoltage, undervoltage, phase failure, neutral loss, phase reversal, and phase sequence anomalies. Featuring a robust 3-pole design and a non-latching coil type, this relay provides reliable and continuous protection with automatic recovery once fault conditions are cleared. Its DPDT contact configuration ensures reliable switching control within critical power distribution networks. The screw terminal connection facilitates secure and quick wiring installations. Enhanced with LED indicators for all failure conditions, the relay offers clear, immediate visual diagnostics, simplifying maintenance and minimizing downtime. By integrating combined phase failure and neutral loss detection, the GIC MAC04D0100 is an essential component for industrial setups demanding stringent voltage monitoring to protect sensitive and expensive electrical equipment from damage, ensuring operational continuity and safety.
Key Features
| Features | Description |
|---|---|
| Number of Poles | 3 Poles |
| Voltage Rating | 415 VAC |
| Type | Undervoltage Relay with Overvoltage Protection |
| Coil Type | Non Latching |
| Contact Configuration | DPDT (Double Pole Double Throw) |
| Connection Type | Screw Terminal |
| Fault Recovery | Automatic Recovery on Fault Removal |
| Failure Indication | LED Indication for All Failure Conditions |
| Protection Mechanisms | Overvoltage, Undervoltage, Neutral Loss, Phase Failure, Phase Reversal, Phase Sequence, Phase Symmetry |
| Attributes | Description |
|---|---|
| Electrical Phases | 3 Phase |
| Input Voltage | 415 VAC |
| Relay Type | Voltage Monitoring Relay |
| Pole Configuration | 3 Poles |
| Contact Type | DPDT |
| Coil | Non Latching Coil |
| Mounting Style | Panel Mount |
| Connection Method | Screw Terminal |
| Special Features | Automatic Recovery, LED Fault Indication, Combined Phase Failure and Neutral Loss Detection |
| Phases Monitored | Phase Sequence, Phase Reversal, Phase Symmetry |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
Yes, the relay features automatic recovery on fault removal, which allows it to reset automatically once abnormal voltage or phase conditions are resolved.
It can detect overvoltage, undervoltage, phase failure, phase reversal, phase sequence errors, neutral loss, and phase symmetry issues, ensuring comprehensive voltage monitoring across all three phases.
The relay uses a DPDT (Double Pole Double Throw) contact configuration, providing reliable switching capability suitable for controlling multiple circuits or signaling faults in industrial setups.
Yes, it includes LED indicators for all failure conditions, enabling quick and straightforward visual identification of issues during operation.
It supports panel mounting and uses screw terminal connections, allowing for secure installation and easy wiring within control panels.
Brand: a s enterprises
Country Of Origin: India
GIC MAC04D0100 Voltage Monitoring Relay 3 Phase Overvoltage Protection
Number of Poles : 3 Pole
Voltage : 415 VAC
Type : Undervoltage relay
Coil Type : Non Latching
Special Features : Automatic Recovery on Fault Removal, LED Indication for All Failure Conditions
The GIC MAC04D0100 Voltage Monitoring Relay has 3 Electrical Phases along with Overvoltage Protection and Under Voltage Protection with DPDT contact configuration. It is the supply monitoring relays with combined phase failure and neutral loss detection. It comes with a screw terminal type. It has some special features such as automatic recovery on fault removal, LED indication for all failure conditions.
Features:
Automatic Recovery on Fault Removal, LED Indication for All Failure Conditions
Neutral Loss, Phase Failure, Phase Reversal, Phase Sequence, Phase Symmetry
Overvoltage Protection, Under-voltage Protection
