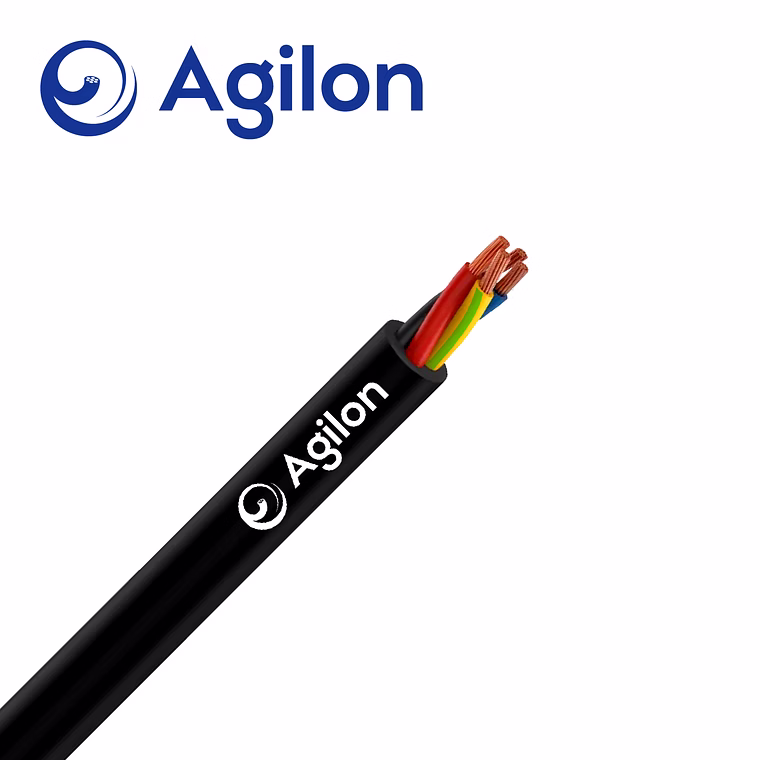

MultiCore Flexible Cables are high-performance electrical cables designed for versatile industrial and commercial applications including building and residential wiring, control panels, switchboards, low-voltage installations, power distribution, lighting systems, HVAC systems, and electrical appliances. These cables feature conductors made from 99.97% bright electrolytic annealed bare copper with over 100% conductivity, ensuring excellent electrical performance. The conductors are insulated with premium PVC compound providing high insulation resistance and dielectric strength. Designed to comply with standards IS: 694, IS: 8130, and IEC: 60332-1-2, these cables feature a PVC or FR-LSH (flame retardant low smoke halogen-free) jacket which limits fire spread with LOI ≥30%, reduces smoke and toxic gases, enhancing safety during fire hazards. The cables also include anti-rodent and anti-termite properties, are RoHS and REACH compliant, eliminate over 240 hazardous substances, and feature 100% recyclable construction. Available in wide size ranges from 0.5 sqmm up to 400 sqmm and core counts from 2 to 25 cores, these flexible cables meet the demanding requirements of modern electrical infrastructure with safety, durability, and superior performance.
Key Features
| Features | Description |
|---|---|
| Conductor Material | Annealed Bare Copper, 99.97% Bright Electrolytic Grade |
| Conductor Class | Flexible, Class-5 |
| Insulation | PVC Compound with High Insulation Resistance and Dielectric Strength |
| Sheathing | PVC / FR-LSH Jacketed (Flame Retardant, Low Smoke Halogen Free) |
| Compliance Standards | IS: 694, IS: 8130, IEC: 60332-1-2 |
| Core Range | 2 Core to 25 Core |
| Cross Section Range | 0.5 Sqmm to 400 Sqmm depending on core count |
| Fire Safety | Limiting fire spread with LOI ≥30%, Reduced smoke and toxic gases during fire |
| Environmental Compliance | RoHS and REACH Compliance |
| Additional Characteristics | Anti-rodent and anti-termite, eliminates 240+ hazardous substances, 100% recyclable |
| Attributes | Description |
|---|---|
| Conductor Size (2 Core) | 4 Sqmm to 120 Sqmm |
| Conductor Size (3 & 4 Core) | 4 Sqmm to 400 Sqmm |
| Conductor Size (5 Core) | 4 Sqmm to 35 Sqmm |
| Conductor Size (6 Core) | 4 Sqmm to 6 Sqmm |
| Conductor Size Range | 0.5 Sqmm to 2.5 Sqmm for general cores (2 to 25) |
| Conductor Material | Annealed Bare Copper, Class-5 Flexible |
| Insulation Material | PVC Compound |
| Sheath Material | PVC or FR-LSH Jacketed |
| Standard Compliance | IS: 694, IS: 8130, IEC: 60332-1-2 |
| Flame Retardant Properties | LOI ≥ 30% |
| Smoke Visibility | ≥ 40% in smoke |
| Environmental Safety | RoHS and REACH compliant, no 240+ hazardous substances |
| Additional Features | Anti-rodent and anti-termite, recyclable construction |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
These cables comply with IS: 694, IS: 8130, and IEC: 60332-1-2 standards, ensuring safety and performance for electrical installations.
The cables have a Limiting Oxygen Index (LOI) of ≥30%, which limits fire spread and reduces smoke and toxic gas emission during fire incidents.
Yes, the cables feature PVC or FR-LSH sheathing which offers protection including anti-rodent and anti-termite resistance, making them suitable for varied industrial and outdoor applications.
The cables are available in cross sections from 0.5 Sqmm to 400 Sqmm depending on the core count, with core configurations ranging from 2 cores up to 25 cores.
Yes, they are RoHS and REACH compliant and are constructed from 100% recyclable materials, eliminating over 240 hazardous substances.
Brand: agilon
Country Of Origin: India
Specification
Flexible (Class-5) Annealed Bare Copper Conductor, PVC Insulated, PVC
FR-LSH Jacketed (Sheathed) multicore flexible Cables.
Reference standards:IS: 694, IS: 8130, IEC:60332-1-2
Special Features
➤ Provide ≥40% visibility in smoke
➤ Reduced toxic gases during fire
➤ Anti rodent and anti termite
➤ Eliminate 240 + hazardous substance
➤100% recyclable construction
Description
The conductors, drawn from 99.97% bright electrolytic grade copper
with more than 100% conductivity, are annealed and bunched. The
conductors are insulated to form a core with PVC compound with high
insulation resistance and dielectric strength."
Outstanding Benefits
➤ Limiting fire spread with an LOI ≥30%
➤ Reduced smoke Provided higher visibility
➤ Reduces toxic gases, enhancing safety
➤ RoHS – Reach Compliance
➤ Electrical energy saving
Application
🗹 Building & Residential Wiring
🗹 Control Panels & Switchboards
🗹 Low-Voltage Installations
🗹 Power Distribution
🗹 Lighting Systems
🗹 HVAC Systems
🗹 Electrical Appliances and machinery
