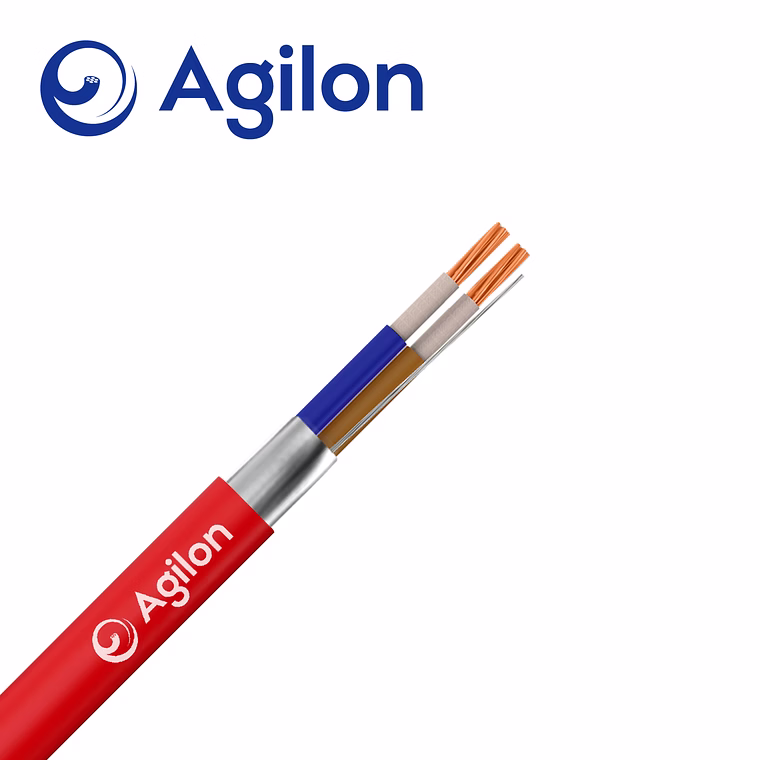

The Fire Survival Shielded SFR Cables BS:7629-1 are high-performance, fire-resistant cables designed specifically for critical safety systems requiring uninterrupted electrical functionality during fire emergencies. Available in 0.75 Sqmm and 2.50 Sqmm sizes with options for 2 core or 4 core stranded annealed bare copper conductors, these cables feature ceramified silicone rubber insulation ensuring thermal resilience. Their cores are laid up and shielded with 100% coverage aluminum mylar tape in contact with an ATC drain wire, encased within a robust LSZH (Low Smoke Zero Halogen) jacket for superior fire safety and environmental compliance. Independently tested to BS EN 50200 PH30 standards, these cables guarantee fire survival functionality at temperatures up to 950°C for 3 hours, making them ideal for use in essential safety and emergency systems such as fire alarm systems, public address systems, fire pumps, emergency lighting, smoke ventilation, fire-fighting shafts, and fire command centers. Additionally, they offer outstanding flame retardancy, extremely low smoke emission (more than 90% better visibility), zero toxic emissions, and excellent resistance against termites, rodents, and water, all conforming to RoHS and REACH regulations. The cables operate at 650 / 1100 Volt and come in color-coded cores ensuring easy installation and fault identification in complex safety setups.
Key Features
| Features | Description |
|---|---|
| Conductor Type | Stranded Annealed Bare Copper |
| Sizes Available | 0.75 Sqmm & 2.50 Sqmm |
| Number of Cores | 2 Core & 4 Core |
| Insulation Material | Ceramified Silicone Rubber |
| Shielding | Overall Shielded with 100% Aluminum Mylar Tape & ATC Drain Wire |
| Outer Jacket | Low Smoke Zero Halogen (LSZH) |
| Fire Survival Test | BS EN 50200 PH30 - Maintains functionality at 950°C for 3 hours |
| Voltage Rating | 650 / 1100 Volt |
| Flame Retardancy | High Oxygen Index of 35% |
| Smoke & Toxicity | More than 90% Better Visibility, Zero Toxic Emissions |
| Resistance Properties | Anti-termite, Anti-rodent, Excellent Water Resistance |
| Standards | BS 7629-1 & IEC 60228 |
| Compliance | RoHS and REACH Compliant |
| Core Color Coding | 2 Core - Brown & Blue; 3 Core - Brown, Black, Grey; 4 Core - Blue, Brown, Black, Grey |
| Attributes | Description |
|---|---|
| Conductor Material | Stranded Annealed Bare Copper |
| Conductor Size Options | 0.75 Sqmm, 2.50 Sqmm |
| Number of Cores | 2 Core, 4 Core |
| Insulation | Ceramified Silicone Rubber |
| Shield | 100% Aluminum Mylar Tape with ATC Drain Wire |
| Outer Sheath | Low Smoke Zero Halogen (LSZH) |
| Voltage Rating | 650 / 1100 V |
| Fire Survival Capability | Maintains functionality at 950°C for 3 hours (BS EN 50200 PH30) |
| Flame Retardant | Oxygen Index 35% |
| Smoke Emission | More than 90% Better Visibility |
| Toxic Emission | Zero |
| Water Resistance | Excellent |
| Anti-termite and Anti-rodent | Yes |
| Applicable Standards | BS:7629-1, IEC:60228 |
| Color Coding | 2 Core - Brown & Blue, 3 Core - Brown, Black, Grey, 4 Core - Blue, Brown, Black, Grey |
| Application Areas | Fire Alarm Systems, Emergency Lighting, Fire Pumps, Smoke Ventilation, Fire Fighting Shafts, Magnetic Door Holders, Fireman’s Lifts, Security Rooms |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
These cables comply with BS EN 50200 PH30 fire survival test standard, maintaining electrical functionality at 950°C for a duration of 3 hours.
Yes, the cables have excellent water resistant properties and a LSZH jacket which is suitable for damp and wet environments commonly found in fire safety systems.
The cables use ceramified silicone rubber insulation which enhances thermal resistance, enabling the cables to sustain operation at high temperatures during fire.
Yes, these cables are specifically designed for critical fire safety applications including fireman’s lifts, fire fighting shafts, and other emergency response systems.
They support a voltage rating of 650/1100 volts, ideal for fire alarm and emergency power systems.
Brand: agilon
Country Of Origin: India
Fire Alarm Systems Public Address Systems Fire Pumps, Pressurization Systems Emergency Lighting Exit Signage Lighting Smoke Ventilation ( Dampers & Actuators ) Fire Fighting Shafts (Staircase, Lift, Lift Lobby) Magnetic Door Hold Open Devices Fireman’s Lifts Lighting in Fire Command Centers & Security Rooms And Other Critical Applications
Maintains electrical functionality during fire Continued Functionality at 950°C for 3 Hour Better Visibility more than 90% Toxic Emissions 0% Better Flame Retardancy Oxygen Index 35% Shielded(100% Coverage) Excellent Flame Retardancy Low Smoke Halogen free Anti-termite & Anti-rodent Properties Excellent Water Resistant Properties RoHS - Reach Compliance Excellent Water Resistant Properties 650 / 1100 Volt 2 Core- Brown and Blue 3 Core- Brown, Black, Grey; 4 Core- Blue, Brown, Black, GreyInclusive of all taxes
