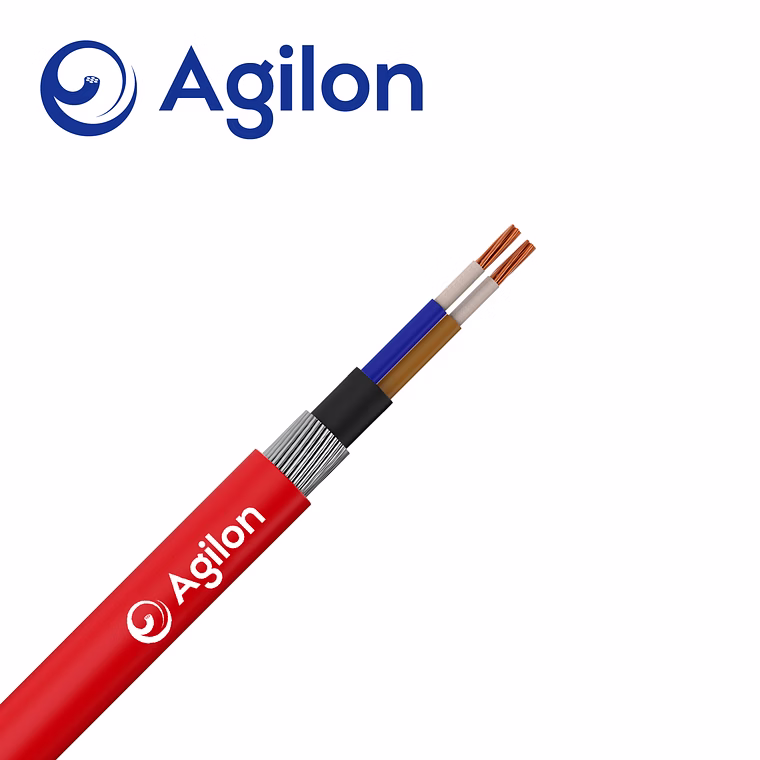

The Fire Survival Armoured Cable BS:7846 with XLPE insulation is a high-performance electrical cable specifically designed for critical fire survival applications. This cable is engineered to maintain electrical integrity and functionality in extreme fire conditions, withstanding temperatures up to 950°C for 3 hours. Available in core configurations ranging from 2 to 37 cores, and conductor sizes from 1.50 Sqmm to 400 Sqmm, the cable features stranded (Class-2) annealed bare copper conductors wrapped in a double layer of glass mica tape for enhanced fire resistance. The XLPE insulation, coupled with LSZH inner and outer jackets and galvanized iron (GI) wire armoring, ensures durability, low smoke emission, and halogen-free performance. Its design meets stringent standards such as BS:7846, IEC:60228, and BS:6387, making it ideal for use in vital fire protection systems including fire alarm circuits, public address systems, fire pumps, emergency lighting, smoke ventilation, and firefighting installations. With additional properties like oil, chemical and ozone resistance, UV stability, termite and rodent protection, and compliance with RoHS and REACH, this cable ensures safety and reliability in the most demanding environments.
Key Features
| Features | Description |
|---|---|
| Temperature Rating | Maintains electrical functionality at 950°C for 3 hours |
| Conductor Material | Stranded (Class-2) annealed bare copper |
| Cable Cores | 2, 3, 4 cores (1.50 to 400 Sqmm); 5 to 37 cores (1.5 to 2.5 Sqmm) |
| Insulation | XLPE (Cross-Linked Polyethylene) with double glass mica tape wrapping |
| Armouring | Galvanized Iron (GI) wire armoured |
| Sheath Material | Low Smoke Zero Halogen (LSZH) inner jacket and overall LSZH outer jacket |
| Fire Survival Standard | BS:7846, IEC:60228, BS:6387 |
| Flame Retardancy | Excellent with 35% oxygen index |
| Toxicity | Emits less than 10% toxic gases under fire conditions |
| Additional Resistances | Oil, chemical, ozone, UV resistant; termite and rodent proof; water and crack resistant |
| Compliance | RoHS and REACH compliant |
| Attributes | Description |
|---|---|
| Conductor Size Range | 1.50 Sqmm to 400 Sqmm (2,3,4 Core), 1.5 Sqmm to 2.5 Sqmm (5 to 37 Core) |
| Conductor Type | Stranded (Class-2) Annealed Bare Copper |
| Insulation Type | XLPE with Double Layer Glass Mica Tape |
| Inner Jacket | Low Smoke Zero Halogen (LSZH) |
| Armour Type | Galvanized Iron (GI) Wire |
| Outer Jacket | Overall Low Smoke Zero Halogen (LSZH) |
| Fire Resistance Rating | 950°C for 3 hours (CWZ Category) |
| Standards Compliance | BS:7846, IEC:60228, BS:6387 |
| Flame Retardancy | Oxygen Index 35% |
| Smoke Emission | Low Smoke, better visibility more than 90% |
| Toxic Emission | 0% halogen and less than 10% toxic emissions |
| Additional Properties | Oil, chemical, ozone resistant; UV resistant; anti-termite and rodent; water and crack resistant |
| RoHS and REACH | Compliant |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
This cable complies with the BS:7846 fire survival standard, IEC:60228 for conductor class, and BS:6387 for fire resistance classification.
It maintains electrical functionality for up to 3 hours at a temperature of 950°C.
The cable is available in 2, 3, and 4 core configurations ranging from 1.50 Sqmm to 400 Sqmm; and 5 to 37 cores ranging from 1.5 Sqmm to 2.5 Sqmm.
The cable uses galvanized iron wire for armouring and XLPE insulation combined with a double layer of glass mica tape wrapped on the conductor.
Yes, the cable has low smoke zero halogen (LSZH) sheathing, emits less than 10% toxic gases, and offers better visibility of over 90% in the event of fire.
Yes, it is resistant to oil, chemicals, ozone, UV exposure, termite and rodents, as well as water and cracking.
Brand: agilon
Country Of Origin: India
Fire Alarm Systems Public Address Systems Fire Pumps, Pressurization Systems Emergency Lighting Exit Signage Lighting Smoke Ventilation ( Dampers & Actuators ) Fire Fighting Shafts (Staircase, Lift, Lift Lobby) Magnetic Door Hold Open Devices Fireman’s Lifts Lighting in Fire Command Centers & Security Rooms And Other Critical Applications
Maintains electrical functionality during fire Continued Functionality at 950°C for 3 Hour Better Visibility more than 90% Toxic Emissions 0% Better Flame Retardancy Oxygen Index 35% Excellent Flame Retardancy Low Smoke Halogen free Thermal stable and UV Resistant Oil, Chemical & Ozone Resistant Anti-termite & Anti-rodent Properties Excellent Water Resistant Properties Excellent Crack Resistance RoHS - Reach ComplianceInclusive of all taxes
