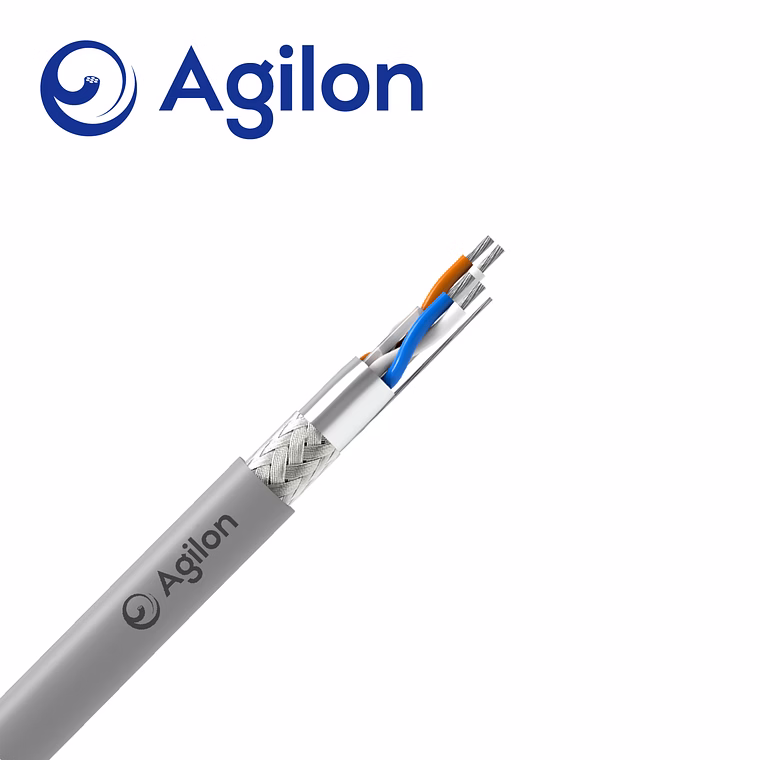

The RS-485 Communication Cable (Low Capacitance) is a high-performance cable designed specifically for reliable, long-distance communication in commercial and industrial environments. Constructed with annealed tinned copper conductors ranging from 24 AWG to 16 AWG and available in 1 to 4 pairs, this cable ensures superior signal integrity and noise immunity essential for complex systems. Featuring stranded Class-2 conductors with polyolefin insulation, the cable is meticulously twisted and shielded with a combination of 100% Aluminium Mylar tape, an ATC drain wire, and an 80% coverage annealed tinned copper braid. The overall flame-retardant low smoke halogen (FR-LSH) jacket enhances safety and durability. The design complies with international standards including BS EN 50288-7, IEC 60228, and IEC 60332-1-2, confirming its suitability for professional-grade applications. This cable is ideal for critical HVAC systems communication, industrial automation, access control systems, environmental monitoring, and long-distance data transmission up to 1200 meters supporting data rates up to 10 Mbps. Additional features such as low dielectric constant insulation and double shielding contribute to superior performance, enhanced electromagnetic compatibility, and environmental safety with smoke visibility and reduced toxic gas emissions in case of fire. Its anti-rodent and anti-termite properties and elimination of hazardous substances make it a reliable, long-lasting solution for industrial communication needs.
Key Features
| Features | Description |
|---|---|
| Conductor Material | Annealed tinned copper (Class-2 stranded) |
| Conductor Size | 24 AWG to 16 AWG |
| Number of Pairs | 1 Pair to 4 Pair |
| Insulation | Polyolefin low dielectric constant |
| Shielding | 100% Aluminium Mylar tape + 80% copper braid |
| Jacket | Flame-retardant Low Smoke Halogen (FR-LSH) |
| Data Rate Support | Up to 10 Mbps |
| Maximum Communication Distance | Up to 1200 meters |
| Standards Compliance | BS EN 50288-7, IEC 60228, IEC 60332-1-2 |
| Special Characteristics | Anti-rodent, anti-termite, reduced toxic gases during fire, double shielding |
| Attributes | Description |
|---|---|
| Conductor Construction | Stranded (Class-2), annealed tinned copper |
| Conductor Gauge | 24 AWG to 16 AWG |
| Pair Configuration | 1 to 4 twisted pairs |
| Insulation Material | Polyolefin, low dielectric constant |
| Shielding Type | Overall Aluminium Mylar tape and copper braid |
| Shield Coverage | 100% Mylar tape, 80% copper braid |
| Drain Wire | Annealed tinned copper (ATC) |
| Jacket Material | Flame Retardant Low Smoke Halogen (FR-LSH) |
| Compliance Standards | BS EN 50288-7, IEC 60228, IEC 60332-1-2 |
| Data Rate | Supports up to 10 Mbps |
| Max Communication Distance | Up to 1200 meters |
| Environmental Resistance | Anti-rodent, anti-termite and low toxic gas emission in fire |
| Smoke Visibility | ≥40% visibility in smoke |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
The cable's construction with low capacitance polyolefin insulation, efficient double shielding with 100% Aluminium Mylar tape and 80% copper braid, and high-quality stranded tinned copper conductors reduce signal attenuation and electromagnetic interference, enabling reliable communication up to 1200 meters.
The dual shielding comprising an overall aluminium mylar tape and an annealed tinned copper wire braid provides robust protection against electromagnetic interference (EMI) and radio frequency interference (RFI), which are common in industrial settings, ensuring signal integrity and reduced data errors.
The Flame Retardant Low Smoke Halogen (FR-LSH) jacket reduces smoke opacity by at least 40% and limits toxic gas emissions during fire events, enhancing safety for personnel and equipment in industrial and commercial environments.
Yes, the RS-485 Communication Cable is specifically designed to facilitate communication in heating, ventilation, air conditioning systems, as well as access control panels, card readers, and other security peripherals, offering reliable centralized control and monitoring.
The cable jacket and construction materials are treated to provide anti-rodent and anti-termite properties, preventing physical damage and extending the cable's operational life in challenging environments.
Brand: agilon
Country Of Origin: India
Specification
24 AWG to 16 AWG (1 Pair to 4 Pair)
Stranded (Class-2) Annealed Tinned Copper Conductor, Polyolefin Insulated, Twisted pairs laid-up, Overall shielded (100% Coverage) with Aluminium Mylar tape, ATC drain wire & Annealed tinned copper wire Braid (80% Coverage) and Overall FR-LSH Jacketed RS-485 Communication cable.
Standards: Generally as per BS EN 50288-7, IEC:60228 & IEC:60332-1-2
Special Features
➤ Low Dielectric constant Insulation
➤ Double Shielding
➤ Provide ≥40% visibility in smoke
➤ Reduced toxic gases during fire
➤ Anti rodent and anti termite
➤ Eliminate 240 + hazardous substance
Outstanding Benefits
➤ Capable of long-distance communication, often reaching up to 1200 meters.
➤ Enhance signal integrity and reduce signal distortion, leading to improved overall cable performance.
➤ Supports High Data Rates up to 10 Mbps
➤ Enhanced protection against to electromagnetic interference and radio frequency interference, perfect for reliable data transmission
Application
🗹 Communication between various heating, ventilation, and air conditioning components in commercial and industrial HVAC systems, enabling centralized control and monitoring
🗹 Access control panels, card readers, and peripherals, ensuring reliable communication in secure access environments.
🗹 Connecting PLCs, sensors, and control devices in industrial automation systems
🗹 Environmental monitoring and process control applications
🗹 Long-distance communication where noise immunity are essential
