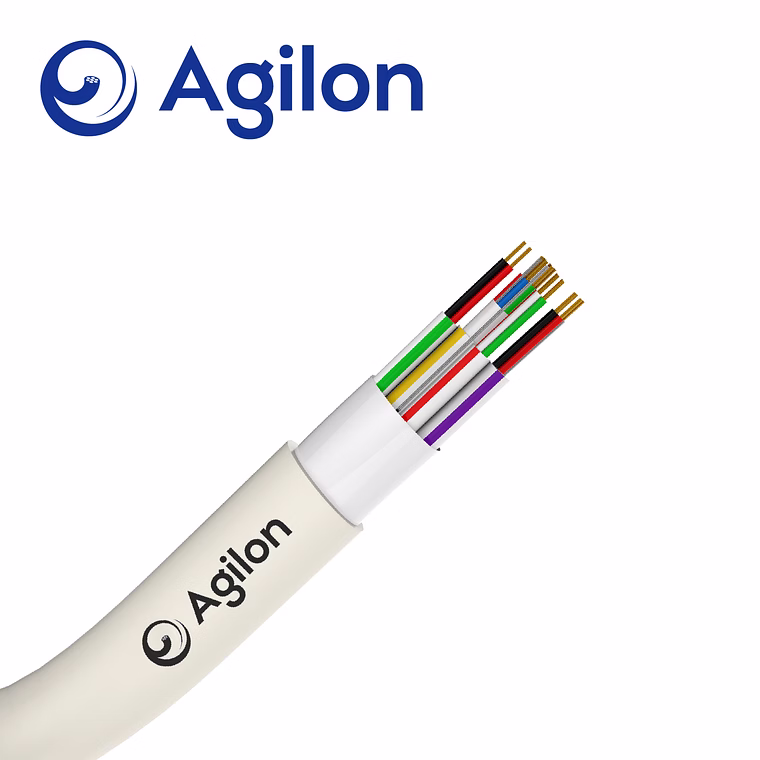

The Access Control System Composite Cable is a specially engineered cable designed to streamline and simplify the installation of indoor access control systems. This innovative composite cable combines multiple required cable types into a single consolidated cable jacket, effectively reducing installation time, space requirements, and cable clutter. Constructed with annealed bare copper conductors and high-quality polypropylene (PP) insulation, it includes four distinct units within one overall fire-retardant, low-smoke PVC jacket. Unit 1 features 4 cores of 18 AWG stranded conductors for high-quality lock power delivery, Unit 2 contains 3 pairs of 22 AWG conductors shielded for sensitive card reader signals, Unit 3 has 2 cores of 22 AWG, and Unit 4 includes 4 cores of 22 AWG, all designed for door contact and other accessory connections. The cable boasts a low dielectric constant insulation ensuring minimal attenuation and improved return loss for signal integrity, while the FR-LSH (Fire Retardant Low Smoke Halogen-free) jacket provides exceptional flame retardancy with an oxygen index of 31%, ensuring safety during fire incidents. Each conductor within the cable is individually color-coded for easy identification, making installation faster and more efficient. Specially marked conductors indicate their specific applications, such as 'Lock Power', 'Card Reader', and 'Door Contact', making this product the optimal choice for fully integrated and consolidated access control system infrastructure in commercial and enterprise environments.
Key Features
| Features | Description |
|---|---|
| Cores and Gauge | 4 CORE x 18 AWG, 3 Pair x 22 AWG, 2 CORE x 22 AWG, 4 CORE x 22 AWG stranded conductors |
| Insulation Material | Polypropylene (PP) insulated for low dielectric constant |
| Conductor Material | Annealed bare copper, Class-2 stranded for flexibility and conductivity |
| Cable Construction | 3 Unshielded Units and 1 Shielded Unit laid concentrically within a composite jacket |
| Jacket Type | Fire Retardant Low Smoke Halogen-free (FR-LSH) PVC overall jacket |
| Application Specific Labeling | Conductors labeled for 'Lock Power', 'Card Reader', 'Door Contact' use cases |
| Safety Performance | Oxygen Index 31%, better flame retardancy and over 80% visibility smoke reduction |
| Installation Benefits | All-in-one design simplifies wiring and reduces cable clutter and installation steps |
| Signal Integrity | Minimal attenuation and improved return loss due to low dielectric constant insulation |
| Color Coding | Individual color identification for each conductor for quick and accurate installation |
| Attributes | Description |
|---|---|
| Unit 1 Conductors | 4 cores x 18 AWG stranded annealed bare copper |
| Unit 2 Conductors | 3 pairs x 22 AWG shielded |
| Unit 3 Conductors | 2 cores x 22 AWG stranded |
| Unit 4 Conductors | 4 cores x 22 AWG stranded |
| Conductor Class | Class-2 stranded |
| Insulation Material | Polypropylene (PP) |
| Jacket Material | Low Smoke PVC and FR-LSH PVC |
| Overall Jacket | Composite cable with multiple layers and units laid concentrically |
| Flame Retardancy | Oxygen Index 31% |
| Application | Access Control Systems – lock power, card reader, door contact |
| Color Coding | Individual colors for each conductor |
| Shielding | Unit 2 is shielded; others unshielded |
| Attenuation | Minimal attenuation due to high-quality insulation |
| Cable Visibility in Fire | More than 80% visibility during fire due to LSZH jacket |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
This cable supports lock power supplies, card readers, door contacts, and other key access control system components, as indicated by the labeled conductors.
The shielded 3 pair 22 AWG Unit 2 reduces electromagnetic interference (EMI) for sensitive card reader signals, ensuring signal integrity and reliable access control operation.
Yes, the composite cable features a fire-retardant low smoke halogen-free (FR-LSH) jacket with an oxygen index of 31%, which limits smoke and toxic emissions during fires.
Absolutely. By consolidating multiple cable types into one jacket, it significantly reduces cable clutter and the number of pulls needed during installation.
Polypropylene insulation offers a low dielectric constant, resulting in minimal signal attenuation and improved return loss for enhanced communication performance.
Brand: agilon
Country Of Origin: India
Access Control Systems: The cable is clearly labeled and designed for access control systems. The marked conductors called out use cases like "Lock Power", "Card Reader", "Door Contact" (Diagram given below) etc. So it's intended to consolidate cables needed for a full access control installation.
Specially designed to consolidate multiple cable needs for indoor access control system installations. The all-in-one design aims to simplify installation, saving space and reducing clutter. Installers can wire up full access control system runs with a single pull compared to multiple cable types and multiple pulls. The key unique feature that stands out is that this cable combines multiple cable types and purposes into a single consolidated jacket. Minimal attenuation and Improved return loss Low dielectric constant insulation Multiple sizes laid in one cable Individual colour identification Better Visibility more than 80% during fire Better Flame Retardancy Oxygen Index 31%Inclusive of all taxes
