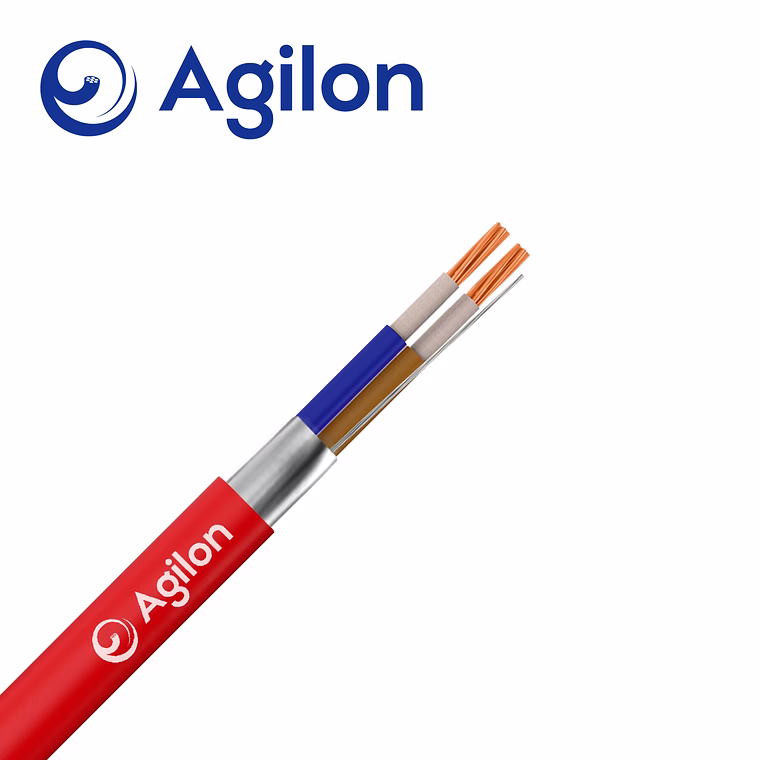

The Fire Survival Shielded Un-Armoured Cables BS:7629-1 are specially engineered cables designed to maintain electrical functionality under extreme fire conditions, making them ideal for critical safety and emergency systems. Featuring stranded annealed bare copper conductors in both 0.75 Sqmm and 2.50 Sqmm sizes, available in 2-core and 4-core configurations, these cables incorporate a double layer of glass mica tape providing superior fire protection. XLPE insulation and overall cores laid-up structure enhance durability. The cables are fully shielded with 100% aluminum mylar tape in contact with an ATC drain wire, all enclosed in a low smoke zero halogen (LSZH) jacket that resists oil, chemicals, UV exposure, termites, rodents, and water ingress. Certified to BS EN 50200 PH30 standards for fire survival, these cables ensure continued operation at temperatures up to 950°C for three hours, vital for applications in fire alarms, emergency lighting, fire fighting shafts, and more. With outstanding flame retardancy, low smoke emission (less than 90%), and zero toxic emissions, these cables are compliant with RoHS and REACH standards, guaranteeing a safe and durable solution for critical fire survival electrical wiring needs.
Key Features
| Features | Description |
|---|---|
| Conductor Material | Stranded Annealed Bare Copper |
| Conductor Sizes | 0.75 Sqmm & 2.50 Sqmm |
| Core Configuration | 2 Core & 4 Core Options |
| Fire Protection Layers | Double layer Glass Mica Tape |
| Insulation Type | XLPE |
| Shielding | 100% Aluminium Mylar Tape with ATC Drain Wire |
| Outer Jacket | Low Smoke Zero Halogen (LSZH) Un-Armoured |
| Fire Survival Test | BS EN 50200 PH30 – Maintains functionality at 950°C for 3 hours |
| Flame Retardancy | Excellent with Oxygen Index 35% |
| Toxic Emission | Less than 90% visibility with 0% toxic emissions |
| Additional Resistances | Oil, Chemical, UV, Ozone, Termite, Rodent, and Water Resistant |
| Compliance | RoHS and REACH Compliant |
| Attributes | Description |
|---|---|
| Reference Standards | BS 7629-1, IEC 60228 |
| Conductor Construction | Stranded Annealed Bare Copper |
| Conductor Sizes | 0.75 Sqmm, 2.50 Sqmm |
| Number of Cores | 2 and 4 |
| Insulation Material | XLPE |
| Shielding | Aluminium Mylar Tape with ATC Drain Wire (100% coverage) |
| Fire Protection | Double layer Glass Mica Tape |
| Outer Jacket Material | Low Smoke Zero Halogen (LSZH), Un-Armoured |
| Fire Survival Temperature & Duration | 950°C for 3 Hours (BS EN 50200 PH30) |
| Oxygen Index | 35% |
| Toxic Emission Level | 0% Toxic Emissions |
| Flame Retardancy | Excellent, tested as per standards |
| Resistance Properties | Oil, Chemical, UV, Ozone, Termite, Rodent, Water Resistant |
| Compliance | RoHS, REACH |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
These cables comply with BS 7629-1 and IEC 60228 standards and have passed the BS EN 50200 PH30 fire survival test.
The cable maintains electrical functionality for up to 3 hours at temperatures up to 950°C as per BS EN 50200 PH30.
A double layer of glass mica tape offers fire protection, while 100% coverage aluminium mylar tape with an ATC drain wire provides overall shielding.
Yes, the cables have excellent resistance to oil, chemicals, UV exposure, ozone, termites, rodents, and water, making them suitable for harsh environments.
They are ideal for fire alarm systems, emergency lighting, fire pumps, smoke ventilation systems, fire fighting shafts, magnetic door sensor devices, and other critical fire safety installations.
Brand: agilon
Country Of Origin: India
Fire Alarm Systems Public Address Systems Fire Pumps, Pressurization Systems Emergency Lighting Exit Signage Lighting Smoke Ventilation ( Dampers & Actuators ) Fire Fighting Shafts (Staircase, Lift, Lift Lobby) Magnetic Door Hold Open Devices Fireman’s Lifts Lighting in Fire Command Centers & Security Rooms And Other Critical Applications
Maintains electrical functionality during fire Continued Functionality at 950°C for 3 Hour Better Visibility more than 90% Toxic Emissions 0% Better Flame Retardancy Oxygen Index 35% Shielded(100% Coverage) Excellent Flame Retardancy Low Smoke Halogen free Thermal stable and UV Resistant Oil, Chemical & Ozone Resistant Anti-termite & Anti-rodent Properties Excellent Water Resistant Properties Excellent Crack Resistance RoHS - Reach ComplianceInclusive of all taxes
