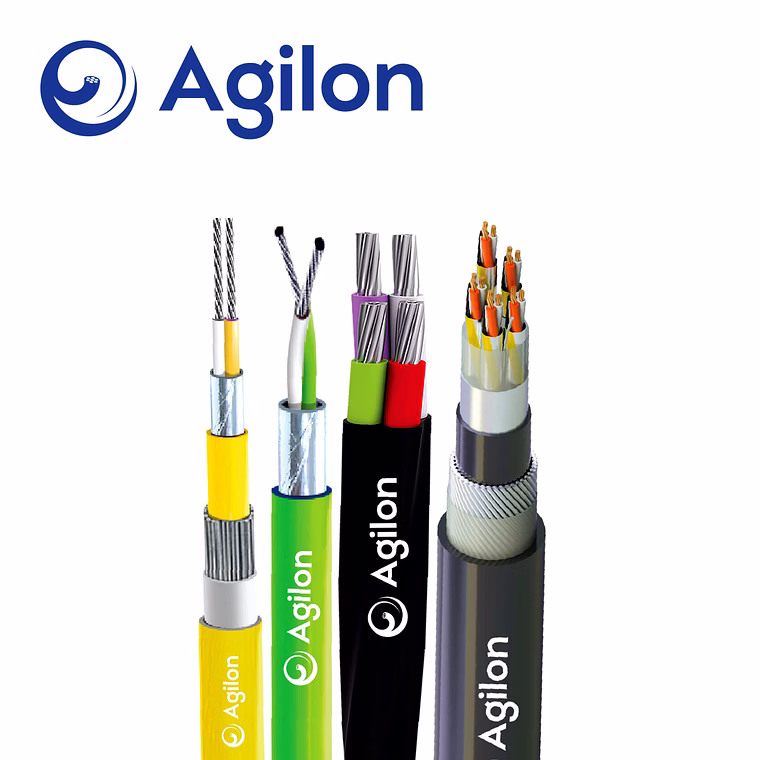

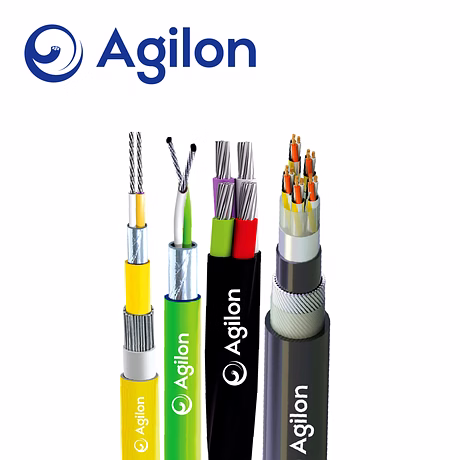

Our Thermocouple Compensating Cable is expertly designed to transmit precise temperature measurement signals from thermocouple probes to measurement units with maximum accuracy and reliability. Specifically engineered as a pair of insulated conductors made from metals identical or similar to the thermocouple probe, these cables ensure accurate compensation for thermoelectric voltage changes along their length, eliminating measurement errors caused by temperature gradients within the cable itself. Catering to applications in combined-cycle co-generation power plants, gas insulated switchgear, steel production, chemical processing, and furnace temperature monitoring, this cable is invaluable for industries requiring stringent temperature control and measurement accuracy. Available in multiple cable types such as KX (Nicro, Nial), JX (Iron, Constantan), TX (Iron, Constantan), EX (Nicro, Constantan), and NX (Nicrosil, Nisil), these compensating cables conform to industrial standards including BS 5308, IEC 60092, and EN 50288-7. Insulation options include PVC, PTFE, fiberglass, and silicone rubber to address varying temperature ranges and environmental conditions. This versatility assures compatibility across different thermocouple types and operational requirements, making it a reliable solution for high-precision industrial temperature measurement systems.
Key Features
| Features | Description |
|---|---|
| Conductor Composition | Pairs of insulated conductors made from metals identical or similar to thermocouple probes for accurate compensation |
| Cable Types Available | KX (Nicro, Nial), JX (Iron, Constantan), TX (Iron, Constantan), EX (Nicro, Constantan), NX (Nicrosil, Nisil) |
| Insulation Materials | PVC, PTFE, Fiberglass, Silicone Rubber for diverse temperature and environment suitability |
| Standards Compliance | Manufactured to BS 5308, IEC 60092, and EN 50288-7 standards |
| Application Compatibility | Ideal for thermocouple types used in power plants, chemical processing, steel production, and industrial furnace monitoring |
| Cable Configuration | Pairs (legs) of positive (+) and negative (-) conductors essential for thermocouple signal transmission |
| Custom Lengths | Available in various lengths tailored to specific industrial setups |
| Temperature Range Adaptability | Different insulation choices allow operation over wide temperature ranges |
| Multi-Core Option | Three-core versions available for RTD (PT-100) temperature sensors |
| Signal Accuracy Enhancement | Compensating cable minimizes thermoelectric errors by matching conductor materials with thermocouple probes |
| Attributes | Description |
|---|---|
| Conductor Pair Material | Nicro/Nial, Iron/Constantan, Nicrosil/Nisil depending on cable type |
| Insulation Type | PVC, PTFE, Fiberglass, Silicone Rubber |
| Cable Standard Compliance | BS 5308, IEC 60092, EN 50288-7 |
| Applications | Combined-cycle power plants, gas insulated switchgear, steel production, chemical processing, furnace temperature measurement |
| Cable Configuration | Two-leg pairs (positive and negative conductors) |
| Additional Versions | Three-core cables for RTD (PT-100) sensors |
| Temperature Range | Dependent on insulation material selected; suitable for moderate to high temperature environments |
| Length | Customizable as per customer requirement |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
The cable is available in multiple conductor types including KX (Nicro, Nial), JX (Iron, Constantan), TX (Iron, Constantan), EX (Nicro, Constantan), and NX (Nicrosil, Nisil), selected based on the required thermocouple type and application.
Fiberglass and PTFE insulation options are best suited for high-temperature environments, providing durability and electrical insulation integrity.
Yes, cables are available in custom lengths tailored to meet the unique installation requirements of various industrial applications.
Yes, the thermocouple compensating cables comply with BS 5308, IEC 60092, and EN 50288-7 standards ensuring quality and reliability.
Yes, three-core versions of the cable are available to support RTD (PT-100) temperature sensors along with standard two-leg thermocouple pairs.
By using conductor materials identical or similar to those in the thermocouple probe, the cable compensates for junction temperature differences that could otherwise introduce errors, thus preserving signal integrity.
Brand: agilon
Country Of Origin: India
Application
🗹 Pressure Transmitter for Combined-Cycle Co-Generation Power Plant
🗹 Gas Machines – Gas Insulated Switchgear in Power Plant
🗹 Thermocouple in Heater
🗹 Modern Industry Equipment
🗹 Steel Production
🗹 Chemical Processing
🗹 Measuring the Temperature of Furnaces
Thermocouple Cables can be produced in different insulation types such as PVC, PTFE, fiberglass, & silicone rubber, depending on the temperature range and the application requirements. Selecting right cable insulation is critical to ensure safety, reliability and accuracy of the temperature measurement. When selecting a thermocouple cable, it is essential to consider factors such as the thermocouple type, the temperature range, the cable length and t he environmental conditions. Cables can be supplied as standard measurement industry designs or to specific standards like BS 5308, IE C 60092 and EN 50288-7. RTD (PT-100) cables can also be sup plied in three core versions.
