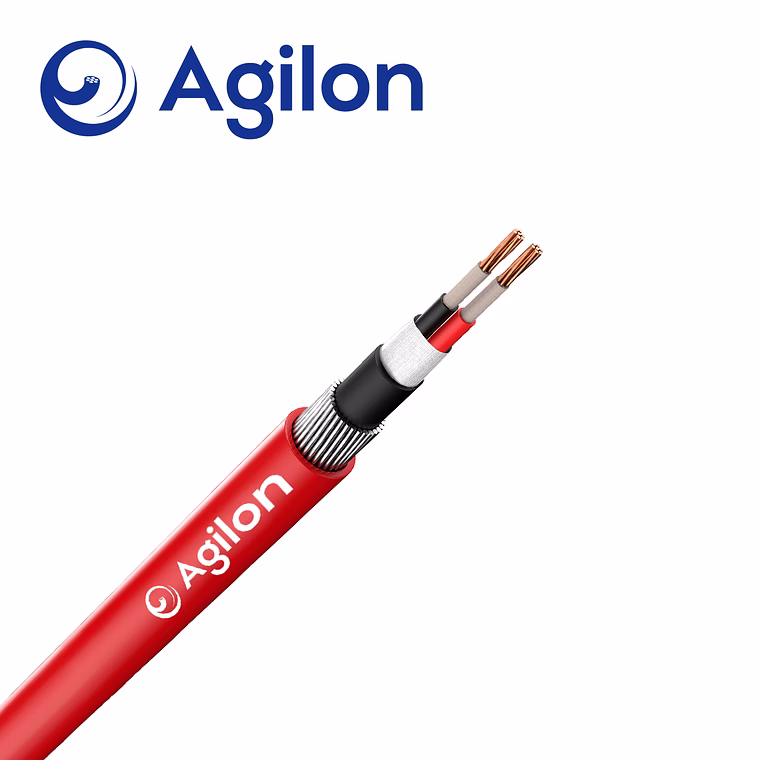

Fire Survival Armoured Cable IS:17505-1 with XLPE Insulation is engineered to maintain electrical functionality under extreme fire conditions. Available in sizes ranging from 1.50 Sqmm to 400 Sqmm across multiple core configurations (2, 3, 4, 3.5, and 5 to 61 cores), these cables feature stranded Class-2 annealed bare copper conductors that ensure excellent conductivity and flexibility. The conductor is wrapped with a double layer of glass mica tape for enhanced fire resistance, followed by XLPE insulation providing thermal stability. The cores are laid concentrically and protected by a Low Smoke Zero Halogen (LSZH) inner jacket. A galvanized iron (GI) wire armouring safeguards the cable against mechanical stresses, with an overall LSZH outer jacket for added durability. Certified by BIS and ISI, this cable has passed rigorous fire survival tests, maintaining operation at 950°C for up to 3 hours, making it ideal for critical fire safety systems such as fire alarms, emergency lighting, smoke ventilation, fire pumps, and other essential infrastructure. The cable also features outstanding flame retardancy, emits 90% less toxic fumes, and complies with RoHS and REACH standards, backed by a 5-year warranty.
Key Features
| Features | Description |
|---|---|
| Conductor | Stranded (Class-2) Annealed Bare Copper |
| Insulation | XLPE (Cross-linked Polyethylene) |
| Fire Resistance | Maintains functionality at 950°C for 3 hours |
| Core Types and Sizes | 1.5 Sqmm to 400 Sqmm; 2, 3, 4, 3.5 and 5 to 61 cores |
| Armouring | Galvanized Iron (GI) Wire Armoured |
| Jacket | Low Smoke Zero Halogen (LSZH) Inner and Outer Jacket |
| Standards & Certification | IS:17505-1, BIS Certified, ISI Mark |
| Fire Test Category | FWS (Fire Survival) |
| Toxic Emission | Less than 10% compared to standard cables |
| Warranty | 5 Years |
| Attributes | Description |
|---|---|
| Conductor Material | Annealed Bare Copper |
| Conductor Classification | Class-2 Stranded |
| Insulation Material | Cross-linked Polyethylene (XLPE) |
| Inner Jacket | Low Smoke Zero Halogen (LSZH) |
| Armour | Galvanized Iron Wire |
| Outer Jacket | Low Smoke Zero Halogen (LSZH) |
| Available Sizes | 1.50 Sqmm to 400 Sqmm |
| Available Core Configurations | 2 Core, 3 Core, 4 Core, 3.5 Core, 5 Core to 61 Core |
| Fire Survival Temperature | 950°C |
| Fire Survival Duration | 3 Hours |
| Flame Retardancy | Excellent |
| Toxic Emission | Less than 10% |
| Oxygen Index | 35% |
| Compliance | RoHS, REACH, BIS Certified |
| Special Properties | Thermal Stability, UV Resistance, Oil/Chemical/Ozone Resistance, Anti-termite, Anti-rodent, Water Resistant, Crack Resistant |
| Applications | Fire Alarm Systems, Emergency Lighting, Fire Pumps, Smoke Ventilation, Fire Fighting Shafts, Fireman's Lifts, Security Rooms |
| Warranty | 5 Years |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
This cable complies with IS:17505-1 fire survival standard and is rated to maintain electrical functionality at 950°C for 3 hours.
The conductor is made of Class-2 stranded annealed bare copper, and insulation is cross-linked polyethylene (XLPE) with a double glass mica tape wrapping for enhanced fire resistance.
Available sizes range from 1.5 Sqmm to 400 Sqmm with core configurations including 2, 3, 4, 3.5, and 5 to 61 cores.
It features galvanized iron (GI) wire armouring and both inner and outer Low Smoke Zero Halogen (LSZH) jackets to ensure high resistance to mechanical stress, fire, chemical exposure, water ingress, and pests.
This cable is ideal for critical fire safety applications such as fire alarm systems, emergency lighting, fire pumps, smoke ventilation systems, fire fighting shafts, magnetic door hold devices, and fireman's lifts.
Brand: agilon
Country Of Origin: India
Fire Alarm Systems Public Address Systems Fire Pumps, Pressurization Systems Emergency Lighting Exit Signage Lighting Smoke Ventilation ( Dampers & Actuators ) Fire Fighting Shafts (Staircase, Lift, Lift Lobby) Magnetic Door Hold Open Devices Fireman’s Lifts Lighting in Fire Command Centers & Security Rooms And Other Critical Applications
Maintains electrical functionality during fire Continued Functionality at 950°C for 3 Hour Better Visibility more than 90% Toxic Emissions 0% Better Flame Retardancy Oxygen Index 35% Warranty 5 Years* Excellent Flame Retardancy Low Smoke Halogen free Thermal stable and UV Resistant Oil, Chemical & Ozone Resistant Anti-termite & Anti-rodent Properties Excellent Water Resistant Properties Excellent Crack Resistance RoHS - Reach Compliance BIS Cetified, IS 17505Inclusive of all taxes
