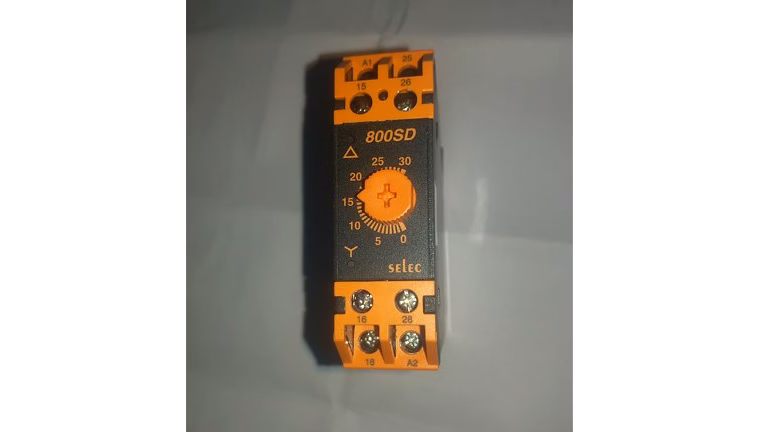

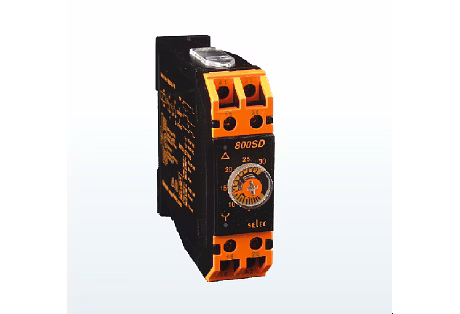

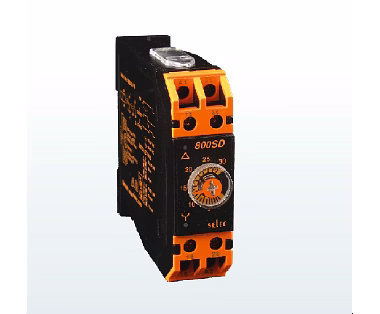

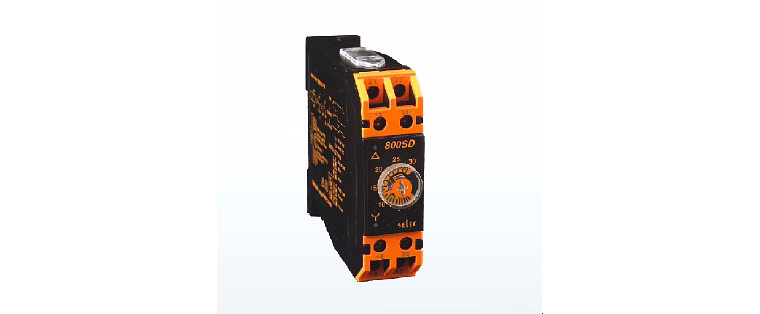

Star Delta Function Timer SELEC 800SD-2-230

Name: Star Delta Function Timer SELEC 800SD-2-230
Brand: a s enterprises
SKU: 8492383
Availability: InStoreOnly

Sold by a s enterprises · Manufacturer, Contractor, Brand Owner, Distributor, Exporter, Importer, Wholesaler, Women Entrepreneur · Surat, Gujarat, India

Price

Price on request

In stock

Minimum order: 1 Piece

Export Snapshot

MOQ

1 Piece

Lead time

On request

Packaging

Standard export packaging

Shelf life / longevity

As per product specification

HSN Code

85364900

Origin

India

Port of dispatch

On request

Export markets served

Global markets

Values shown are for a s enterprises.

FIEO Registered

Suitable for

Importers · Distributors · Wholesalers

Surat Dispatch on request FIEO member

a s enterprises

Manufacturer, Contractor, Brand Owner, Distributor, Exporter, Importer, Wholesaler, Women Entrepreneur · Surat, Gujarat, India

Registered address: Surat, India.

View profile All products

Established

Not shared

Employees

–

GST

24CIKPS6663M1ZG

IEC code

Not shared

Export markets

Global markets

GlobalLinker Member Since

Not shared

Turnover

$250,000 - $1 MM

Incorporation Type

On request

Certifications & Awards

Product details

What are the specifications of this product?

Overview

Star Delta Function Timer Product: 800SD-2 Star delta 2 Time ranges LED indications : Star Relay ON, Delta Relay ON Supply voltage: 110V AC / 230V AC/ 415V AC Display Specifications LED Indications Star RelayON, Delta RelayON Output Specifications Relay Contact 1 C/O Relay each for Star & Delta Contact Rating 5A @ 250V AC Functional Specifications Modes Star - Delta Time Ranges Runup time range : 30 / 60sec Change Over : 50 / 100msec (user selectable via DIP switches) Reset On power interruption Reset time < 100msec

Product Description

Brief Specifications

Operating Modes Star-Delta

Range Run Time Range: 30 / 60sec,

Change Over Time: 50 /100msec ( user selectable via DIP switches)

Accuracy Setting: ±5% of Full Scale, Repeat: ±0.5% or 50msec

Relay Contact 1 C/O Each For Star And Delta

Contact Rating 5A @ 250V AC or 24V DC

Supply Voltage 230V AC / 110V AC / 230 to 415V AC

Size 22.5mm

Mounting Type DIN Rail Mount

Certification CE

Auxiliary Supply Specifications

Supply Voltage 230V AC / 110V AC / 230 to 450V AC (50 / 60Hz)

-15% to 10% tolerance

Power Consumption 10VA max

Description provided by a s enterprises.

Specifications

Model Number	800SD-2-230
Time Accuracy	±5% of Full Scale
Repeat Accuracy	±0.5% or 50 milliseconds
Auxiliary Supply Voltage	230V AC / 110V AC / 230 to 450V AC (50/60Hz)
LED Display	Indicates Star and Delta relay status
Operating Frequency	50 Hz / 60 Hz
Contact Configuration	1 Change Over (1 C/O) contact for each relay
Certification	CE Certified
Dimensions	Width: 22.5 mm (DIN rail mount standard size)

Use cases

Category	testing instrument and equipment > test instruments > water meters
Primary application	Wholesale, distribution, and international sourcing
Brand	a s enterprises
Product type	Product

Logistics & handling

Lead time	On request
Packaging	As per buyer requirement
Storage condition	As recommended by supplier
Origin	India
Form	As listed by supplier

Commercials (this seller)

Minimum order	1 Piece
Lead time	On request
Payment terms	As per negotiated commercial agreement.

Buyer questions

Frequently asked by buyers

Common questions B2B buyers ask before sourcing Star Delta Function Timer SELEC 800SD-2-230. Answers compiled from verified sellers' commercial terms and platform data.

Q: Can the SELEC 800SD-2-230 timer be used with both 50Hz and 60Hz supply frequencies?

A: Yes, the 800SD-2-230 timer supports supply frequencies of both 50Hz and 60Hz, making it suitable for various regional power standards.

Q: Is it possible to adjust the run-up and changeover times on the SELEC 800SD-2-230 timer?

A: Yes, both run-up time (30 or 60 seconds) and changeover time (50 or 100 milliseconds) can be easily selected using DIP switches on the timer.

Q: What type of relay contacts does the SELEC 800SD-2-230 provide for controlling the star and delta circuits?

A: It provides two 1 Change Over (1 C/O) relay contacts with a contact rating of 5A at 250V AC or 24V DC, one each dedicated for star and delta circuits.

Q: How does the SELEC 800SD-2-230 timer respond to power interruptions?

A: The timer resets automatically on power interruption with a reset time of less than 100 milliseconds, ensuring consistent motor control operation.

Q: What mounting options are available for the SELEC 800SD-2-230 timer?

A: This timer is designed for easy installation on standard 22.5 mm DIN rails, commonly used in electrical control panels.
