The Hydraulic Trainer is a state-of-the-art teaching aid designed specifically for B2B educational institutions that aim to provide their students with comprehensive practical training in the field of hydraulics. This sophisticated, self-contained unit enables the demonstration of over 15 hydraulic experiments, enhancing the understanding of fundamental hydraulic principles and components. Ideal for vocational training centers, universities, and technical institutions, the Hydraulic Trainer allows for live demonstrations of various hydraulic components and control circuits, ensuring hands-on learning. Featuring an operating pressure of 20 bar for enhanced safety, all components are mounted on an ergonomically designed mobile metal trolley complete with a drip tray for easy maintenance. The quick-release couplings on all components and hoses facilitate rapid connections, making it user-friendly and efficient. This hydraulic training equipment consists of essential components, including single and double-acting cylinders, directional control valves, check valves, flow control valves, a powerful hydraulic power pack, and necessary accessories to conduct experiments effectively. By integrating this Hydraulic Trainer into your curriculum, you provide a vital resource for students to engage with real-world hydraulics applications, preparing them for success in engineering and technical fields.
Key Features
| Features | Description |
|---|---|
| Self-Contained Unit | Demonstrates over 15 hydraulic experiments |
| Safety Operating Pressure | 20 bar for enhanced student safety |
| Ergonomic Design | Mobile metal trolley with drip tray for convenience |
| Quick Release Couplings | Facilitates fast and easy connections |
| Comprehensive Components | Includes single and double-acting cylinders, directional control valves, and more |
| Detailed Instruction Manual | Guides users through various experiments and setups |
| Attributes | Description |
|---|---|
| Hydraulic Power Pack | 3 LPM pump with 20 Bar pressure |
| Motor | ½ HP, 3-phase, foot/flange motor |
| Oil Tank Capacity | 20 liters (oil provided by purchaser) |
| Single Acting Cylinder | 01 No. |
| Double Acting Cylinder | 01 No. |
| 4/2 Way Directional Control Valve | 01 No. (Spring Return) |
| 4/3 Way Directional Control Valve | 01 No. |
| Check Valve | 01 No. |
| Flow Control Valve | 01 No. |
| Pressure Gauge Diameter | 100 mm |
| Loading Weight | Approximately 8 kg |
| Hydraulic Hoses | 10 Nos. with quick couplers |
| Instruction Manual | 01 No. |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
The Hydraulic Trainer allows for over 15 different experiments related to basic hydraulics, covering various components and control circuits.
The Hydraulic Trainer operates at a maximum pressure of 20 bar, ensuring the safety of students during practical training.
The trainer includes a single-acting cylinder, double-acting cylinder, multiple directional control valves, check and flow control valves, and various hoses and fittings.
Yes, the hydraulic trainer is mounted on a mobile metal trolley, making it easy to move around a classroom or workshop.
A detailed instruction manual is included, providing essential guidance on setting up and conducting various hydraulic experiments.
Brand: adtron
Country Of Origin: India
SALIENT FEATURES :

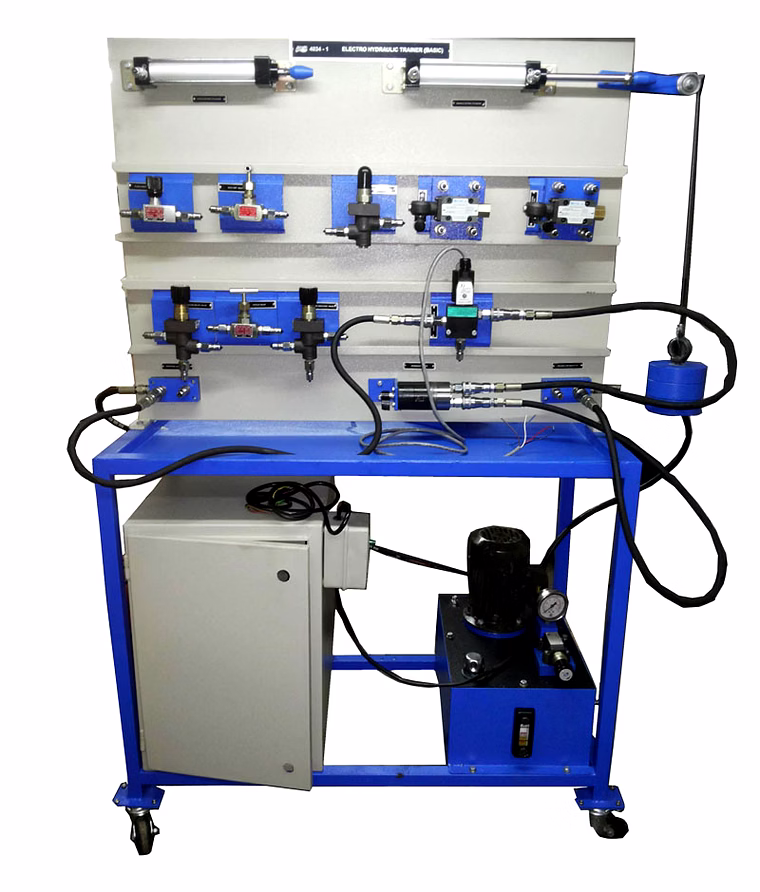

Hydraulic Trainer is a self - contained where demonstration of over 15 experiments is possible. Hydraulic Trainer is a sophisticated, indigenous, new generation hydraulic teaching aid, specially developed to impart the best practical training in basic hydraulics. It can be used as a Live Demonstrator to show functioning of various hydraulic components and control circuits. Operating pressure is kept at 20 bar for safety of the students. The components / equipments are mounted on an ergonomically designed mobile metal trolley with drip tray. The power pack is mounted at the bottom. The components are permanently mounted on the working area. “Quick Release Couplings” are used on the components and hoses for fast and easy connections. All the components are duly fitted with “QUICK ADAPTERS” and the hoses are fitted with quick couplers.
The Hydraulic Trainer consists of :
HYDRAULIC POWER PACK :
Pump : 3 LPM.
Pressure : 20 Bar.
Motor : ½ HP, 3 , foot / flange motor.
Oil Tank : 20 litre capacity ( oil to be provided by the purchaser ).
COMPONENTS:
Single Acting Cylinder : 01 No.
Double Acting Cylinder : 01 No.
4/2 Way Directional Control Valve ( Spring Return ) : 01 No.
4/3 Way Directional Control Valve : 01 No.
Branch Tee : 01 No.
Check Valve : 01 No.
Flow Control Valve : 01 No.
Manifold :
a. Pressure Line Manifold : 01 No.
b. Return Line Manifold : 01 No.
PO Check Valve : 01 No.
Pressure Relief Valve : 01 No.
Pressure Gauge 100 mm : 01 No.
Pulley arrangement ( Suitable to load ) : 01 No.
Loading Weight ( 8 Kg Approx. ) : 01 No.
Measuring Flask ( 2 litres ) : 01 No
Hydraulic Hoses with Quick Couplers : 10 Nos.
Detailed Instruction Manual : 01 No.
