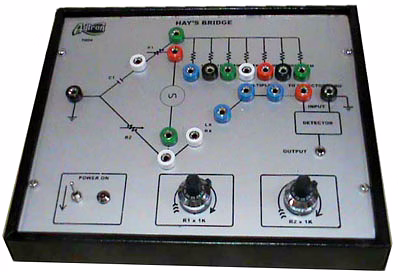

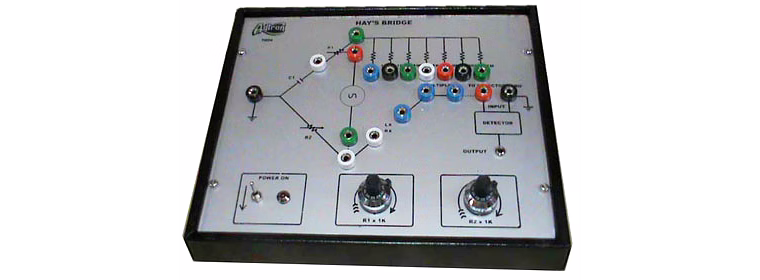

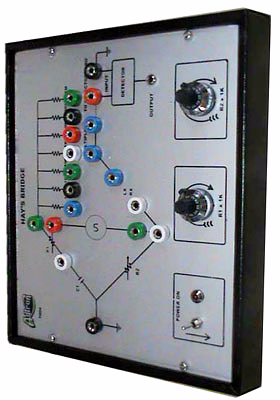

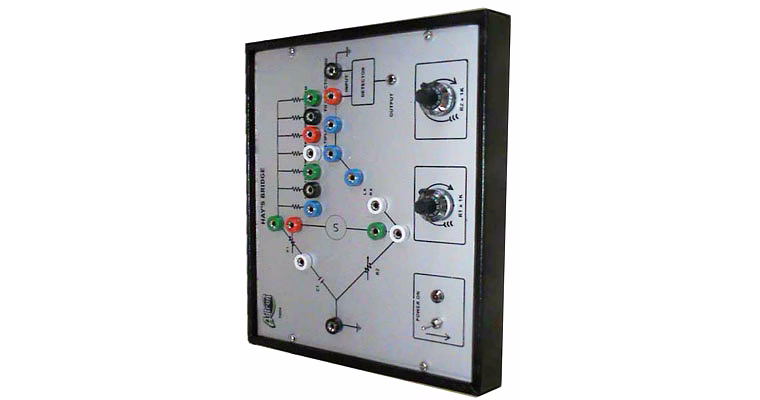

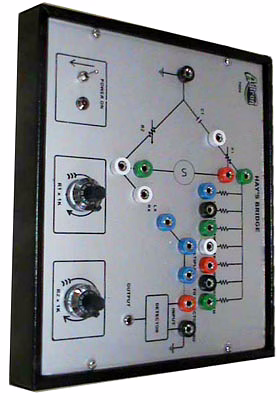

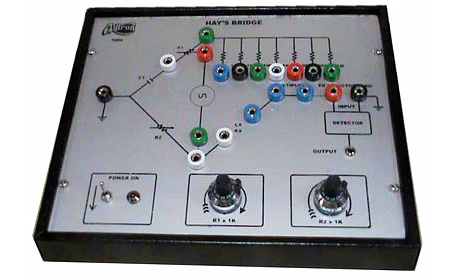

The Hay's Bridge Trainer is a precise and fully integrated training board designed specifically for educational and professional laboratories to demonstrate the working principles and applications of AC bridges in the measurement of inductance. This dedicated trainer unit is self-contained, requiring only a 230V, 50 Hz AC supply, making it ideal for hands-on learning and practical experiments in electrical and electronics engineering environments. Featuring a built-in IC-based DC regulated power supply with short circuit protection and LED indication for supply status, the trainer ensures operational safety and reliability. Additionally, it includes a 1kHz oscillator and an imbalance amplifier for accurate signal generation and measurement sensitivity. The incorporation of a headphone set facilitates sensitive detection of the null condition, enhancing the precision of inductance measurement. The unit provides variable arms and multiplier controls for flexible experimentation and includes multi-colored test points strategically placed across the circuit to monitor waveform behavior and voltage levels at various stages. Packaged in a robust and elegantly designed cabinet with a clear, logical front panel layout, it is supported by a comprehensive manual that covers theoretical concepts and operational instructions, making it an invaluable educational tool for bridging theory and practical skills in inductance measurement using AC bridges.
Key Features
| Features | Description |
|---|---|
| Dedicated Trainer Board | Purpose-built trainer board exclusively for Hay's Bridge inductance measurement |
| Self-Contained Unit | Requires only 230V, 50 Hz AC supply with built-in power systems |
| Built-in DC Regulated Power Supply | IC-based with short circuit protection and LED indication for supply ON |
| Integrated 1kHz Oscillator | Provides the necessary AC signal frequency for bridge operation |
| Imbalance Amplifier | Enhances detection of bridge imbalance for precise measurements |
| Headphone Set | Allows sensitive null detection through audio feedback |
| Variable Arms and Multiplier Controls | Enables adjustment of bridge parameters for different inductance ranges |
| Multi-Colored Test Points | Facilitates real-time observation of waveforms and voltage at key circuit points |
| Comprehensive Instruction Manual | Detailed theory and operating procedures for effective learning |
| Elegant Cabinet Design | Strong, user-friendly layout with intuitive front panel operation |
| Attributes | Description |
|---|---|
| Power Supply | 230V AC, 50 Hz |
| DC Regulated Supply | IC based with short circuit protection |
| Oscillator Frequency | 1 kHz |
| Output Indication | LED for power ON |
| Detection Method | Headphone based sensitive null detection |
| Control Features | Variable arms and multiplier adjustments |
| Test Points | Multi-colored for waveform and voltage measurements |
| Dimensions | Cabinet size optimized for bench-top use (exact dimensions not specified) |
| Included Accessories | Set of patch cords and headphone set |
| Build Quality | Robust and elegantly housed in a well-designed cabinet |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
Yes, it features an IC-based DC regulated power supply with built-in short circuit protection and an LED indicator for power status.
The trainer includes a built-in 1 kHz oscillator specifically designed to provide the required AC frequency for inductance measurement.
It features an imbalance amplifier and a headphone set that allow users to detect the null point with high sensitivity through audio feedback.
Yes, the trainer includes multi-colored test points at various stages to facilitate waveform and voltage observation during experiments.
The unit is equipped with variable arms and multiplier controls allowing precise adjustments for different inductance values.
Absolutely, it comes with a comprehensive manual that includes theory and detailed operating instructions.
Brand: adtron
Country Of Origin: India
SALIENT FEATURES:
Dedicated trainer board for each bridge.
Completely self - contained stand - alone unit.
Demonstrates the principle and working of AC bridges for measurement of inductance.
Supply required 230V, 50 Hz AC.
Built - in IC based DC regulated power supply with short circuit protection and LED indication for supply “ON”.
Built - in 1KHz oscillator.
Built - in imbalance amplifier.
Head - phone set for sensitive detection.
Built - in variable arms and multiplier.
Multi - coloured test points at various stages in the circuit to observe waveforms and voltages.
Set of patch cords.
Housed in an elegant cabinet with a well spread intelligently designed circuit layout on the front panel.
Strongly supported by a comprehensive manual complete with theory and operating details
