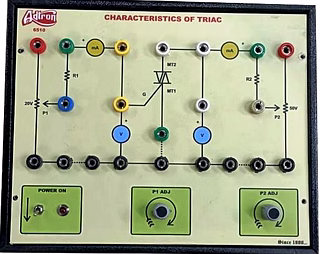

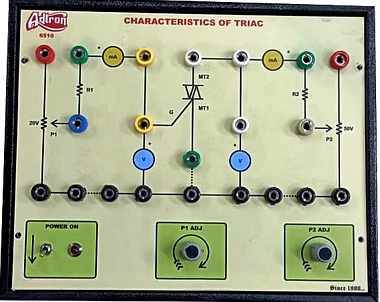

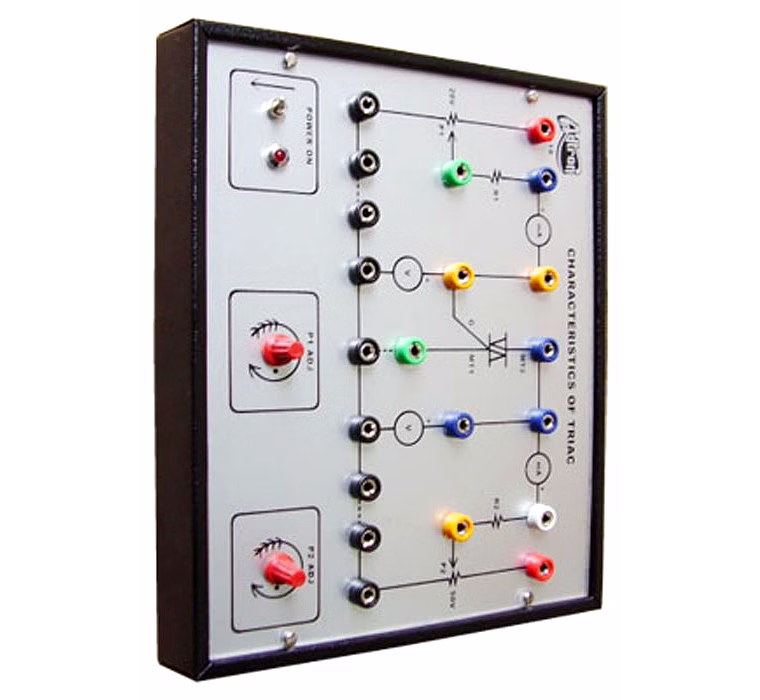

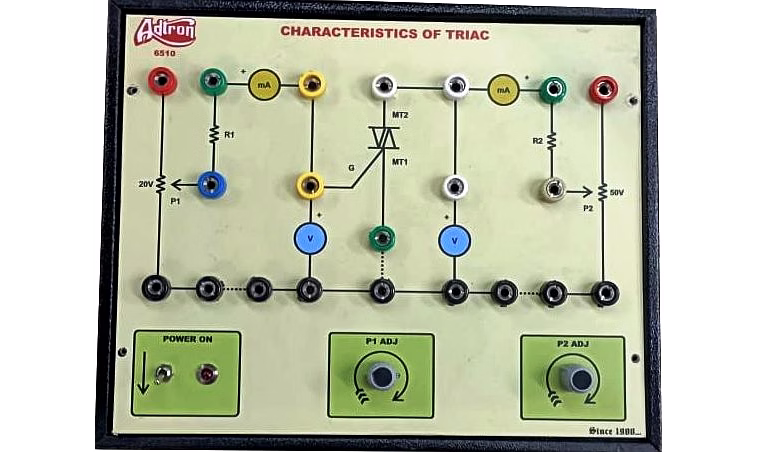

The Triac Trainer is a specialized, self-contained training kit designed specifically for educational and professional purposes in the field of basic electronics. It focuses on studying and demonstrating the bi-directional characteristics of a Triode Alternating Current (Triac) device under varying gate current conditions. With built-in components including a Triac, isolated variable DC power supplies (0-50V and 0-20V), and multi-colored test points, this trainer enables users to analyze forward and reverse breakover voltages, negative resistance regions, and VBO symmetry. The unit comes housed in a rugged, ergonomically designed powder-coated metal cabinet with a neat circuit layout on the front panel. Key features include mains ON/OFF control with LED indication, capability for external meter connections, and a 230V, 50Hz power operation. The kit is accompanied by patch cords and a detailed instruction manual, making it an indispensable tool for teachers and students for in-depth practical learning and demonstration of Triac characteristics.
Key Features
| Features | Description |
|---|---|
| Self-contained Unit | Stand-alone trainer with built-in Triac and necessary components |
| Power Supplies | Two isolated DC unregulated variable supplies: 0-50V and 0-20V |
| Voltage Observation | Multi-colored 4mm test points to observe waveforms and voltages |
| External Meter Compatibility | Provision to connect external voltmeter and ammeter as required |
| Power Operation | Operates on 230V, 50Hz, single-phase AC mains with ON/OFF switch and LED indicator |
| Robust Housing | Ergonomically designed powder-coated metal cabinet with circuit layout on front panel |
| Instruction Manual | Comprehensive manual with theory and operating details included |
| Accessories Included | Five 4mm spring-loaded patch cords provided |
| Attributes | Description |
|---|---|
| Panel Size | 8 inches x 10 inches |
| Forward Breakover Voltage (V_FBO) | Determined experimentally via the kit |
| Reverse Breakover Voltage (V_RBO) | Determined experimentally via the kit |
| Negative Resistance Region | Observable for both +MT2 and -MT2 polarities with gate current variations |
| Delta V (ΔV) | Calculated to analyze VBO symmetry |
| Power Supply Input | 230V AC, 50Hz single phase |
| Test Points | Multi-coloured sturdy 4mm sockets |
| Patch Cords | Five numbers; 4mm-4mm terminated, spring loaded |
| Trainer Type | Triac characteristic trainer for educational use |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
The trainer allows observation of the Triac's voltage and current behavior under controlled gate current conditions using built-in power supplies and test points. This setup helps users to plot and analyze the negative resistance region for both positive and negative MT2 voltages, facilitating a detailed understanding of this critical characteristic.
Yes, the trainer provides provisions to connect external voltmeters and ammeters to supplement the built-in measurement capabilities, enabling precise and versatile data acquisition during experiments.
The trainer comes with two isolated variable DC unregulated power supplies: one from 0 to 50 Volts and the other from 0 to 20 Volts, providing flexibility to study Triac characteristics under different voltage conditions.
Yes, the trainer is designed to study and demonstrate the Triac's behavior during both positive MT2 (+MT2) and negative MT2 (-MT2) voltage applications to observe forward and reverse breakover voltages effectively.
The trainer is equipped with a mains ON/OFF switch accompanied by an LED indicator for supply status, housed in a sturdy powder-coated metal cabinet, and uses spring-loaded patch cords with multi-colored test points to ensure safe and organized operation.
Brand: adtron
Country Of Origin: India
SALIENT FEATURES:
A characteristic of Triac is a versatile and well - designed self - contained trainer kit. It is a useful training tool for the teacher and the students for basic electronics.
OBJECTIVES:
Study, perform, demonstrate and plot the different characteristics of a bi - directional Triode ( Triac ) under different gate current conditions for.
+ MT2.
- MT2.
Determination of ( from graph ) :
Forward break over voltage ( VFBO ).
Reverse break over voltage ( VRBO ).
Negative resistance region, VBO symmetry and Delta V ( ∆V ).
SALIENT FEATURES:
Completely self - contained stand - alone unit.
Built - in Triac and other necessary components.
Built - in two isolated DC un - regulated variable power supplies of :
0 - 50V.
0 - 20V.
Mains ON / OFF switch with LED indicator for supply “ON”.
Multi - coloured sturdy 4mm test points are provided at various stages in the circuit to observe the waveforms, voltages and for necessary inter connections.
Provision for connecting external voltmeter / current meter as per requirement.
Housed in an elegant ergonomically designed powder coated metal cabinet with a well spread intelligently designed circuit layout on the front panel.
Working on 230V, 50Hz, single phase AC mains.
Panel Size : 8“ x 10”
ACCESSORIES:
4mm - 4mm terminated, sturdy, spring loaded patch cords :
Quantity : 05 numbers provided.
Strongly supported by a comprehensive instruction manual complete with theory and operating details :
Quantity : 01 number provided.
