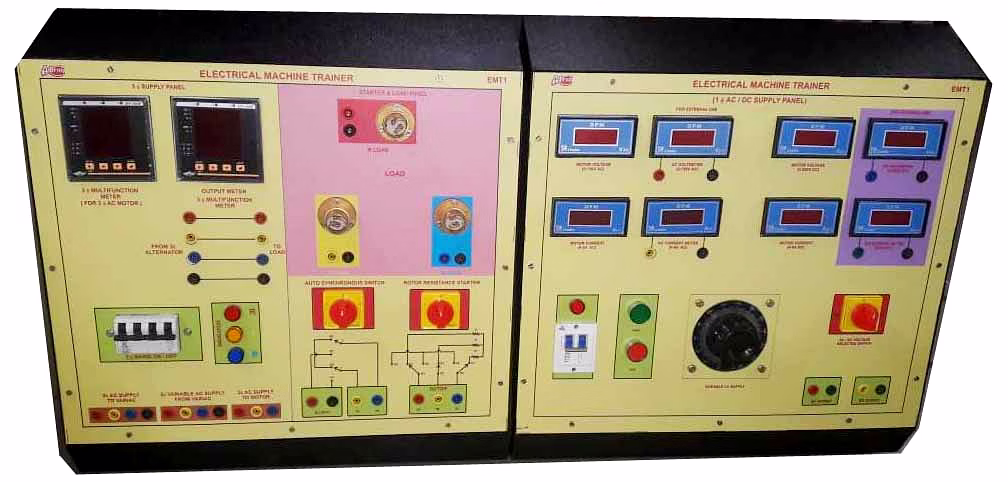

The Electrical Machine Trainer is an advanced, comprehensive educational device designed specifically for demonstrating the construction, operational principles, and tests of various types of D.C. and A.C. machines, including both single-phase and three-phase systems. Mounted on a sturdy, 12-mm thick M.S. or Bakelite base plate with precision-machined components secured to a robust M.S. C channel frame (70x40x6mm), this trainer ensures durability and stability during practical sessions. The split-type aluminium-cast bearing housings enhance operational smoothness and reliability. This versatile trainer incorporates six essential electrical machines along with a dedicated control panel, enabling the execution of a wide array of experiments crucial for technical education and industrial training. Machines included are a D.C. machine, three-phase squirrel cage induction motor, single-phase capacitor start motor, three-phase slipring induction motor, three-phase alternator, and a three-phase rotary convertor and inverter. Trainees and professionals can perform multiple experiments such as operating various D.C. motors (series, shunt, compound), D.C. generators (series, shunt, compound, separately excited), and A.C. motors including series and single-phase repulsion motors. This product is ideal for technical institutes, universities, electrical training centers, and industries seeking practical understanding and skill development in electrical machine operations.
Key Features
| Features | Description |
|---|---|
| Product Type | Electrical Machine Trainer |
| Base Plate Material | 12 mm thick M.S. / Bakelite |
| Base Frame Material & Size | M.S. C channel, 70X40X6mm |
| Bearing Housing | Split type, aluminum casting |
| Number of Machines Included | 6 Machines with Control Panel |
| Machines Included | D.C. Machine, 3-Phase Squirrel Cage Induction Motor, Single Phase Capacitor Start Motor, 3-Phase Slipring Induction Motor, 3-Phase Alternator, 3-Phase Rotary Convertor and Inverter |
| Supported Experiments | D.C. Series Motor, D.C. Shunt Motor, D.C. Compound Motor, D.C. Series Generator, D.C. Shunt Generator, D.C. Compound Generator, Separately Excited D.C. Generator, A.C. Series Motor, Single Phase A.C. Repulsion Motor |
| Application Sector | Technical Institutes, Electrical Laboratories, Industrial Training Centers |
| Attributes | Description |
|---|---|
| Trainer Base Plate Thickness | 12 mm |
| Base Plate Material | Mild Steel or Bakelite |
| Base Frame Dimensions | 70 x 40 x 6 mm M.S. C Channel |
| Bearing Housing Material | Aluminium Casting, Split Type |
| Machine Type 1 | D.C. Machine |
| Machine Type 2 | 3-Phase Squirrel Cage Induction Motor |
| Machine Type 3 | Single Phase Capacitor Start Motor |
| Machine Type 4 | 3-Phase Slipring Induction Motor |
| Machine Type 5 | 3-Phase Alternator |
| Machine Type 6 | 3-Phase Rotary Convertor and Inverter |
| Supported Experiments | 9 Electrical Machine Experiments including D.C. Motor and Generator tests, A.C. Motor demonstrations |
| Control Panel | Included for ease of operation and experiment management |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
Yes, the Electrical Machine Trainer includes machines that cover single-phase capacitor start motors as well as three-phase squirrel cage induction motors, slipring induction motors, and alternators, facilitating experiments on both single-phase and three-phase electrical machines.
Absolutely, the trainer supports various experiments on D.C. machines including D.C. series, shunt, compound motors and generators, as well as separately excited D.C. generators.
The base plate is made from a 12 mm thick machined M.S. or Bakelite plate mounted on a sturdy M.S. C channel frame, while the bearing housings are split type and made from aluminium casting to provide durability and smooth operation.
Yes, the trainer includes a dedicated control panel facilitating the operation and management of the multiple machines and experiments with ease and safety.
Yes, the Electrical Machine Trainer comprises a 3-phase rotary convertor and inverter unit which allows demonstration and practice of conversion between AC and DC power sources.
Brand: adtron
Country Of Origin: India
TECHNICAL SPECIFICATIONS:

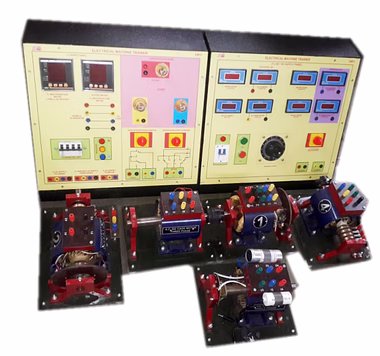

Suitable for demonstrating the construction and functioning of different type of D.C.machines and A.C. machines (1 phase and 3 phase). The trainer should be made of well machined M.S. / Bakelite 12 mm thick base plate. The plate should be fitted on M.S C channel of 70X40X6mm. The bearing housing should be spilt type and prepared from aluminum casting. Trainer should include Following 6 Machines & Control Panel.
1) MACHINE NO.1

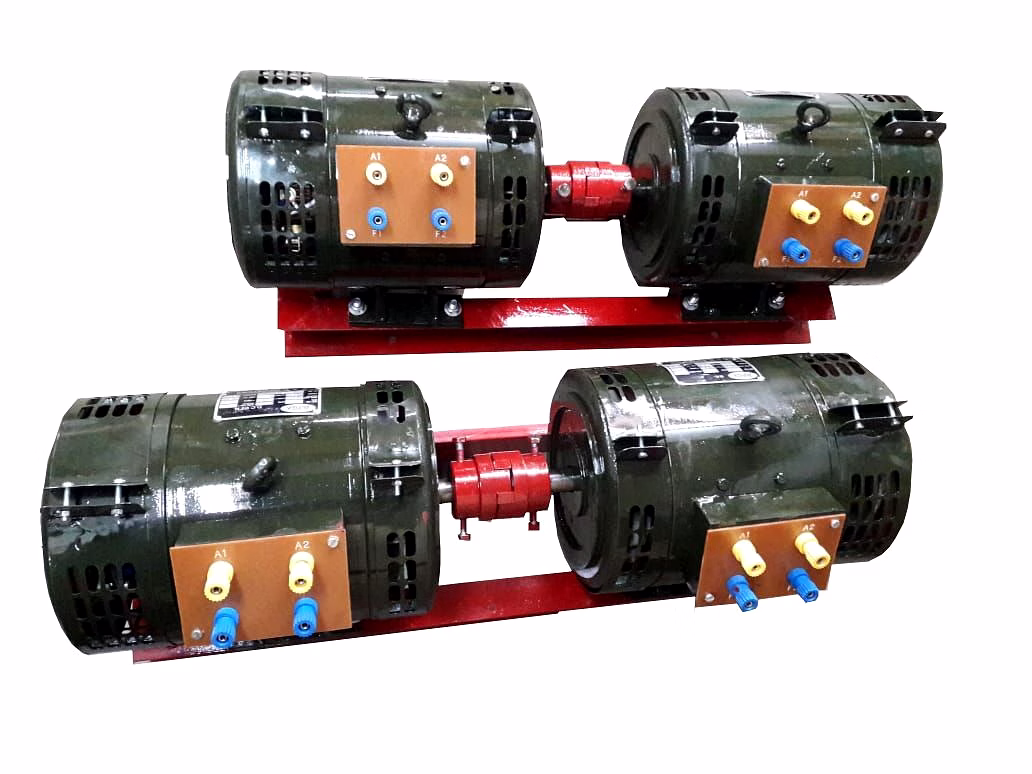

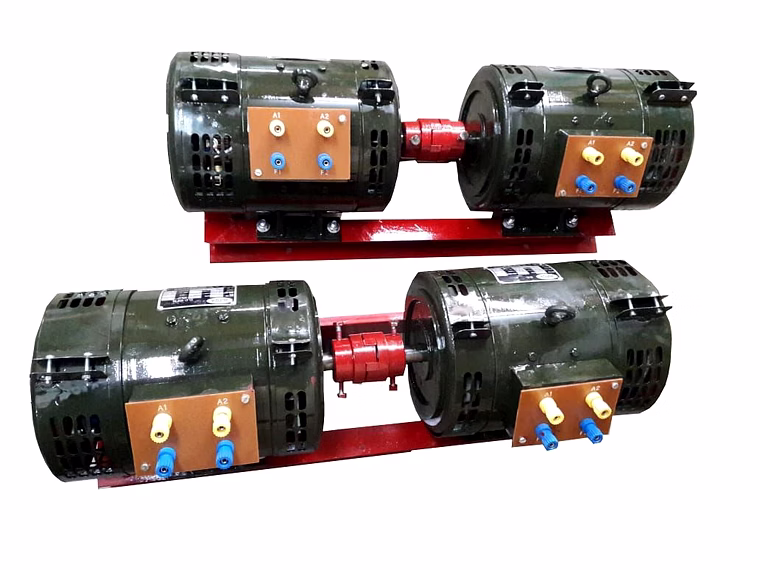

D.C.MACHINE
2) MACHINE NO.2
3 PHASE SQUIRREL CAGE INDUCTION MOTOR
3) MACHINE NO.3
A.C. SINGLE PHASE CAPACITOR START MOTOR
4) MACHINE NO. 4
3 PHASE SLIPRING INDUCTION MOTOR
5) MACHINE NO. 5
3 PHASE ALTERNATOR
6) MACHINE NO. 6
3 PHASE ROTARY CONVERTOR AND INVERTOR
* Following Experiments can be performed on the Electrical Machine Trainer
1. D.C. series motor
2. D.C. shunt motor
3. D.C. compound motor
4. D.C. series generator
5. D.C. shunt generator
6. D. C. compound generator
7. Separately excited DC generator
8. AC series motor
9. Single phase AC repulsion motor
