Dynemech Precision Levelling Mounts Series VHS-LA-V

Name: Dynemech Precision Levelling Mounts Series VHS-LA-V
Brand: dynemech
SKU: 8422189
Price: 217.76 USD
Availability: InStock

Sold by dynemech systems private limited · Manufacturer · Sonipat, Haryana, India

Price

₹ 217.76 /Centimetre

In stock

Inclusive of all taxes

Minimum order: 4 Centimetre

MOQ: 4 Centimetre

Export Snapshot

MOQ

4 Centimetre

Lead time

On request

Packaging

Standard export packaging

Shelf life / longevity

As per product specification

HSN Code

8487900

Origin

India

Port of dispatch

On request

Export markets served

GB +5 others

Values shown are for dynemech systems private limited.

IEC CERTIFICATE

Suitable for

Importers · Distributors · Wholesalers

Sonipat Dispatch on request Verified seller

dynemech systems private limited

Manufacturer · Sonipat, Haryana, India

Registered address: Sonipat, India.

View profile All products

Established

Not shared

Employees

–

GST

06AABCD4754E1ZX

IEC code

Not shared

Export markets

GB +5 others

GlobalLinker Member Since

Not shared

Turnover

$1 MM - $2 MM

Incorporation Type

On request

Certifications & Awards

IEC CERTIFICATE IEC CODE IMTMA Membership ISO MSMEMART Membership Dynemech Brand TRADEMARK

Product details

What are the specifications of this product?

Overview

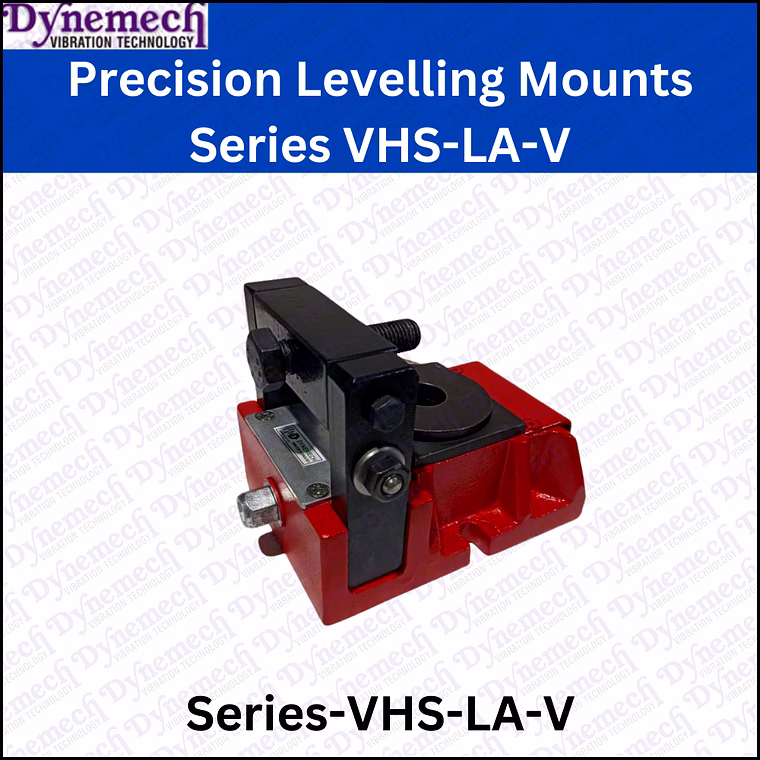

Dynemech Precision Levelling Mounts Series VHS-LA-V series mounts provides precision levelling to the machine. The levelling is possible even after grouting the outer body of this mount. A slight horizontal alignment of long bedded machines is possible using this mount. Length:170(mm) To 350(mm) Width:108(mm) To 230(mm) Height:60(mm) To 138(mm) Recommended Load Capacity: 1000 Kg/pc To 12000 Kg/pc Max. Load(Kg/pc):9000 Kg/pc To 70000 Kg/pc L1(mm):91 To 180 D(mm):75 To145 (mm) h(mm):5 To 104 Nos Weight ( Kg.): 216 kg Material: Cast Iron & Sheet Metal Colour: Red/Dark Grey 4 Nos Box Size: 13"x8"x7 4 Nos of Boxes: 4 Freight Will Be Extra *****

Product Description

Length:170(mm) To 350(mm) Width:108(mm) To 230(mm) Height:60(mm) To 138(mm)

Recommended Load Capacity: 1000 Kg/pc To 12000 Kg/pc Max. Load(Kg/pc):9000 Kg/pc To 70000 Kg/pc

L1(mm):91 To 180

D(mm):75 To145 (mm)

h(mm):5 To 10

f(mm): 17 To 37

G(M12 To M36

a(mm):12 To 35

SW1: 19 To 40

SW2:10 To 21

e1:12.7 To 28

e2:26 To 46

4 Nos Weight ( Kg.): 216 kg

Material: Cast Iron & Sheet Metal

Colour: Red/Dark Grey

4 Nos Box Size: 13"x8"x7

4 Nos of Boxes: 4

Delivery Time: 15 To 20 Days

Price-17,464

Freight Will Be Extra

*****

Description provided by dynemech systems private limited.

Specifications

Length (L1)	91 mm to 180 mm
Diameter (D)	75 mm to 145 mm
Height (h)	5 mm to 104 mm
Depth (f)	17 mm to 37 mm
Thread Size (G)	M12 to M36
Swivel Width 1 (SW1)	19 mm to 40 mm
Swivel Width 2 (SW2)	10 mm to 21 mm
e1 dimension	12.7 mm to 28 mm
e2 dimension	26 mm to 46 mm

Use cases

Category	machinery and tools > machinery accessories
Primary application	Wholesale, distribution, and international sourcing
Brand	dynemech
Product type	Product

Logistics & handling

Lead time	On request
Packaging	As per buyer requirement
Storage condition	As recommended by supplier
Origin	India
Form	As listed by supplier

Commercials (this seller)

Minimum order	4 Centimetre
Lead time	On request
Payment terms	As per negotiated commercial agreement.

Buyer questions

Frequently asked by buyers

Common questions B2B buyers ask before sourcing Dynemech Precision Levelling Mounts Series VHS-LA-V. Answers compiled from verified sellers' commercial terms and platform data.

Q: What is the maximum load capacity of the Dynemech Precision Levelling Mounts Series VHS-LA-V?

A: The maximum load capacity of these mounts ranges from 9000 kg to 70000 kg per piece.

Q: Are these mounts suitable for machines with long beds?

A: Yes, the mounts allow for a slight horizontal alignment of long bedded machines.

Q: What materials are the Dynemech mounts made from?

A: The mounts are constructed from durable cast iron and sheet metal.

Q: What is the delivery time for the Dynemech Precision Levelling Mounts?

A: The estimated delivery time is between 15 to 20 days.

Q: What color options are available for the mounts?

A: The mounts are available in two color options: red and dark grey.
