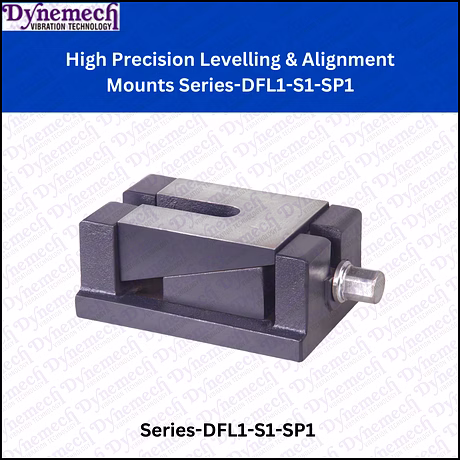

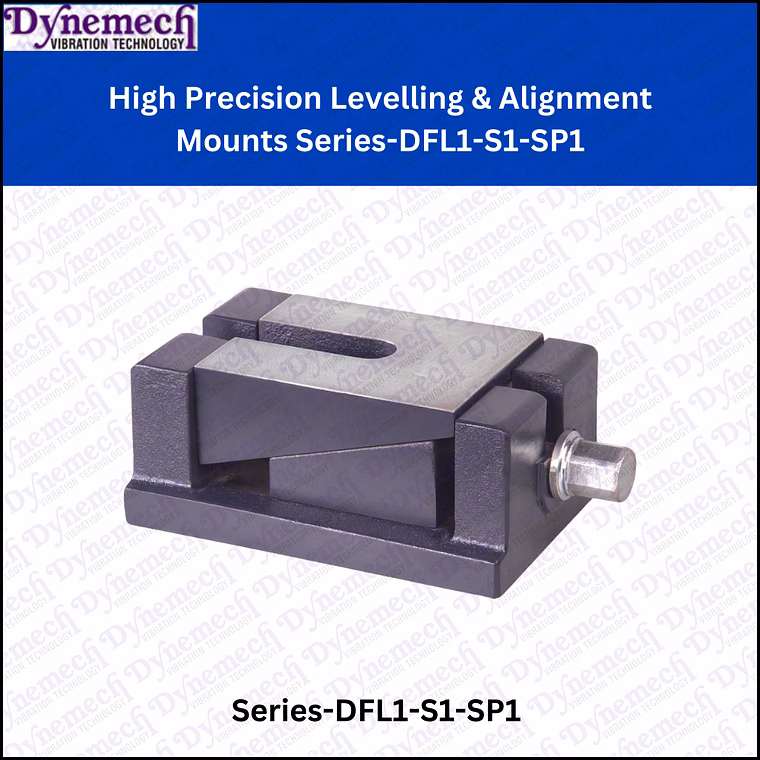

The Dynemech High Precision Levelling & Alignment Blocks, Series DFL1-S1-SP1, are engineered for optimal stability and precision in heavy machinery installation. Crafted from high-grade cast iron, these mounts offer a large supporting surface area and an adjustable levelling range of 13mm to accommodate fine alignment requirements. Designed specifically to facilitate placement even after grouting bolts have been secured in foundations, these blocks feature a central slot that ensures quick and accurate installation, minimizing downtime. Ideal for use with Vertical Turning Lathes (VTLs), long-bedded CNC machines, large boring machines, and plano millers, the DFL series can withstand a significant load capacity of 8000 Kg per piece and is built to endure a maximum torque of 554mm. With a compact size of 207x142x86mm and a working temperature range from -20°C to 70°C, these levelling blocks maintain functionality in various industrial environments. The product comes in a robust green and grey finish, ensuring durability and resistance to wear. Each package contains four blocks weighing a total of 55 Kgs, packed in two boxes measuring 13"x8"x7" each. These features make the Dynemech DFL1-S1-SP1 series a reliable choice for precision levelling and alignment applications in demanding industrial setups.
Key Features
| Features | Description |
|---|---|
| Material | High-grade cast iron |
| Load Capacity per Piece | 8000 Kg |
| Dimensions (LxWxH) | 207 x 142 x 86 mm |
| Adjustment Range | 13 mm |
| Max Torque | 554 mm |
| Working Temperature Range | -20°C to 70°C |
| Color | Green and Grey |
| Weight of 4 Units | 55 Kgs |
| Packaging | 2 Boxes, each 13" x 8" x 7" |
| Special Feature | Central slot for installation after grouting bolts secured |
| Attributes | Description |
|---|---|
| Series | DFL1-S1-SP1 |
| Product Type | High Precision Levelling & Alignment Blocks |
| Suitable For | VTL, Long Bedded CNC Machines, Large Boring Machines, Plano Millers |
| Body Construction | High-grade casting |
| Surface Support | Large supporting surface for load distribution |
| Installation Method | Slot allows placement post grouting bolt fixing |
| Box Dimensions | 13" x 8" x 7" |
| Quantity in Package | 4 Units |
| Weight per Package | 55 Kg |
| Manufacturer URL | https://vibrationmountsindia.com/ |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
The central slot allows for the placement of the levelling blocks even after the grouting bolts have been fixed into the foundation, enabling easier and faster installation without the need to disturb the foundation setup.
These blocks are ideal for Vertical Turning Lathes (VTLs), long bedded CNC machines, large boring machines, and plano millers, where high precision levelling and strong load support are critical.
Yes, the DFL1-S1-SP1 blocks are designed to operate efficiently within a working temperature range from -20°C up to 70°C, making them suitable for various industrial climate conditions.
Each block can support up to 8000 Kg safely, ensuring stable and accurate support for heavy machinery during operation.
Constructed from high-grade cast iron, these blocks offer high resistance to wear, deformation, and environmental factors, ensuring long-lasting durability and consistent performance.
Brand: dynemech
Country Of Origin: India
The DFL series mounts are made from a high grade casting body. Large supporting surface and high levelling adjustment is available. The slot in the middle allows placement of these mounts after the grounting bolts are fixed in the foundation. Suitable for VTL, long bedded CNC machines, large boring machines, plano miller etc.
Size :207x142x86mm
Load Capacity (Kg.):8000 Kg/pc
Max.Torque Value (mm):554
Adjustment Range(mm):13
Working Temp Range °C:-From -20 to 70
Material:Cust Iron Box Dimention: 13"X8"X7" Weight Of 04 Nos: 55 Kgs Number Of Box:02
Colour:Green, Grey,
The DFL series mounts are made from a high grade casting body. Large supporting surface and high levelling adjustment is available. The slot in the middle allows placement of these mounts after the grounting bolts are fixed in the foundation. Suitable for VTL, long bedded CNC machines, large boring machines, plano miller etc.
Size :207x142x86mm
Load Capacity (Kg.):8000 Kg/pc
Max.Torque Value (mm):554
Adjustment Range(mm):13
Working Temp Range °C:-From -20 to 70
Material:Cust Iron Box Dimention: 13"X8"X7" Weight Of 04 Nos: 55 Kgs Number Of Box:02
Colour:Green, Grey,
