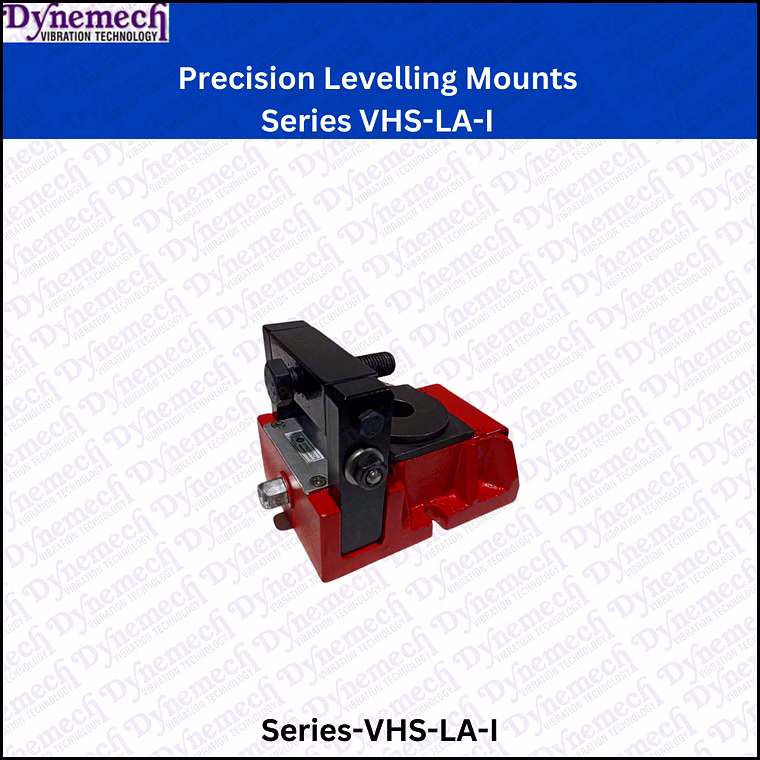

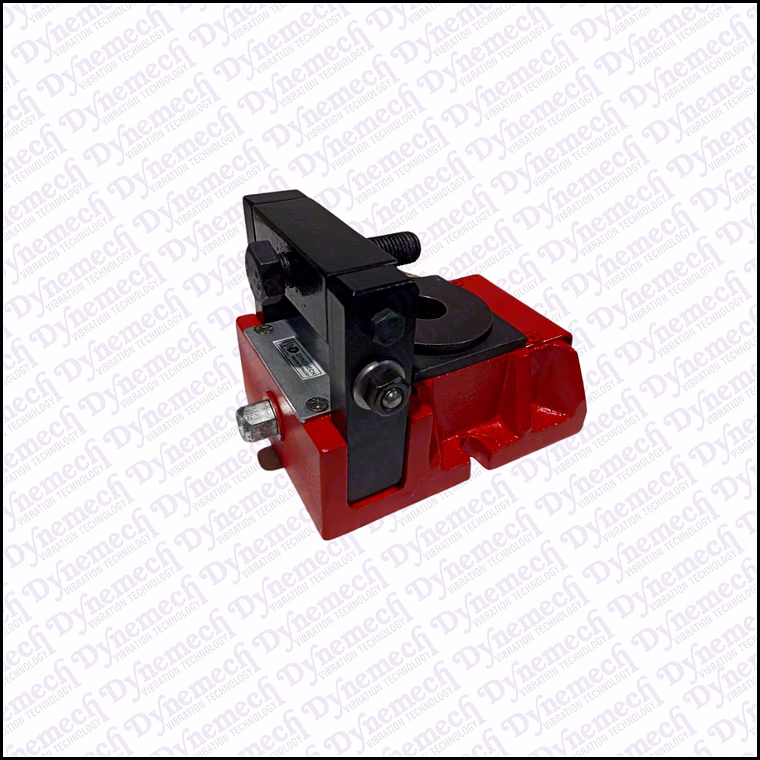

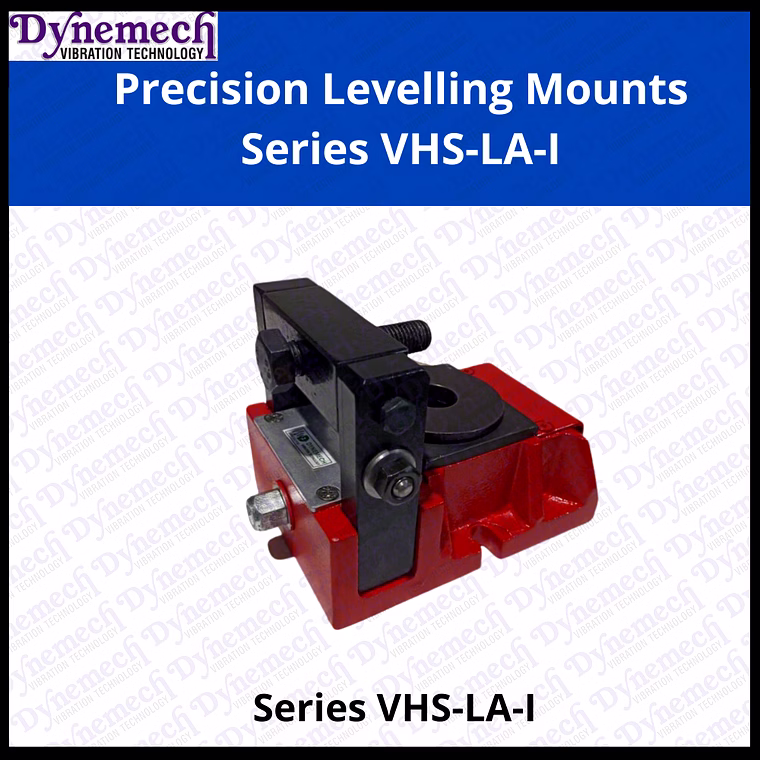

The Dynemech Precision Levelling Mounts Series VHS-LA-I stand out for their exceptional precision and load-bearing capabilities, tailored specifically for enabling the optimal alignment of machinery in various industrial settings. Designed to provide both stability and flexibility, these mounts support precision levelling even after the outer body has been grouted. With the VHS-LA-I, slight horizontal adjustments can be made to long-bedded machines, enhancing operational accuracy. Measuring between 170mm to 350mm in length and available in widths from 108mm to 230mm, these mounts accommodate various machinery setups. The recommended load capacity ranges from 1000 Kg to 12000 Kg per piece, with a maximum load capacity extending from 9000 Kg to 70000 Kg per piece. Made from durable cast iron and sheet metal, the VHS-LA-I mounts are available in attractive red and dark grey finishes, blending functionality with aesthetics. Whether for heavy machinery or intricate equipment, Dynemech's precision levelling mounts deliver outstanding performance, making them an indispensable addition to your industrial setup. Ideal for businesses looking for durable, adjustable, and high-load capacity levelling solutions, the Dynemech Precision Levelling Mounts promise reliability and precision.
Key Features
| Features | Description |
|---|---|
| Precision Levelling | Allows for precise machine alignment even after grouting. |
| Adjustable Size | Length from 170mm to 350mm, Width from 108mm to 230mm, and Height from 60mm to 138mm. |
| Superior Load Capacity | Recommended load capacity between 1000 Kg to 12000 Kg with max load capacity from 9000 Kg to 70000 Kg. |
| Durable Materials | Constructed from cast iron and sheet metal for longevity and stability. |
| Versatile Color Options | Available in red and dark grey. |
| Horizontal Alignment Capability | Enables slight horizontal adjustments for long bedded machines. |
| Weight | Each mount weighs approximately 20 Kg. |
| Delivery Time | Estimated delivery within 10 to 12 days. |
| Package Size | 4 Nos Box Size: 13" x 8" x 7". |
| Cost | Each unit priced at 4300. |
| Attributes | Description |
|---|---|
| Length Range (mm) | 170 - 350 |
| Width Range (mm) | 108 - 230 |
| Height Range (mm) | 60 - 138 |
| Recommended Load Capacity (Kg) | 1000 - 12000 |
| Max Load Capacity (Kg) | 9000 - 70000 |
| L1 (mm) | 91 - 180 |
| D (mm) | 75 - 145 |
| h (mm) | 5 - 10 |
| f (mm) | 17 - 37 |
| G (M12 To M36) | M12 - M36 |
| a (mm) | 12 - 35 |
| SW1 | 19 - 40 |
| SW2 | 10 - 21 |
| e1 (mm) | 12.7 - 28 |
| e2 (mm) | 26 - 46 |
| Weight (Kg) | 20 |
| Material | Cast Iron & Sheet Metal |
| Color | Red/Dark Grey |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
The recommended load capacity ranges from 1000 Kg to 12000 Kg per piece.
Yes, the VHS-LA-I series mounts allow for slight horizontal alignment adjustments for long bedded machines.
The mounts are constructed from durable cast iron and sheet metal, ensuring longevity and stability.
Dynemech offers the VHS-LA-I mounts in red and dark grey.
The dimensions range in length from 170 mm to 350 mm, width from 108 mm to 230 mm, and height from 60 mm to 138 mm.
The estimated delivery time for the VHS-LA-I mounts is between 10 to 12 days.
Brand: dynemech
Country Of Origin: India
Dynemech Precision Levelling Mounts Series VHS-LA-I series mounts provides precision levelling to the machine. The levelling is possible even after grouting the outer body of this mount. A slight horizontal alignment of long bedded machines is possible using this mount.
Length:170(mm) To 350(mm) Width:108(mm) To 230(mm) Height:60(mm) To 138(mm) Recommended Load Capacity: 1000 Kg/pc To 12000 Kg/pc Max. Load(Kg/pc):9000 Kg/pc To 70000 Kg/pc L1(mm):91 To 180 D(mm):75 To145 (mm) h(mm):5 To 10 f(mm): 17 To 37 G(M12 To M36 a(mm):12 To 35 SW1: 19 To 40 SW2:10 To 21 e1:12.7 To 28 e2:26 To 46
4 Nos Weight ( Kg.): 20 kg
Material: Cast Iron & Sheet Metal
Colour: Red/Dark Grey
Amount-5,074
Freight Will Be Extra
Dynemech Precision Levelling Mounts Series VHS-LA-I series mounts provides precision levelling to the machine. The levelling is possible even after grouting the outer body of this mount. A slight horizontal alignment of long bedded machines is possible using this mount.
Length:170(mm) To 350(mm) Width:108(mm) To 230(mm) Height:60(mm) To 138(mm) Recommended Load Capacity: 1000 Kg/pc To 12000 Kg/pc Max. Load(Kg/pc):9000 Kg/pc To 70000 Kg/pc L1(mm):91 To 180 D(mm):75 To145 (mm) h(mm):5 To 10 f(mm): 17 To 37 G(M12 To M36 a(mm):12 To 35 SW1: 19 To 40 SW2:10 To 21 e1:12.7 To 28 e2:26 To 46
4 Nos Weight ( Kg.): 20 kg
Material: Cast Iron & Sheet Metal
Colour: Red/Dark Grey
4 Nos Box Size: 13"x8"x7 4
Nos of Boxes: 1
Delivery Time: 10 To 12 Days
Price-5,074/-
Freight Will Be Extra
