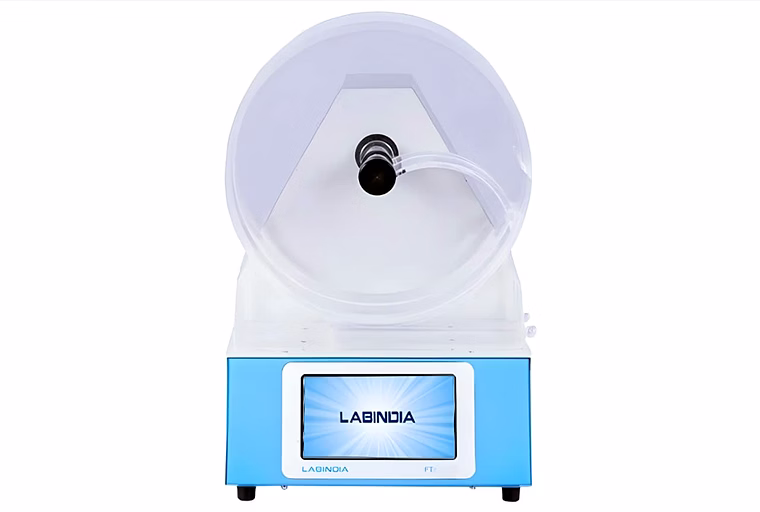

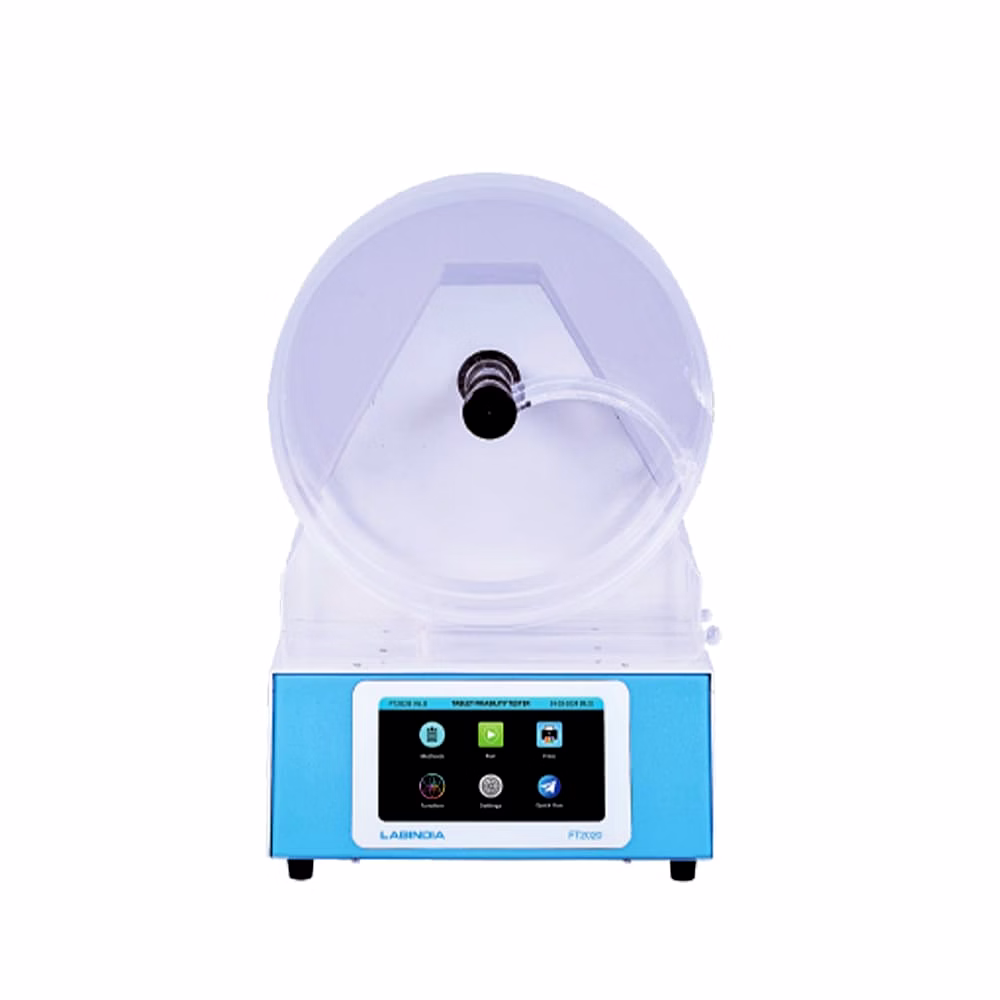

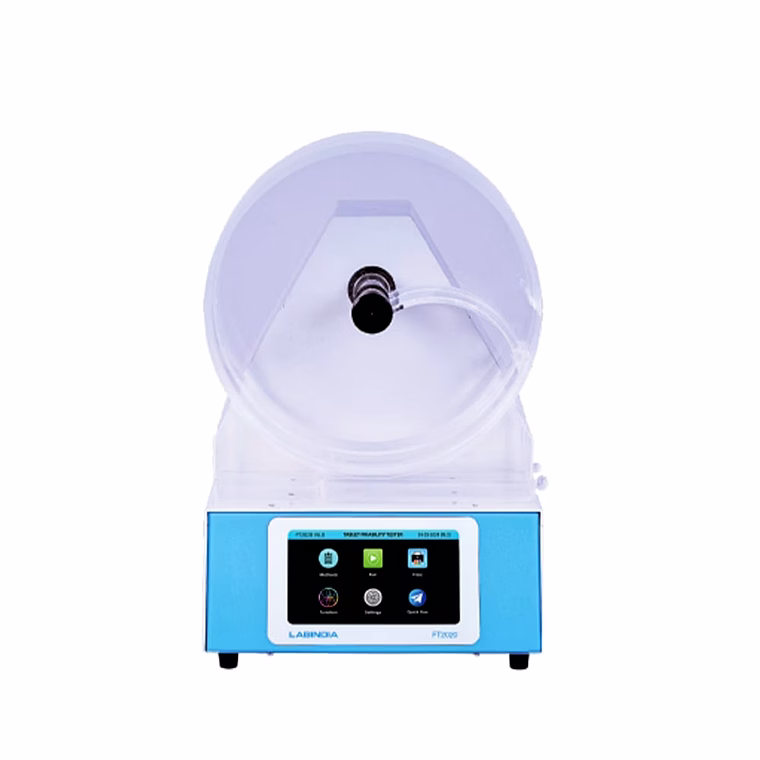

The Tablet Friability Tester is a precision instrument specifically engineered to assess the durability and robustness of tablets by measuring their friability according to USP, IP, and other pharmacopoeial standards. Featuring a 7-inch high-resolution capacitive color touch screen display with interactive software, it provides an intuitive and user-friendly interface for laboratory professionals. This state-of-the-art tester includes dual drum support – Roche type for standard friability testing and optional abrasion drums – with a 10° tilting mechanism recommended for odd-shaped tablets, ensuring compliance and thorough testing. Its automatic sample discharge into individual trays after completion of each run enhances operational efficiency, while the front-loading system simplifies sample handling. The equipment supports both count and time modes, allowing programmable settings from 0 to 9999 counts or up to 99:59 minutes, offering great flexibility in testing parameters. Integration with precision balances like Sartorius or Mettler via RS232C interface allows auto transfer of sample weight, enabling accurate calculation of percentage weight loss, the standard measure of tablet friability. Additional features include multi-level user management with customizable privileges, an auto-start functionality to resume tests post power interruption, and extensive data management capabilities through an onboard SD card and PC-based EDC 21 software for convenient data downloading. Constructed for durability and precision, it operates within ambient temperature ranges up to 45°C and humidity levels between 20% and 80%. Compact and robust with dimensions of 310 x 320 x 490 mm and weighing 12 kg, this tester is ideal for indoor pharmaceutical quality control laboratories requiring accurate, repeatable, and regulatory-compliant friability testing of tablets.
Key Features
| Features | Description |
|---|---|
| Display | 7-inch capacitive high-resolution color touch screen with user interactive software |
| Compliance | Meets USP, IP, and other pharmacopoeia specifications |
| Testing Modes | Programmable count mode (0-9999) and time mode (up to 99:59 HH:MM) |
| Drum Type & Tilting | Supports Roche and optional abrasion drums with 10° tilting for odd-shaped tablets |
| Sample Discharge | Automatic discharge into individual sample trays post run completion |
| Balance Interface | RS232C connectivity for Sartorius/Mettler balance for auto weight transfer |
| User Management | Multilevel users with editable privileges (1 admin, 50 users) |
| Data Management | Non-volatile memory storing 100 test methods; built-in SD card and PC connectivity via EDC 21 software |
| Auto-Start Facility | Resumes test automatically after power failure |
| Operation Environment | Indoor use; ambient temp up to 45°C and humidity 20%-80% |
| Attributes | Description |
|---|---|
| Display Size | 7 inches capacitive touch screen, color |
| Speed Range | 20 to 70 RPM with ±1 rotation accuracy |
| Drums | 2 drums: Roche type or optional abrasion type (acrylic as per USP) |
| Memory | 100 programmable test methods in non-volatile memory |
| User Capacity | 1 admin, 50 users with multiple right selections |

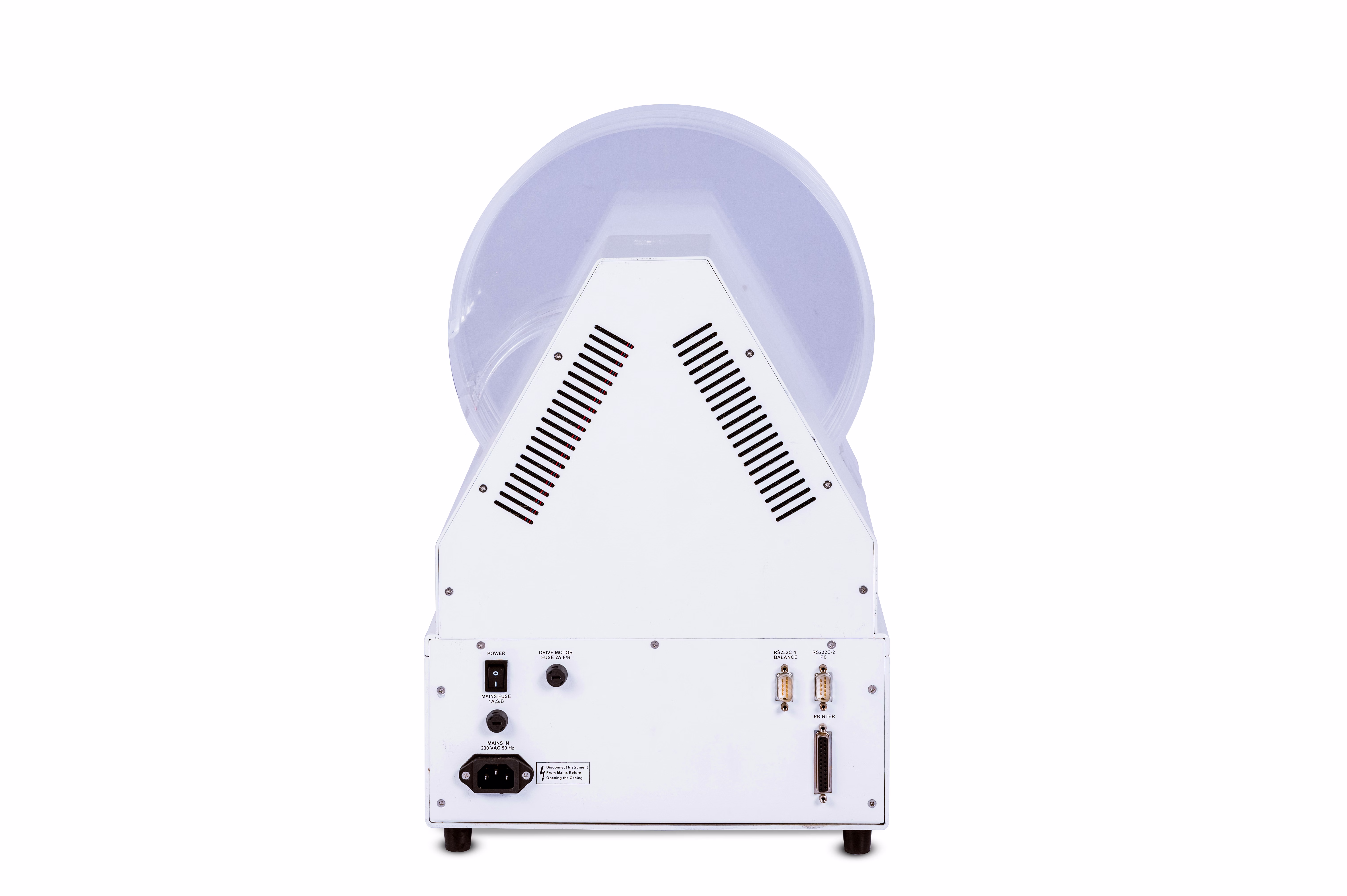

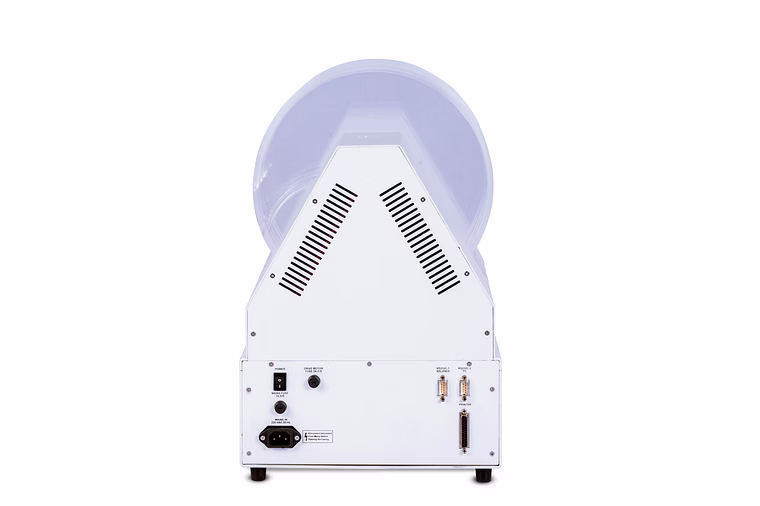

| Connectivity Ports | Centronics parallel port for printers; RS232C-1 for balance; RS232C-2 for PC data download |
| Power Supply | 110/230 VAC, 50Hz/60Hz, 35W |
| Operating Environment | Indoor, Ambient temperature up to 45°C, Humidity 20%-80%, Altitude up to 2000m |
| Physical Dimensions | 310 x 320 x 490 mm (W x D x H) |
| Weight | 12 kg |
| Test Modes | Count or Time selectable |
| Count Range | 0 to 9999 cycles |
| Time Range | Up to 99:59 (HH:MM) |
| Display Format | 99:59:59 (HH:MM:SS) |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
Yes, the tester features a 10° tilting drum mechanism as recommended by USP specifically to accommodate and accurately test odd-shaped tablets.
Yes, it supports RS232C interface for connecting with Sartorius or Mettler balances, enabling automatic transfer of sample weights for precise friability calculations.
The tester includes PC-compatible EDC 21 software facilitating comprehensive data downloading and report management from the built-in SD card.
It comes with an auto-start feature that allows the test to resume from the point of interruption automatically when power is restored.
The device offers selectable count or time modes allowing users to program test durations from 0 to 9999 cycles or set time intervals up to 99 minutes and 59 seconds.
The system supports multilevel user management with one admin and up to 50 users, each having customizable access privileges.
Yes, it is designed for indoor use supporting ambient temperatures up to 45°C and humidity ranges from 20% to 80%, and can operate up to altitudes of 2000 meters.
Country Of Origin: India
Key Features:
• 7” Color High resolution display with touch screen interface & user interactive software.
• Designed to meet specifications of USP, IP and other Pharmacopoeias.
• Practically unlimited test reports with Date and time stamp.
• Offers a count and time mode.
• Automatic discharge of the sample into individual sample tray after completion of each run.
• 10° tilting of drums as per USP recommendation for odd shaped tablets.
• Easy front-loading system.
• Supports friability drum and abrasion drum.
• Calculation of friability - percentage weight-loss.
• Balance interface for sample auto weight transfer.
• Auto-start facility to continue the run in the case of power failure.
• Multilevel user management with editable privileges.
• Data downloading facility with PC based EDC 21 software.
Specifications:
• 7’’ capacitive touch screen color display
• 20-70 RPM
• Actual setting ± 1 rotation
• 2 Drums, Roche type or Abrasion type (optional)
• Acrylic as per USP
• 1 admin ,50 users with multiple right selection
• 100 test method non-volatile memory storage
• Built-In SD card
• Centronics parallel port for Dot matrix / Desk jet /Serial Printer
• RS232C-1 Balance connectivity (Sartorius /Mettler)
• RS232C-2PC Connectivity for data download
• 110/230 VAC /,50Hz/60Hz, 35W
• Operation Indoor
• Temperature Ambient to 45°C
• Humidity 20% to 80%
• Altitude: up to 2000m.
• 310 X 320 X 490 mm. (W X D X H)
• 12 Kg
• Count or Time, user selectable
• 1Programmable Count 0 to 9999
• Or Programmable Time up to 99:59 (HH:MM)
• Display Format 99:59:59
