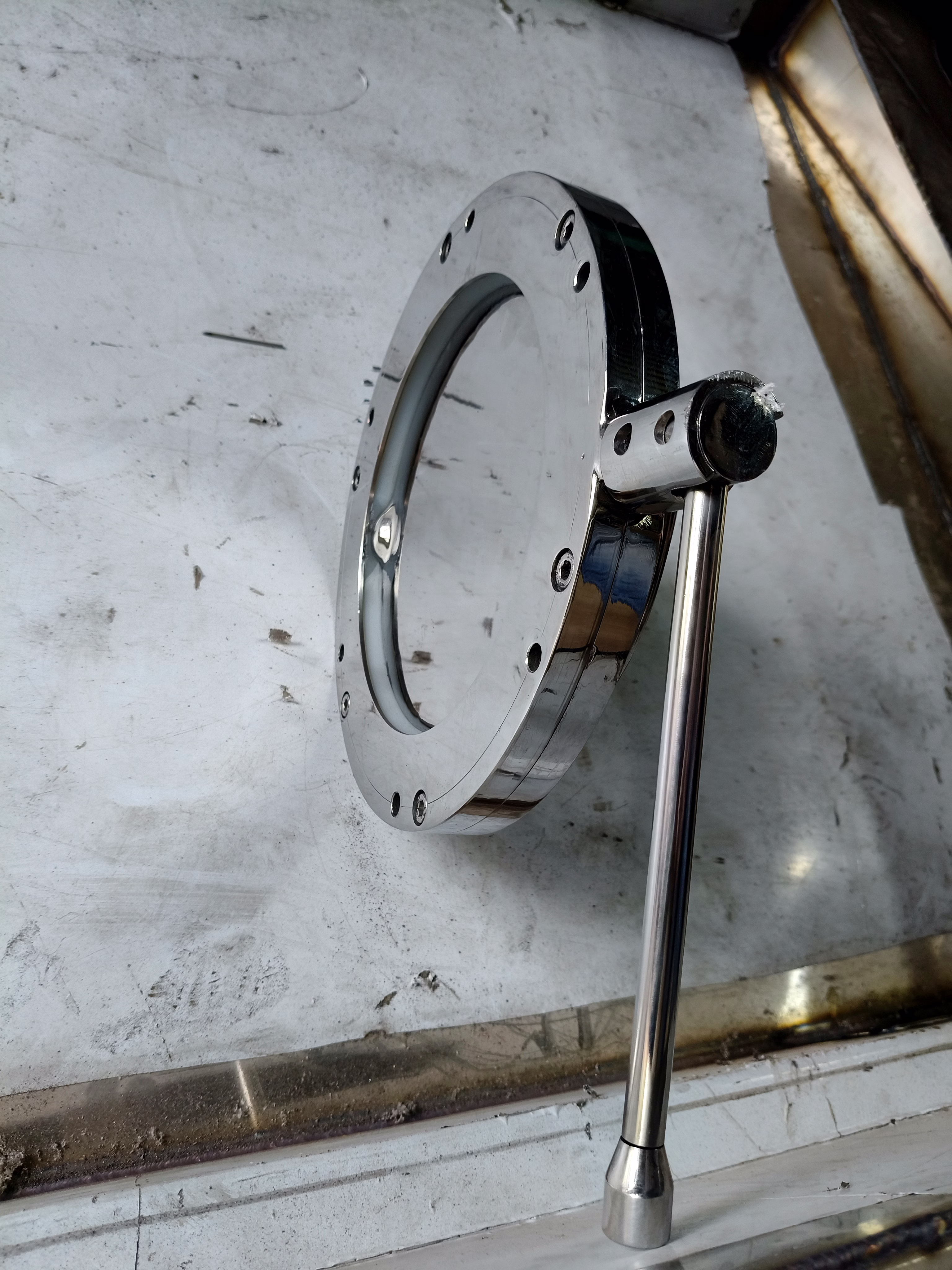

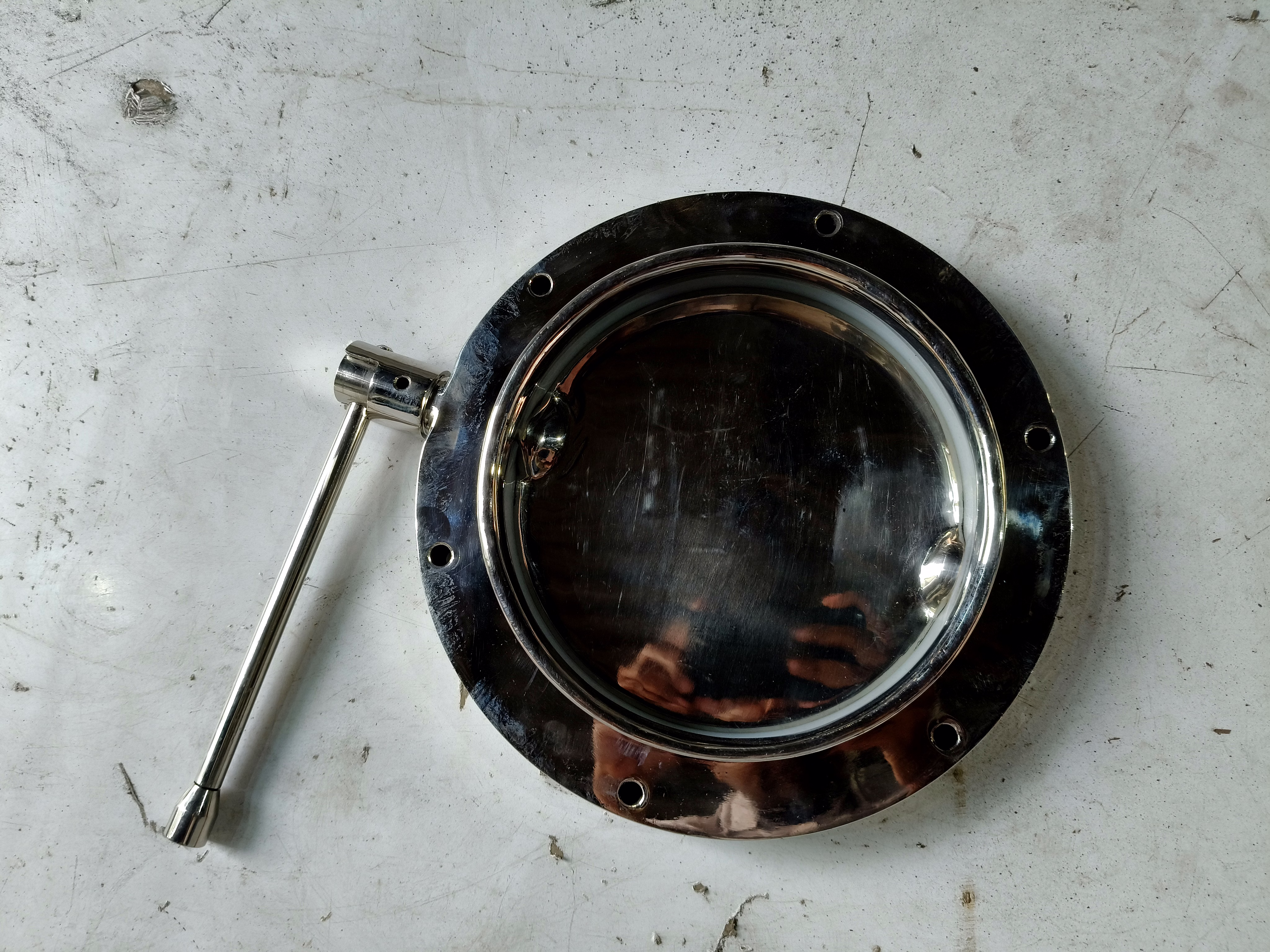

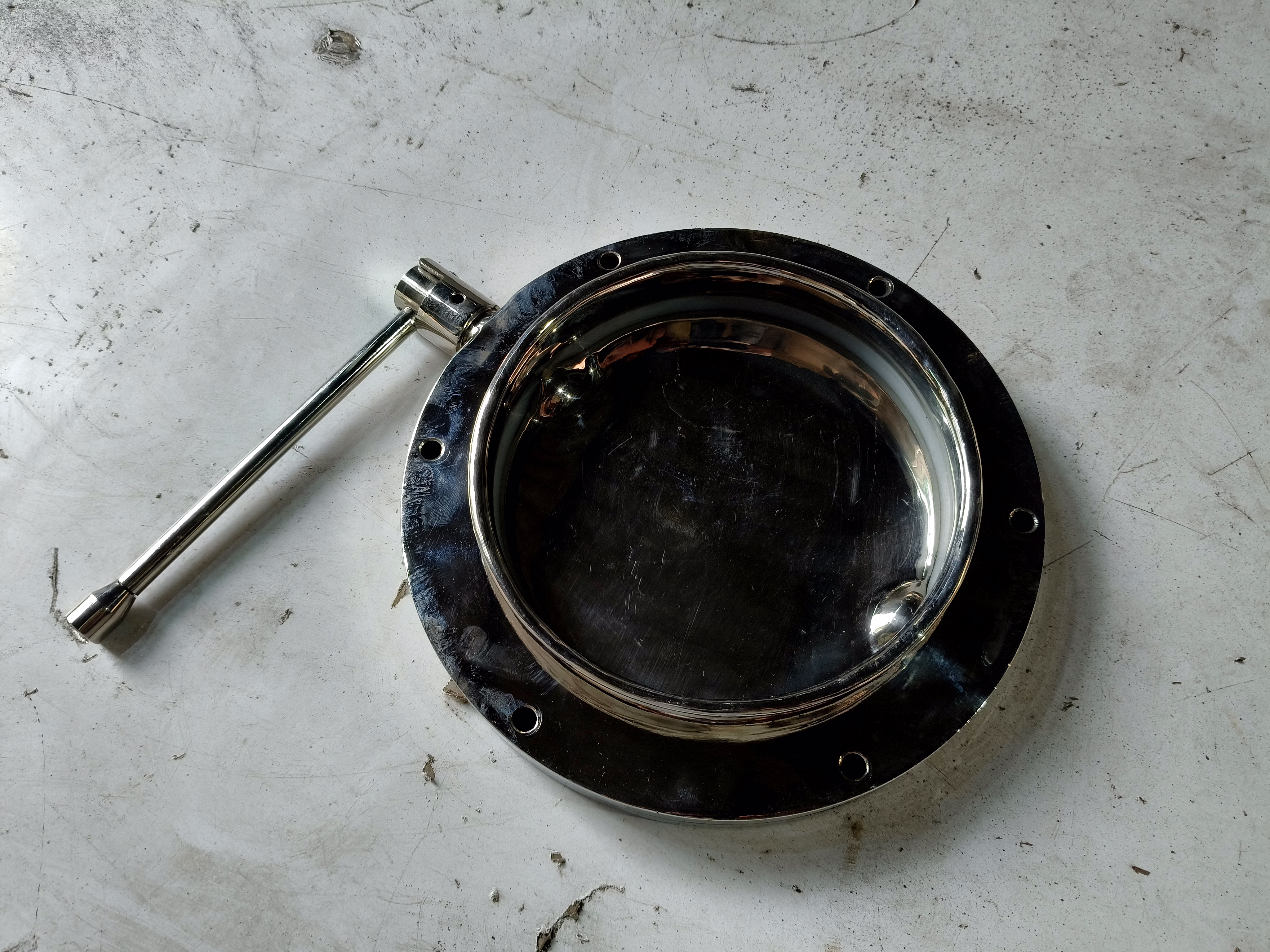

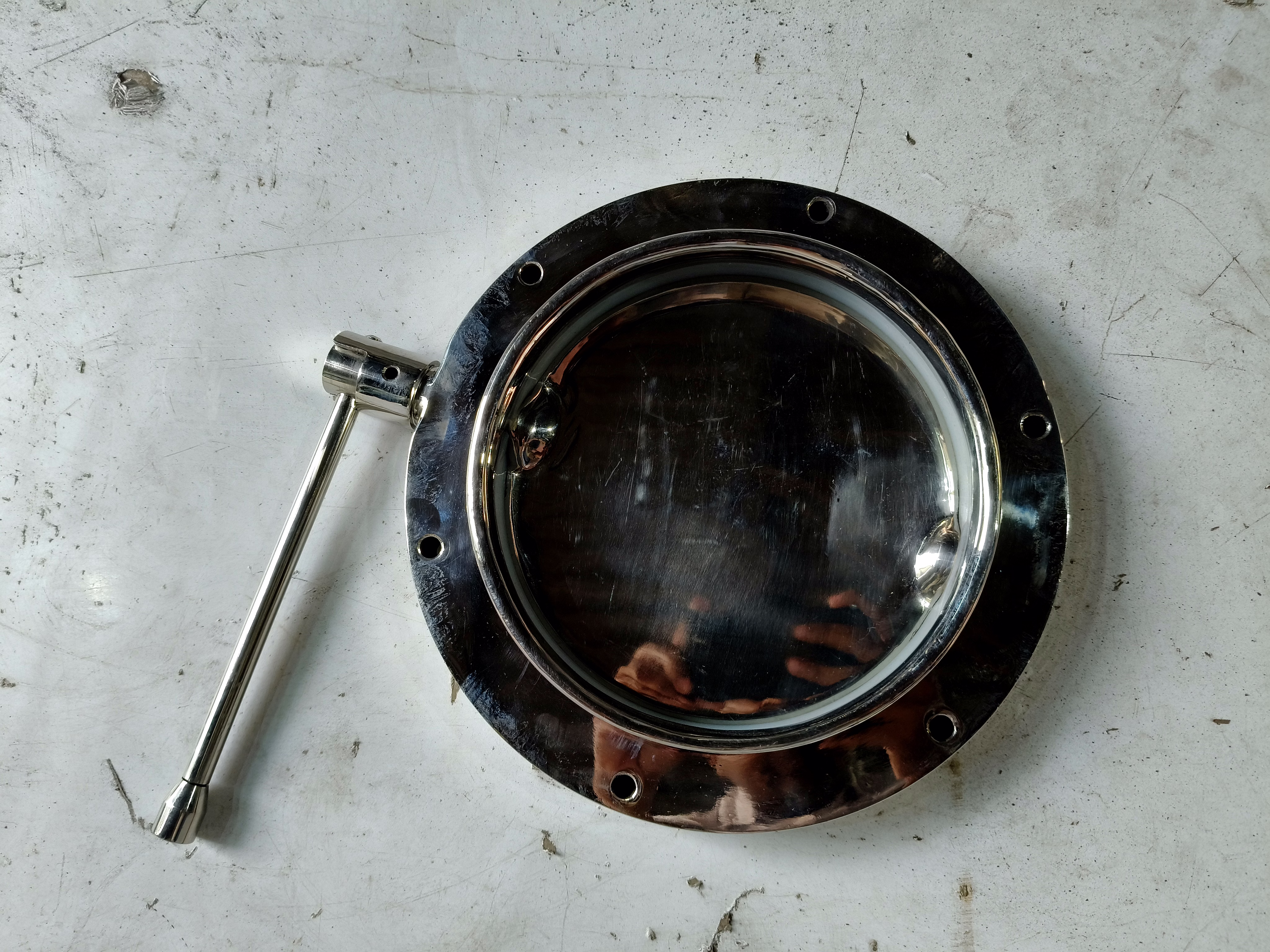

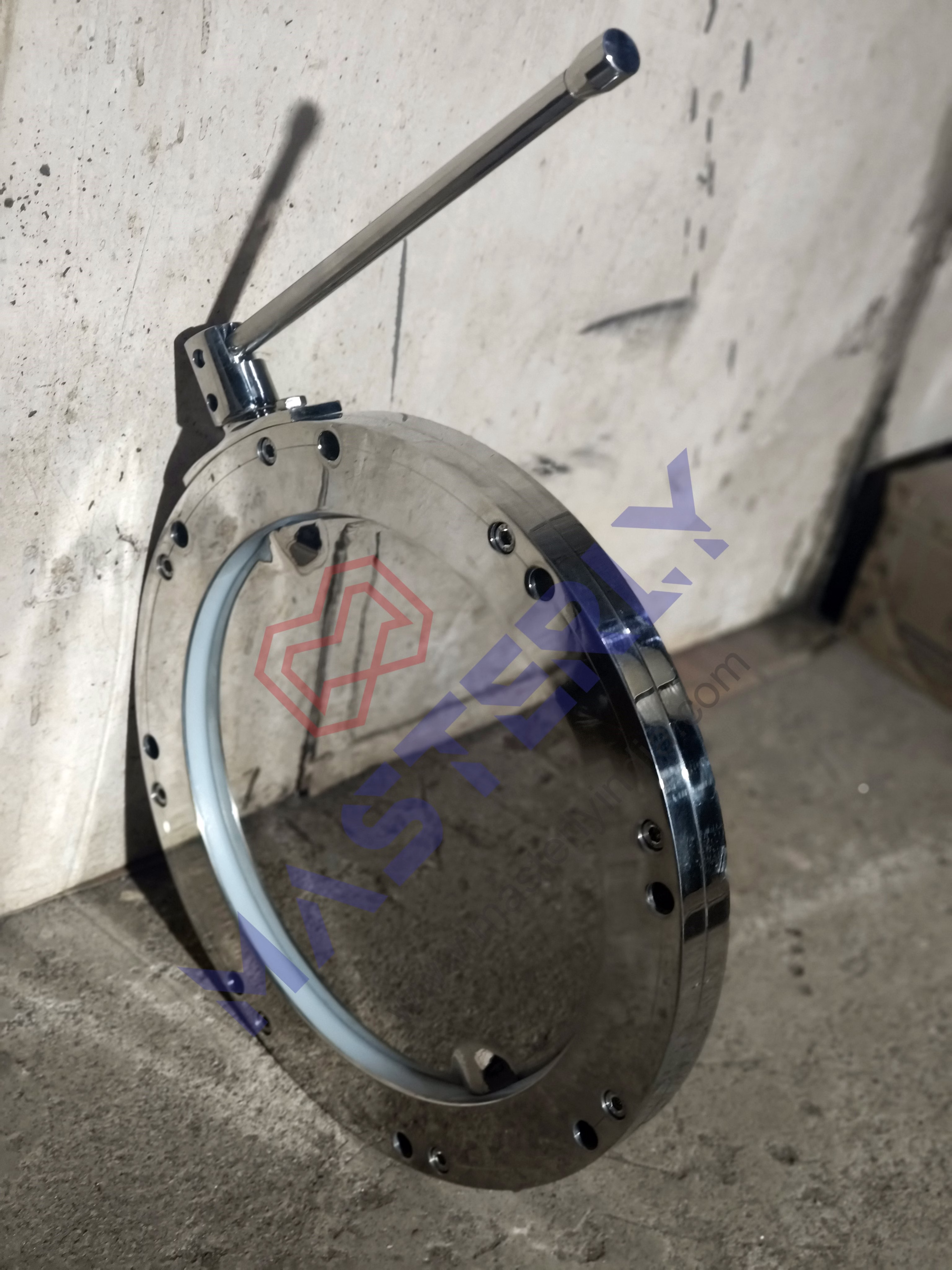

The SS304 Sandwich Type Butterfly Valve with a 6-inch diameter is a precision-engineered wafer-style flow control valve designed for seamless integration between pipeline flanges. Manufactured with premium SS304 stainless steel, this valve features a robust disc and slim valve body that rotates 90° to regulate flow efficiently. Its sandwich-style construction eliminates the need for separate flange ends, making installation fast and straightforward. Equipped with a sealing liner made from durable materials such as PTFE, rubber, or elastomers, it ensures leak-proof performance even in demanding environments. Ideal for industries such as pharmaceuticals, food and dairy, chemicals, and water treatment, this valve provides hygienic, corrosion-resistant, and cost-effective flow control. The handle or actuator enables manual or automated operation, allowing precise control for on/off and throttling uses. Its compact design saves space while delivering reliable service in pipelines requiring 6-inch nominal diameter valves.
Key Features
| Features | Description |
|---|---|
| Material | SS304 Stainless Steel |
| Valve Type | Sandwich (Wafer) Type Butterfly Valve |
| Size | 6 Inch Diameter |
| Disc Rotation | 90° quarter-turn operation |
| Sealing | Leak-proof liner (PTFE/Rubber/Elastomer) |
| Installation | Designed to mount between pipeline flanges without flange ends |
| Operation | Manual handle or actuator operated |
| Applications | Pharmaceutical, Food & Dairy, Chemical, Water Treatment, HVAC |
| Design | Compact, lightweight wafer-style body |
| Flow Control | Suitable for on/off and throttling control |
| Attributes | Description |
|---|---|
| Nominal Diameter | 6 Inches |
| Body Material | SS304 Stainless Steel |
| Disc Material | SS304 Stainless Steel |
| Seat Material | PTFE, Rubber or Elastomer options |
| Pressure Rating | Industry Standard (consult specific pressure ratings) |
| Temperature Range | -20°C to 180°C (depending on seat material) |
| Connection Type | Wafer type, fits between flanges |
| Operation Mode | Manual or Automated actuator option |
| Weight | Lightweight for easy installation |
| Standards Compliance | Meets sanitary and industrial standards for pharmaceutical and food industries |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
Yes, with its SS304 stainless steel body and a suitable sealing liner like PTFE, this butterfly valve is corrosion resistant and ideal for handling various corrosive chemicals in industrial applications.
Absolutely, the SS304 material along with the sandwich wafer design ensures hygienic conditions and easy cleaning, meeting the strict standards required in food and pharmaceutical industries.
The wafer-style design allows the valve to be installed directly between two pipeline flanges like a sandwich, eliminating the need for additional flange ends and saving space and installation time.
The valve can be operated manually via a handle or automated using actuators, offering flexible control options for different industrial setups.
This valve supports both on/off and throttling control applications by positioning the disc at various angles to regulate flow precisely.
Country Of Origin: India
A Sandwich Type Butterfly Valve is a compact, lightweight flow control valve widely used in pharmaceutical, food, chemical, and water industries.
It is called “sandwich type” because the valve body is designed to be mounted between two pipeline flanges (like a sandwich), without the need for separate flange ends.
🔹 Construction
Disc (Butterfly Plate): Rotates 90° to open or close the flow.
Valve Body: Slim, wafer-style body that fits between flanges.
Seat (Sealing Liner): Provides leak-proof sealing (often made of rubber, PTFE, or elastomers).
Stem & Handle / Actuator: Used to rotate the disc manually or automatically.
🔹 Working Principle
When the disc is parallel to the flow → valve is fully open, allowing maximum flow.
When the disc is perpendicular to the flow → valve is closed, blocking flow.
A Sandwich Type Butterfly Valve is a compact, lightweight flow control valve widely used in pharmaceutical, food, chemical, and water industries.
It is called “sandwich type” because the valve body is designed to be mounted between two pipeline flanges (like a sandwich), without the need for separate flange ends.
🔹 Construction
Disc (Butterfly Plate): Rotates 90° to open or close the flow.
Valve Body: Slim, wafer-style body that fits between flanges.
Seat (Sealing Liner): Provides leak-proof sealing (often made of rubber, PTFE, or elastomers).
Stem & Handle / Actuator: Used to rotate the disc manually or automatically.
🔹 Working Principle
When the disc is parallel to the flow → valve is fully open, allowing maximum flow.
When the disc is perpendicular to the flow → valve is closed, blocking flow.
The disc can also be positioned at various angles for throttling/control.
🔹 Uses of Sandwich Type Butterfly Valve
Pharmaceutical Industry – controlling powder or granule flow in processing lines.
Food & Dairy Industry – hygienic handling of liquids, milk, beverages.
Chemical Industry – corrosive liquid/gas handling.
Water Treatment – regulating water flow.
HVAC Systems – air/gas flow control.
🔹 Advantages
Compact, lightweight design.
Easy to install between flanges (no need for large space).
Cost-effective compared to other valves.
Quick operation (quarter-turn).
Suitable for both on/off and flow control applications.
