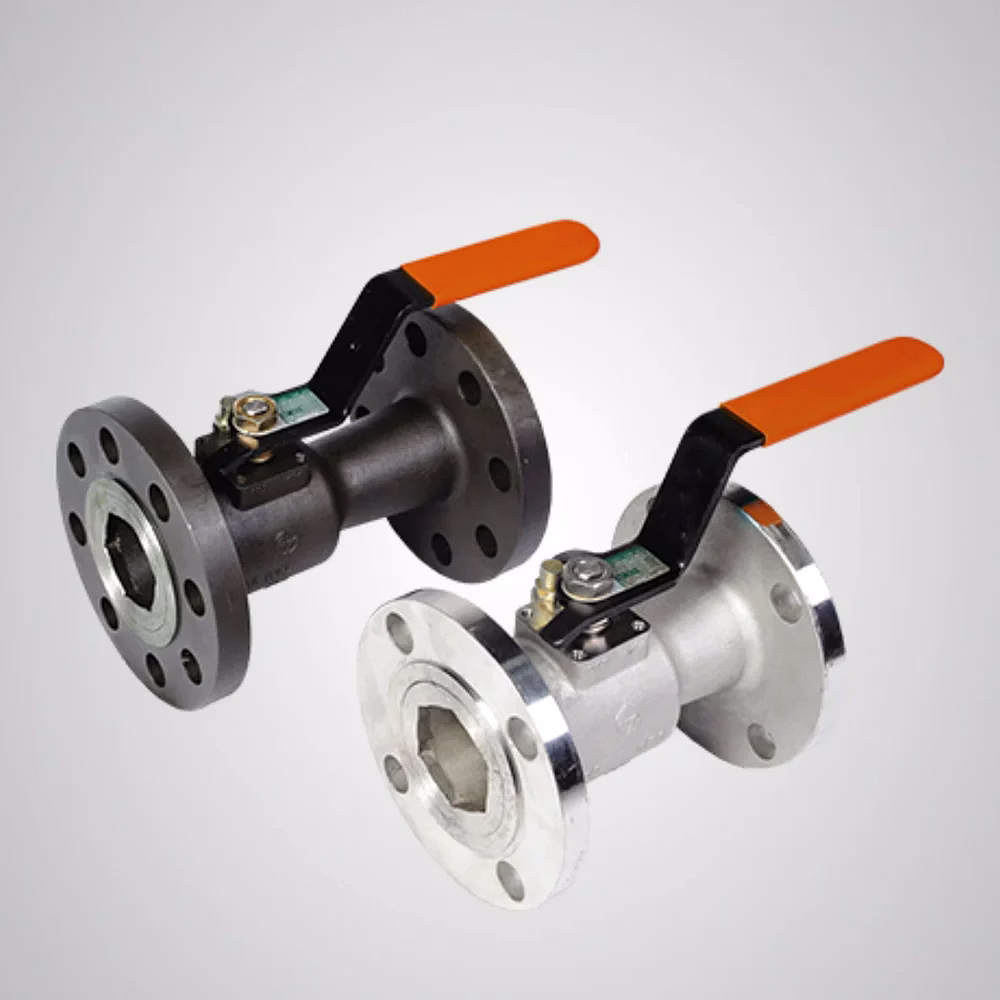

Floating Ball Valve – Threaded and Flanged High-Integrity Valve

Floating Ball Valves are high-performance isolation units designed for low-to-medium pressure industrial pipelines requiring bubble-tight shut-off. Utilizing a free-floating spherical sealing element supported between two resilient seat rings, the architecture enables self-alignment within the seat to minimize leakage paths under variable pressure drops. The design features multiple end-connection options and non-intrusive maintenance access to simplify in-situ seat replacement. Prepared for large-volume deployment, valves are supplied with serialized quality inspection reports and hydrostatic test certificates. Supply-readiness is managed through lot-based verification of seat-to-ball tolerances and operating torque, addressing the requirements of facility engineers seeking standardized valve fleets with documented performance for institutional asset registration and maintenance accounting. Packaging utilizes palletized crates with corrosion-inhibiting wraps for extended transit security.

Key Features

• Self-aligning floating geometry → ensures that the ball is pushed against the downstream seat by the process pressure, creating a high-integrity seal with minimal mechanical force.
• Multiple end-connection standards → features threaded, socket-weld, and flanged options to ensure mechanical compatibility with global industrial piping specifications.
• In-situ maintenance design → utilize an accessible body architecture to allow for rapid seat and seal replacement without full valve removal from the pipeline.

Technical Attributes

• Seal Materials: PTFE / Elastomer → selection parameter based on fluid chemistry, temperature limits, and required leakage class.
• Body Metallurgy: Carbon / Stainless Steel → selection driven by the process corrosion profile and site atmospheric conditions.
• Pressure Rating: Model-specific → selection parameter defining the maximum operating pressure and Identifying the required flange class.
• Automation Ready: Standard Coupling → features integrated mounting pads to facilitate the installation of standardized quarter-turn actuators.

Valve Structure and Sealing Logic of Floating Ball Assemblies

The technical framework of the Floating Ball Valve utilize a precision-machined ball constrained between two elastomeric or thermoplastic seat rings. The structural reasoning for the "floating" element is to utilize the process pressure as a sealing force—as upstream pressure increases, the ball moves slightly downstream to increase the compression on the seat face. measurement physics rely on the dimensional integrity of the spherical element; a failure in the ball surface—due to localized cavitation or chemical etching—leads to "seat scratching" and a loss of bubble-tight shut-off. This failure mode decommissions the valve's isolation rating and can result in process contamination in pharmaceutical or chemical lines. Quality consistency is managed through serialized dimensional inspections and factory seat leakage tests (typically API 598). failure to management the "stem-to-ball engagement"—due to excessive torque—results in stem shearing, effectively decommissioning the isolation point and leaving the valve stuck in an unmonitored position.

Functional Performance and Operational Efficiency in Service Lines

Operational efficiency is achieved through the valve’s low-torque design and 90-degree actuation, allowing for rapid cycle rates and reduced energy draw from pneumatic systems. functional performance centers on the unit’s thermal stability; in real operational scenarios, a failure to manage "thermal expansion" in the cavity leads to seat extrusion—a failure mode that decommissions the valve’s lifecycle. The floating design utilize pressure-equalizing vents or resilient seats to mitigate this risk. if the valve is subjected to moderate particulate content, the wiping action of the seat rings prevents solids from entering the cavity. if the stem seal is breached—due to high-frequency operation—localized leakage occurs; the unit utilize adjustable gland packings to allow for field maintenance without system shutdown. By providing a clean and reliable isolation point, the valve improves the overall reliability of the utility or process node, providing the technical transparency required for institutional asset registration and facility audits.

Institutional Deployment and Logistical Readiness for Fleet Supply

Designed for general service pipelines in manufacturing plants, HVAC systems, and utility distribution, the Floating Ball Valve is configured for the logistical requirements of project-scale procurement. Units ship in palletized crates with corrosion-inhibiting wraps (VCI) to protect the machined seat surfaces from oxidation during maritime transport. Failure to implement finish-protected packaging results in "post-pitting" on the ball surface, which destroys the seats upon first actuation. For international procurement, supply-readiness is supported through lot-specific test certificates and material trace records (EN 10204 3.1). Export-ready documentation include unit-level inspection logs and material safety data sheets (MSDS) provided with each consignment. Packaging utilize rigid internal bracing to prevent mechanical damage to the lever or mounting pads during transport. OEM labeling and private-label production are supported, allowing facility managers to standardize their appearance across global portfolios. This high-authority approach ensure procurement teams receive verified energy assets that meet the safety and performance standards of global markets, providing the transparency required for large-scale instrumentation tracking.
