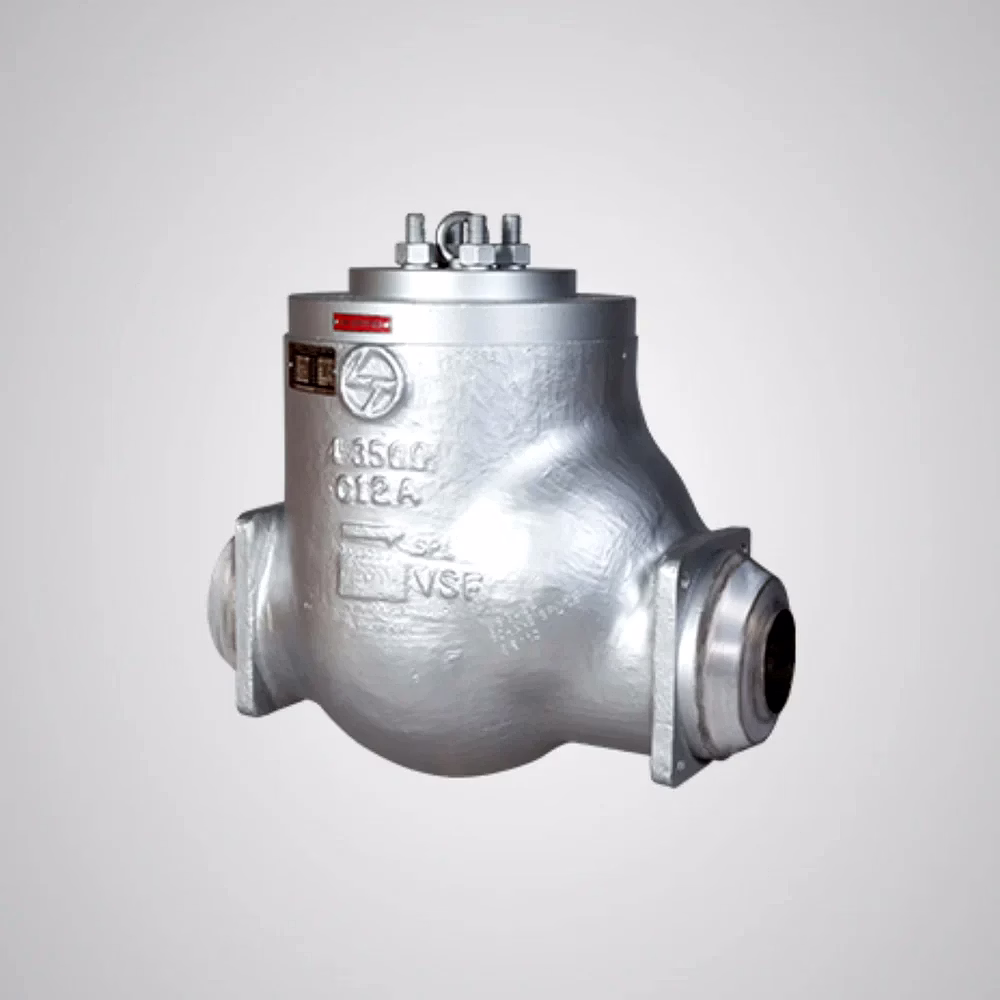

Stainless Steel Check Valve – Pressure-seal, Size: 3" To 42"

Stainless Steel Check Valves (pressure-seal) are high-integrity backflow prevention units engineered for unidirectional flow control across an extensive 3" to 42" size range. utilizing a self-tightening pressure-seal bonnet and full stainless steel body construction, the unit architecture delivers superior seal integrity at elevated pressures and thermal cycling. The design features selectable disc types (swing, piston, or lift) to balance pressure drop with closure speed in mainline and utility applications. Delivered with batch inspection reports and hydrostatic test certificates, units ensure supply-readiness for large-scale procurement validation. Packaging utilizes timber-braced crates and anti-corrosion wrapping for extended transit. This component is essential for facilities requiring robust backflow protection in pump discharge lines and high-pressure steam headers with documented compliance for institutional maintenance audits and asset tracking.

Key Features

• Pressure-seal bonnet design → utilize internal process pressure to increase gasket loading, providing an enhanced seal that prevents external leakage in high-pressure steam and process lines.
• Wide Size range (3" to 42") → provides a standardized energy solution for both localized piping and facility-level mains distribution, effectively simplifying plant standardization projects.
• Selective disc geometry → features swing, piston, or lift disc variants to match specific hydrodynamic requirements for closure speed and allowable pressure loss.

Technical Attributes

• Wetted Materials: Stainless Steel (316/316L) → selection parameter for ensuring corrosion resistance in wet process environments and enabling sanitary cleaning.
• Bore Configuration: Full / Reduced → selection parameter defining the allowable pressure drop and identifying the suitability for pigging or high-velocity flows.
• Mounting: Flanged / Butt-weld → determines the permanent mechanical integration method and defines the service accessibility for internal inspections.
• Traceability: FAT reports per lot → provided to support procurement acceptance and institutional energy infrastructure registration.

Design, Materials and Sealing Behavior of Pressure-Seal Check Valves

The technical framework of the Stainless Steel Check Valves - Pressure-seal utilize a high-mass body architecture combined with a pressure-assisted bonnet joint. The structural reasoning for the pressure-seal joint is to eliminate the "bolting relaxation" that commonly decommissions standard flanged bonnets during high-temperature thermal cycling. measurement physics rely on the differential pressure across the disc to initiate closure; a failure in the disc pivot—due to localized erosion or particulate jamming—leads to "valve hang," manifesting as reverse flow and potential downstream pump damage. This failure mode decommissions the safety integrity of the entire process loop. Quality consistency is managed through serialized dimensional checks of the seat-to-disc interface and factory hydrostatic testing documented in the FAT report. The internal layout utilize high-grade stainless steel wetted parts to prevent "galvanic pitting" between the seat and the body, ensuring a leak-tight seal for the life of the asset. failure to management the "closure slamming"—due to incorrect disc selection—results in "water hammer" events, effectively decommissioning the structural integrity of the adjacent piping.

Functional Performance and Operational Efficiency in Mainlines

Operational efficiency is achieved through the valve’s full-bore design, which minimizes flow restriction and reduces the facility’s pumping energy overhead. functional performance centers on the unit’s support for rapid backflow prevention; in real operational scenarios, a failure in the "non-slam" mechanism (if fitted) leads to vibration-induced stress on the pipe supports. The pressure-seal series utilize optimized disc masses and damping systems to mitigate this risk. if the valve is subjected to high-frequency flow reversals—common in boiler feed systems—the integrated seat inserts prevent "wiredrawing" of the seal face. The unit supports predictive maintenance strategies via its accessible bonnet; facility managers can inspect internal wear during planned shutdowns without cutting the valve from the line—effectively lowering the mean time to repair (MTTR). if the valve detects a breach of seat integrity during periodic safety audits, the serialized documentation allow for targeted internal component replacement. By providing a clean and reliable backflow barrier, the valve improves the overall reliability of the manufacturing or utility node.

Institutional Deployment and Logistical Readiness for Heavy Systems

Designed for mainline isolation and pump discharge protection, the Pressure-seal Check Valve is configured for the logistical requirements of multimodal procurement. Units ship in reinforced timber crates with internal rigid bracing to manage the high mass (especially for 42" units) and prevent mechanical shock during transit. Failure to implement shock-mitigating packaging can lead to "seat misalignment" or cracked pivot pins, which decommissioning the valve's functionality upon arrival. For international procurement, supply-readiness is supported by lot-specific test certificates and material trace records (EN 10204 3.1). Export-ready documentation include unit configuration snapshots and certificates of conformity to facilitate customs review and institutional asset registration. Packaging utilize moisture-barrier covers and desiccants to prevent terminal oxidation during maritime freight. OEM private-label branding and spare-part kits are available, allowing for branded instrumentation suites with serialized records. This high-authority approach ensure procurement teams receive verified hardware that meet the performance and safety requirements of global manufactured utility markets.
