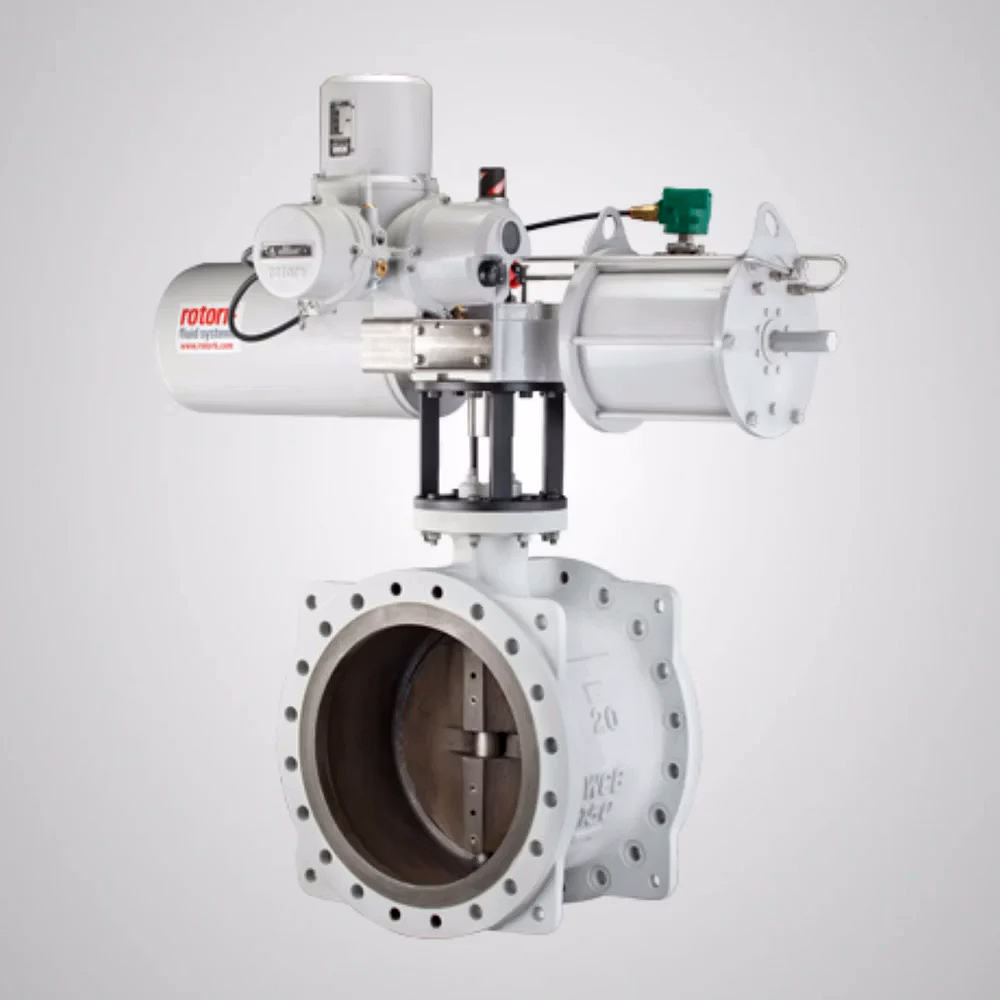

Triple-offset Butterfly Valve – Metal-Seated Torque-Seated Valve

Triple-offset Butterfly Valves are high-integrity process valves engineered for bi-directional, bubble-tight shut-off in extreme temperature and high-pressure environments. Utilizing a unique conical seating geometry and an offset disc axis, the unit architecture minimizes friction during actuation, significantly extending the service life of the metal-to-metal seals. Designed for high-cycle industrial loops and steam service, these valves eliminate the requirement for resilient polymer seats. Units are manufactured for project-scale procurement, shipping in reinforced crates with protective surface coatings. Supply-readiness is managed through per-unit seat leakage tests and material traceability, addressing the requirements of facility managers seeking durable, maintenance-minimized isolation points for critical energy infrastructure with documented safety compliance.

Key Features

• Triple-offset seating geometry → creates a non-rubbing, cam-like action that ensures the disc only contacts the seat at the final point of closure, reducing mechanical wear.
• Metal-to-metal torque seating → provides fire-safe, high-integrity isolation for volatile fluids where traditional elastomeric or PTFE seats would decommissioning.
• Standardized automation interface → features integrated ISO mounting pads to simplify the installation of high-torque pneumatic or electric actuators for remote process control.

Technical Attributes

• Materials: Hard-faced Alloys → selection parameter based on the abrasive nature and temperature (up to 600°C) of the process media.
• Sealing Class: Bubble-tight (API 598) → defines the measurement of shut-off integrity for environmental and safety-critical isolation.
• Face-to-Face: Standardized (ISO/ANSI) → ensures mechanical compatibility for retrofits and new-build piping systems.
• Logistics: Reinforced Timber Crating → ensures structural and finish integrity during heavy-lift multimodal transport.

Seat Geometry and Mechanical Rationale of Triple-Offset Systems

The technical framework of the Triple-offset Butterfly Valves utilizes three distinct offsets: the shaft is offset from the center of the disc (1), the shaft is offset from the pipe centerline (2), and the seat cone axis is offset from the shaft centerline (3). The structural reasoning for this complex geometry is to achieve "frictionless engagement"—the disc moves like a cam into the seat. measurement physics rely on the torque applied to the shaft to create the sealing force; a failure in the actuator sizing—due to underestimated "breakaway torque"—leads to incomplete closure and localized high-velocity "wiredrawing" erosion. This failure mode decommissions the seat integrity within hours and can result in uncontrollable process leakage. Quality consistency is managed through serialized dimensional checks of the conical profile. Failure to manage the "disc-to-seat alignment"—due to bearing wear—results in uneven contact pressure, effectively decommissioning the valve's bubble-tight rating. The internal layout utilizes stellite or similar hard-facing on the wetted edges to resist the scouring effects of high-pressure steam and hydrocarbons.

Functional Performance and Operational Efficiency in High-Temperature Service

Operational efficiency is achieved through the valve’s low operating torque compared to gate or globe valves, allowing for smaller, more energy-efficient actuators. Functional performance centers on the unit’s thermal stability; in real operational scenarios, a failure to manage "differential thermal expansion" in standard valves leads to jamming. The triple-offset design utilize a flexible metal seal ring that compensates for temperature fluctuations. if the stem seal is breached—due to high-frequency cycling—the integrated live-loaded packing system maintains the pressure boundary. To mitigate the risk of fugitive emissions, the unit utilizes specialized graphite-based seals. If the unit detects a loss of seal integrity during periodic pressure testing, the modular seat design allow for field refurbishment. By providing a reliable and fire-safe isolation point, the valve improves the overall reliability of the refinery or power plant node, providing the technical transparency required for institutional asset registration and safety audits.

Institutional Deployment and Logistical Readiness for Global Logistics

Designed for upstream and downstream process lines, high-temperature steam, and chemical storage, the Triple-offset Butterfly Valve is configured for the logistical requirements of multimodal procurement. Units ship in reinforced timber crates with center-of-gravity restraints to protect the sensitive disc edges and mounting pads from impact. Failure to implement shock-mitigating packaging can lead to "shaft racking," resulting in seat misalignment upon site commissioning. For international procurement, supply-readiness is supported by lot-specific test certificates and material declarations (EN 10204 3.1). Export-ready documentation include unit configuration snapshots and material safety data sheets (MSDS) to facilitate customs review and institutional asset registration. Packaging utilize VCI (Volatile Corrosion Inhibitor) wrapping to prevent oxidation of the machined surfaces during maritime logistics. OEM branding and private-label programs are supported for facility operators seeking fleet standardization across global portfolios. This high-authority approach ensures procurement teams receive verified hardware that meet the performance and safety requirements of global manufacturing markets.
