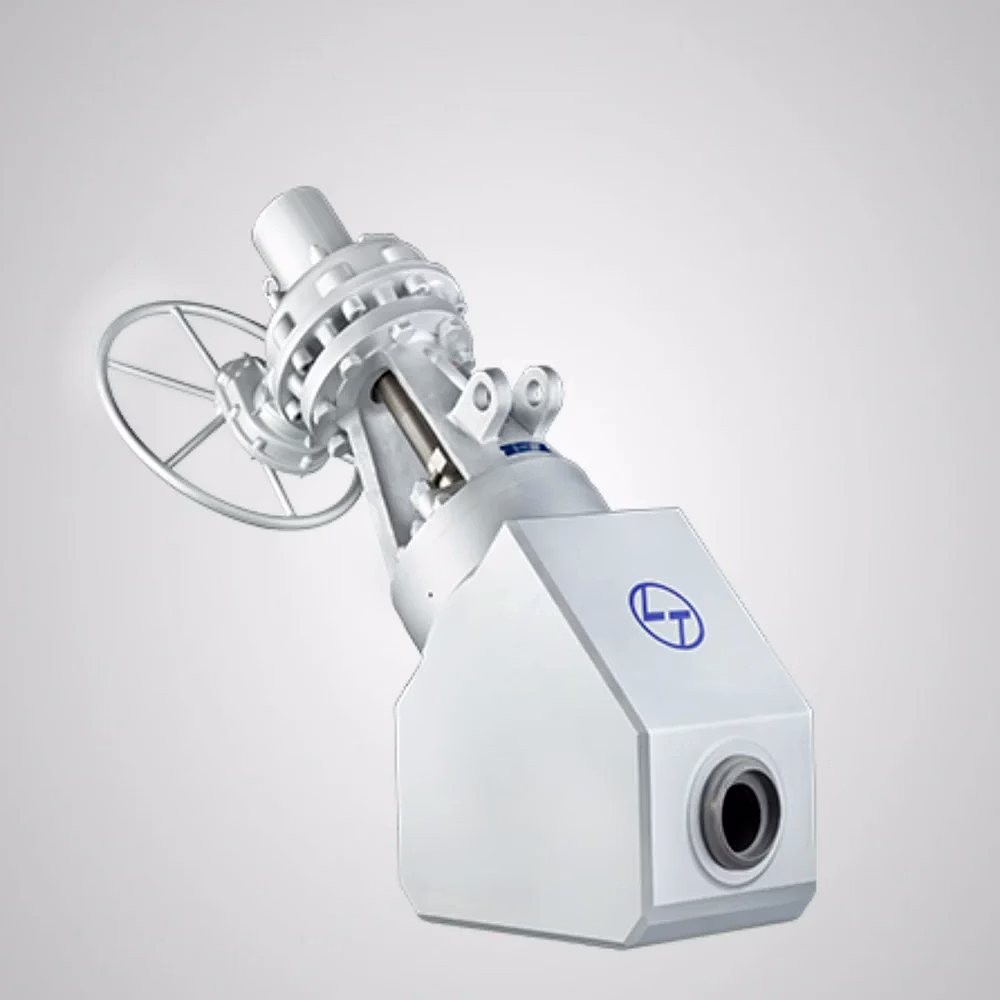

Stainless Steel Globe Valve – Pressure-seal, Size: 3" To 18"

Stainless Steel Globe Valves in pressure-seal construction are high-integrity control and isolation units engineered for extreme thermal and pressure cycling. Utilizing a pressure-assisted bonnet design and corrosion-resistant 316L metallurgy, the architecture ensures absolute seat integrity under varying loads in steam and chemical systems. The design features selectable cage or plug trim styles to provide precise throttling and shut-off capability across the 3" to 18" size range. Units ship with documented inspection reports and hydrostatic test certificates, ensuring supply-readiness for procurement and site acceptance. Packaging utilizes reinforced crates and corrosion-inhibiting wraps for extended warehousing. This component is essential for facilities requiring high-mass energy regulation with documented compliance for institutional energy management and safety-instrumented system (SIS) interlocks.

Key Features

• Pressure-seal bonnet logic → utilizes internal line pressure to increase gasket compression, providing a self-tightening seal that prevents leakage in high-mass energy systems.
• Stainless steel body and trim → ensures superior resistance to erosion-corrosion in steam and mildly aggressive chemical media, extending the structural lifecycle of the valve.
• Throttling trim versatility → features selectable cage, plug, or globe trim styles to provide predictable flow characteristics and high-resolution process control.

Technical Attributes

• Size Range: 3" to 18" (80–450 mm) → selection parameter for matching large-scale process headers and utility distribution lines.
• Seat Renewal: Field-Replaceable → features modular internal components to facilitate in-place repair and reduce long-term facility maintenance costs.
• Actuation Interface: Manual / Automated → determines compatibility with localized handwheels or facility-wide pneumatic/electric control loops.
• Traceability: EN 10204 3.1 Records → provided per serial number to support site acceptance and institutional asset registration.

Material Integrity and Pressure-Seal Logic of Stainless Globe Valves

The technical framework of the Stainless Steel Globe Valves - Pressure-seal utilize a specialized bonnet arrangement where the sealing gasket is held in a wedge-shaped recess between the body and the bonnet. The structural reasoning for this design is to utilize "internal energy"—as the process pressure rises, the bonnet is pushed upwards, increasing the compression on the gasket. failure to management the "initial bolt torque"—due to improper assembly—leads to localized steam-cutting and gasket erosion during the start-up phase, effectively decommissioning the valve before the process reaches full pressure. measurement physics rely on the mechanical fit of the plug against the seat ring; a failure in the trim alignment—due to thermal expansion cycling—results in "seat dragging" and localized scoring. Quality consistency is managed through serialized dimensional checks and factory pressure tests captures in the FAT report. The internal layout utilize high-grade packing materials and gland arrangements specifically selected to reduce fugitive emissions in volatile hydrocarbon service, a critical standard for environmental compliance.

Functional Performance and Operational Efficiency in Steam Lines

Operational efficiency is achieved through the valve’s high-mass construction and streamlined flow path, which results in minimal pressure drop when fully open. functional performance centers on the unit’s ability to provide high-integrity isolation for maintenance events; in real operational scenarios, a failure in the bypass logic—used to equalize pressure before opening—leads to "pressure locking," where the valve cannot be actuated. To mitigate this, the pressure-seal series utilize integrated bypass systems or flexible wedges. if the stem seal is breached—due to high-temperature packing relaxation—localized leakage occur; the unit utilize live-loaded gland systems to maintain seal integrity without manual intervention. maintenance procedures focus on the renewable seat inserts, effectively lowering the mean time to repair (MTTR) by enabling in-place refurbishment. If the valve detects a loss of seal integrity during periodic safety audits, the serialized traceability allow for targeted replacement. By providing a clean and reliable isolation point, the valve improves the reliability of the facility energy core, providing the technical transparency required for institutional maintenance audits.

Institutional Deployment and Logistical Readiness for Heavy Logistics

Designed for high-integrity isolation in utility and hydrocarbon plants, the Pressure-seal Globe Valve is configured for the logistical requirements of global multi-site procurement. Units ship in reinforced timber crates with internal rigid bracing to manage the high mass and prevent mechanical shock during transit. Failure to implement shock-mitigating packaging can lead to "flange distortion" or misaligned stem assemblies, manifesting as operating failure upon site commissioning. For international procurement, supply-readiness is supported through lot-specific test certificates and material trace records (EN 10204 3.1). Export-ready documentation include unit configuration snapshots and material safety data sheets (MSDS) to facilitate customs review and institutional asset registration. Packaging utilize moisture-barrier covers and VCI wrapping to prevent corrosion of the internal seat surfaces during maritime logistics. OEM branding and private-label specification are supported for buyers requiring fleet uniformity. This systematic approach ensures procurement teams receive verified hardware that meet the performance and safety requirements of global manufacturing and energy markets, providing the technical security required for large-scale infrastructure rollouts.
